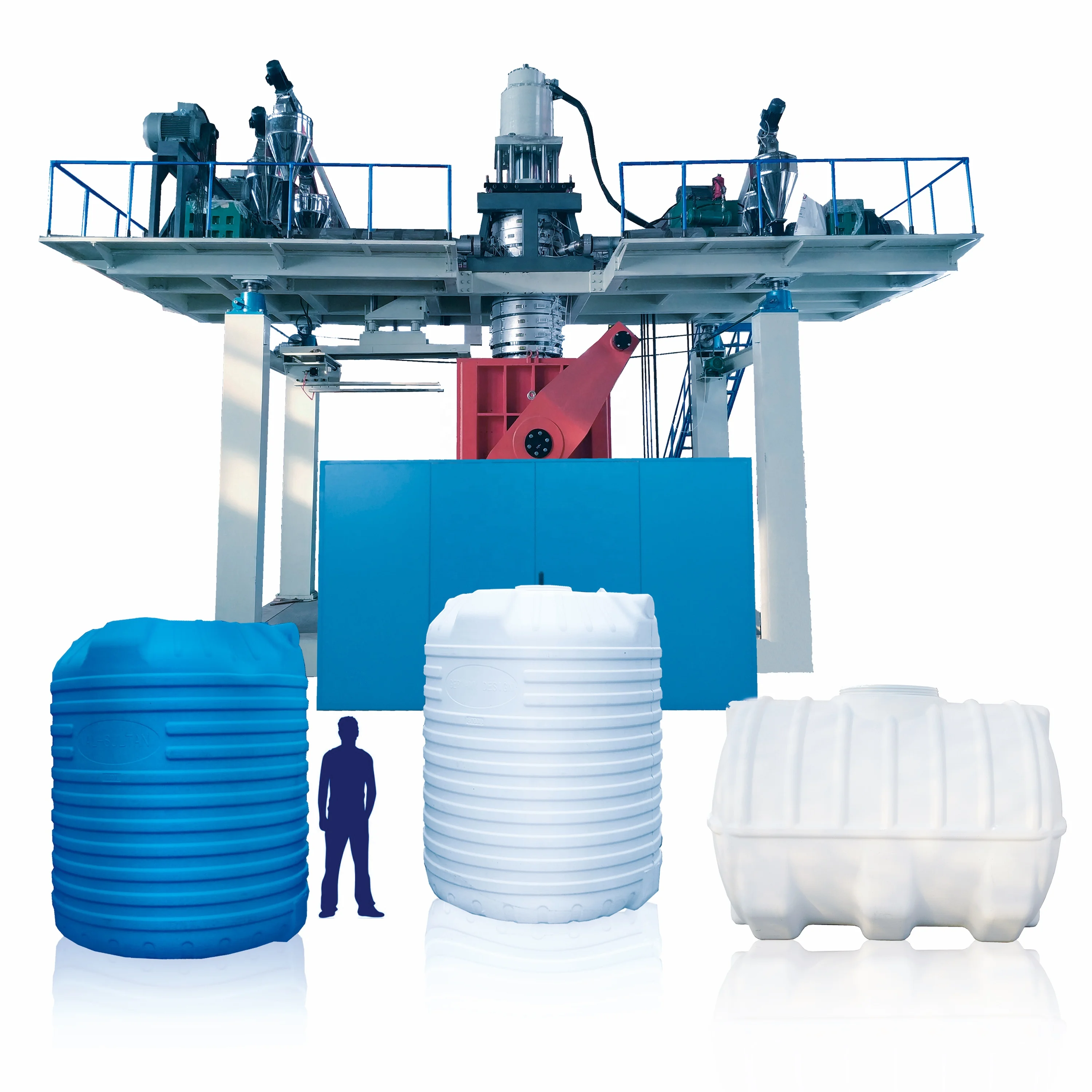

Машина для производства пластиковых резервуаров для воды Juneng
US $35000-$38000
Пластиковая экструзионная машина для выдувного формования резервуар воды 5000l формовочная с
- Категория: Экструзионно-выдувные формовочные машины >>>
- Поставщик: Weifang,Xinhengda,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 535500.69 $* | 562275.94 $* |
| Aug-19-2025 | 531000.56 $* | 557550.31 $* |
| Jul-19-2025 | 445500.78 $* | 467775.90 $* |
| Jun-19-2025 | 522000.77 $* | 548100.21 $* |
| May-19-2025 | 454500.33 $* | 477225.41 $* |
| Apr-19-2025 | 513000.63 $* | 538650.81 $* |
| Mar-19-2025 | 508500.86 $* | 533925.40 $* |
| Feb-19-2025 | 504000.37 $* | 529200.12 $* |
| Jan-19-2025 | 499500.26 $* | 524475.77 $* |
Характеристики
5000 liter 2 layers water tank making machine
The product satisfy GB13508-92, SN04499.2-95 requirement.
Material:HDPE
SKJ 5000L double layers Full automatic Plastic blow molding machine.
Thickness control system : Japanese MOOG 200 points.
Down-shot unit : multifunction.
Automatic pick-off: multifunction.
5000L multi layer plastic blow moulding water tank making machine
The screw adopts IKV design, with high potency melt to make sure the material well mixed.
-Adopt frequency control of motor system to reduce the power consumption.
-Adopt Parison thickness controller Moog 100 points, to make thickness even and adjust the tank weight in big span.
-Fully automatic, easy to operate, two women can operate machine, whole production line need 3 or 4 person only.
-High output versus Roto molding machine
-Save raw material 25% - 35% versus Roto tanks.
-Perfect impact resistance versus Roto tanks.
-Multi layers co-extrusion.
-The mechanical arm can take out the product automatically.
Product Application
Verticaltank, horizontal tank, square tank, garbage can,chemical plastic barrels, septic-tank, road barrels,blow molding toy, toolbox, float, boat, furniture,pallet, combination tank, pressure-vessel, injection cap mold design.
| MAIN PARAMETERS | |||
| MACHINE MODEL | UNIT | XHD 50000-2 | XHD 10000-3 |
| Capacity Range | L | 2000-5000 | 2000-5000 |
| Number of Layers | Layers | 1-2 | 1-3 |
| We can make 1-6 layers. | |||
| Machine Size (L*W*H) | M | 14*5*8 | 14*5*8 |
| Machine Weight | Ton | 75 | 80 |
| Total Power | KW | 474.5 | 567.5 |
| Average Energy Consumption | KW | 320 | 310 |
| Screw Size | MM | 110/110 | 90/90/120 |
| Screw L/D | 30:1 | 30:1 | |
| Screw Output | KG/H | 700 | 700 |
| Screw Motor | KW | 120/120 | 90/90/90 |
| Heating Power | KW | 72 | 94.5 |
| Accumulator | L | 220 | 200 |
| Max Shot Weight | KG | 165 | 150 |
| Max Die Core | MM | 800 | 800 |
| Daylight Between Platens | MM | 1600-4000 | |
| Mold Plate Size | MM | 2250*2250 | |
| Clamping Forces | KN | 2000-3500 | |
| Main Pump Motor Power | KW | 75 | |
| Servo Pump Motor Power | KW | 7.5 | |
| CONFIGURATION | |
| NAME | BRAND |
| LOW-VOTAGE APPRATUS | SIEMENS |
| PNEMATIC | CHINESE TOP BRAND |
| HYDRAULIC COMPONENT | YUKEN |
| SEAL | DICHTOMATIC GERMANY AND TAIWAN BRAND |
| SCREW MOTOR | SIMENS |
| PROXIMITY SWITCH | OMRON |
| PLC | SIMENS |
| TOUCH SCREEN | PROFACE (JAPAN) |
| LINEAR GUIDEWAY | HIVIN TAIWAN OR TAIWAN TBI |
| THICKNESS CONTRAL SYSTEM | MOOG(JAPAN)(200 POINTS) |
| FREQUENCY CONVERTERS | ABB |
| SERVO | DELTA(TAIWAN) |
BIG SIZE BLOW MOLDING MATERIAL
TEST METHOD ASTM D1238, ISO 1133 21.6KG 190℃
MELT FLOW RATE(MFR)
MFR 2-12 SUITABLE BIG SIZE PRODUCT
MFR 2-4 PALLET, 5000L WATER TANK, 10000L WATER TANK
MFR 4-8 1000L-3000L WATER TANK
MFR 8-12 200-2000L WATER TANK
| Detailed Images |
| OUS SERVICES |
Pre-Sales Service | After-Sales Service |
| * Inquiry and consulting support. | * Training how to instal the machine, training how to use |
| * Sample testing support. | the machine. |
| * View our Factory. | * Engineers available to service machinery overseas. |
Weifang Sehenda Machinery Co., LTD is major in plastic machinery and is one of the biggest manufacturer of plastic hollow units. Its main product is plastic machinery. The main products of plastic machinery are automatic hollow plastic unit, pull units, film unit, strapping machine, crusher, extruder. Its annual sales are nearly 100 million yuan. The company focuses on new product development and technological innovation.And the company has developed hollow units of 25L,50L, 125L, 150L, 220L, 500L,1000L,2000L,3000L,5000L in sequence. Supply comprehensive, timely and thoughtfulservice to the whole customers by our service R&D center.Full range of services throughout includes helping clients with early market research, selecting appropriate models, designing plant layout & equipment layout, Determining the auxiliary equipment, selecting and providing appropriate processing technology and product testing, etc.
