Горячая Распродажа Гибридный MPPT солнечный инвертор цена 5.5kw 48V 100A может работать без
- Категория: Solar Inverter >>>
- Поставщик: Foshan,Ouyad,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 370.92 $* | 377.24 $* |
| Jul-17-2025 | 300.62 $* | 306.70 $* |
| Jun-17-2025 | 364.29 $* | 371.47 $* |
| May-17-2025 | 361.2 $* | 368.40 $* |
| Apr-17-2025 | 288.32 $* | 294.53 $* |
| Mar-17-2025 | 355.53 $* | 362.97 $* |
| Feb-17-2025 | 352.27 $* | 359.14 $* |
| Jan-17-2025 | 349.59 $* | 356.73 $* |
Характеристики

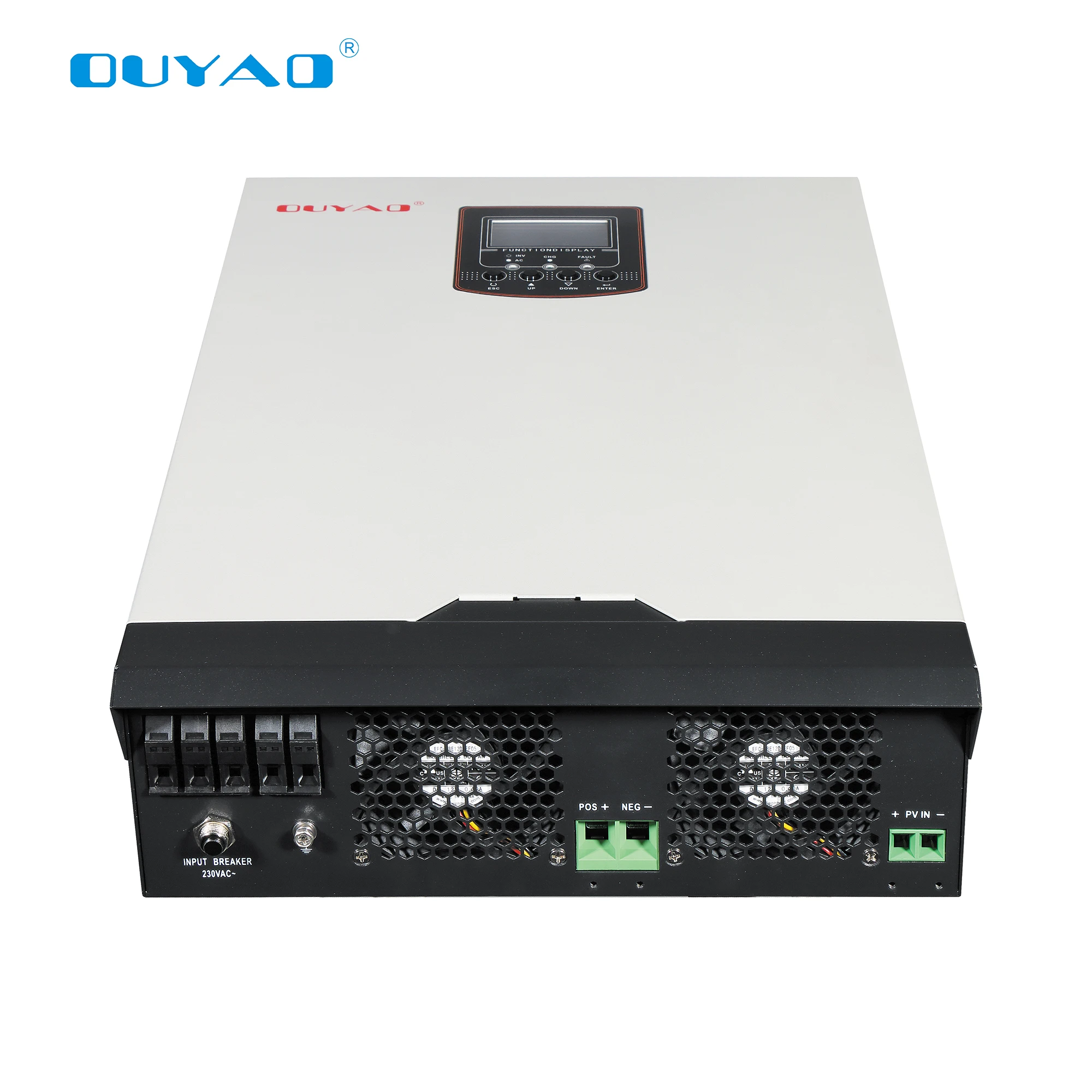

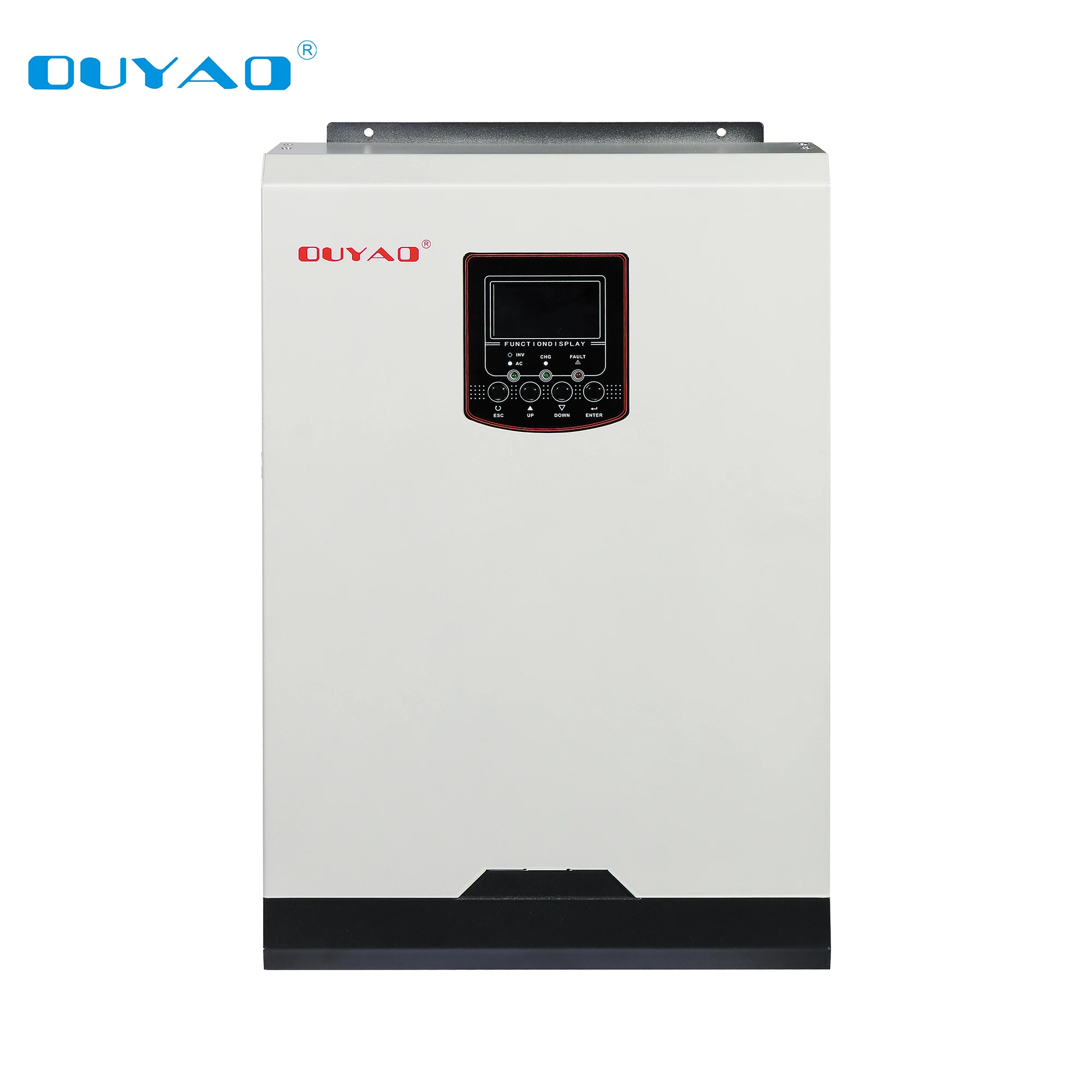

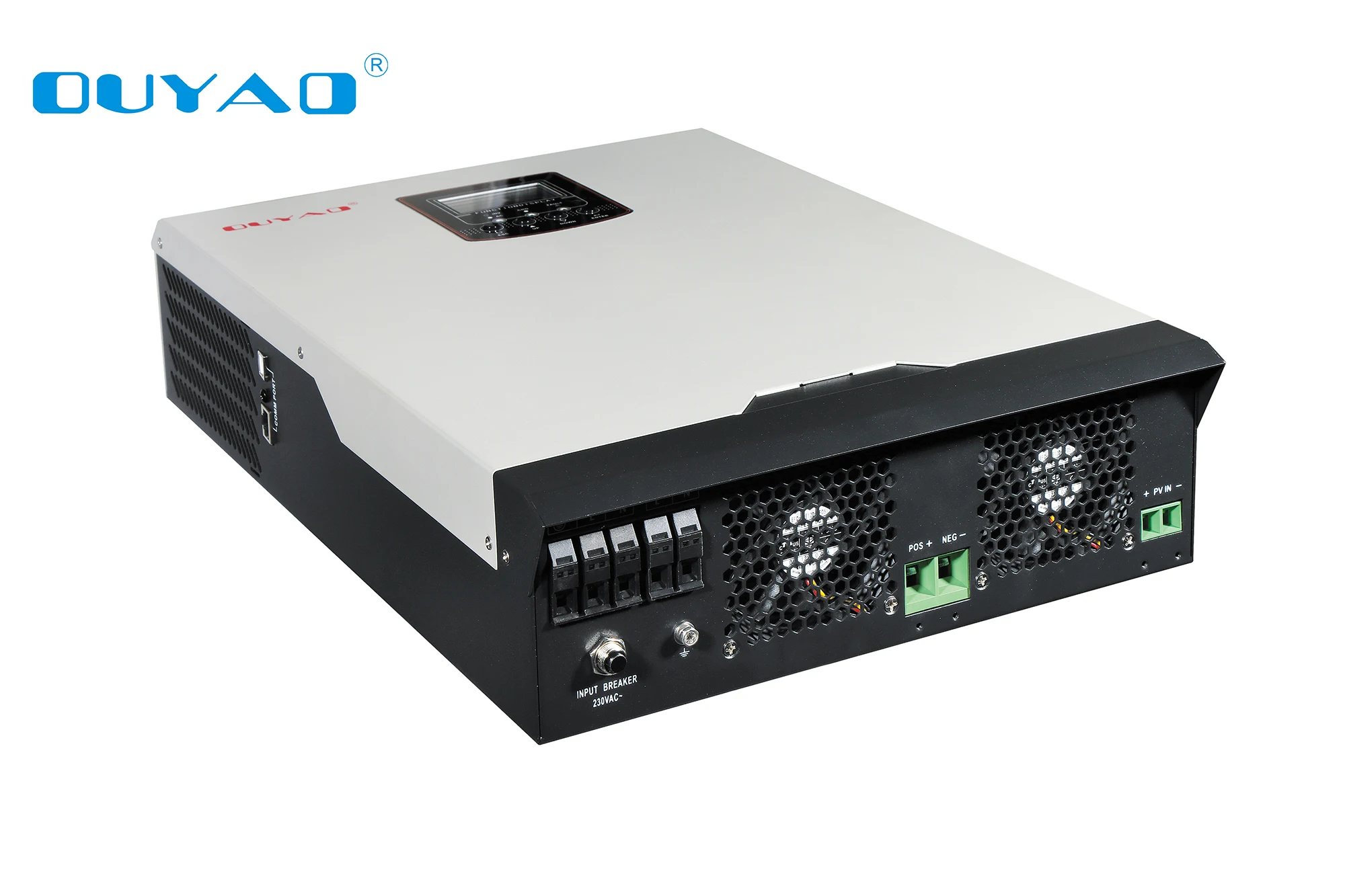

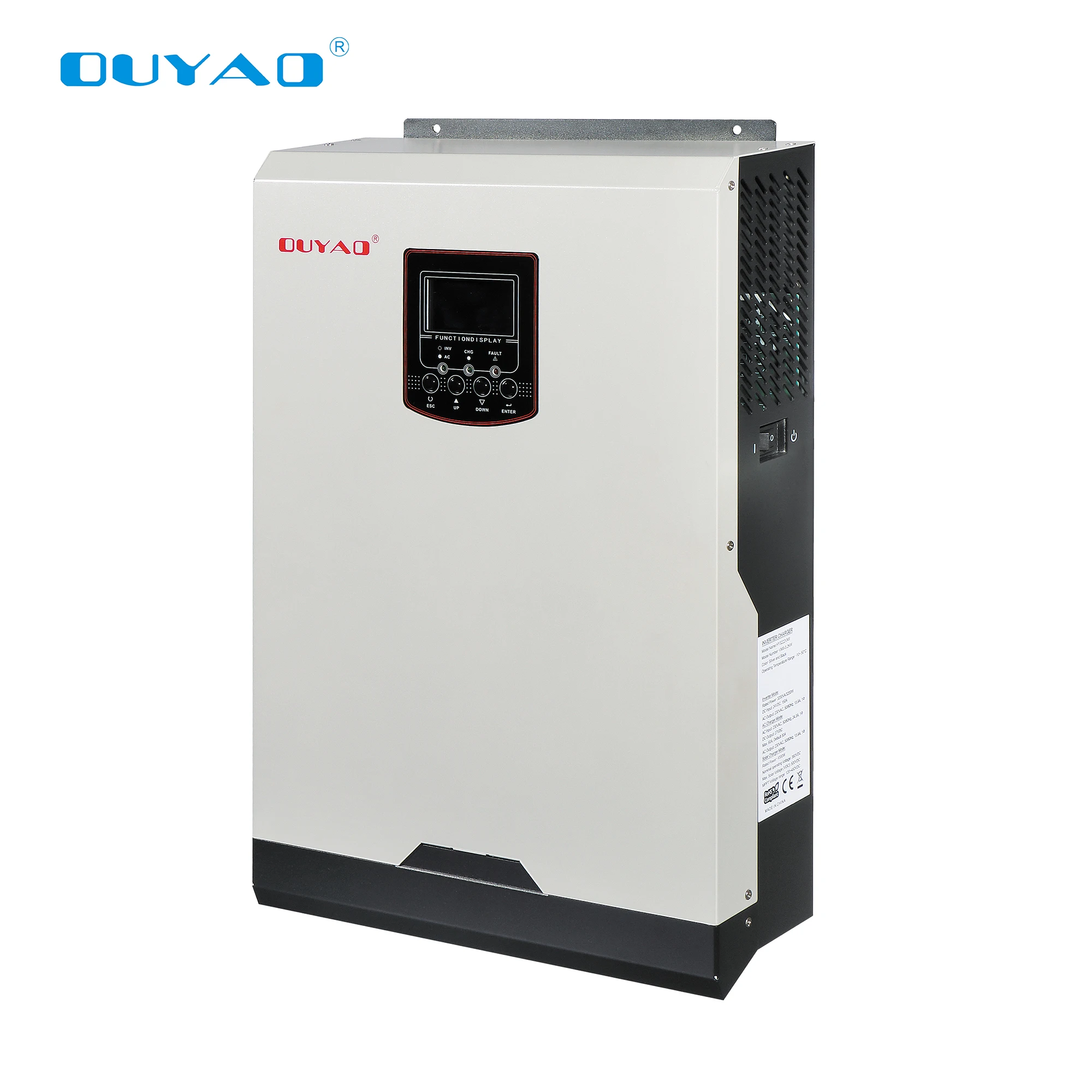

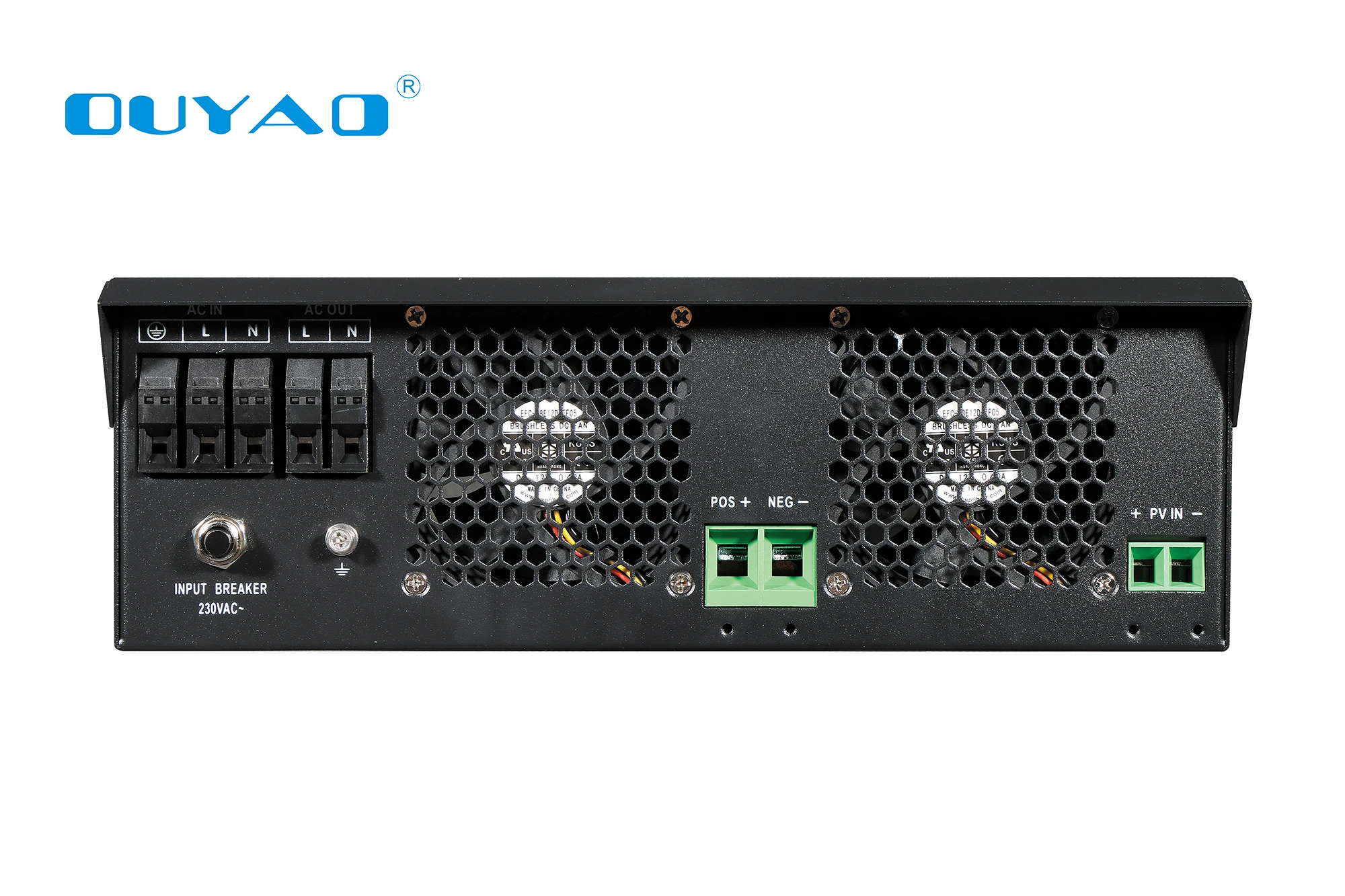

hybrid solar Inverter price 5.5kw 48V 100A can work without battery
Introduction:
VM II SERIES solar inverter is the perfect go-to solution for off-grid, backup power for homes , small business and it also delivers a value added , easy to install system that provides efficient power globally for every need
Features:
* High effciency pure sine wave inverter(PF=1);Wide PV input range (120V dc -500V dc) 80A MPPT SCC; Intelligent 3stage 80A AC battery charger.
* Surges to 2X continuous power for 5 seconds for motor loads.
* Intelligent functionality enables utility and solar input prioritization.
* Wide ulility input range (90Vac-280Vac) for unreliable grid even in the most challenging environments.
* Field serviceable with replacement boards and spare parts.
* Monitor, troubleshoot, or communication with USB/RS 232.
* System configures quickly into compact, wall-mounted system.
Specification:
Model | HY3222VM II | HY5532VM II |
RATED POWER | 3200VA / 3200W | 5500VA / 5500W |
230VAC | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliance) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
Surge Power | 6400VA | 11000VA |
Efficiency (Peak) | 90%~93% | |
Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY | ||
Battery Voltage | 24 VDC | 48 VDC |
Floating Charge Voltage | 27 VDC | 54 VDC |
Overcharge Protection | 32 VDC | 63 VDC |
SOLAR CHARGER & AC CHARGER | ||
Max. PV Array Open Circuit Voltage | 500VDC | 500VDC |
Max. PV Array Power | 4000 W | 5000 W |
MPP Range @operating Voltage | 120~450VDC | 120~450VDC |
Max. Solar Charge Current | 80 A | 100 A |
Max. AC Charge Current | 60 A | 60 A |
Max. Charge Current | 80 A | 100A |
PHYSICAL | ||
Dimension, D x W x H (mm) | 100 x 300x 440 | |
Net Weight(kgs) | 9 | 10 |
Communication Interface | USB/RS232 | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
Operating Temperature | -10° C to 50° C | |
Storage Temperature | -15° C to 60° C | |
Drawing:
Products Detail:
Package:
Project Case:
Customer comments
Production line:
Factory power &Certifications:
FAQ:
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 3days for sample 30pcs; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: Two year warranty
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
