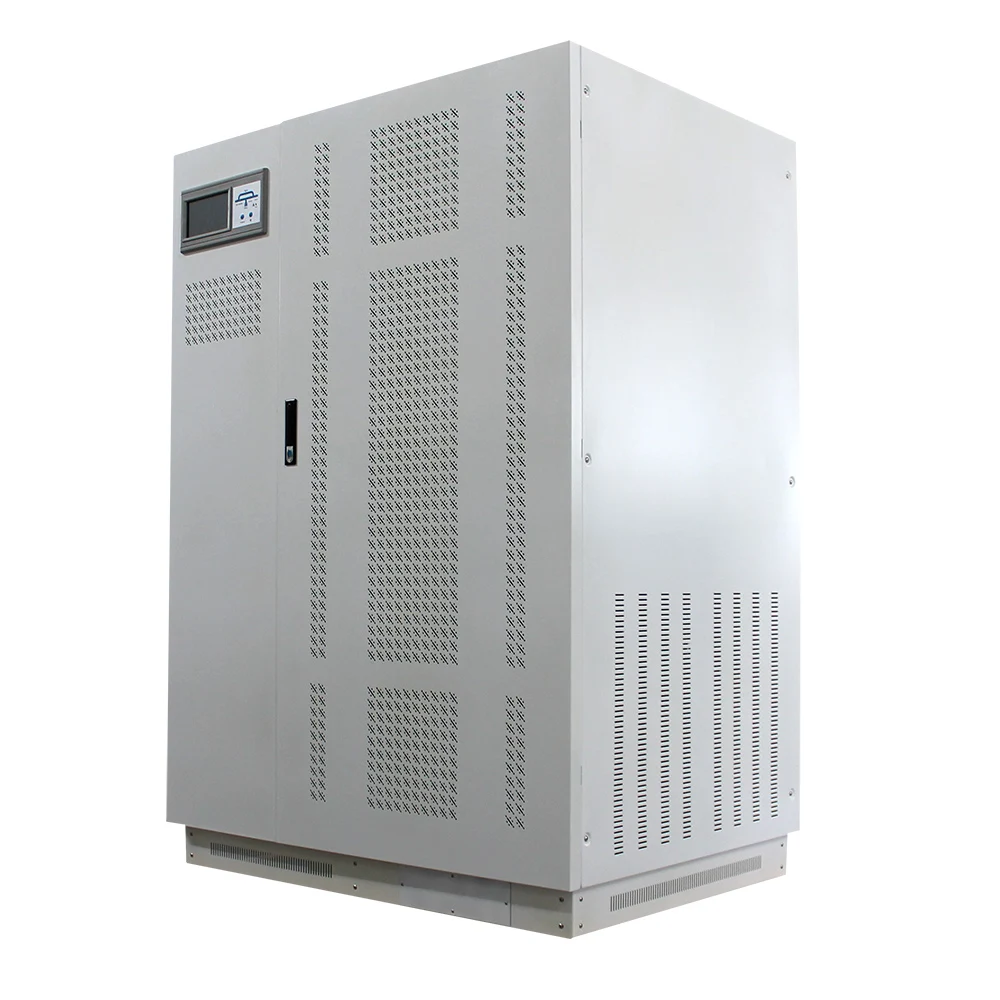

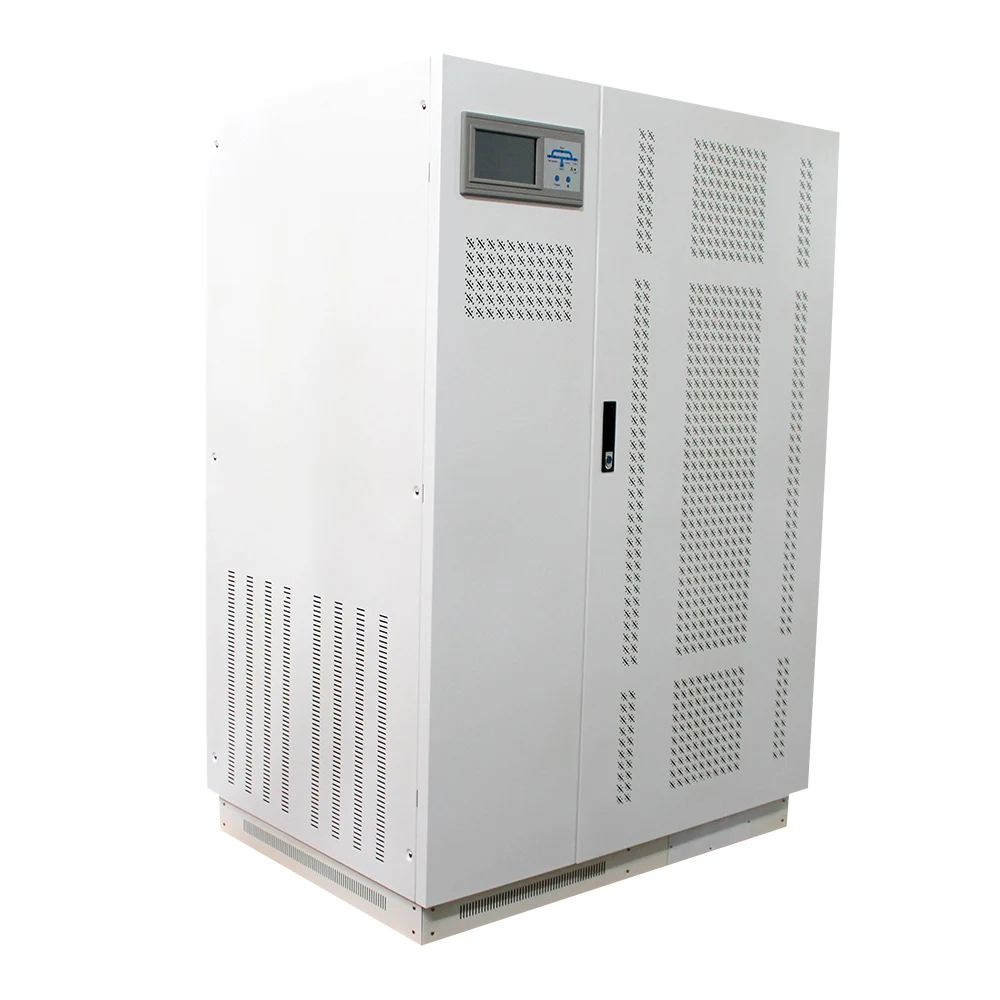

Трехфазный автономный Солнечный Инвертор 150 кВт с немодулированным синусоидальным
- Категория: Solar Inverter >>>
- Поставщик: Foshan,Panpower,Science&Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 12257.12 $* | 12870.38 $* |
| Aug-15-2025 | 12154.31 $* | 12762.88 $* |
| Jul-15-2025 | 10197.24 $* | 10707.38 $* |
| Jun-15-2025 | 11948.51 $* | 12545.16 $* |
| May-15-2025 | 10403.97 $* | 10923.91 $* |
| Apr-15-2025 | 11742.43 $* | 12329.82 $* |
| Mar-15-2025 | 11639.51 $* | 12221.25 $* |
| Feb-15-2025 | 11536.61 $* | 12113.35 $* |
| Jan-15-2025 | 11433.12 $* | 12005.13 $* |
Характеристики
Three phase off grid 150 kw pure sine wave solar inverter
Features
&.Type :Solar Inverter
&.Wave form : pure sine wave
&.Power: 150 kw
&.Nominal AC voltage: 220V/380V/400V/415VAC
&. Selectable battery inspection module
&. Built-in-Digital Power Factor Controller
&. Adopt 4 layer PCB, and SMD technology
&. Built-in Photovoltaic Intelligent Automatic Switch Controller
&. Pure sine wave output, true on-line dual conversion design
&. Intelligent communication-URL Based Remote Monitoring and Operation
&. High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology
Specifications
Mode | GK60K | GK80K | GK100K | GK120K | GK140K | GK150K | GK200K |
Rated power | 60KW | 80KW | 100KW | 120KW | 140KW | 150KW | 200KW |
Battery Voltage | 360V/384VDC | ||||||
Phase | Three-phase+N+G | ||||||
Nominal voltage | 380VAC±1%(Steady state load),380VAC±3%(Load fluctuation) | ||||||
Input Frequency rage | 50Hz±0.1Hz | ||||||
Current peak ratio | 3:1 MAX | ||||||
Output waveform | Pure sine wave | ||||||
Total harmonic distortion | Linear load < 3%; nonlinear load < 5% | ||||||
Transient load voltage transients (from 0 to 100%) | <±5% | ||||||
Instant recovery time | <10ms | ||||||
Balance load voltage | <±1%;<±5%(Unbalanced load voltage) | ||||||
Overload capacity | 100%~110%:30s;110%~130%:10s;>130%:1s | ||||||
Inverter efficiency | >89% | ||||||
communication interface | RS232,(485,snmp, Options) | ||||||
Operating temperature | 0~40℃ | ||||||
Relative humidity (non condensing) | 30%~90% | ||||||
Operating altitude (maximum) | <1000Meters(every increased 1000Meters decrease power1%,highest5000Meters) | ||||||
cooling method | Forced air cooling | ||||||
NoisedB(Depending on load and temperature)Distance to machine1M | ≤58dB | ||||||
Case color | Brack | ||||||
Easy maintenance | The front / upper / left and right sides can be opened. | ||||||
* the above data for reference, if there is a change in kind prevail. | |||||||
