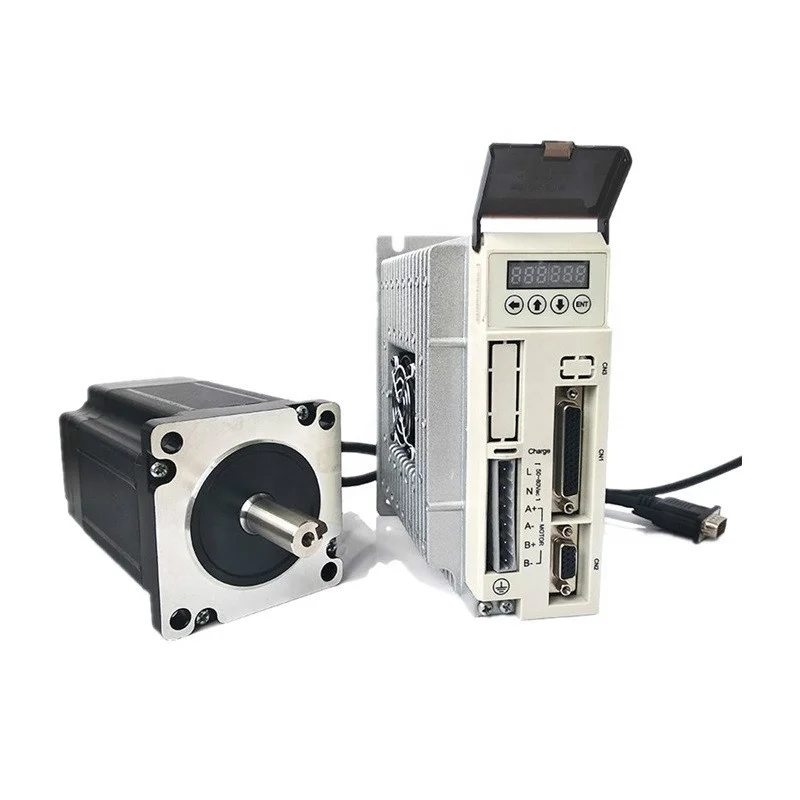

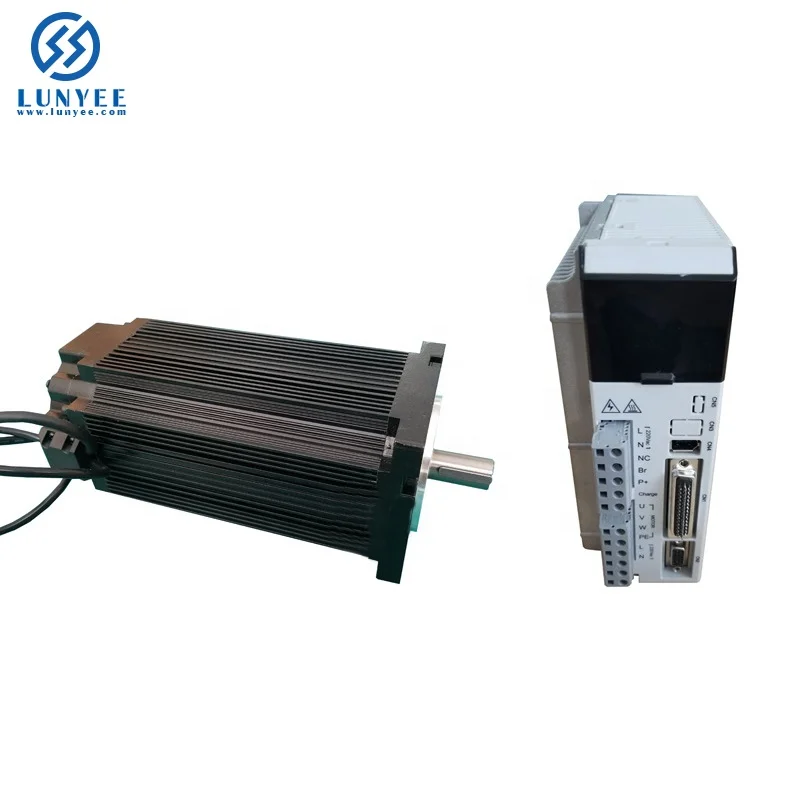

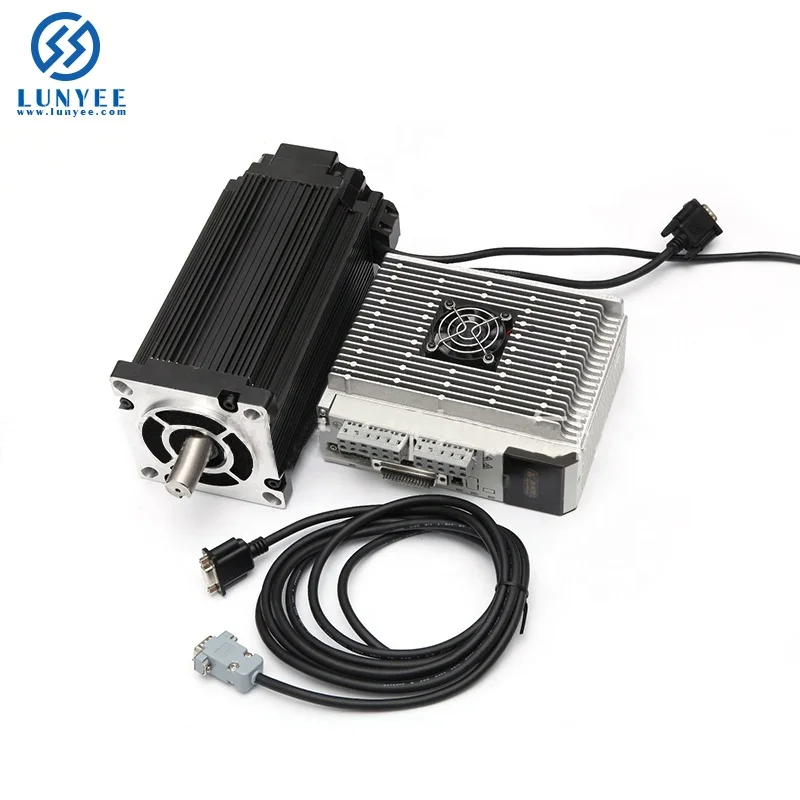

Высокий крутящий момент 20Nm Nema42 3-фазный замкнутый контур легко Servo шаговый двигатель с кабелем и 3HSS2260
- Категория: Stepper Motor >>>
- Поставщик: Henan,Lunyee,Industrial,Automation,Equipment,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 240.24 $* | 245.28 $* |
| Jul-20-2025 | 195.82 $* | 199.7 $* |
| Jun-20-2025 | 236.14 $* | 241.34 $* |
| May-20-2025 | 234.85 $* | 239.93 $* |
| Apr-20-2025 | 187.5 $* | 191.34 $* |
| Mar-20-2025 | 231.13 $* | 236.60 $* |
| Feb-20-2025 | 229.62 $* | 234.37 $* |
| Jan-20-2025 | 227.20 $* | 232.5 $* |
Характеристики
Product Description

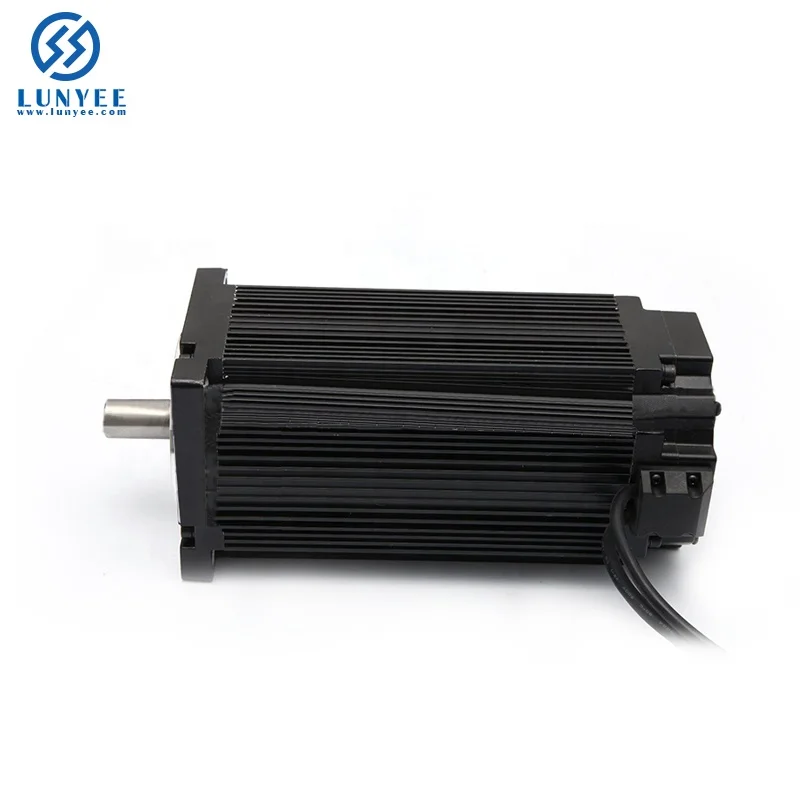

Motor Model | 110HCE221 |
Current | 4.2A |
Resistance | 1.88±10%Ω |
Inductance | 18mH/Phase |
Voltage | 80-220V |
Holding torque | 20.0Nm |
Motor Length | 221mm |

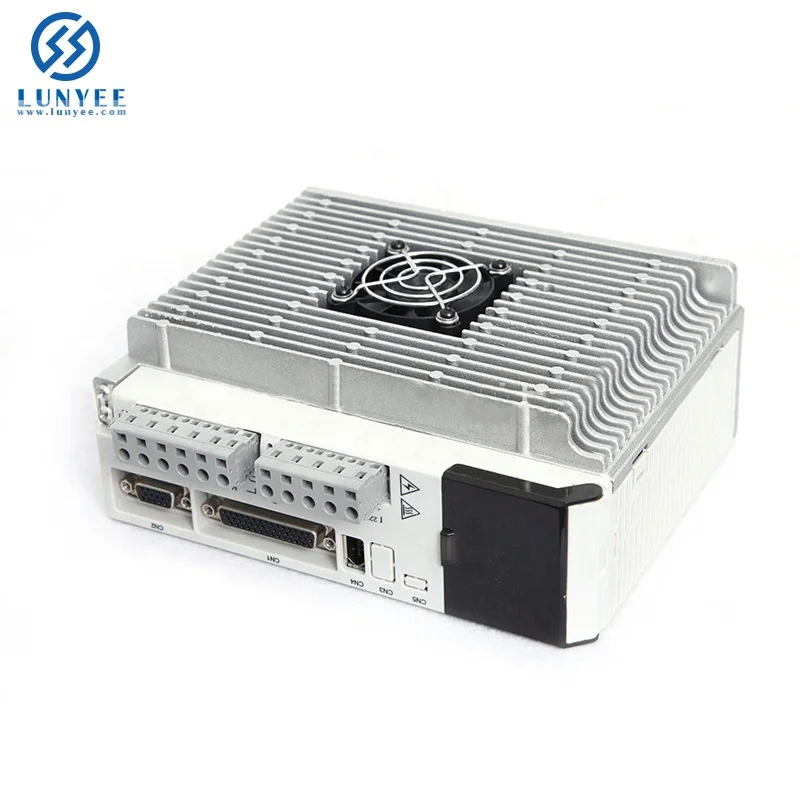

Suitable driver | 3HSS2260 |
Details Images
Product Paramenters
1. 32-bit DSP and vector closed-loop control technology
2. Without losing step, high accuracy in position
3.Improve the motor output torque and working speed
4.Variable current control technology, restrain motor temperature ris
5.Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain paramete
6. Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate
7. The ability of zero speed static without vibration
8.Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor
9.Maximum step-pulse frequency 200KHZ
10.Micro step 400-60000 pulse/rev
11.Voltage range AC150-240V
12.Over current, over voltage and over position protection
13.Six digital tube display, easy to set parameters and monitor the motor running state.
2. Without losing step, high accuracy in position
3.Improve the motor output torque and working speed
4.Variable current control technology, restrain motor temperature ris
5.Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain paramete
6. Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate
7. The ability of zero speed static without vibration
8.Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor
9.Maximum step-pulse frequency 200KHZ
10.Micro step 400-60000 pulse/rev
11.Voltage range AC150-240V
12.Over current, over voltage and over position protection
13.Six digital tube display, easy to set parameters and monitor the motor running state.
Product packaging
1. Inner Packing: Waterproof packing with cling film and cardboard surrounded.
Each case is lined with foam plastics in order to protect the goods against press.
We promose the products must be well protected against dampness, moisture, rust and shock.
2. As per the clients requirements.
Each case is lined with foam plastics in order to protect the goods against press.
We promose the products must be well protected against dampness, moisture, rust and shock.
2. As per the clients requirements.
Company Profile
Our Service
1. Sample order lead time within 7 days, and mass quantity order lead time is 10---15 days.
2. We can accept payment methods of Paypal, L/C, D/A, T/T, Western Union.
3. We promise 1 year warranty of the products you ordered.
4. We can also accept products customize.
2. We can accept payment methods of Paypal, L/C, D/A, T/T, Western Union.
3. We promise 1 year warranty of the products you ordered.
4. We can also accept products customize.
