Характеристики

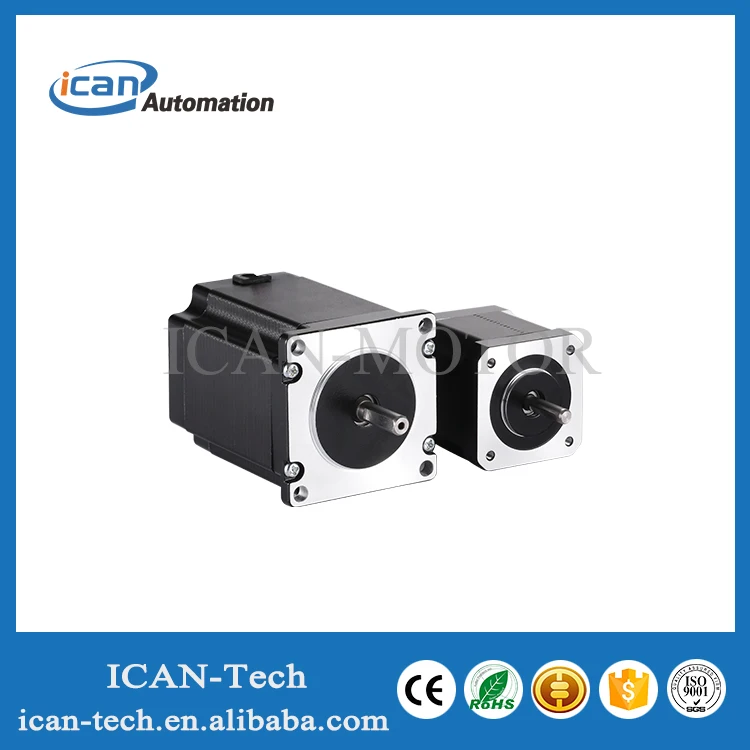

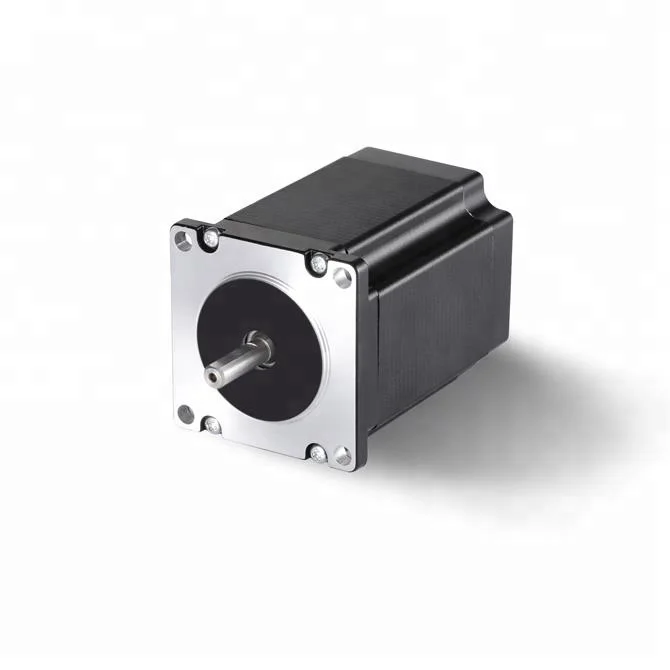

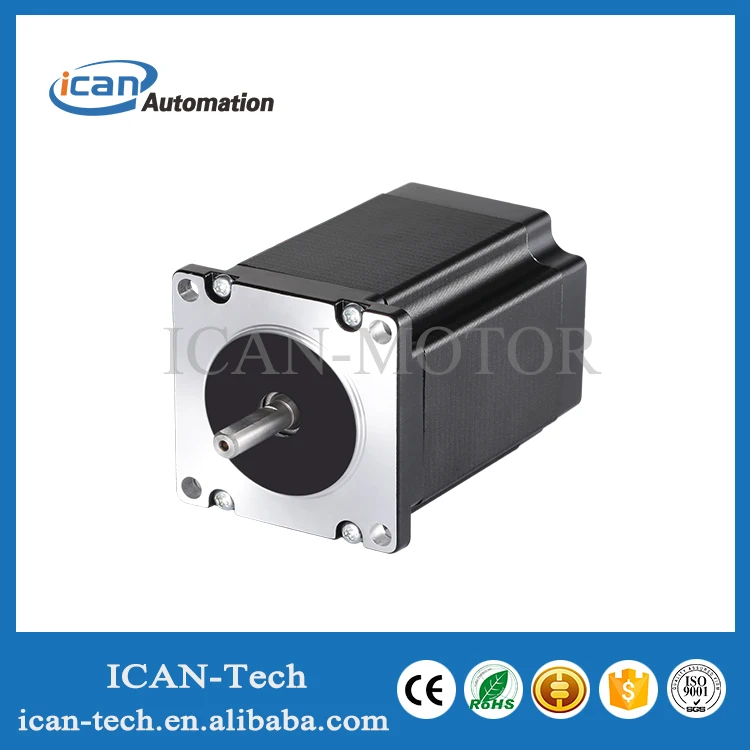

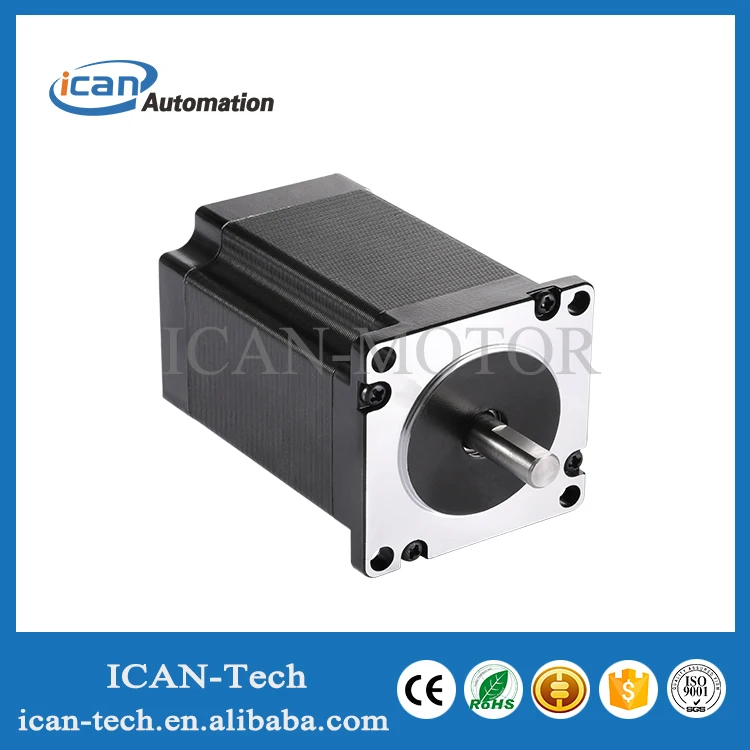

micro stepper motor nema 23 425 oz, cnc 30kg cm 2.6NM 4.5A stepper motor kit
Product Description
Naming Rule
| 57 | H2P | 98 | 50 | A4 |
| Flange size | 2phasge | Motor length | Phase current value*10 | Motor leads number |
| H2P:2phasge | A4:4 | |||
| H3P:3phasge | A6:6 | |||
| A8:8 |
Quick Details

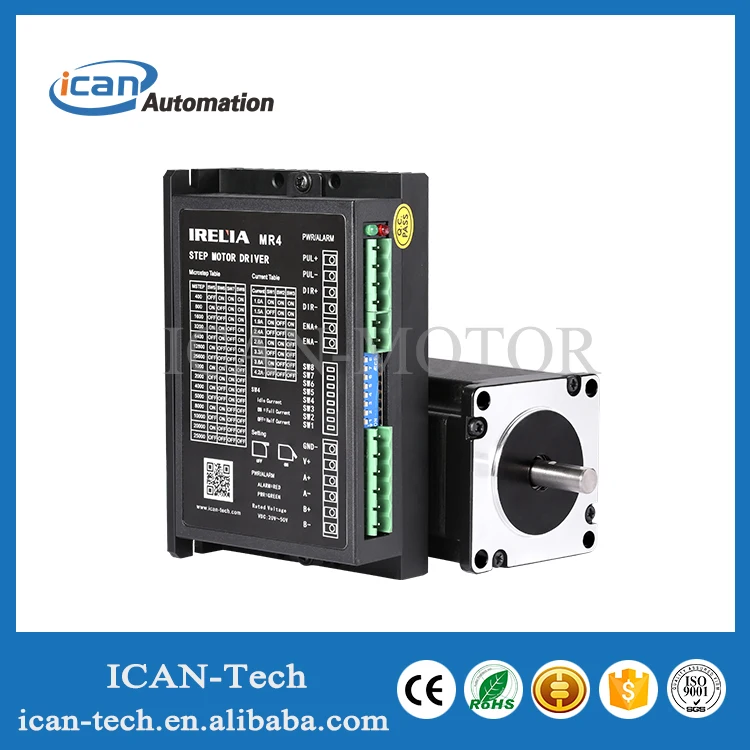

| Step Angle(degrees): 1.8° Flange Size: 57 Holding Torque: 0.9~2.6Nm Current / Phase:3.0~4.5A Adaptive Driver:MR4,MR4A,MR5 |
Parameter specification
| Model No | Step Angel (°) | Holding Torque (Nm) | Current/phase (A) | Inductance (Mh) | Resistance (Ω) |
| 57H2P5130A4 | 1.8 | 0.9 | 3.0 | 2.9 | 0.8 |
| 57H2P5442A4 | 1.8 | 1.2 | 4.2 | 1.3 | 0.38 |
| 57H2P7842A4 | 1.8 | 2.1 | 4.2 | 1.9 | 0.55 |
| 57H2P8440A4 | 1.8 | 2.3 | 4.0 | 2.7 | 0.9 |
| 57H2P9850A4 | 1.8 | 2.6 | 4.5 | 2.4 | 0.7 |
Overall dimension
| Model No | Moter Lenth L(mm) | Axial length LA(mm) | Diameter of axle LB(mm) | Phase A+ | Phase A- | Phase B+ | Phase B- |
| 57H2P5130A4 | 51 | 21 | 6.35 | Red | Bule | Yellow | White |
| 57H2P5442A4 | 54 | 20.6 | 6.35 | Brown | Orange | Red | Yellow |
| 57H2P7842A4 | 78 | 22 | 6.35 | Black | Green | Red | Bule |
| 57H2P8440A4 | 84 | 33 | 8 | Red | Green | Yellow | Bule |
| 57H2P9850A4 | 98 | 33 | 8 | Black | Green | Red | Bule |
Feature
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
Certifications
All our motors and motor drivers passed CE Certifications. ISO9001:2008 is also passed.
Packaging & Shipping
FAQ
Q: Are you factory?
A: Yes! We are original factory, which is established in 2009 in Dongguan city
Q: Can I get a free sample?
A: Yes, please contact us with your requirements.
Q: Is customization available?
A: Yes, we accept customization, contact us soon!
Q: How long is your delivery time?
A: Generally it is 3-5days if the goods are in stock. If the goods are not in stock, usually takes 20days
More Qty required, better price! Contact us now!
