Китайская волоконная лазерная маркировочная машина 20 Вт для
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: Jinan,Tianhong,Mechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2142.46 $* | 2249.87 $* |
| Aug-17-2025 | 2124.12 $* | 2230.35 $* |
| Jul-17-2025 | 1782.85 $* | 1871.36 $* |
| Jun-17-2025 | 2088.65 $* | 2192.25 $* |
| May-17-2025 | 1818.27 $* | 1909.75 $* |
| Apr-17-2025 | 2052.54 $* | 2155.34 $* |
| Mar-17-2025 | 2034.76 $* | 2136.91 $* |
| Feb-17-2025 | 2016.50 $* | 2117.19 $* |
| Jan-17-2025 | 1998.46 $* | 2098.96 $* |
Характеристики
Shandong 20W Fiber laser marking machine laser marker Raycus source
Product Description
Technical Parameter | ||||||||

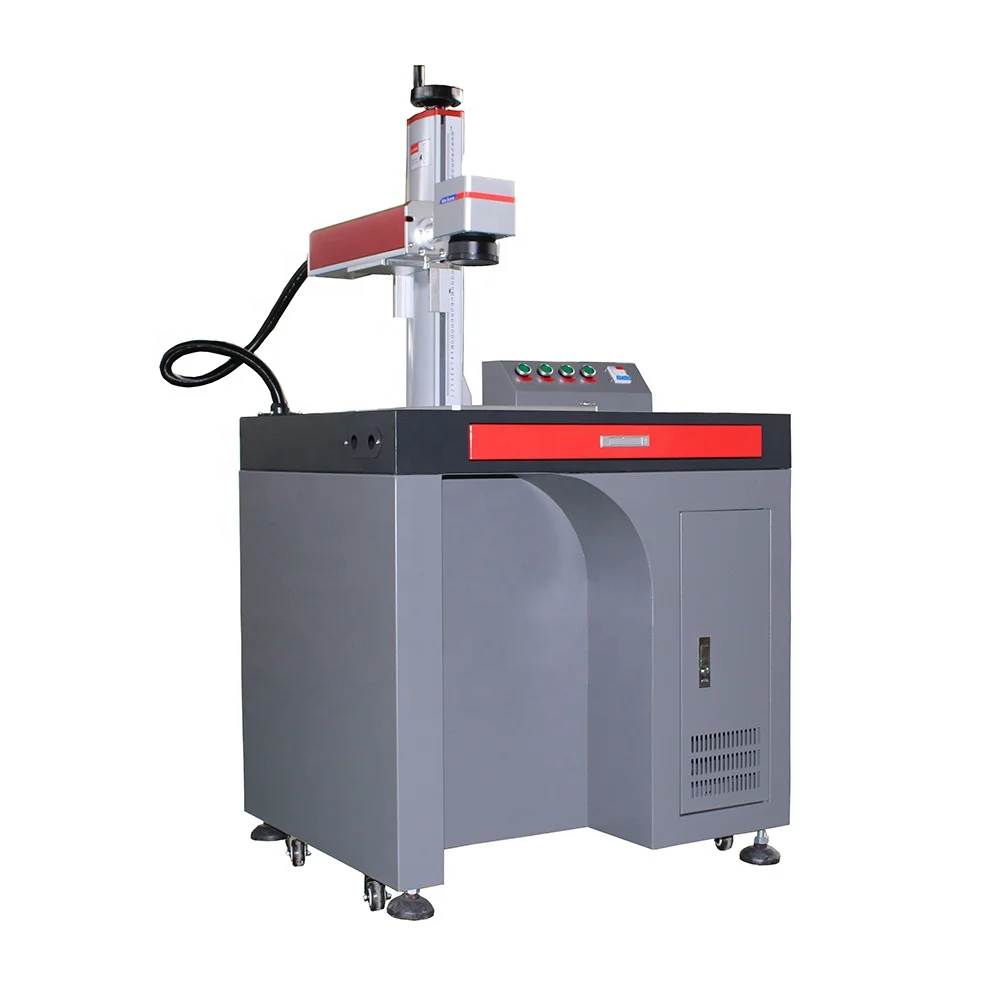

Model | TH-Desk type fiber laser marking machine | |||||||
Working Area | 100*100mm/150*150mm/200*200mmworking area | |||||||

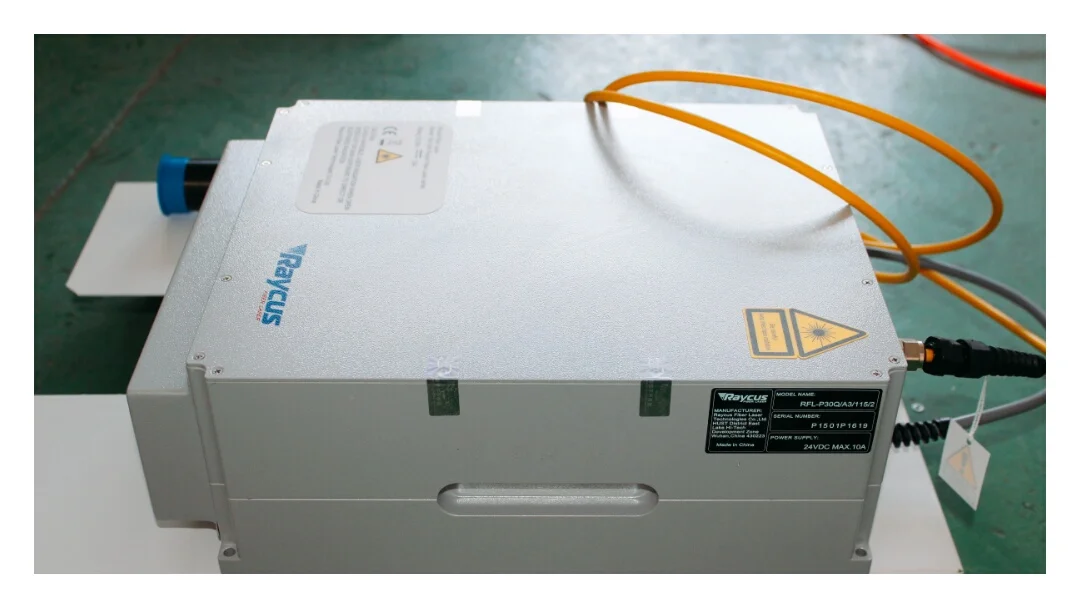

Laser Power | 20w Raycus Laser Source | |||||||
Cooling Type | Air Cooling | |||||||
Marking Speed | 0-10000mm/min | |||||||
Marking Depth | 0-1mm | |||||||
Engraving Line Speed | ≤7000mm/s | |||||||
Beam Quality | M2: 1.2-1.8 | |||||||
Marking Format | Graphics, text,barcodes,two-dimensional code,automatically marking the date,batch number,serial number,frequency,etc. | |||||||
Repeatability accuracy | ±0.001mm | |||||||
Controlling Software | Ezcad | |||||||
Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | |||||||
Working Voltage | 220V±10%/50Hz/4A | |||||||
Laser Model Life | >100000hours | |||||||
The Whole Life | More than 15 years | |||||||
Packing size | 900*780*1120mm | |||||||
Net Weight | 70kgs | |||||||
Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances,
communication products, sanitary ware, tool, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle,
cooking utensils, stainless steel products and other industries.
communication products, sanitary ware, tool, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle,
cooking utensils, stainless steel products and other industries.
Applicable Materials
Metals(including rare metals), engineering plastic, electroplating materials, coating materials, plastics, rubber, epoxy, resin,
ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.
ceramic, plastic, ABS, PVC,PES, steel, titanium, copper and other materials.
Detailed Images
Main Feature
1--Most advanced.New style fiber laser marking machine is the 3rd-generation laser marking machine which is manufactured by the most advanced laser technology in the current of the word.
2--Delicate marking.High quality laser beam(near to the limit of diffraction,exporting TEM00
fundamental transverse mode,M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker).
3--High Marking Speed.With high repeat frequency of the pulse,power output steadily, energy surge of single pulse is lower than 1%,can achieve high speed marking,and control thedepth and shape of the facula.
4--Comparative advantage.The processing speed is 2-3 times than the traditional marking machine
5--Compact design.The size of the machine is very small,potable.Suitable for mobile and fixed working.
6--Ten years life. Ultra-low running cost.The service life of the laser module if more than 100000hours.
1--Most advanced.New style fiber laser marking machine is the 3rd-generation laser marking machine which is manufactured by the most advanced laser technology in the current of the word.
2--Delicate marking.High quality laser beam(near to the limit of diffraction,exporting TEM00
fundamental transverse mode,M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker).
Therefore it is very suitable for delicate marking.
3--High Marking Speed.With high repeat frequency of the pulse,power output steadily, energy surge of single pulse is lower than 1%,can achieve high speed marking,and control thedepth and shape of the facula.
4--Comparative advantage.The processing speed is 2-3 times than the traditional marking machine
5--Compact design.The size of the machine is very small,potable.Suitable for mobile and fixed working.
6--Ten years life. Ultra-low running cost.The service life of the laser module if more than 100000hours.
Related Products
Packing&Shipping
1.Our wooden case is after fumigation treatment.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Company Introduction
1, JINAN Tianhong Mechanical Equipment Co., Ltd. Located in the beautiful "spring city " Jinan, is a professional CNC Machine company with manufacturing,R&D and marking.
2, Jinan Tianhong supply various CNC product such as advertising, application. Art and Craft, Organic Glass, Mould, Marking,
Automobile Industry, Textile Machinery, Electronics, and so on.
3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality,
Customer First" is the corporate management purpose. We have got good reputaion and many agents all over the world especially in North America, European, Middle East and South Asia
4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better !
2, Jinan Tianhong supply various CNC product such as advertising, application. Art and Craft, Organic Glass, Mould, Marking,
Automobile Industry, Textile Machinery, Electronics, and so on.
3, We are specialized in providing solution for global customers with quality products and efficient services. "High Quality,
Customer First" is the corporate management purpose. We have got good reputaion and many agents all over the world especially in North America, European, Middle East and South Asia
4,With the abundant professional knowledge and R&D department support, Jinan Tianhong has finished many miracles and still trying our best to do better !
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking/engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking/engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
After Sales Service
1) 24 Hours online service.
2) 24 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas and also remote assistance.
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to instal the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
TH LASER supply free technical training for all customers all over the world until the workers from buyer can
operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
2) 24 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas and also remote assistance.
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to instal the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
TH LASER supply free technical training for all customers all over the world until the workers from buyer can
operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
