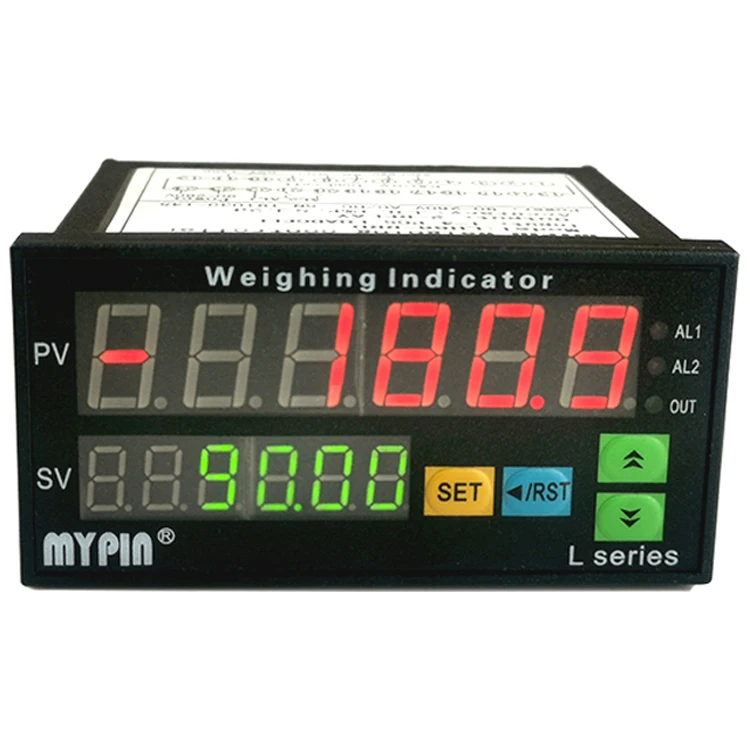

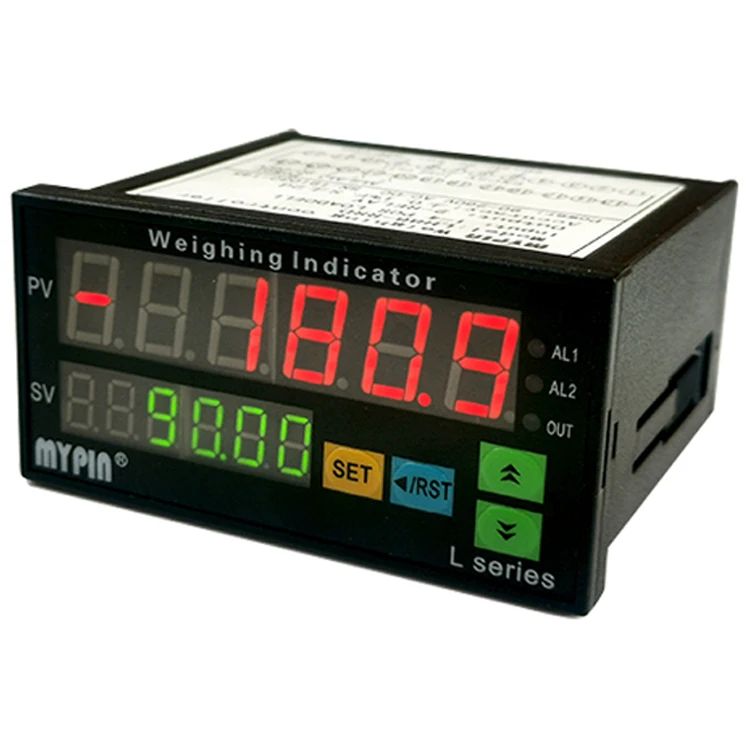

High/Low 2 alarm Digital Weight Controlling indicator   (LM86-NND)









1, Features available



u  input:1-4pcs  load cells,force load cells

u 0.8" red LED 4 digits measurement,0.1%F.S.

        Fast response, stable display, with Tare weight clearance function.

u  RS232/RS485 MODBUS RTU PROTOCOL for your choice,

        which enables to connect with other indicator,PC or PLC.

u analog output are digitally transferred automatically. Analog range set freely by user.

u Panel lamp indicator: Alarm 1(AL1), Alarm 2(AL2), Analog output(OUT);

u 4 no.s of Press-buttons to modify the inner menu.Friendly operation interface, easy to learn.

u Anti-shake parameter designing to ensure better performance

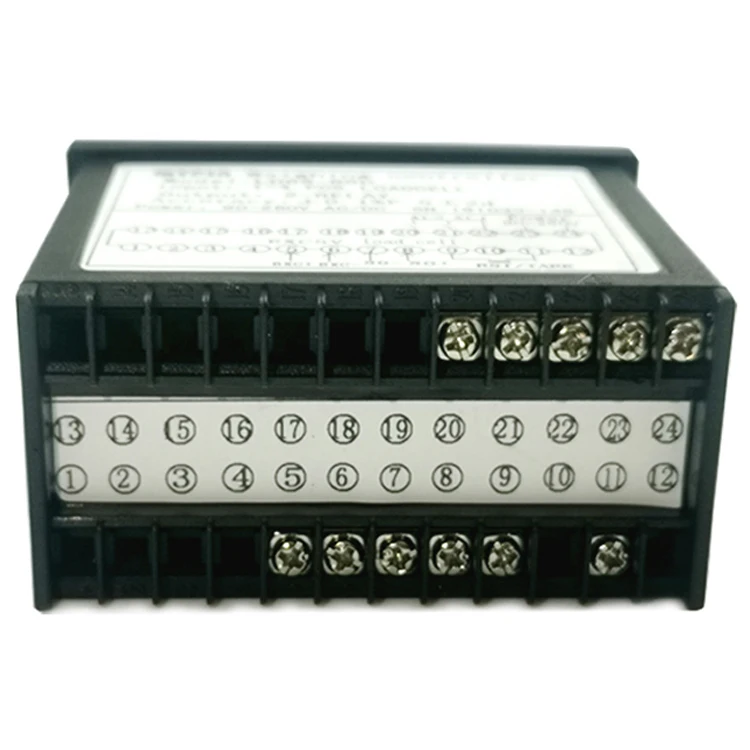

u Panel press-button RST & terminals RST in the backside to reset.

u Boot automatically reset

u Strong anti-interference ability, suitable for industrial field. It’s widely used in various automatic

        control for build-in filling dosing weighing control system/load scale in industrial of Cement,

         Food packing,Chemical,etc..



2, Specifications



Model no.:LM86-NND

Dimensions: 96W×48H×80L mm

Input Signal:1~4  no.s of load cellS

Ouput:NONE

Aux. power:5V DC

Power supply:110/220V AC

Gross Weight: about 350g





3, Technical Parameters



u Power supply:110/220V AC,50/60Hz,Power consumption≤5VA

u Work environment: 0~50°C, 10~85%RH(No condensate)

u Digital display: 4 digits red LED display, range:-1999~9999

u Control output: 2 no.s of RELAY, capacity: AC 250V/5A,resistance load,

u Isolation resistance:≥100MΩ(DC 500V  between terminal and outer-shell)

u Compression strength: AC 1500 1min(DC 500V between terminal and outer-shell)

u Aux. Power:5V DC ,(4 load cell input at most)

u Sampling speed:16 times/sec.

u Accuracy:0.1%FS



4, Functions for choice



•  Analog output:0-10V / 4-20mA


•  Communication interface: RS232 / RS485


•  Input signal: 0-10V / 4-20mA


•  Control output: SSR/RELAY



5, Diagram(subject to that in the real item)
