HM-ZD6435B автоматическая машина для производства жестких коробок с функцией склеивания
- Категория: Упаковочные формовочные машины >>>
- Поставщик: Guangdong,Hongming,Intelligent,Joint,Stock,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.42 $* | 1.42 $* |
| Jul-18-2025 | 1.67 $* | 1.36 $* |
| Jun-18-2025 | 1.42 $* | 1.64 $* |
| May-18-2025 | 1.67 $* | 1.94 $* |
| Apr-18-2025 | 1.35 $* | 1.55 $* |
| Mar-18-2025 | 1.78 $* | 1.41 $* |
| Feb-18-2025 | 1.48 $* | 1.83 $* |
| Jan-18-2025 | 1.30 $* | 1.32 $* |
Характеристики
Product Description
Description:

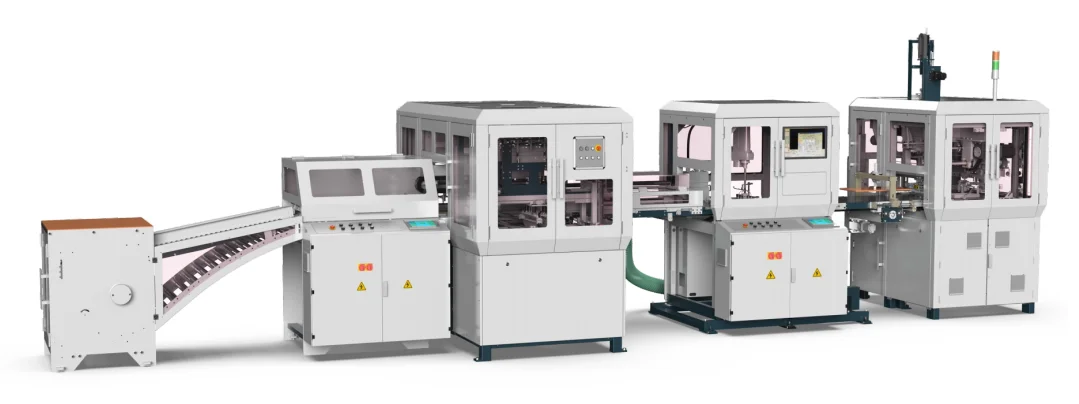

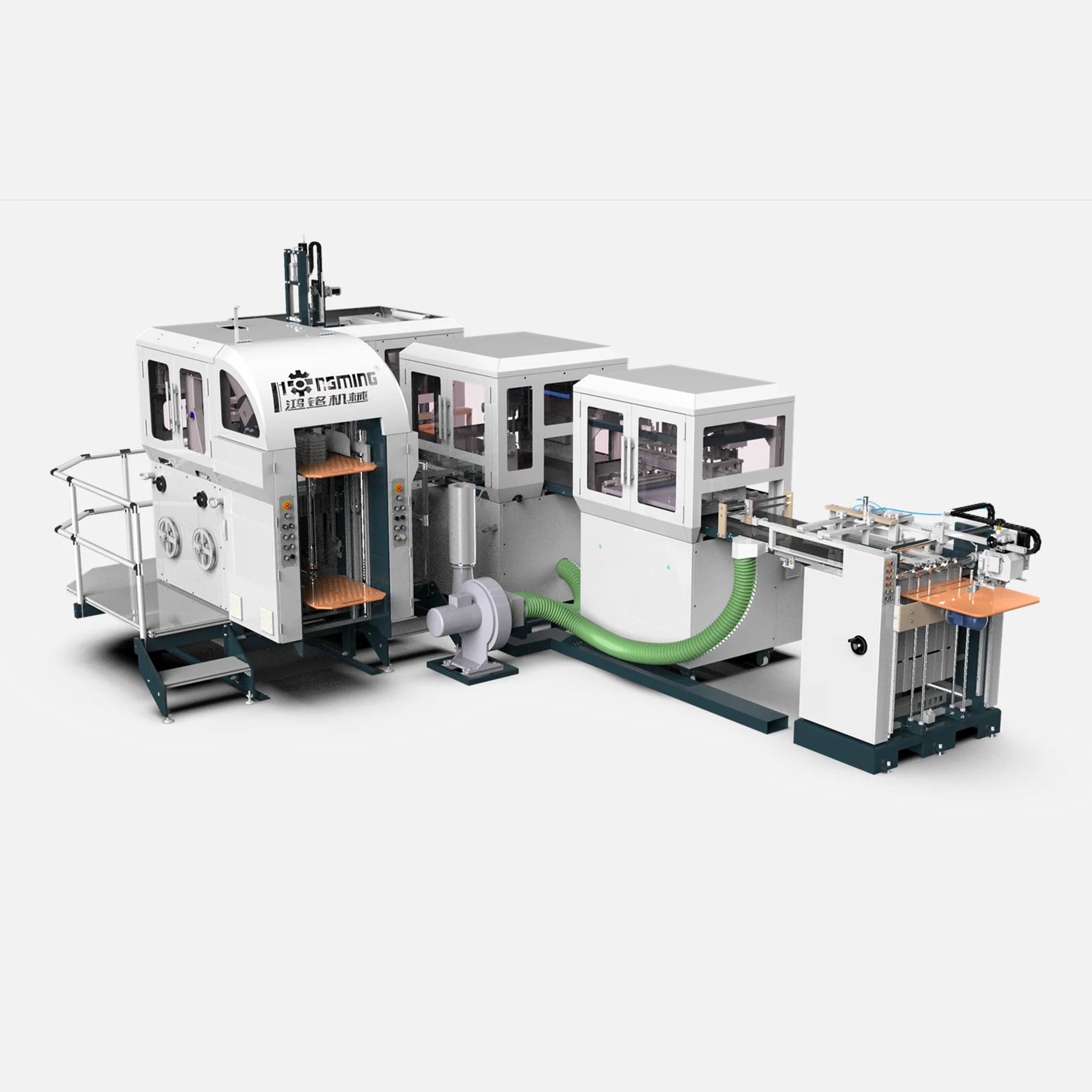

HM-ZD6435B Automatic Rigid Box Making Machine, designed for the regular-size premium box, which mainly for partial screen glue. It is suitable to make various types of rigid boxes for mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, slanting boxes, etc. Size range is bigger, more suitable for current packaging market. Machine's appearance is new design which is safer and more beautiful.

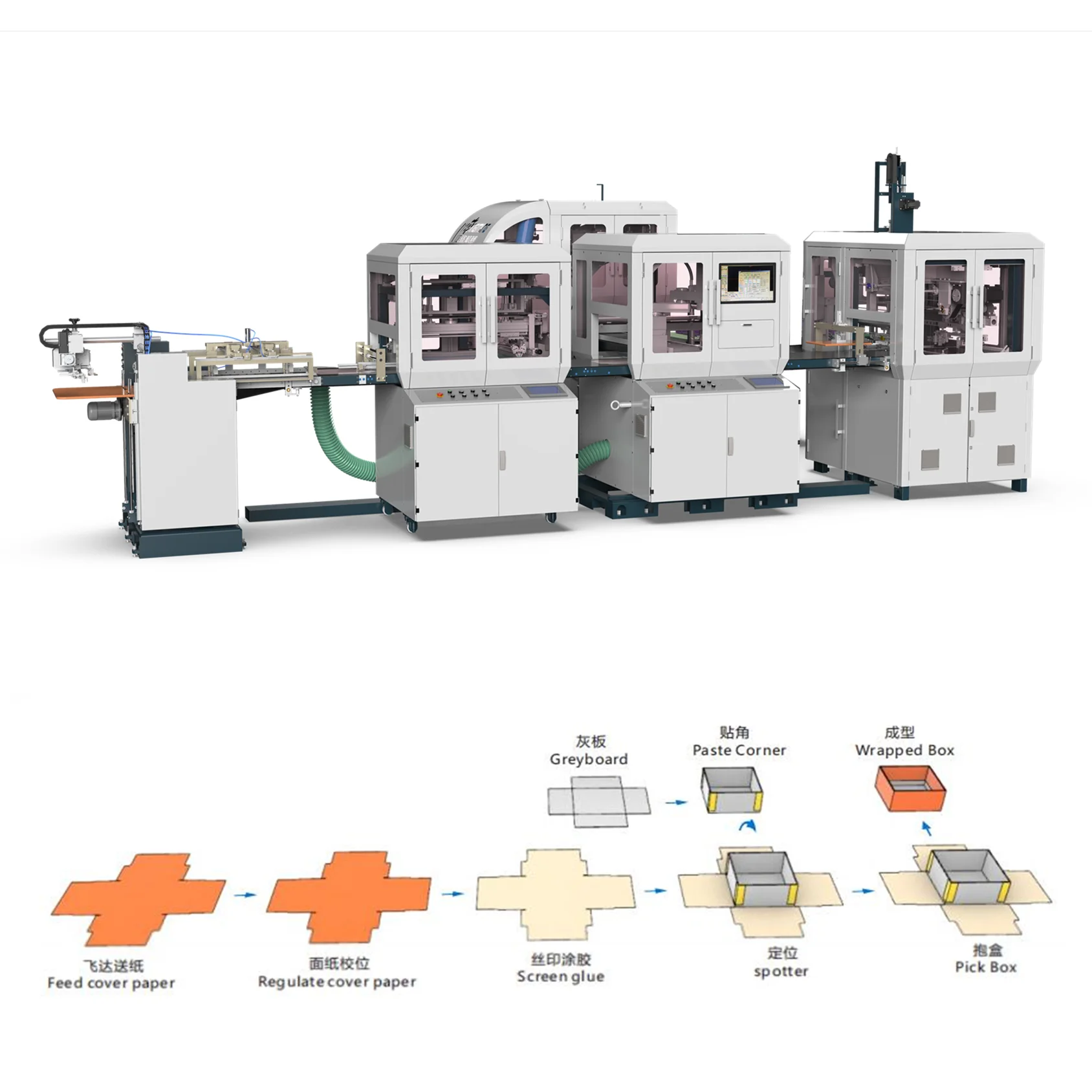

HM-ZD6435B Automatic Rigid Box Making Machine adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper, cover paper correction，screengluing，feed greyboard, pastefour corners, spot greyboard, lift box, fold in corner edges and wrap box.

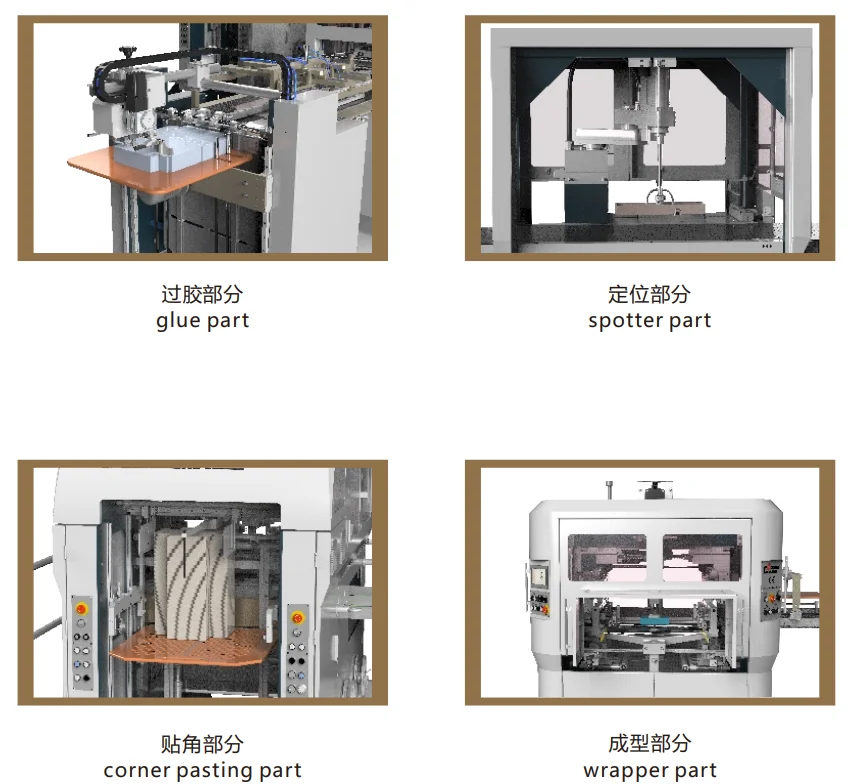

The feeder, the gluer and the conveyor are driven by well known servos which have continuously variable transmission, and enjoys high accuracy, easy adjusting, and highefficiency. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ±0.05mm, anditsspotting and adjusting is morefaster .The forming unit employs THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and corner edges.
333
Main Features and Function
1. Suit to all kinds of rigid boxes in mass production.
2. Parameters adopts computer digital setting ;
3. Auto error stop and display;
4. Automatic feed paper and greyboard;
5. Automatic feed paper and draw gauge system;
6. Corner pasting part with independent man-machine control andheatingsystem;
7. Adopts YASKAWA servo control system;
8. Spotter by camera tracing system and SCARA (Selective Compliance Assembly Robot Arm) (spotting accuracy±0.05mm);
9. Wrapper can automatic lift and wrap box.
Specification
Model | HM-ZD6435B |
Length size of Cardboard | 80-510mm |
Width size of Cardboard | 70-410mm |
Thickness | 0.5-3mm |
Length size of Cover paper | 180-600mm |
Width size of Cover paper | 70-420mm |
Cover paper Thickness | 80-160gsm |
Finished Box's Length Size | 60-350mm |
Finished Box's Width Size | 50-250mm |
Finished Box's Height Size | 10-90mm |
Paper Corner Edge | 10-90mm |
Cover Paper Folding-in Depth | 10-90mm |
Air Supply | 460L/min, 0.8MPa |
Speed | ≤30pcs/min |
Total Power/Voltage | 32kW/AC380V |
Power Consumption | 8kW/h |
Net Weight | 4800kg |
Machine Dimension | 7300*4500*3300mm |
Product application
Company Profile
Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Packing & Delivery
Hongming's Exhibition
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
