SR-300 automatic wire feeding machine adopts Taiwan Shilin inverter to control the speed, Siemens controller controls the start and stop, keep the wire traction tension constant through the pulley group, and meet the needs of long-distance wire feeding to ensure that the entire cable is in the process of the transmission Uniform speed, soothing, guarantee the precision of wire stripping machine.
This machine is suitable for: wire, casing, braided tape, iron wire, copper wire, cable, cloth tape, rope, nylon wire, steel cable, PVC sheet, PVC tape and other tape and coil conveying and delivery lines.
Product Specification
Machine | | |
| |
Model | SR-300 | SR-300A dual motor | SR-302 Biaxial | SR-400 heavy load |
Size | 550x500x750mm | 500x900x920mm | 700x810x960mm | 1700x1400x150mm |
Maximum load | 25KG | 50KG | 50KG | 200KG |
Wattage | 120W | 240W | 240W | 1.5KW |
Voltage | AC220V 50/60HZ | AC220V 50/60HZ | AC220V 50/60HZ | AC220V 50/60HZ |
Weight | 38KG | 50KG | 60KG | 180KG |
Features

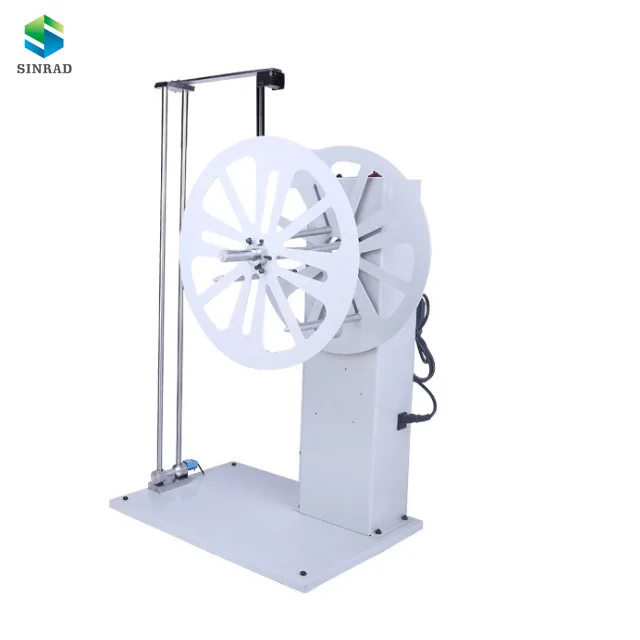

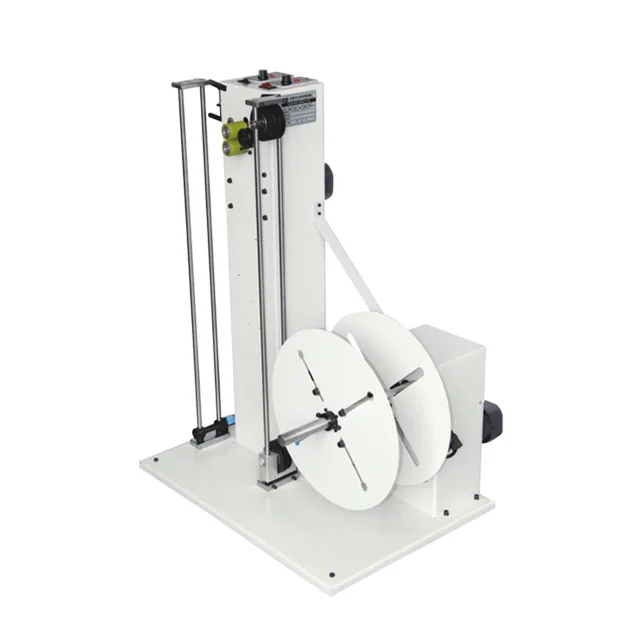

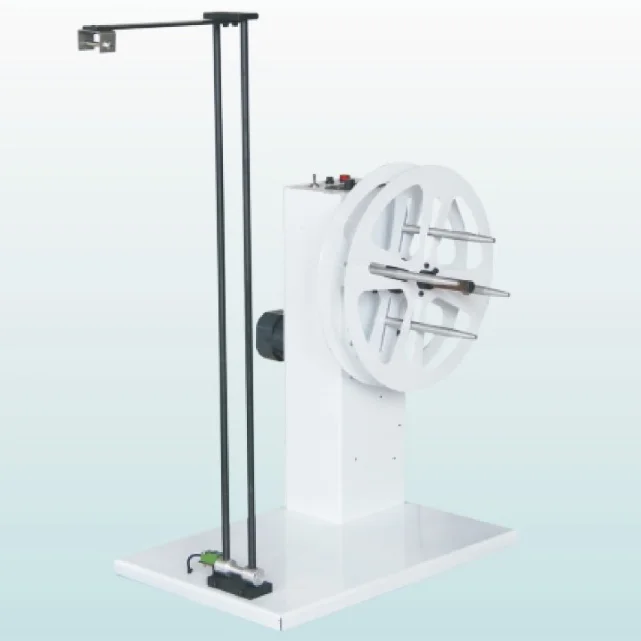

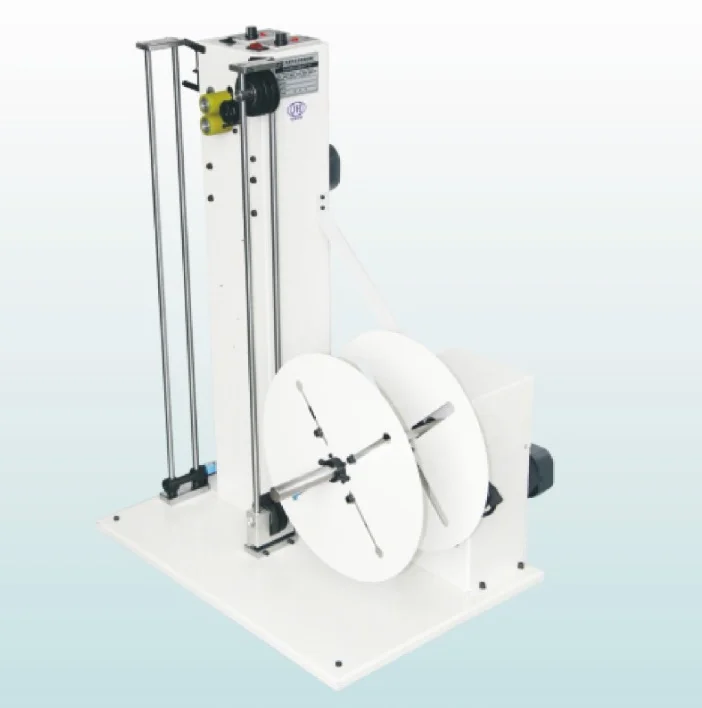

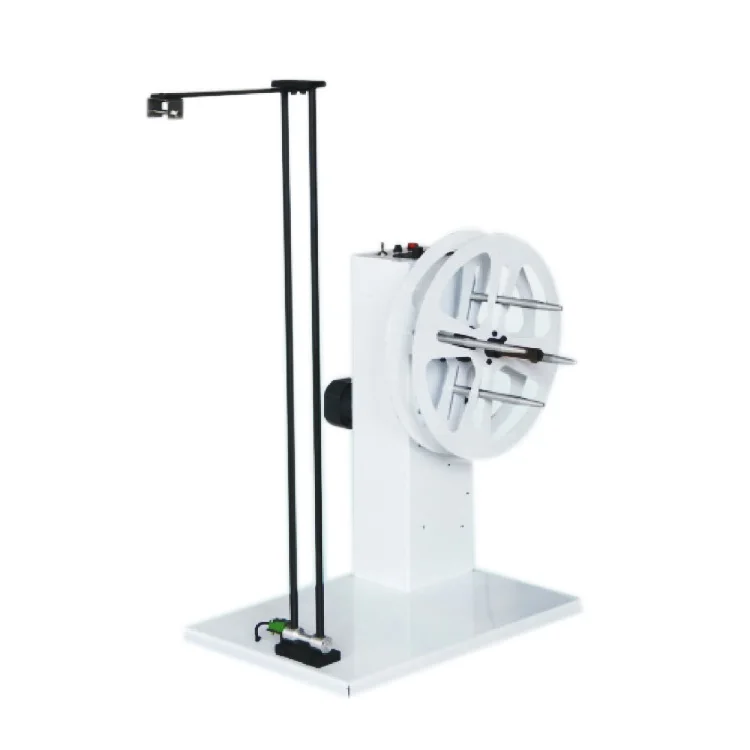

SR-300 automatic wire feeding machine
(1)This machine is an automatic wire feeding machine, which is used in conjunction with a fully automatic computer wire stripping machine, eliminating the need for manual threading. You only need to fix the whole coil of wire on the pay-off rack, start the motor when the wire needs to be fed, and it will automatically stop when the wire is slack to a certain degree.
(2)This machine is compact in design and convenient in setting and clamping the spool, which can greatly reduce labor intensity and improve production efficiency.
(3)It can be used with any type of automatic terminal crimping machine or computer wire cutting machine.
(4)It can be modified and customized according to the special requirements of customers. General cable feeding speed:1.2m/s
All products would be in safe packaging. Some large machines packed by plywood case.
![]() | Best after service:Professional R&D and technical team support, can make OEM & ODM order, and also can provide overall laboratory solutions.
Strict quality control and 1year warrant.
Short leadtime and fast delivery.
Fast response to your any inquires. |
Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, winding, etc.) machine, automatic soldering machine, intelligent soldering machine, full automatic usb soldering machine, pulse heating soldering machine,high frequency soldering machine, other soldering machine, laser marking machine, laser engraving machines, laser welding machine, welding equipment, and other production equipment.
