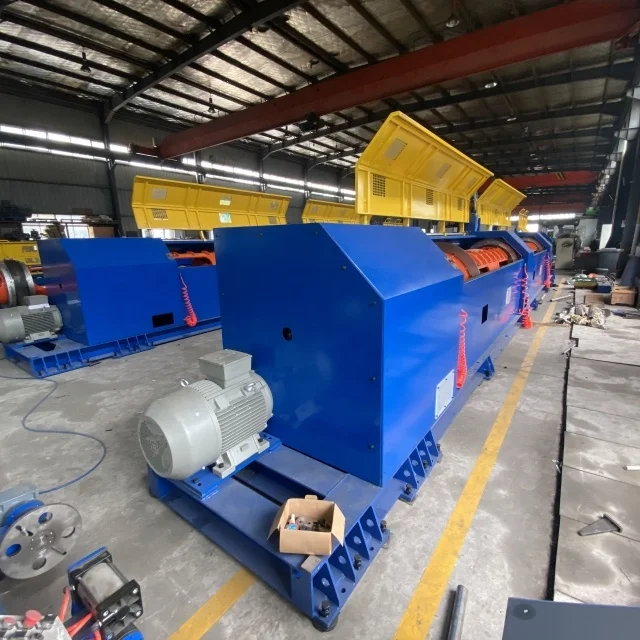

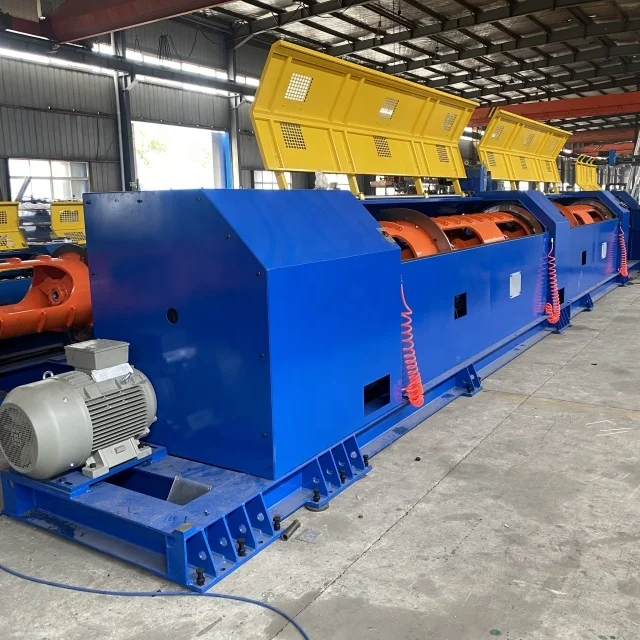

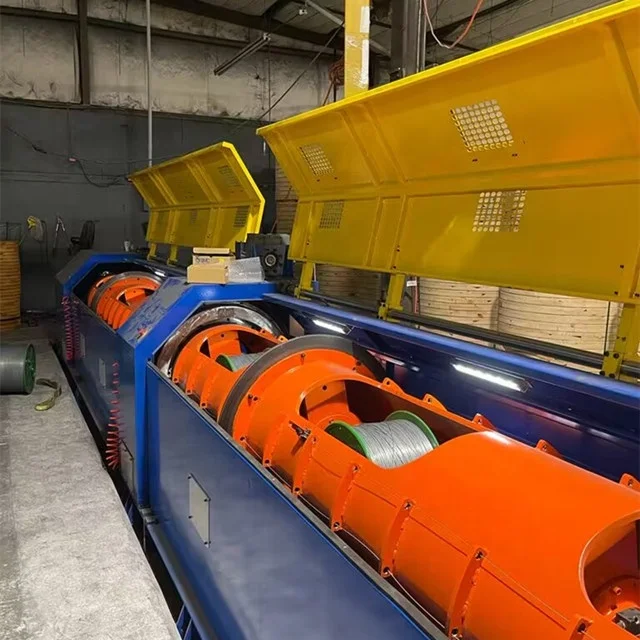

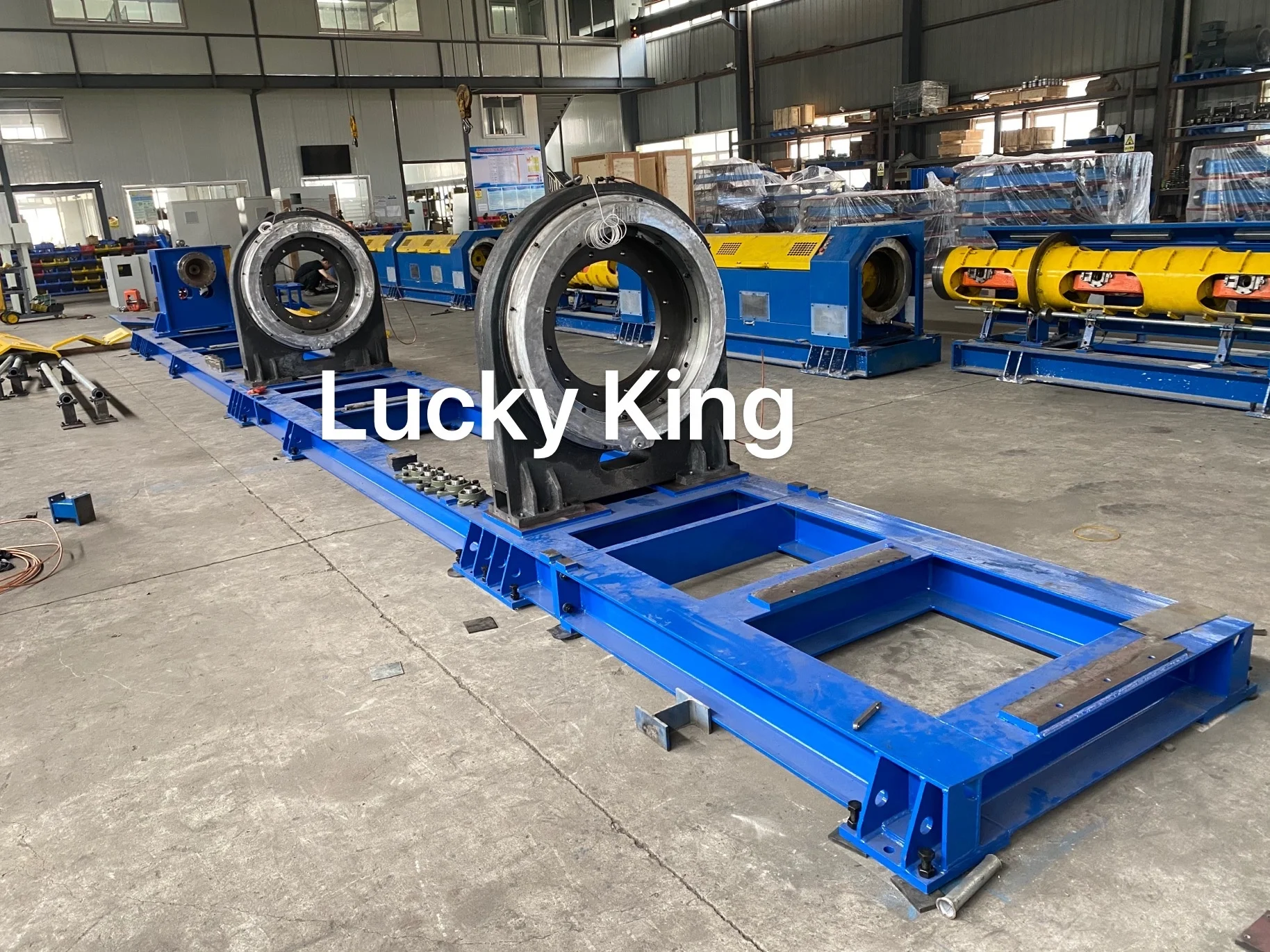

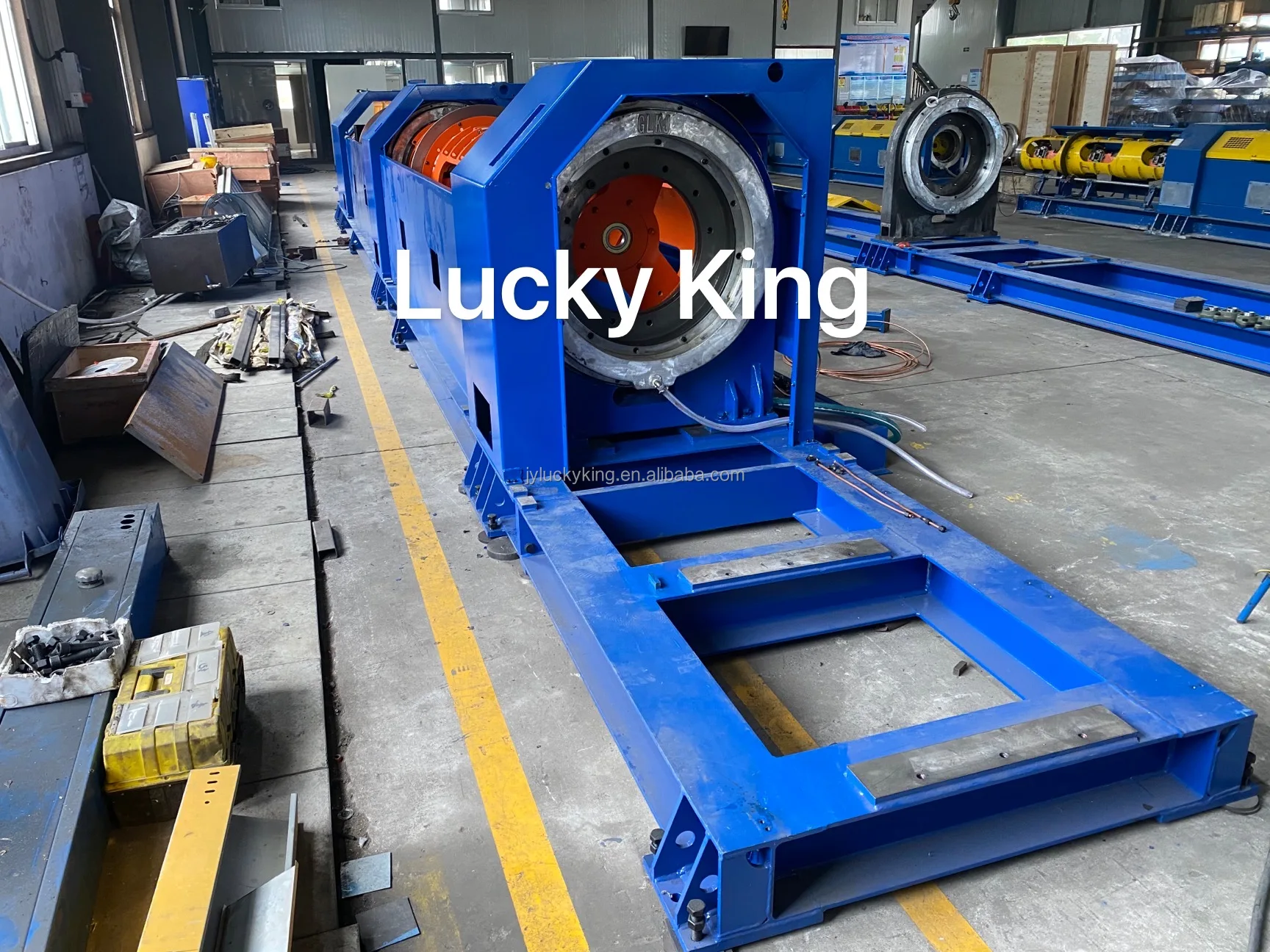

Take pictures of the workshop for your reference,we produce all kind of size ridding wheels type and bearing type (grease lubricating method or recycle oil lubricating method )steel wire rope tubular stranding machine!

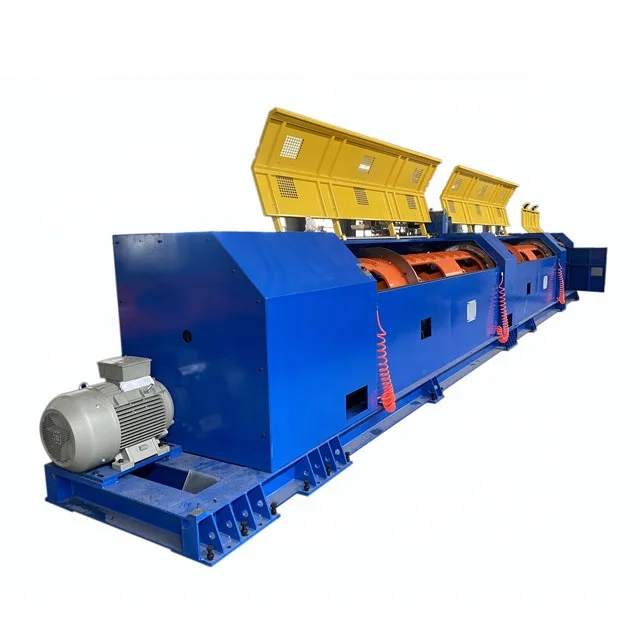

Big bearings type supporting 500/1+6 tubular stranding machine
Technical Parameter:
Model | 500/1+6 |
Rotating speed | 800R/Min |
Inlet wire/strand range | 1.5-4.0mm |
Max Stranded outer diameter | 15mm |
Traction wheels dia | 954mm*2 |
Main machine motor power/Traction motor power | 37KW/18.5KW |
Stranding construction | 1+6 |
Brake method | Pneumatic brake system |
Torsion direction | S or Z |
Pitch length range | 65-270mm(can be adjusted) |
Pitch control method | PLC control and touch screen setting |
Take up | Can be customized as customer demands |
Application:
This machine is especially designed for stranding steel wire ropes ,steel strands, galvanized steel guy strands, high carbon steel strands. It also can strand copper strands, aluminum strands,steel core aluminum strands etc.
Feature:
1.This machine has high efficiency, energy saving, consumption reduction, strong structure and low noise.
2.Tension system ensures equal tension of each pay-off wire, improves the quality of strand. 3.Detection and protection system including automatic stop protection for broken wire, power failure and mechanical failure.
4. Disc brake system is highly responsive. machine stops in 7-10seconds.ensures the safety efficiently
5.Automatic operation and simple maintenance.each cradle working position designed with a small mesh observation window for observing.Atuomatic stop the machine when the preset value of the meter counter has been reached.
6.Eletric control system is equipped with PLC, touch screen,inverter,low-voltage appliances,etc.It selects well-know brands or customer requires the brands of domestic and international.
Our Services
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries
• OEM & ODM projects are both available.
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
Our four promises
We can do the designs according to the customers' requirements.
We can offer you the high quality & reasonable price.
We can offer you a good after-sell service.
Prompt delivery.
If you request quotation by CIF ,please let ue know the port of destination so as to check the freight with our forwarder.
