Характеристики
Product Description

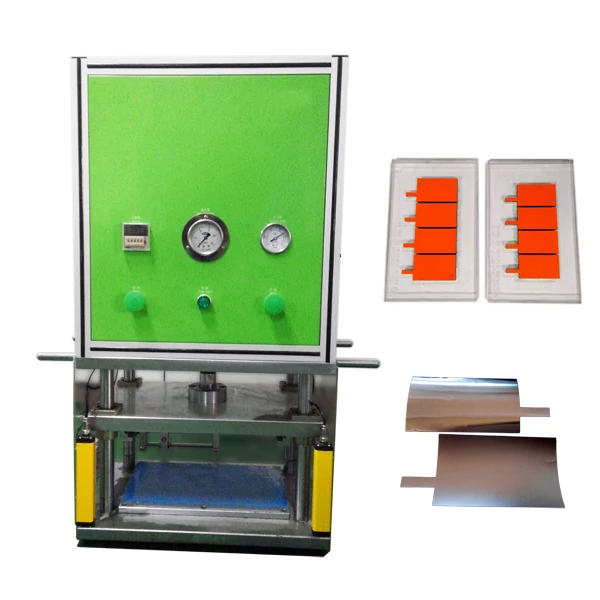

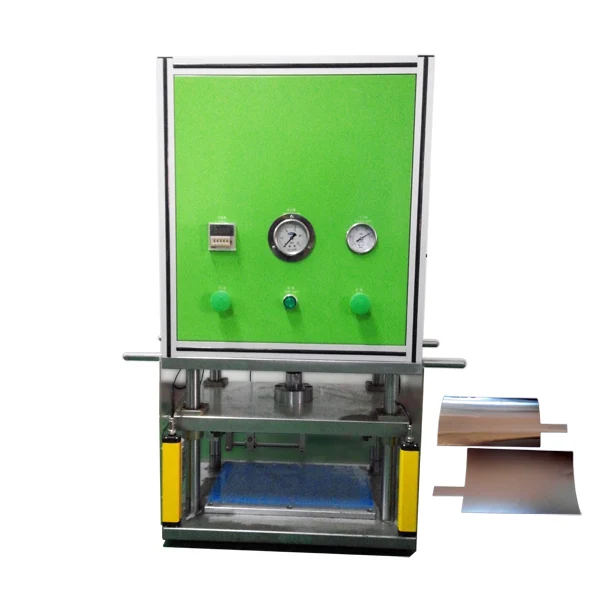

Lab Semi-Automatic Battery Electrode Die cutting Machine Cutter with Customizable Size for Pouch Cell Battery
Features

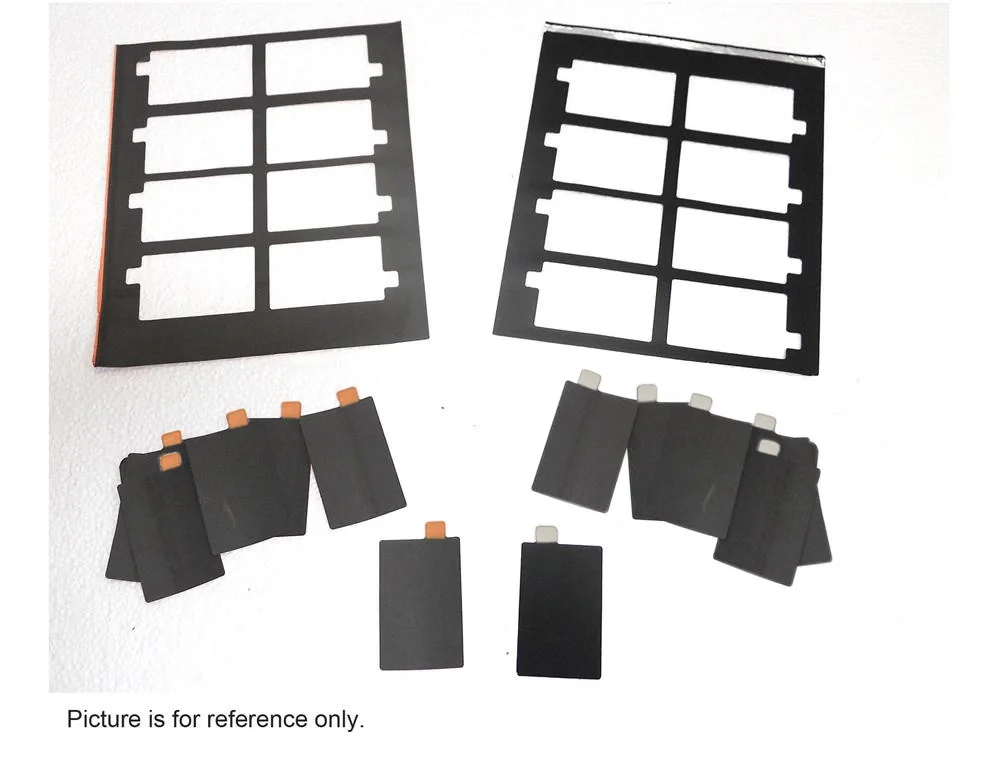

1. LITH-MQ300A semi-automatic electrode die cutter is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production or lab line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

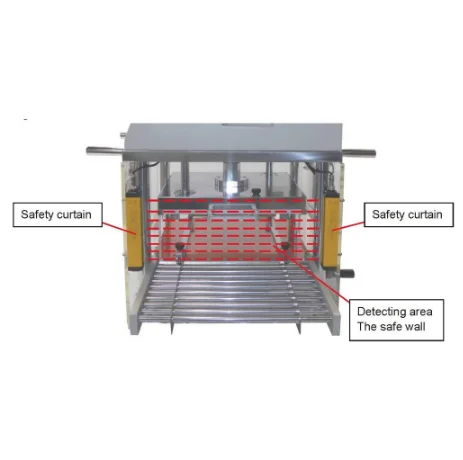

2. This Semi Automatic Die Cutter machine adopts Safety Curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front.
3. High speed, high accuracy, long lifetime to make cutted electrode without burr, to get a good consistency.
4. This model has max die dimension with 200*300mm, if need other models, please choose the LITH-Die Cutter with max die size up to 500*500mm.
5.If you need a small pouch cell die cutter for lab research, you can also choose the LITH-MSK-180SP with smaller dimensions.
Specifications
Model | Battery Electrode Die Cutter Machine LITH-MQ300A |
Work voltage | AC110V/220V, 50/60HZ |
Power | 100W |
Warranty | One year limited warranty with lifetime support |
Max cutter die size | 200mm(L) * 300mm(W) |
Die Set Dimensions | One set of standard electrode die is included.within the dimensions: 200mm(L) *300mm(W) Customized size die is available upon request |
Safety Protection | Built in Safety Curtain to protect against hand injuires during electrode feeding Double start press button |
Cutting Accuracy | ±0.1mm |

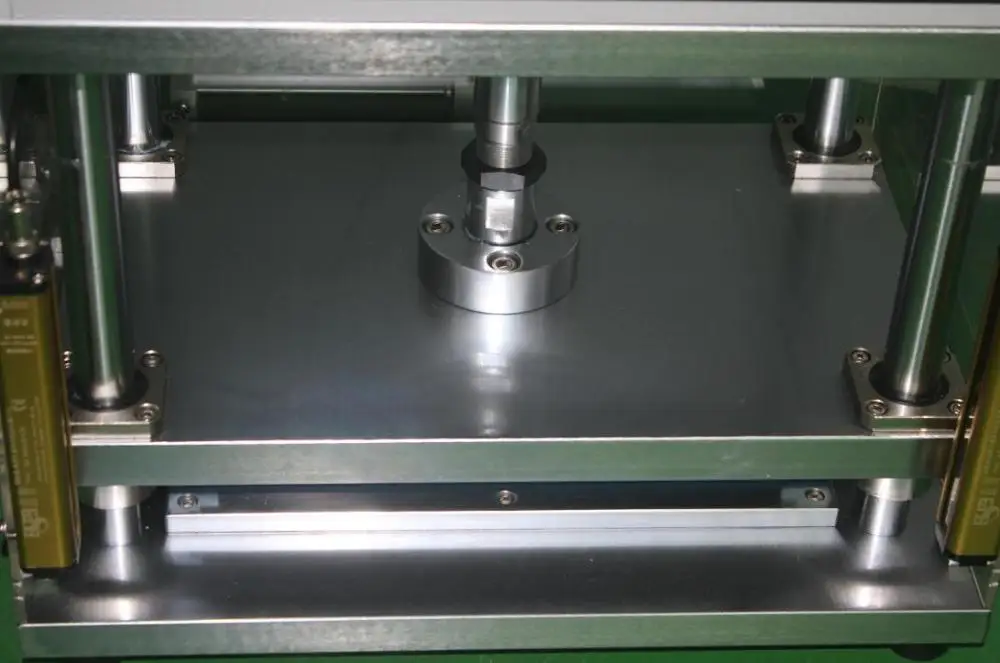

Air Cylinder | 3 tons Max. pressure |
Tensile Cylinder | 0.15 tons pressure |
Cutting stroke | 250mm |
Feeding | Manually |
Production Yield | 800 - 2000 pieces of electrodes per hour |
Air Pressure | 0.5-0.8Mpa |
Dimension (L*W*H) | 800x500x1850mm |
Net Weight | 120kg (265 lbs) |
Shipping Dimensions | 800x500x1850mm |
Product Images
Related Products
Click on the picture
 |  |  |
|
| Vacuum Sealing Machine | Top&side Sealing Machine | Heat Roller Press Machine |
Pouch Cell Process:
Tube Furnace / Muffle Furnace→ Vacuum Mixing→Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
No. | Machine | Link |
1 | Tube Furnace | |
Muffle Furnace | ||
2 | Planetary Ball Mill | https://www.alibaba.com/product-detail/Lab-Scale-Bench-Top-Planetary-Ball_62515039986.html?spm=a2747.manage.0.0.6f7f71d2oWsIxD |
3 | Vacuum Mixer | |
4 | Film Coater Machine | |
5 | Roll Press Machine | |
6 | Die cutter Machine | |
7 | Stacking Machine | |
8 | Ultrasonic Welder Machine | |
9 | 50L Vacuum Drying Oven | |
10 | Forming Machine | |
11 | Top&Side Sealing Machine | |
12 | Electrolyte Filling Machine | |
13 | Vacuum Sealing Machine | |
| 14 | Battery Tester Machine |
Certifications
Company Information
Cooperative Partners
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
