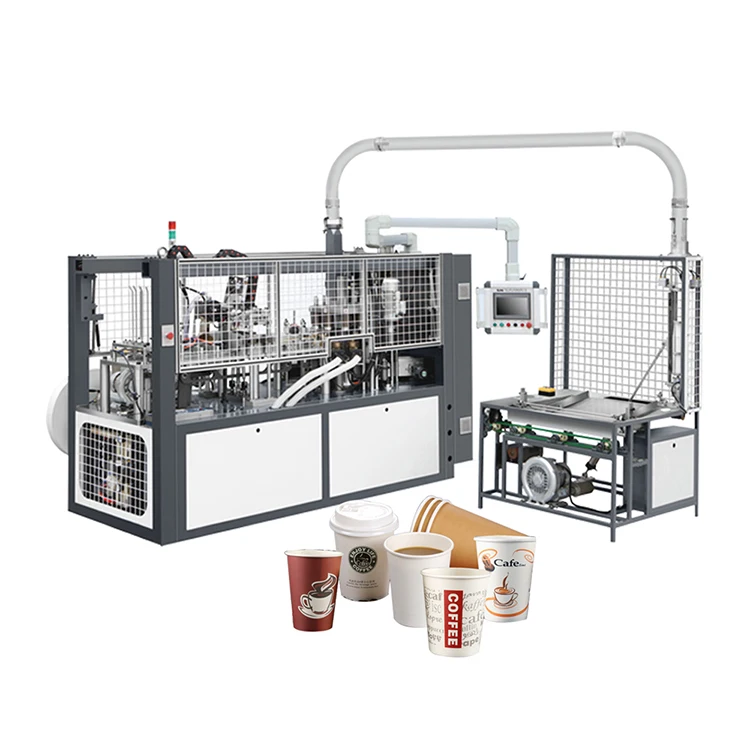

Cheap price 4oz cup size jbz-s normal speed paper cup making machine coffee paper cup forming machines

1, Paper cup machine for producing paper cup, tea cup, coffee cup, advertisement cup, ice cream paper cup or other food.
2, Automatic control adopts optically controlled non-contact switch, Micro-controlled transducer,Step-less speed adjustment
3, Easy changing molds produce different sizes paper cups
4, Easy operating by operator (one operator is enough)
5, Easy maintenance with minimum cost

Specification

Model	YG-800	YG-C800	YG-S800
Paper Cup Size	3-16OZ	3-16OZ	3-16OZ
Raw Material	One-side PE	One-side PE	One-side or two-side PE coated paper (Singe PE or Double PE coated paper)
Speed	65-75 pcs/min	70-80 pcs/min	75-85 pcs/min
Suitable paper weight	150-180g/m²;±20g/m²	150-300g/m²;±20g/m²	160-300g/m²;±20g/m²
Voltage supply	380V,50HZ	380V,50HZ	380V(220V) 50HZ
cup size	Bottom35-70mm, Top45-90mm High32-135mm	Bottom35-70mm,Top45-90mm, High32-135mm	Bottom35-70mm, Top45-90mm, High32-135mm
General power	4.5 kw	5 kw	6kw
Working Air Source	NO	NO	0.4-0.6Mpa; 0.4m³/min
Net weight	1680kg	1680kg	2000kg
Cup Side Sealing	Copper bar heating	Evergreen Ultrasonic	Evergreen Ultrasonic
Bottom Knurling	Heating	Heating	Hot Air System
We can customize machine and mold according to customer’s requirement.

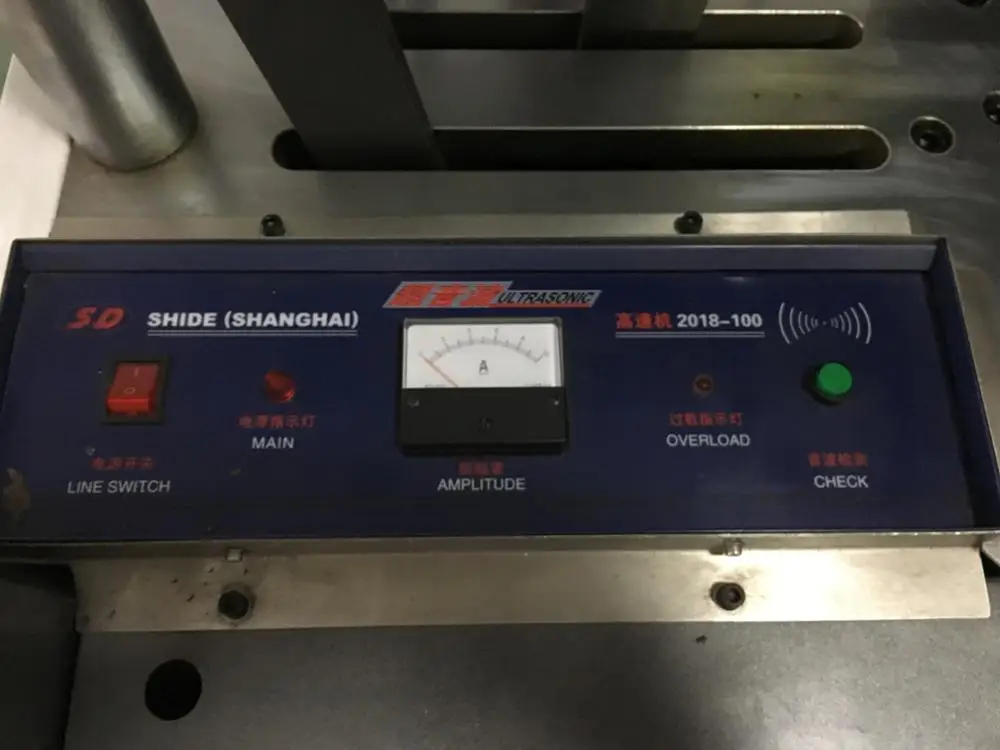

The difference between ultrasonic paper cup machine and copper strip paper cup machine

The difference between ultrasonic paper cup machine and copper strip paper cup machine
The ultrasonic heater type is equipped with a hot air blowing system, which can provide hot air

to ensure the perfect adhesion of the bottom of the cup, and the finished cup does not have any

water leakage problems (much better than the ordinary bottom heater). Only the ultrasonic heater

type machine is equipped with a hot air system, and the copper heater type machine is not equipped.

Production Process

Paper Cup Making Machine Feature

1. Excellent steel frame;

2.Professional humanized design;

3.Simple operation panel;

4.Simple operation and convenient maintenance;
5.Stable transmission system;

6.High-quality products with low consumption;

7.Safe alarm system;

8.Double-layer insulation bowl machine.
