Raycus/ Ipg/Mopa 20 Вт 30 50 70 100 волоконная лазерная маркировочная машина для металла часов камеры автозапчастей
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: Liaocheng,Dongchangfu,Ketai,Laser,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.69 $* |
| Aug-16-2025 | 0.24 $* | 0.68 $* |
| Jul-16-2025 | 0.52 $* | 0.21 $* |
| Jun-16-2025 | 0.60 $* | 0.67 $* |
| May-16-2025 | 0.23 $* | 0.23 $* |
| Apr-16-2025 | 0.69 $* | 0.7 $* |
| Mar-16-2025 | 0.83 $* | 0.94 $* |
| Feb-16-2025 | 0.57 $* | 0.21 $* |
| Jan-16-2025 | 0.27 $* | 0.32 $* |
Характеристики
Product Description
Fiber laser marking machine :Raycus laser source ,beijing EZcad software,nanjing wavl lens
Model | KT-20 KT-30 KT-50 KT-70 KT-100 |
Laser power | 20W 30W 50W 70w 100w |
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
Beam quality | m2 <2 |
Power stability | (8h) <± 1% rms |
Pulse repetition frequency | 20KHZ ---- 100KHZ |
Power consumed | <800W |
Minimum line width | 50μm |
Minimum character | 0.001mm |
Laser Wavelength | 1064nm |
Galvanometer Size | 110*110mm 150*150mm 175*175mm 200*200mm 300*300mm |
Whole machine power | 0.5kw |
Cooling way | Air cooling |
Operating voltage | 110/220V ± 10% /,50/60HZ |
Ambient operating temperature | 15 ° C - 35 ° C |

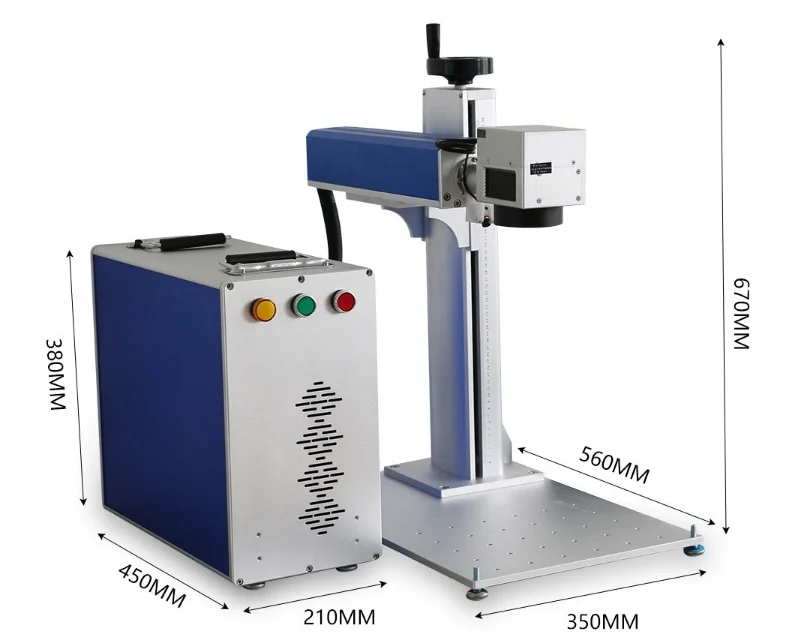

Dimensions | 36*70*110cm |
weight | 50kg |

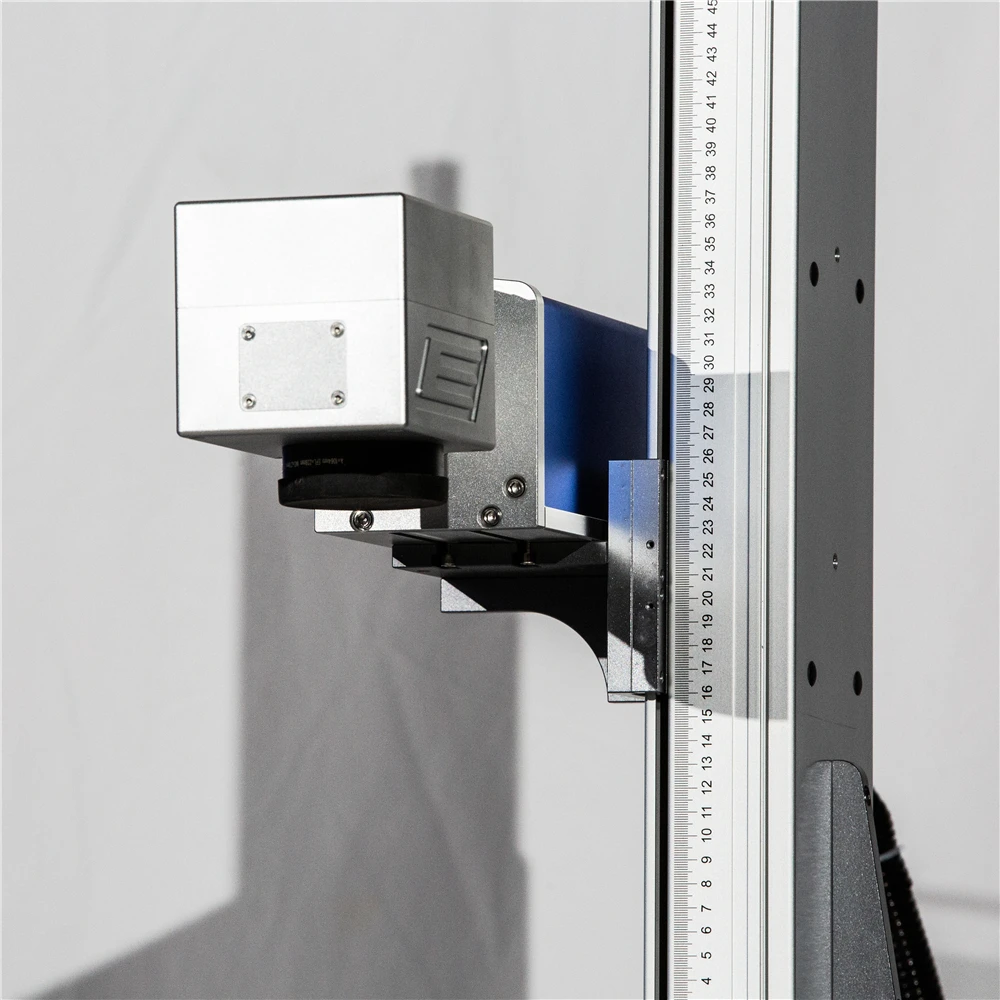

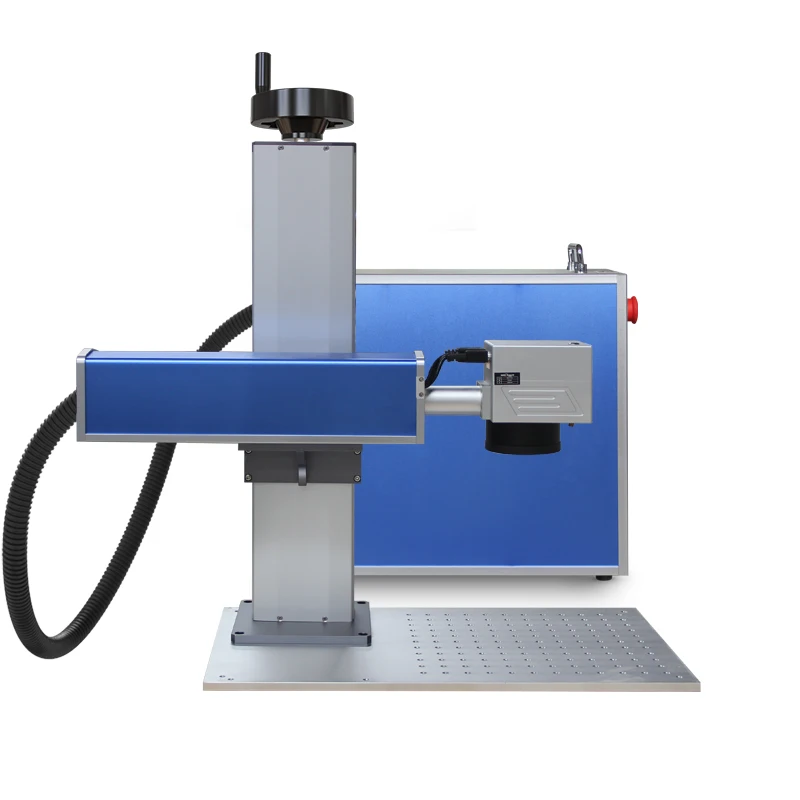

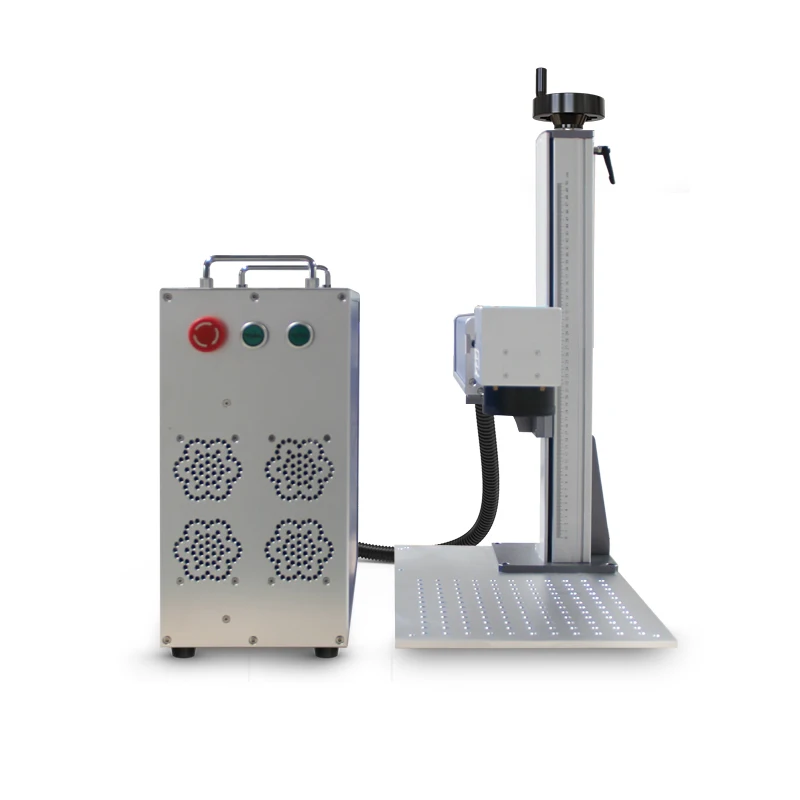

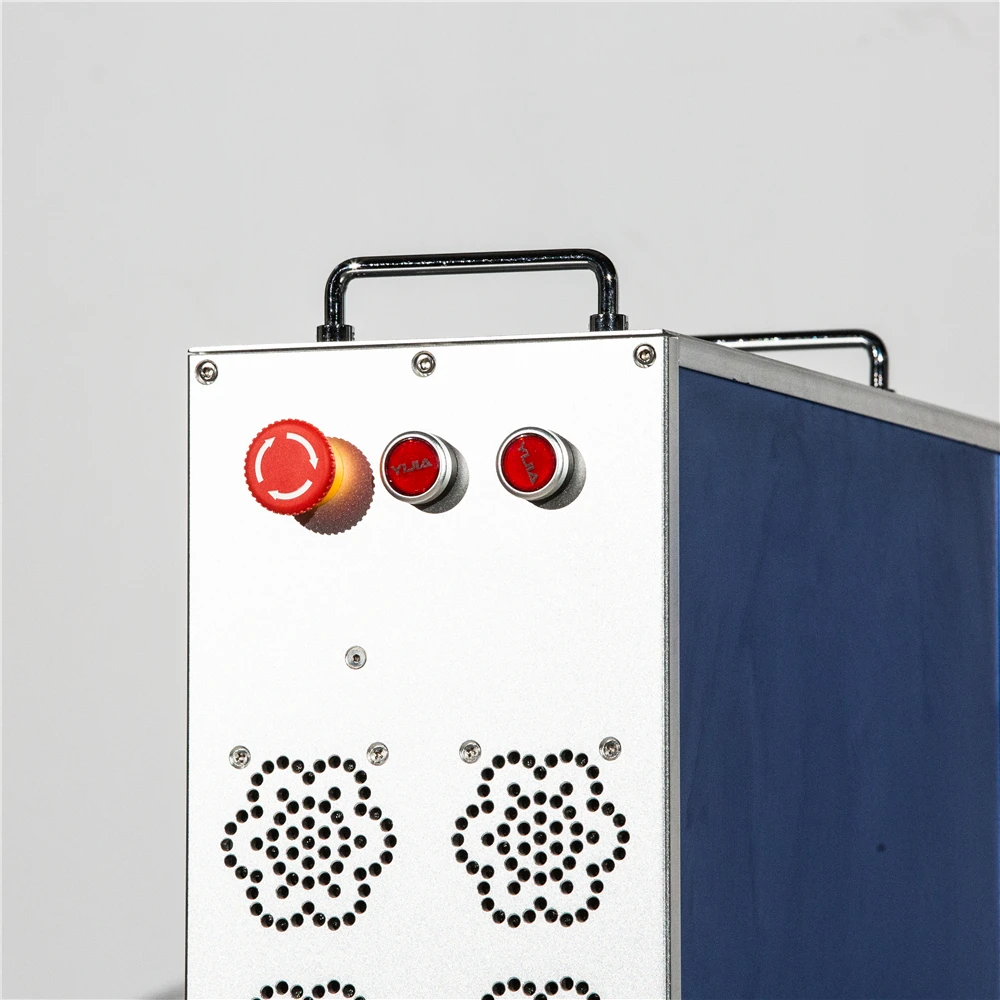

Detailed Images
samples
1 Model: KT-20,30,50,70,100 Fiber Marking Machine
2 Applicable materials:Applicable various metal,.alloy and some non-metal materials.
3 Applicable industry:
Metal,alloy ,oxide,ABS,epoxy resin,printing ink,etc. which are widely applying for electronics,jewelry,automobiles,communication products,plastic buttons,IC,etc.
Also this machine is widely used for logo marking, bearing marking, PCB marking or engraving, etc.
Packing & Delivery
fiber laser marking machine be packaged by plywood
Our Company
Liaocheng dongchangfu ketailaser equipment co.,ltd Which is a provincial hitech and municipal science technology demonstration enterprise. Our main product include laser engraving machine, laser cutting machine, and fiber marking machine.
Our brand is worldslaser WD, now the main model we produce is WD-40, WD-3020, WD-3040, WD-3050, WD-4060, WD-5070/6090, WD-1224, WD-1290/1390, WD-1312, WD-1325, WD-1610/1810/1812, WD-1530, WD-10F/20F/30F/50F, and can customize the machine according to your need.
The products widely used in craft gift industry, clothes industry, leather industry, logo embroidery industry, advertisement industry, seal industry, packing industry, plate making industry, furniture making industry, knife mold manufacturing industry, digital and electrical appliance industry etc,and have been widely sold to more than 40 countries. Welcome all walks of friends come to visit and work with us.
Certifications
Our Service
1.Three year quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
contract
