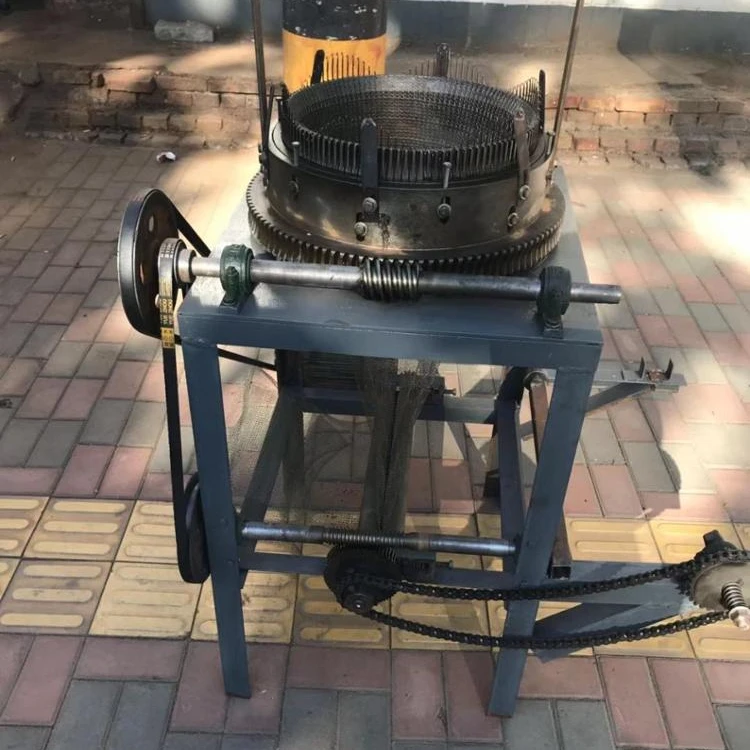

                                Knitted wire mesh machine

Overview

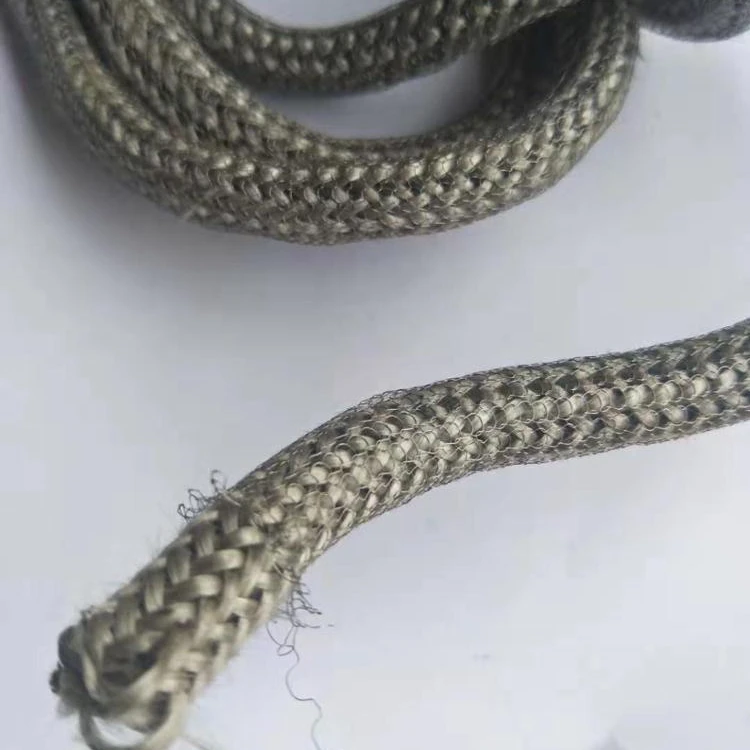

This machine is a crochet knitting machine. This screen machine is suitable for weaving metal and chemical fiber filters. Metal materials: stainless steel wire, galvanized iron wire, copper wire, tweezer wire. Chemical fiber material: nylon, glass fiber, polyester, ethylene, etc.

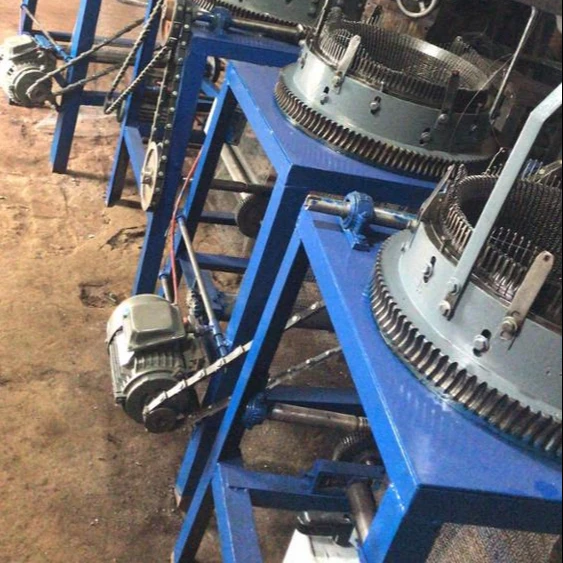

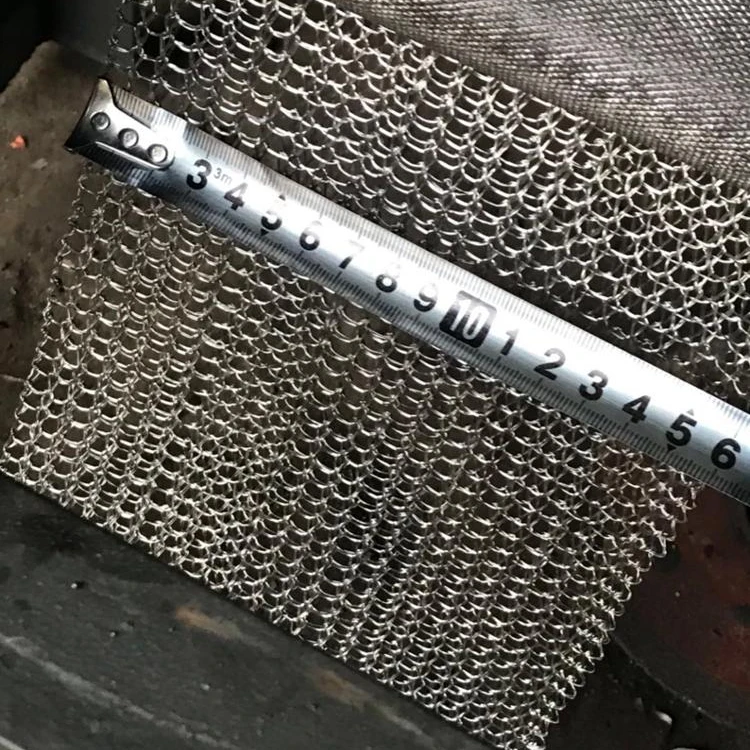

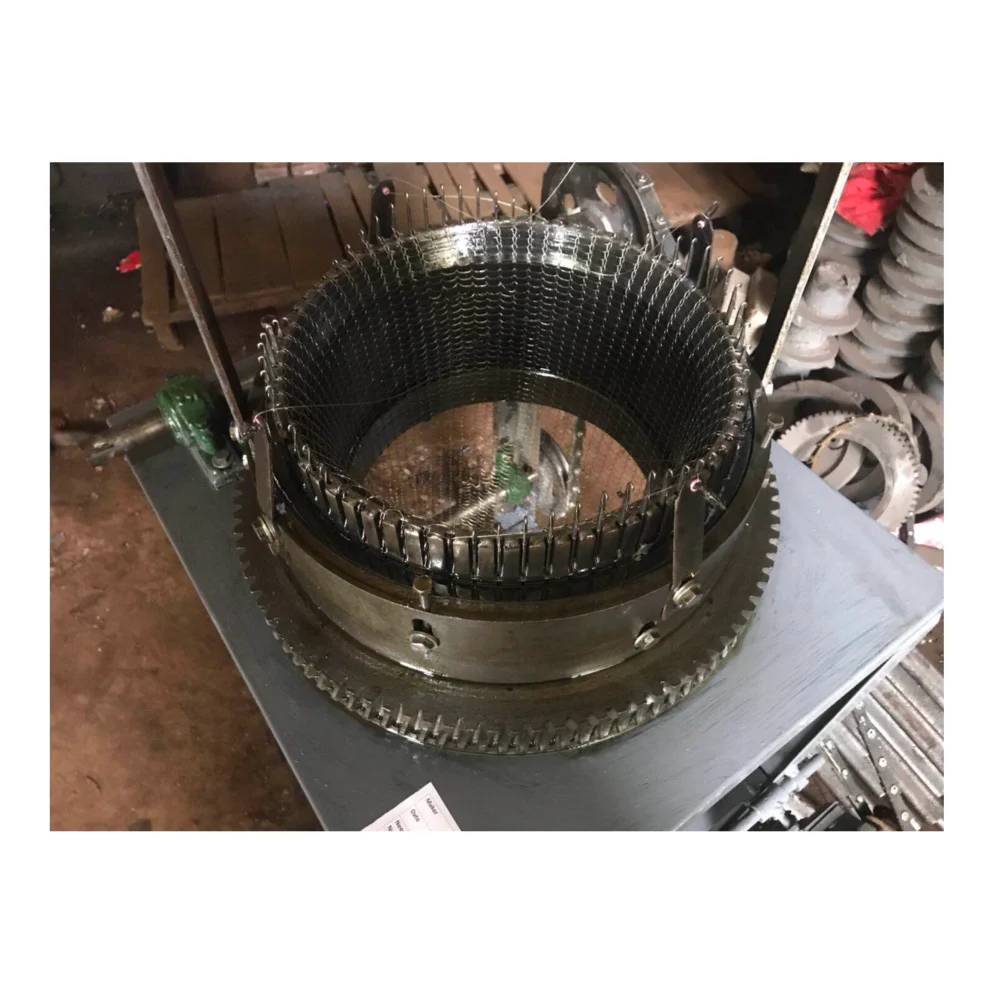

The shape of the product is cylindrical, the flattening width of the product is 600mm, the number of needles is 160-170 (can be customized according to customer requirements). Wire diameter (can be knitted with 3 or 4 strands); equipped with three motors, Power 0.75 ;motor speed 1500 / min.



Technical detail



Wire diameter	0.1-0.3mm	material	stainless steel
width size of mesh	100 - 2000mm	speed	1500R/min
hole szie	as costomer required	Rated voltage	380V  550V









INSTRUCTION

1. Preparation: Connect the motor tri-line and see if the motor rotates forward;

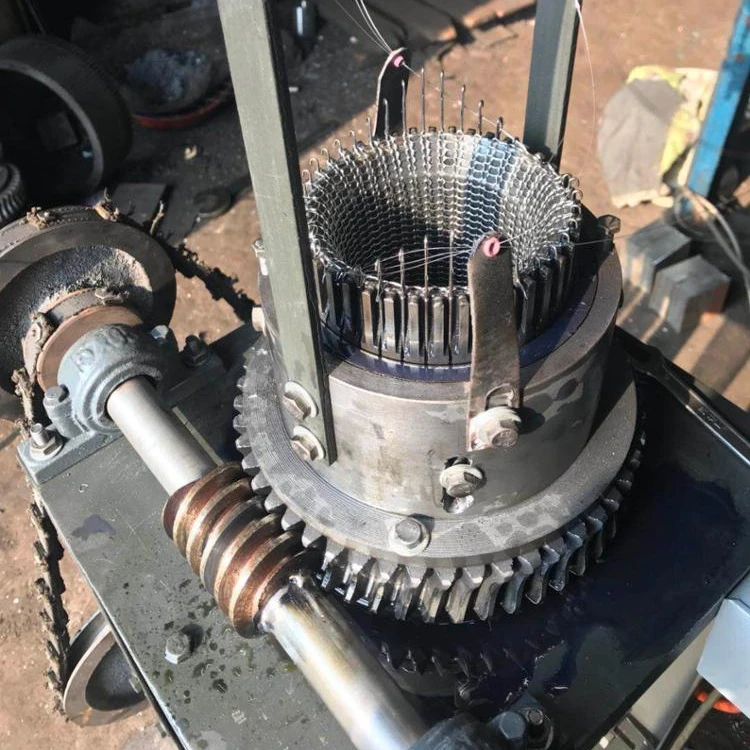

2. Wiring: install the bobbin, the thread passes through the porcelain eye; then put the needle, let the thread pass through the eye of the needle, winding from high to low;

3. Weaving the net: first shake with the handle, weave into the shape of the net, and then turn on the machine until the net is woven, increase to a certain length and clamp it on both sides.







ATTENTION

1. The belt must be removed during the forward and reverse rotation test to prevent damage to the crochet and to ensure the forward rotation and then install the belt;

2. The machine head and the crochet needle should keep the lubricating oil (oil) uninterruptedly, so as to protect the machine head and the crochet needle and prolong its life.

3. You must use a reliable grounding wire separately, otherwise, there is a danger of being leaked by electricity and being hit by static electricity! 4. It is strictly forbidden to adjust the touch when each station is running, otherwise, there is a danger of being involved in cutting off!
