BTCP-297A A4 копировальная бумага полосная упаковочная машина
US $19000-$43000
Автоматическая упаковочная машина для шоколада горизонтальный поток пленка пластиковая 10-300
- Категория: >>>
- Поставщик: Wenzhou,JOIE,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4344.23 $* | 4561.32 $* |
| Aug-15-2025 | 4307.15 $* | 4522.99 $* |
| Jul-15-2025 | 3614.60 $* | 3795.7 $* |
| Jun-15-2025 | 4234.15 $* | 4446.80 $* |
| May-15-2025 | 3687.48 $* | 3871.39 $* |
| Apr-15-2025 | 4161.84 $* | 4369.80 $* |
| Mar-15-2025 | 4125.57 $* | 4331.16 $* |
| Feb-15-2025 | 4088.45 $* | 4292.76 $* |
| Jan-15-2025 | 4052.58 $* | 4255.90 $* |
Характеристики
Products Description
Product Application
Horizontal flow wrapping machine is one kind of film bag packaging machine in the world.it is widely use in food packaging industry such as cakes/bread/biscuit/candys/tortillas/mooncakes and so on...
MODEL | Max. FILM WIDTH | Max. BAG WIDTH | Max. BAG HEIGHT | CONTROL SYSTEM |

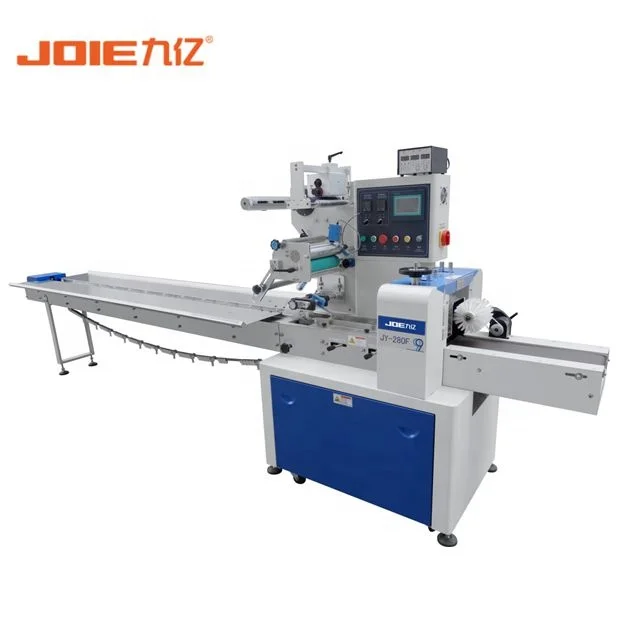

JY-280 | 280MM | 130MM | 45MM | 1 SERVO/3 SERVO |

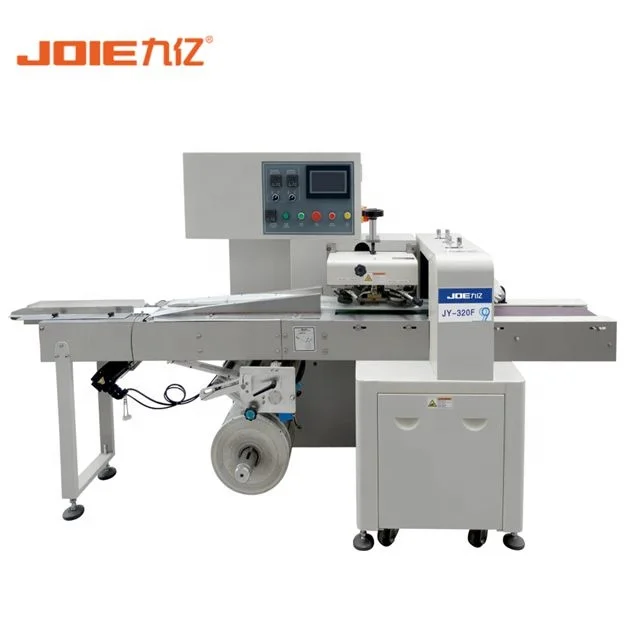

JY-320 | 320MM | 150MM | 60MM | 1 SERVO/3 SERVO |
JY-350 | 350MM | 175MM | 70MM | 1 SERVO/3 SERVO |

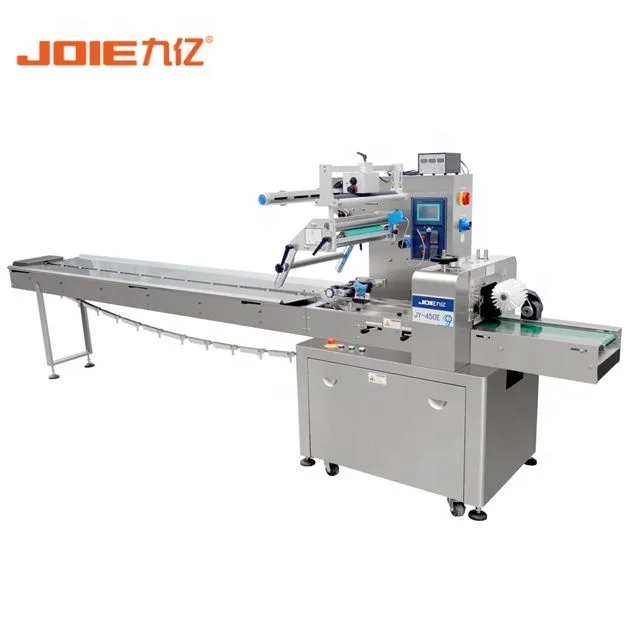

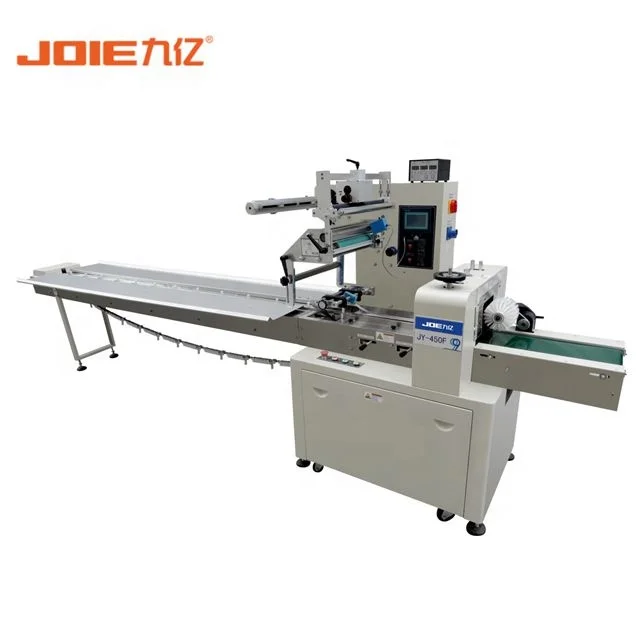

JY-450 | 450MM | 215MM | 70MM | 1 SERVO/3 SERVO |

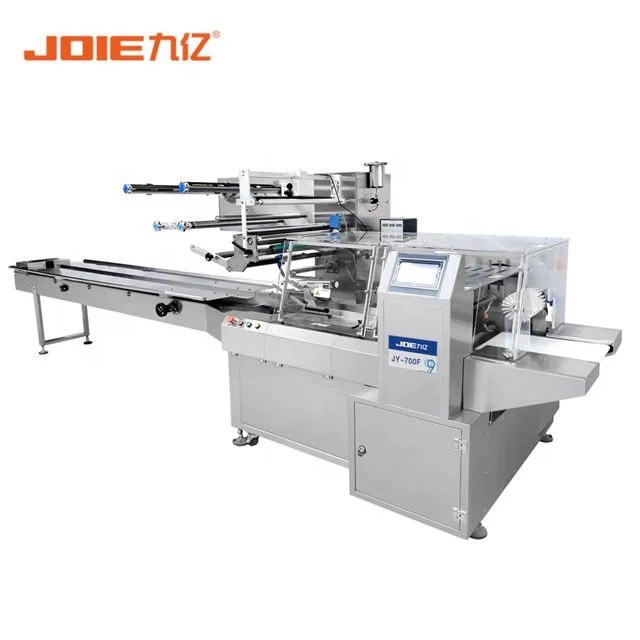

JY-700 | 700MM | 340MM | 120MM | 3 SERVO |
Main Features
All program controlled by 7" touch screen, it is easy to operate;
All packing machine are controlled by independent servo motors (Conveyor belt, center sealing and end sealing)
SUS 304 contact parts for food standard;carbon steel or full stainless steel structure match different cost;
Empty bag prevention, no product no pack
Product cutting prevention, machine will stop once cutter cuts the product
Machine can store 99 groups of package parameters (product position, packing speed, bag length)
No limit for product length
All packing machine are controlled by independent servo motors (Conveyor belt, center sealing and end sealing)
SUS 304 contact parts for food standard;carbon steel or full stainless steel structure match different cost;
Empty bag prevention, no product no pack
Product cutting prevention, machine will stop once cutter cuts the product
Machine can store 99 groups of package parameters (product position, packing speed, bag length)
No limit for product length
Details Images
Machine Parts
Name: Semi-finished machine structure
Brand: JOIE
Original: China
all of packing machine structures are making in-house,with high inspection before assembling;we have carbon steel machine body or
stainless steel machine body for customer choose.
Brand: JOIE
Original: China
all of packing machine structures are making in-house,with high inspection before assembling;we have carbon steel machine body or
stainless steel machine body for customer choose.
Machine Parts
Name: Servo Drives
Brand: RIDING
Original: China
Our flow wrapping machines are controlled by Servo Drive,each machine we give 1 set servo drive or 3 sets servo drives.In order to
make our packing more smarter.
Servo Drive control product feeding/bag length setting/bag sealing separate.
Brand: RIDING
Original: China
Our flow wrapping machines are controlled by Servo Drive,each machine we give 1 set servo drive or 3 sets servo drives.In order to
make our packing more smarter.
Servo Drive control product feeding/bag length setting/bag sealing separate.
Machine Parts
Name: Servo Motor
Brand: RIDNG
Original: China
The control system of servo motors has high reliability, good control function and convenient application
Better than dual frequency conversion system
Brand: RIDNG
Original: China
The control system of servo motors has high reliability, good control function and convenient application
Better than dual frequency conversion system
Machine Parts
Name: Operating Panel
Brand: JOIE
Original: China
Digital temperature control for horizontal and vertical seal.
Chinese/English/Russia/Arabic/Franch/Spainish language
The system has simple structure, high system reliability, and the data recorded are reliable and the operation and maintenance are
convenient.
Brand: JOIE
Original: China
Digital temperature control for horizontal and vertical seal.
Chinese/English/Russia/Arabic/Franch/Spainish language
The system has simple structure, high system reliability, and the data recorded are reliable and the operation and maintenance are
convenient.
Machine Parts
Name: Product Feeding conveyor chain
Brand: JOIE
Original: China
Our flow wrapping machine have product feeding system with chian and finger pusher, suitable for solid products such as
cakes/breads/cookies etc...
Chain and pusher made by stainless steel 304
Pusher size can be customized depends on product size
Brand: JOIE
Original: China
Our flow wrapping machine have product feeding system with chian and finger pusher, suitable for solid products such as
cakes/breads/cookies etc...
Chain and pusher made by stainless steel 304
Pusher size can be customized depends on product size
Machine Parts
Name: Product Feeding conveyor belt
Brand: JOIE
Original: China
Our flow wrapping machine also have conveyor belt feeding system for sticky products or multi-pieces pack in one package
conveyor belt is food standard plastic/rubber material
it is easy to clean and replace
Brand: JOIE
Original: China
Our flow wrapping machine also have conveyor belt feeding system for sticky products or multi-pieces pack in one package
conveyor belt is food standard plastic/rubber material
it is easy to clean and replace
Machine Parts
Name: Product Feeding conveyor belt
Brand: JOIE
Original: China
Adjustable bag forming system for different bag size.
Brand: JOIE
Original: China
Adjustable bag forming system for different bag size.
Machine Parts
Name: Ink roll date coder
Brand: DK
Original:China
Our flow wrapping machine has installed ink roll date coder for manufacturing date/expiry date/lot no. printing
Brand: DK
Original:China
Our flow wrapping machine has installed ink roll date coder for manufacturing date/expiry date/lot no. printing
Machine Parts
Name: end sealing jaw
Brand: JOIE
Original: China
Our flow wrapping machines have single jaw or double jaws different product height/width.
we will give 90/99/120/135mm center distance of jaws.
Brand: JOIE
Original: China
Our flow wrapping machines have single jaw or double jaws different product height/width.
we will give 90/99/120/135mm center distance of jaws.
Product packaging
Machine wrapped by films,with Export and Sea-worthy standard wooden case.
