Интеллектуальная высокоскоростная машина для производства винных коробок изготовления и
- Категория: Packaging Forming Machines >>>
- Поставщик: Guangdong,Lishunyuan,Intelligent,Automation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 142800.36 $* | 149940.62 $* |
| Aug-17-2025 | 141600.92 $* | 148680.81 $* |
| Jul-17-2025 | 118800.9 $* | 124740.30 $* |
| Jun-17-2025 | 139200.68 $* | 146160.93 $* |
| May-17-2025 | 121200.35 $* | 127260.75 $* |
| Apr-17-2025 | 136800.84 $* | 143640.63 $* |
| Mar-17-2025 | 135600.88 $* | 142380.96 $* |
| Feb-17-2025 | 134400.62 $* | 141120.7 $* |
| Jan-17-2025 | 133200.76 $* | 139860.42 $* |
Характеристики
Product Description

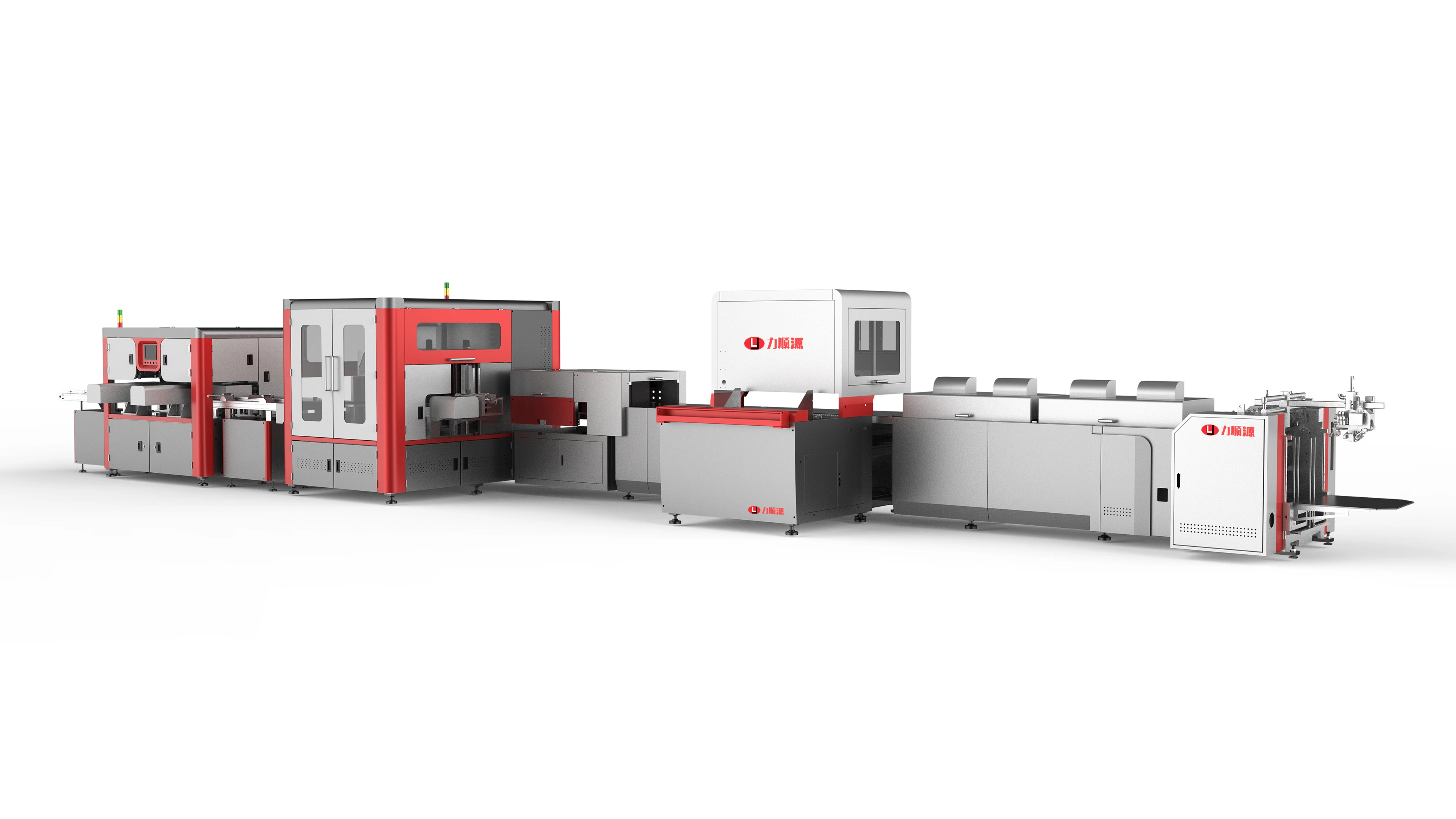

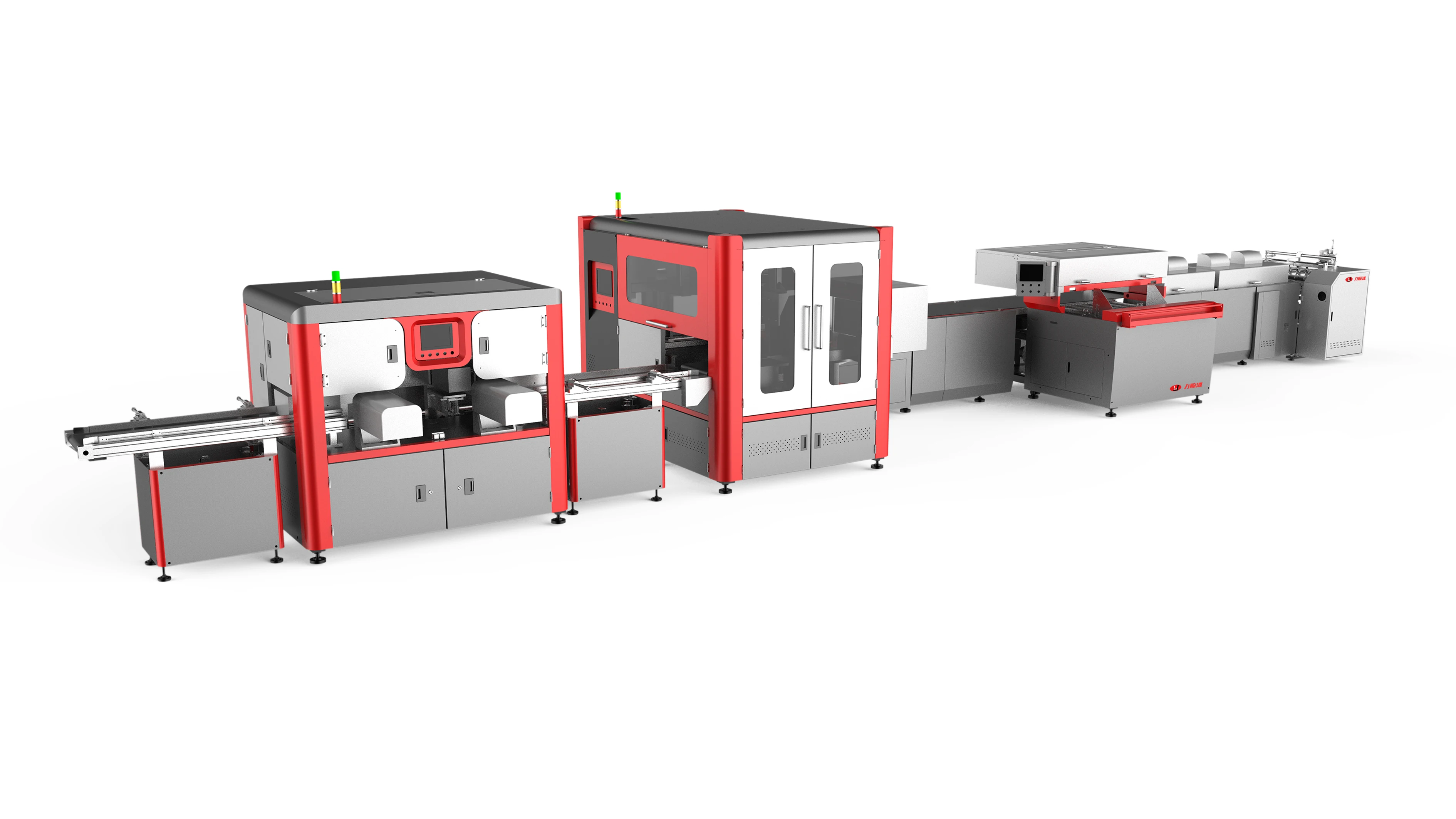

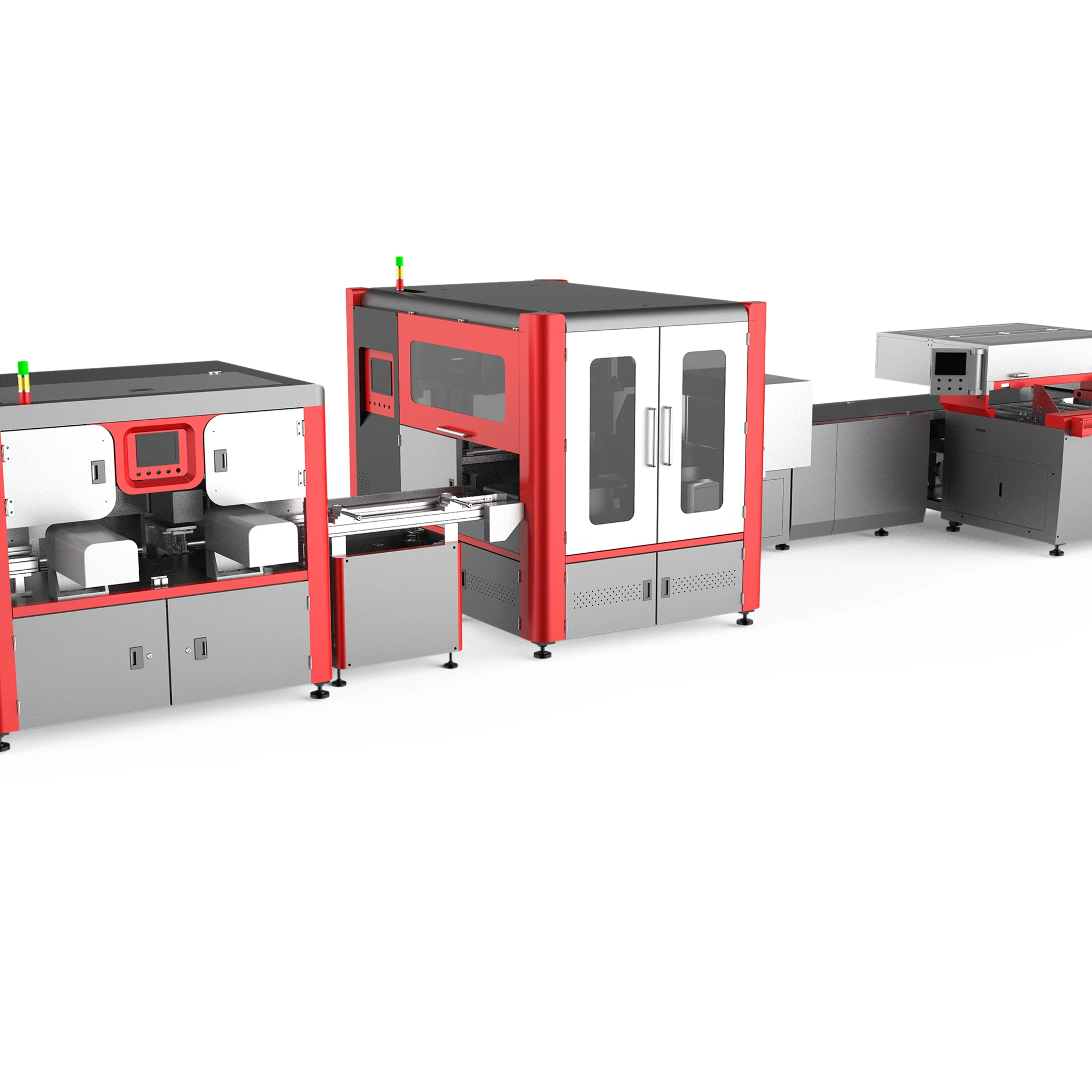

Intelligent high-speed wine box production machine is suitable for the production of wine boxes & drawer boxes and so on. Besides, Its appearance is new design which is safer and more beautiful. And it have high positioning accuracy.
Technical Parameters
W:240-360mm | |
L:380-660mm | |
Paper thickness | 157-300g/m2 |
Grey board thickness | 1-3mm |
W:200-320mm | |
L:360-640mm | |
W:90-160mm | |
L:90-160mm | |
H:200-320mm | |
Edge-wrapping size | 15-30mm |
Positioning accuracy | Visual positioning accuracy:±0.1mm |
optical fiber positioning accuracy:±0.3mm | |
Aligning accuracy | ±0.5mm |
Production speed | 20-25sheets/min |
Max power | 24KW |
Max power(with bubble pressing machine) | 28.5KW |
Air pressure | 0.5-0.7mpa |
Power Supply | 380V/50Hz |
Machine weight | 6200kg |
Machine weight (with bubble pressing machine) | 8000kg |
Overall size of equipment | L10000*W2500*H2100mm |
Overall size of equipment(with bubble pressing machine) | L11820*W2500*H2100mm |
Product features
1、Production speed:20-25pcs/min
2、Positioning accuracy ±0.1 mm
3、with memory function
4、Stable forming
5、Easy operation, fast and convenience
Workshop
Workshop Office Area
Partial Install Area
Packing&Shipping
Film and plywood crate.
Company Introduction
LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 18 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
Our Services & Strength
We have competitive machines, the quality team and the thoughtful service. Lishunyuan emphasizes on giving complete support to our customers, from consultation and development of the machine as per client requirements, to production of the box machine and providing extensive after sales service.Dedicated to providing the highest production rates, maximum accuracy and consistent pouch quality of boutique boxes as per each individual client’s requirements.
