Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
ПЭТ/пластиковая бутылка для выдувного формования/Молдинг/формовочная машина/оборудование/система жидкого мыла рук йода дезинфицирующее
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,City,Fillpack,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.19 $* | 0.49 $* |
| Aug-19-2025 | 0.63 $* | 0.47 $* |
| Jul-19-2025 | 0.0 $* | 0.71 $* |
| Jun-19-2025 | 0.42 $* | 0.26 $* |
| May-19-2025 | 0.99 $* | 0.26 $* |
| Apr-19-2025 | 0.30 $* | 0.40 $* |
| Mar-19-2025 | 0.54 $* | 0.35 $* |
| Feb-19-2025 | 0.86 $* | 0.0 $* |
| Jan-19-2025 | 0.71 $* | 0.3 $* |
Характеристики
Product Description
PET / plastic bottle blow moulding / molder / molding machine / equipment / system for liquid hand soap Iodine sanitizer
1+1 PET bottle blow molding machine
>>>Product Introduction：
FP-1200 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
>>>Product Features：
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate.
>>>Technical Paramters：
Container | Product material | PET,PP,PE |
Volume | 0.1-2L | |
Theoretical output | 800-1000BPH | |
Preform length | 15-350mm | |
Preform inner diameter | Φ5-38mm | |
Moulding | Max.mould plate Dimenstion | 350×380mm |
Max.mould thickness | 180mm | |
Clamping force | 45KN | |
Mould opening stroke | 16 | |
Machine size and weight | Main machine | 160×60×161cm/500Kg |
Heate | 187×63×145cm/250Kg | |
Power | 17.5kw |
>>>Flow and Auxiliary machines：
HP Air Compressor → Air Tank → Air Filter → Air Dryer → Air Filter → Chiller → LP Air Compressor → Automatic Bottle Blowing Machine
1. Auxiliary Machine
To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
2. Bottle Preform
If you need, we can also help you find the bottle preform in china.
3. PET Bottle Mold
Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you.
4. Preform & Cap Molds
We also can provide you with preform mold and cap mold according to your demand.

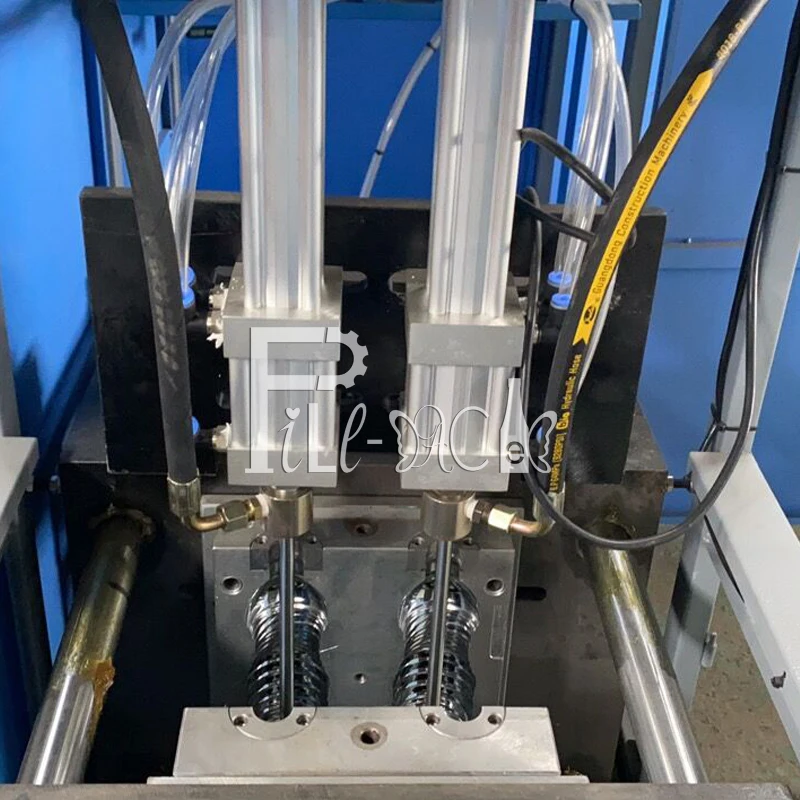

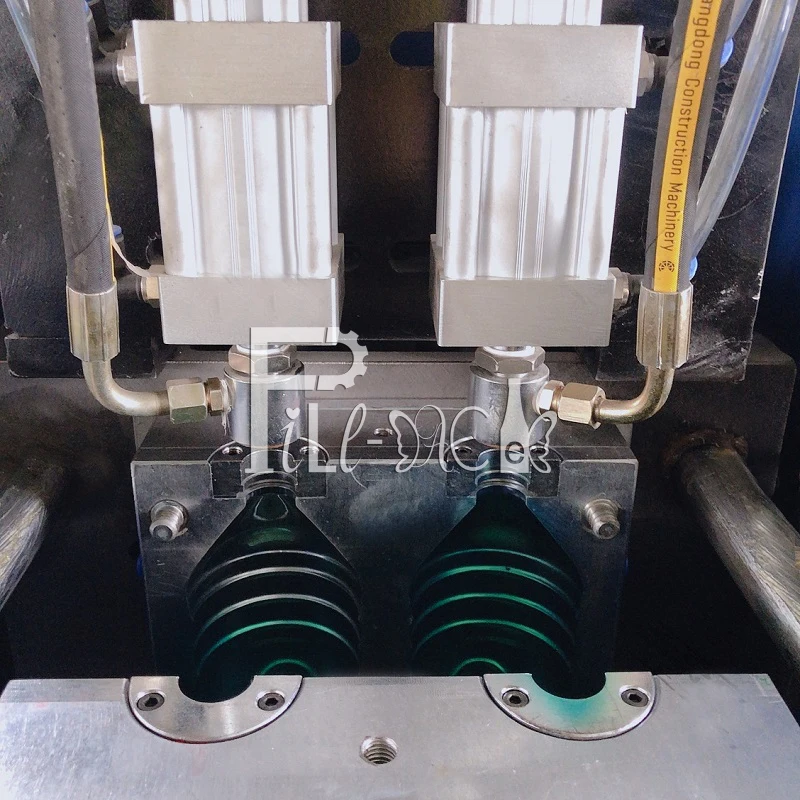

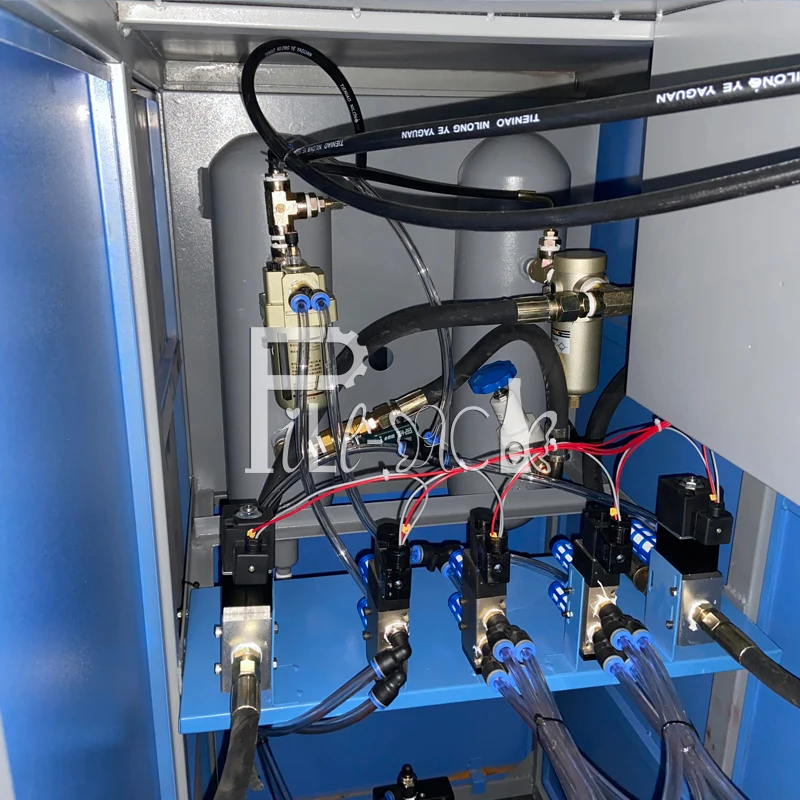

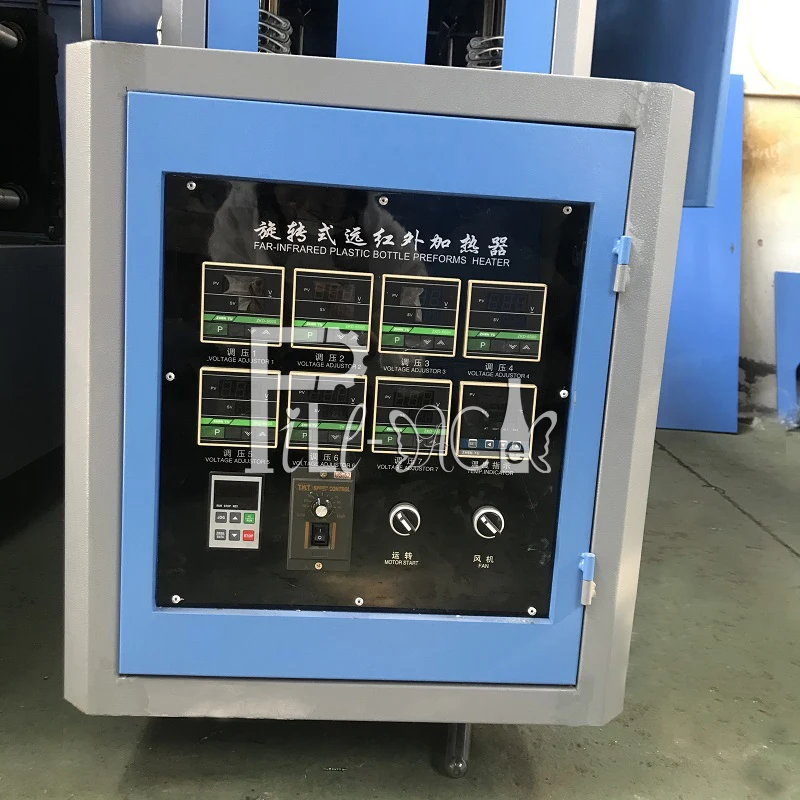

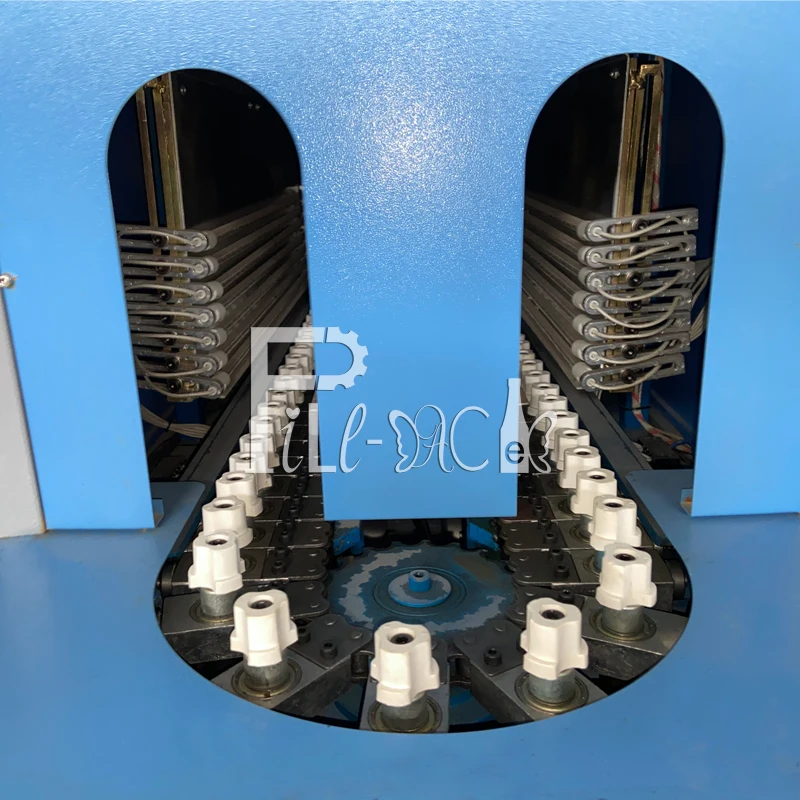

Detailed Images
Packing & Delivery
1. the Molder machine is packed by wooden case.
2. The delivery date of Molder machine is within 15 days after payment.
Related Products
1L / 3L plastic bottle medical / rubbing alcohol / disinfection / liquid / sanitizer bottling equipment / machine
disinfection liquid bottling machine
EDI ultra pure water filter equipment / plant / machine / system for liquid hand soap disinfection liquid iodine sanitizer
EDI filter machine
Our Service
Customer's service:
1. FILL-PACK company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. FILL-PACK company have professional design team, our engineer can draw bottle samples and flow chart ofworkshop for you .
3. FILL-PACK company give you the best quotation for all kinds of beverage production, only you can tell me whichkind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
