Коробка передач Advance Ma142 для морского дизельного двигателя коэффициент снижения 1 97 2 52 3 03 54 95 4 50 5
- Категория: Gearboxes >>>
- Поставщик: Guangzhou,Hiersun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.52 $* | 0.70 $* |
| Aug-15-2025 | 0.59 $* | 0.12 $* |
| Jul-15-2025 | 0.6 $* | 0.68 $* |
| Jun-15-2025 | 0.6 $* | 0.93 $* |
| May-15-2025 | 0.9 $* | 0.60 $* |
| Apr-15-2025 | 0.41 $* | 0.77 $* |
| Mar-15-2025 | 0.99 $* | 0.16 $* |
| Feb-15-2025 | 0.27 $* | 0.91 $* |
| Jan-15-2025 | 0.54 $* | 0.47 $* |
Характеристики
Advance MA142 Gearbox For Marine Diesel Engine Reduction ratio 1.97,2.52,3.03,3.54,3.95,4.50,5.06,5.47
Product Description |
HC-series Marine Gearbox
HC-series marine gearbox self-developed by the company is of power ranging 10kW~3000kW, ratio ranging 1.5~20:1, complete in specifications, high market share, widely used in heavy loaded ships such as transport, fishing and engineering boats. Product design and manufacturing capability are in leading nationally and advanced internationally level.
Description
Marine Gearbox MA142 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.
Main data
| Input speed | 1500-2500r/min | ||
| Reduction ratio | 1.97,2.52,3.03 | Trans. capacity | 0.030kw/r/min |
| 3.54 | 0.026kw/r/min | ||
| 3.95 | 0.023kw/r/min | ||
| 4.5 | 0.019kw/r/min | ||
| 5.06 | 0.016kw/r/min | ||
| 5.47 | 0.013kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 8.5KN | ||
| Center distance | 142mm | ||
| L×W×H | 308×520×540mm | ||
| Net weight | 140kg | ||
| Flywheel | SAE11.5,10 | ||
| Bell housing | SAE2,3 | ||
Application
Marine Gearbox MA142 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.

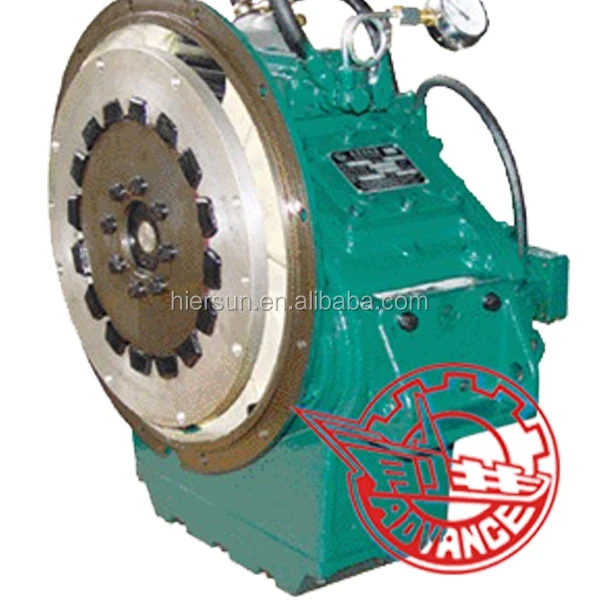

Advance MA142 Gearbox For Marine Diesel Engine Reduction ratio 1.97,2.52,3.03,3.54,3.95,4.50,5.06,5.47 (photo for reference only)
Packaging & Shipping |
Company Information |
Hiersun Group is a China professional manufacturer of diesel generator set, and we are committed to supply diesel generator genuine Steyr , Steyr , Caterpillar, Daewoo, MTU, the engine power pack for oilfield, crane, pump and other construction field. We keep strengthen the supervision over the production and processing course, to establish and perfect the quality guarantee body, please follow us for more news of this industry.
Factory:
Certifications:
