Зарядное устройство для литий-ионных аккумуляторов 60

Зарядное устройство для литий-ионных аккумуляторов 60

Категория: On Board Chargers >>>
Поставщик: Nanjing,Pengtu,Power,Supply,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.21 $*	0.18 $*
Aug-19-2025	0.50 $*	0.51 $*
Jul-19-2025	0.59 $*	0.10 $*
Jun-19-2025	0.60 $*	0.17 $*
May-19-2025	0.58 $*	0.68 $*
Apr-19-2025	0.57 $*	0.16 $*
Mar-19-2025	0.37 $*	0.17 $*
Feb-19-2025	0.44 $*	0.45 $*
Jan-19-2025	0.23 $*	0.69 $*

Характеристики

60v lithium ion battery charger

Product Description

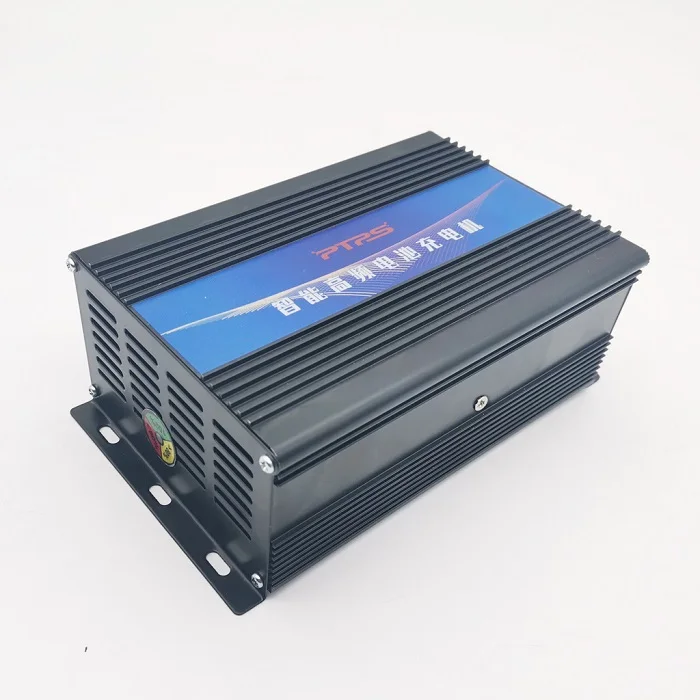

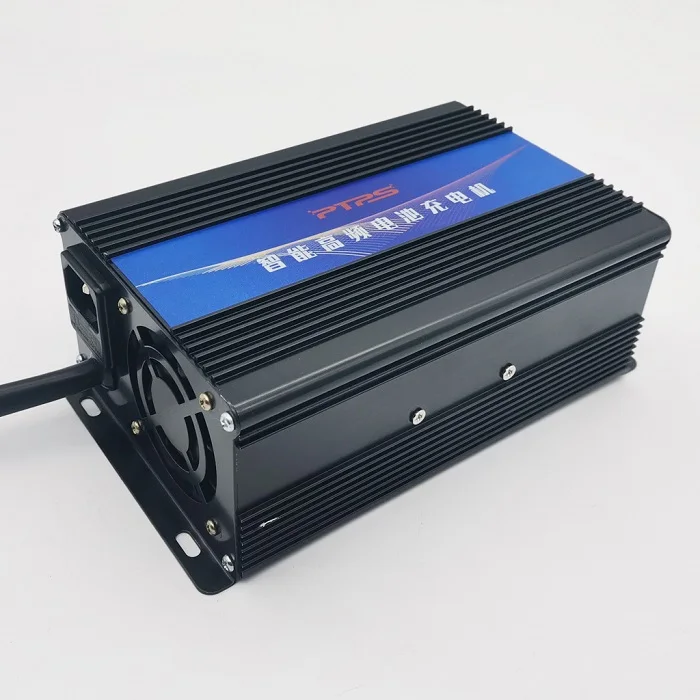

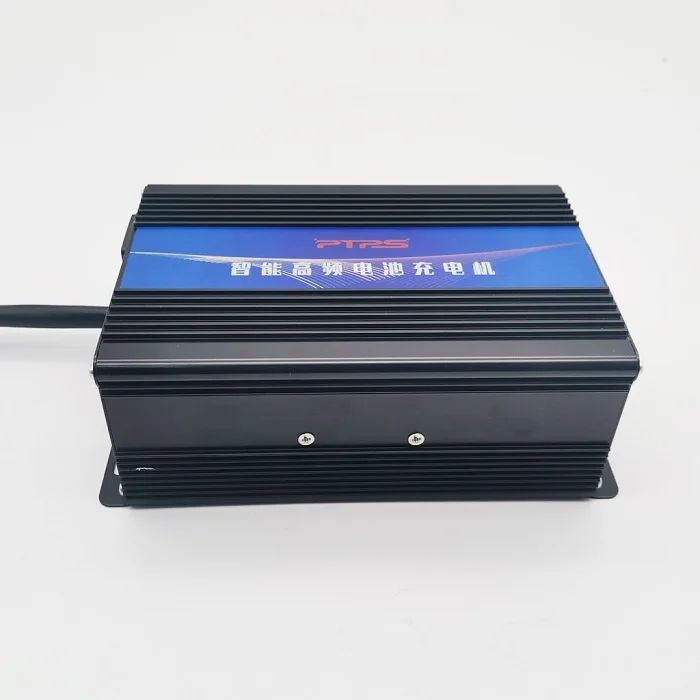

The chargers are designed with aluminum profile structure. They are suitable for liquid-rich lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.

Technical parameters

. Ac input voltage range: 180-260VAC;45-65HZ

. AC max input current: 15A@220VAC

. Max Efficiency: 93% (Full Load @220VAC)

. Noise: ≤45dB

. Net weight: 1.0kg±0.3kg

. Working temperature: -20°C~+55°C

. Storage temperature: -40°C~+95°C

Protective function

. Output overvoltage protection . Output reverse connection protection

. Output short circuit protection . Input over-current protection

. Output no-load protection . Fully charge automatic shutdown

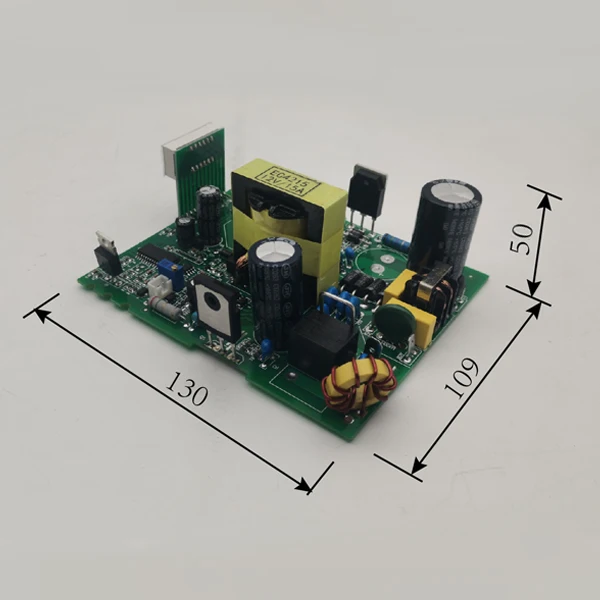

Mechanical Size

Model List

Item	Battery Rated Voltage	Max Output Voltage	Max output current
PBC170-1210	12V	15V	10A
PBC170-1212	12V	15V	12A
PBC170-1215	12V	15V	15A
PBC170-2408	24V	30V	8A
PBC170-3605	36V	45V	5A
PBC170-4805	48V	60V	5A

In order to confirm if our charger is suitable for your battery pack, please send the following infomations to us by email:

(1) battery type:

(2) number of cells in series:

(3) capacity of battery pack(AH):

(4) The maximum charge voltage:

(5) AC input volt:

(6) with CAN or enable:

(7) if with CAN, tell us the BMS brand

AC cable and DC cable: matching socket without AC/DC cable.

Shipping:

We Ship to Worldwide, except APO/FPO.

Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.

Delivery time depends on destination and other factors, it may takes up to 20 business days

Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.

48v electric bike battery charger

Warranty and Guarantee:

12 months Warranty. Buy with confidence!

Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.

If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid.

If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact me before you return it.

Other Policies:

We are not responsible for any custom duty or import tax.

We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.

All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.

Serious Buyer Only! Please place bid only if you agree with all the terms.
