Преобразование и распределение единиц заводская цена 4 в 1 cdu pdu на плате ev зарядное
- Категория: >>>
- Поставщик: Dilong,New,Energy,Technology,Hebei,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2023.72 $* | 2124.33 $* |
| Aug-15-2025 | 2006.60 $* | 2106.65 $* |
| Jul-15-2025 | 1683.23 $* | 1767.23 $* |
| Jun-15-2025 | 1972.52 $* | 2071.34 $* |
| May-15-2025 | 1717.55 $* | 1803.6 $* |
| Apr-15-2025 | 1938.32 $* | 2035.91 $* |
| Mar-15-2025 | 1921.28 $* | 2017.40 $* |
| Feb-15-2025 | 1904.98 $* | 1999.24 $* |
| Jan-15-2025 | 1887.55 $* | 1981.20 $* |
Характеристики
Product Overview

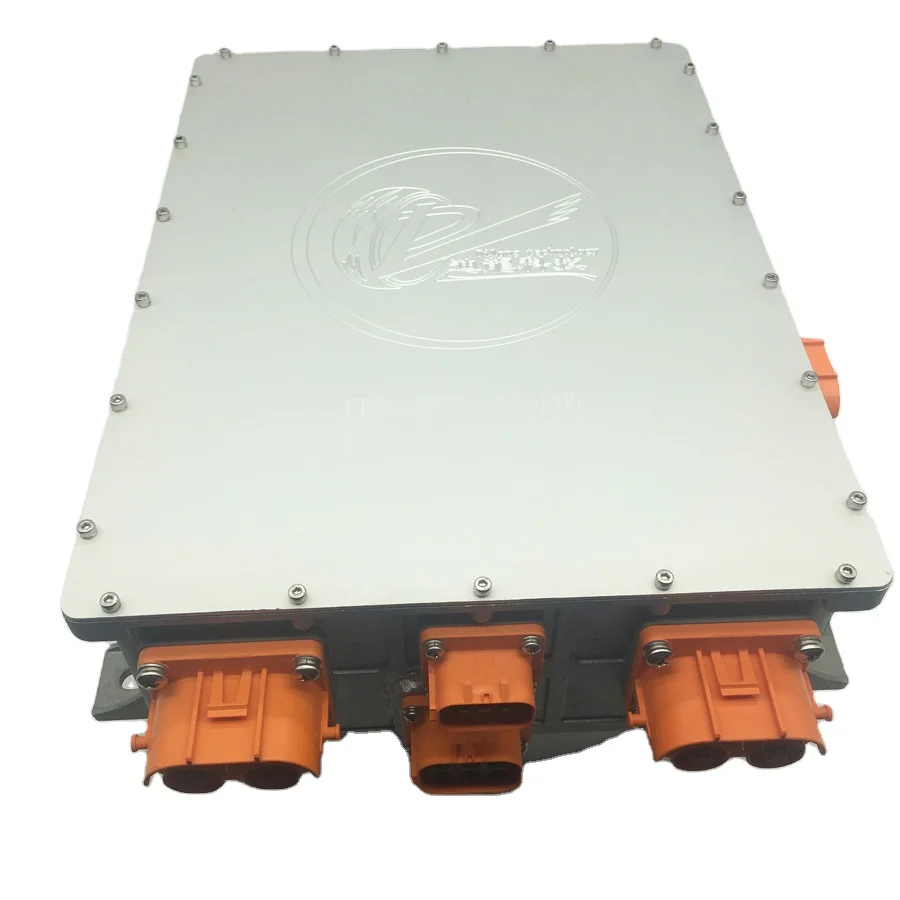

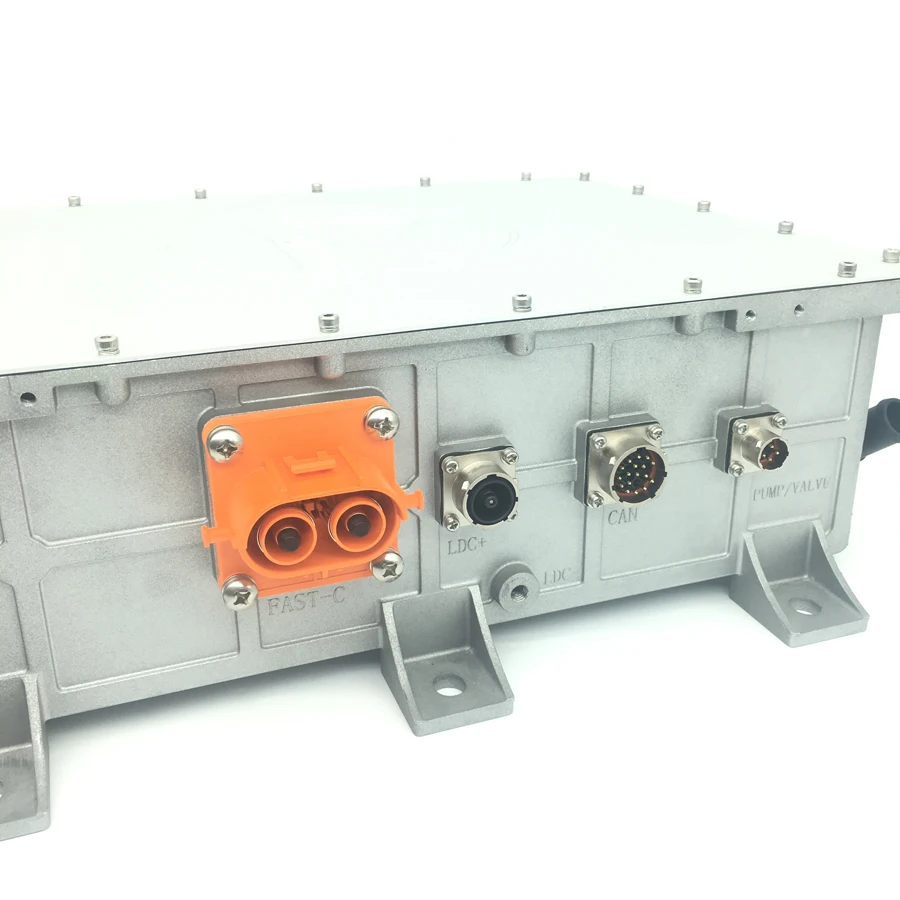

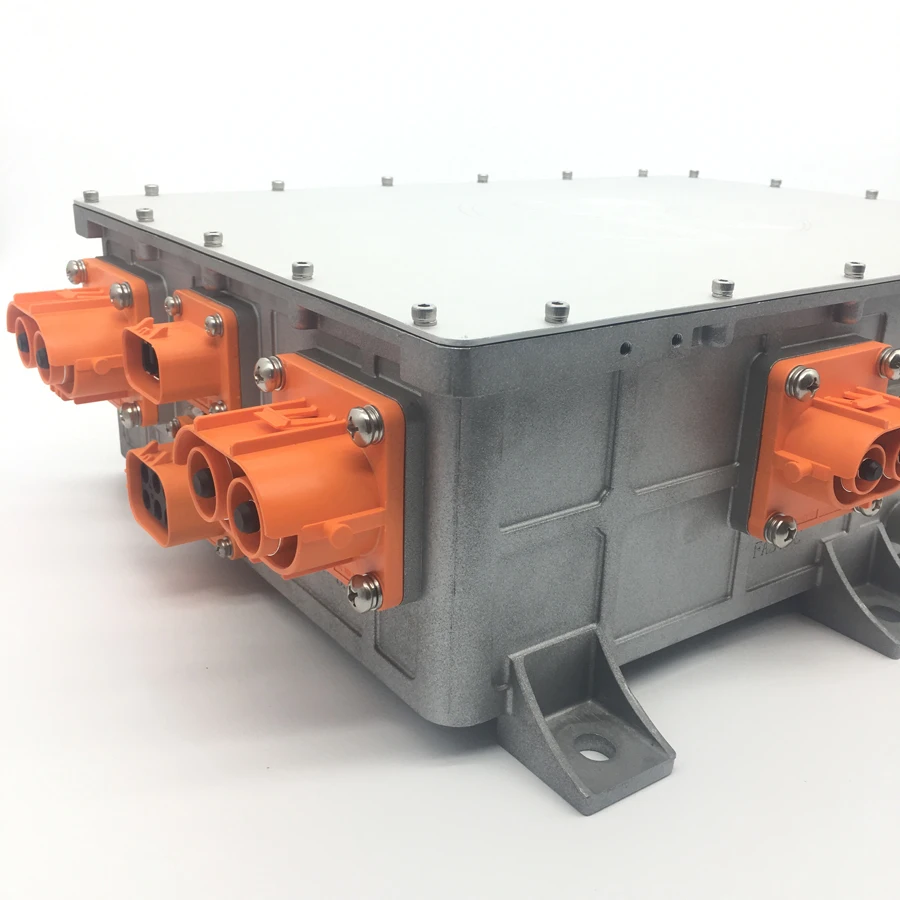

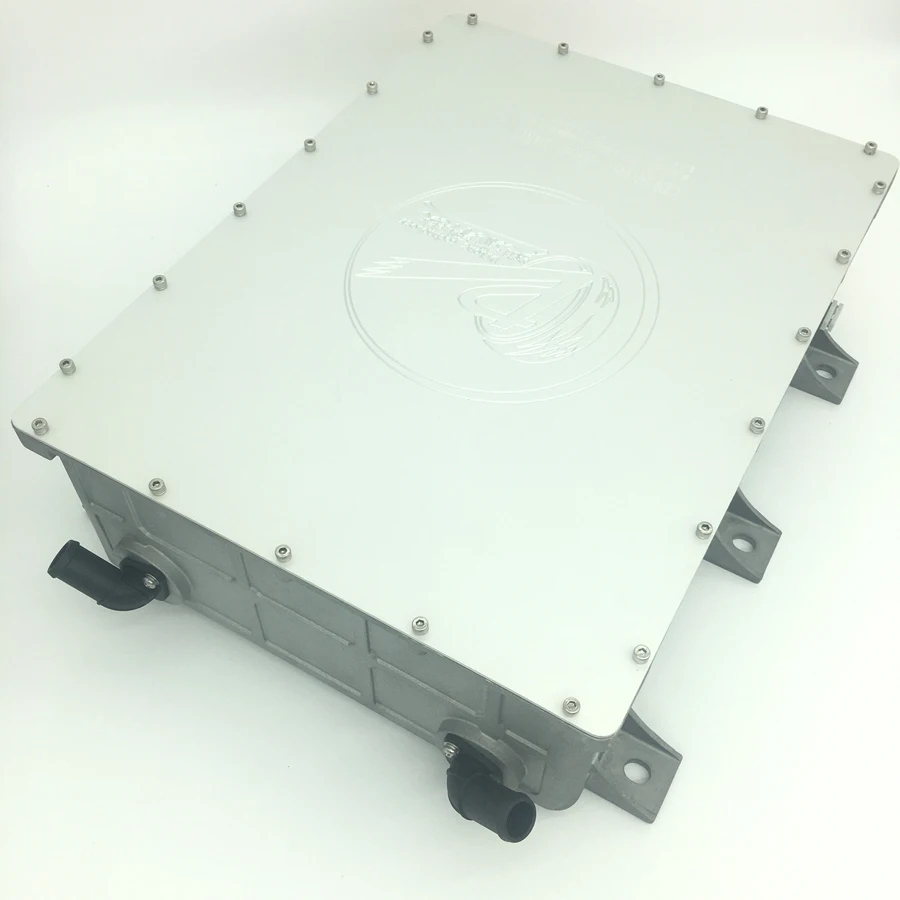

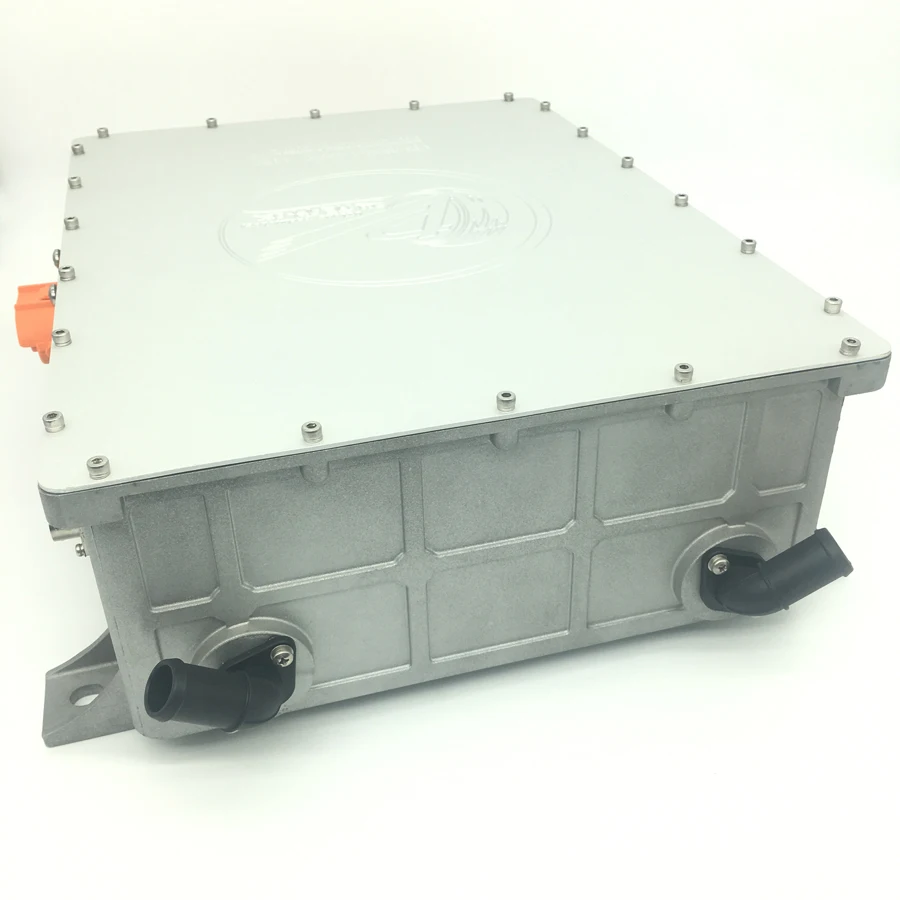

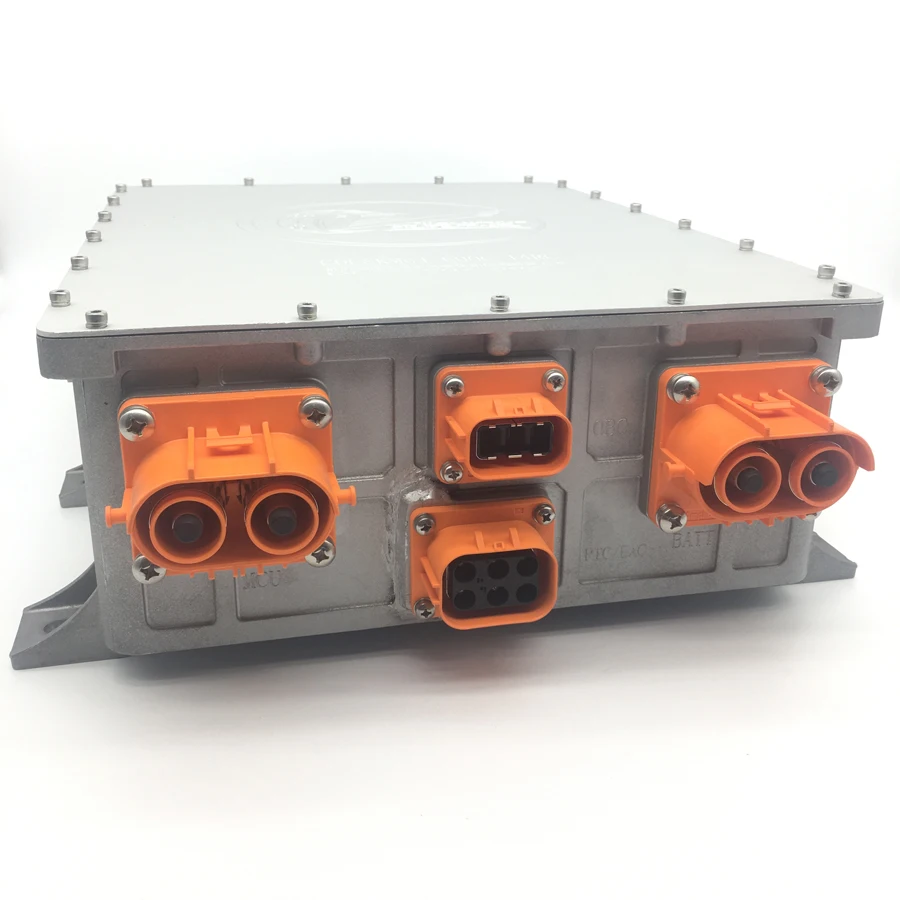

CDU8KM64-600C-14RC OBC + DC-DC Converter + PDU
CDU8KM64-600C-14RC is a liquid-cooled, specifically designed for pure electric vehicles, can freely combine AC-DC, DC-DC and high-voltage distribution unit ‘3-in-1’, conversion switching power converter. AC-DC charger adopts advanced resonance technology, high efficiency, high power, small size, reliable work, charging mode using constant power and constant voltage automatic state transition, effectively saving the charging time. Wide input and output voltage range with active power factor correction, zero pollution to the grid. Using CAN2.0B communication protocol, with intelligent charging function, intelligent monitoring fault alarm, protection, with remote detection, programming, fault inquiry and other functions. Built-in 14V battery management system wake-up signal power. DC-DC high and low voltage converter using advanced substrate technology, modular design, high power density, small size, reliable, with constant current and constant pressure automatic state conversion. Using CAN2.0B communication protocol, with intelligent charging function, with intelligent monitoring fault alarm, protection.
This power supply is specially designed for high voltage battery charging and buck conversion of new energy vehicles. Reduce the number of vehicle wiring harness connector and split the power supply installation of the trouble, the power supply using liquid-cooled design, and world-class automotive power supply manufacturers fully synchronized, is the world's highest power density products, the performance indicators have reached or exceeded the international counterparts Horizontal, trouble-free operation longer.
This power supply is specially designed for high voltage battery charging and buck conversion of new energy vehicles. Reduce the number of vehicle wiring harness connector and split the power supply installation of the trouble, the power supply using liquid-cooled design, and world-class automotive power supply manufacturers fully synchronized, is the world's highest power density products, the performance indicators have reached or exceeded the international counterparts Horizontal, trouble-free operation longer.
FEATURES AT A GLANCE
OBC part
Constant power and constant voltage state
Constant power and constant voltage state
Active power factor correction≥0.99
Input over/under-voltage protection
Output over/under-voltage protection
Output over-current protection
Output short circuit protection
Output reverse connection protection
Over temperature protection
CAN communication intelligent fault alarm and protection function
Small volume, large power density
DC-DC part
Constant current and constant voltage automatic conversion, effectively save charging time
Input over/under-voltage protection
Output over-voltage protection
Output over-current protection
Output short circuit protection
Over temperature protection
CAN communication intelligent fault alarm and protection function
Small volume, large power density
Intelligent charge control function
Output over-voltage protection
Output over-current protection
Output short circuit protection
Over temperature protection
CAN communication intelligent fault alarm and protection function
Small volume, large power density
Intelligent charge control function
PRODUCT SPECIFICATIONS
No | OBC part | Data | DC-DC part | Data |
1 | Power | 6600W | Power | 1200W |
2 | Input | 220Vac 47~63Hz | Input | 400Vdc to 750Vdc |
3 | HV Output | 600Vdc | LV Output | 14Vdc |
4 | Output Voltage Range | 400V to 750V | Output Current | 86A |
5 | Max Output Current | 20A | Efficiency | ≥90% |
6 | Efficiency | ≥92% | Control | CAN or Enable |
7 | Control | CAN | Cooling | Liquid-cooled |
8 | CAN Communication | 125kbps/250kbps/500kbps | Auxiliary power | 12V 2W |
PDU part
9 | Power interface | Rated | Peak | Pre-charge requirement |
10 | Motor input | 50KW | 125KW | No |
11 | Slow charging input | 6.6KW | 6.8KW | Charger confirmation |
12 | DC-DC output | 1.5KW | 1.8KW | DC-DC confirmation |
13 | PTC output | 3KW | No | |
14 | Air conditioning output | 1.5KW | 1.8KW | Air conditioning confirmation |
15 | DC fast charging input | 150A | No |
Certifications
Our Advantages
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.
Q: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.
Q: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.
Q: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
