JPT RAYCUS волоконный лазер для очистки краски и удаления
- Категория: Fiber Laser Cleaning Machine >>>
- Поставщик: Liaocheng,Easy,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.39 $* | 0.67 $* |
| Aug-18-2025 | 0.58 $* | 0.99 $* |
| Jul-18-2025 | 0.6 $* | 0.56 $* |
| Jun-18-2025 | 0.41 $* | 0.17 $* |
| May-18-2025 | 0.97 $* | 0.58 $* |
| Apr-18-2025 | 0.37 $* | 0.78 $* |
| Mar-18-2025 | 0.47 $* | 0.5 $* |
| Feb-18-2025 | 0.5 $* | 0.41 $* |
| Jan-18-2025 | 0.28 $* | 0.79 $* |
Характеристики

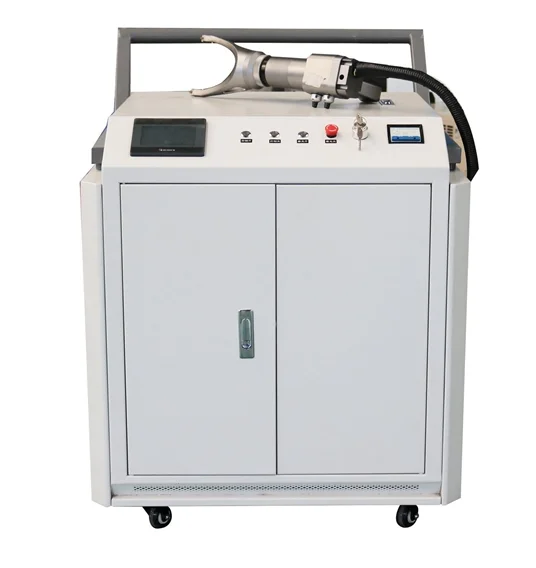

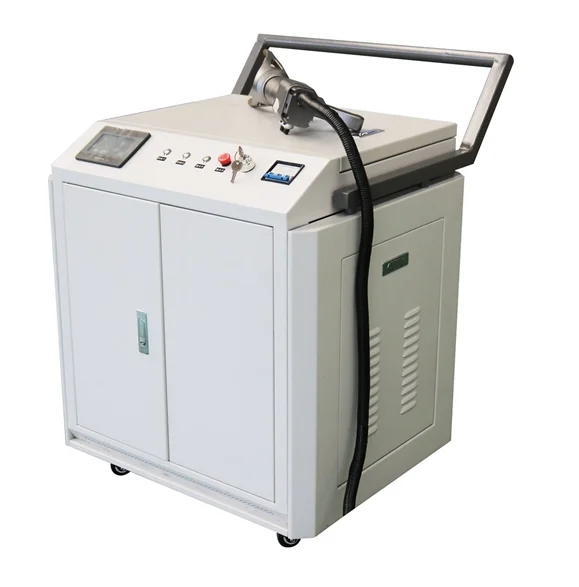

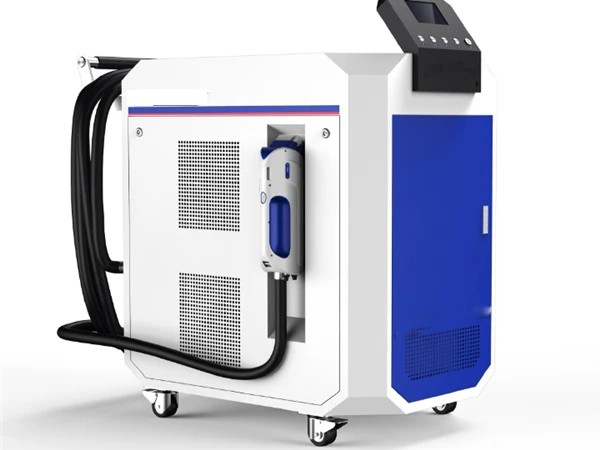

JPT RAYCUS fiber laser cleaning machine for paint stripping and rust removing
Working principle
+The mechanical resonance phenomenon occurs on the solid surface, so that the dirt layer or condensate on the surface becomes fragments;
+heating and expanding the surface dirt layer to overcome the adsorption force of the substrate on the dirt particles and separating the dirt surface from the surface of the object; +Instantly evaporate, gasify or decompose dirt molecules.
Parameter
Model | RF-C-100 | RF-C-150 | RF-C-200 |
Laser working medium | Yb-doped fiber | ||
Laser power | 100W | 150W | 200W |
Laser wavelength | 1064nm | ||
Pulse frequency | 20-100KHz | 20-200KHz | 20-200KHz |
Cooling method | Air cooling | Water cooling | Water cooling |
Dimension | 1100mmX70X1150mm | ||
Total Weight | 60kg | 130kg(Including Water tank) | |
Total power | 600W | 800W | 1000W |
Scan width | 10-80mm | ||
Optional | Hand/automatic | ||
Working temperature | 5-40℃ | ||
