Линия по производству гипсового порошка Shibo для строительства гипсокартона
- Категория: Машины для гипсового порошка >>>
- Поставщик: Henan,Shibo,Mechanical,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 943954.63 $* | 962833.18 $* |
| Jul-18-2025 | 765569.20 $* | 780880.52 $* |
| Jun-18-2025 | 929089.3 $* | 947671.89 $* |
| May-18-2025 | 921656.49 $* | 940089.18 $* |
| Apr-18-2025 | 735838.77 $* | 750555.34 $* |
| Mar-18-2025 | 906791.75 $* | 924927.31 $* |
| Feb-18-2025 | 899358.23 $* | 917345.94 $* |
| Jan-18-2025 | 891925.54 $* | 909764.11 $* |
Характеристики
Gypsum powder production line mainly consists of gypsum crushing machine, gypsum powder grinding mill, bucket elevator, electromagnetic vibrating feeder, etc. The finished products meet the market requirements, and are equipped with dust collectors in the operation, which are environmentally friendly and pollution-free, and are very suitable for users who have strict requirements on environmental protection.
![]()
Gypsum Powder Production Line can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.
Gypsum Powder Application
The gypsum powder was simply used for making chalk, putty, tofu and crafts. Nowadays, it has been widely used in many fields, such as construction and building materials.
1. The cement industry: Used as cement retarder and combined sulfate cement
2. Chemical materials: To produce ammonium sulfate, potassium sulfate and calcium carbonate
3. Building materials: Can be processed into stucco gypsum, plaster, gypsum, gypsum mortar, gypsum powder, gypsum board, etc
4. Soil improvement agent: Used for improvement of alkaline land
5. Industrial filler: Gypsum powder can be used as roadbed or industrial filler
![]()
Introduction to Gypsum Powder Production Flow
Gypsum stone is crushed into particles of less than 30mm in diameter, and the particles are grinded in the mill. After grinding, the powder which passes the classifier would be transformed into the furnace for calcinations, while the rest which doesn't meet the fineness requirements would return to the miller for a second grinding. The qualified calcined gypsum powder are sent to end product bin or workshop.
![]()
Product Paramenters
Model | Roller Number | Roller Size(mm) | Grind Ring Size(mm) | Feeding Size(mm) | Output Size(mm) | Power(kw) | Capacity(t/h) |
YGM-65 | 3 | 210X150 | 650X150 | ≤15 | 0.613-0.033 | 15 | 0.4-1.8 |
YGM-75 | 3 | 260X150 | 780X150 | ≤15 | 0.613-0.033 | 18.5 | 1-3 |
YGM-85 | 3 | 270X140 | 830X150 | ≤20 | 0.613-0.033 | 22 | 1.2-4 |
YGM-95 | 4 | 310X170 | 950X170 | ≤25 | 0.613-0.033 | 37 | 2.1-5.6 |
YGM-130 | 5 | 410X210 | 1280X210 | ≤40 | 0.613-0.033 | 75 | 2.5-9.5 |
YGM-160 | 6 | 440X270 | 1600X270 | ≤50 | 0.613-0.033 | 132 | 5-18.5 |
Details Images
The complete set Gypsum Powder Production Line normally including the following part :
![]()
Jaw crusher / Hammer crusher
Used to crush the raw material into 0-25mm, so that it can grinding by the raymond mill
![]()
Electromagnetic vibrating feeder
Used to feed the crushed material into raymond mill evenly
When entering grinding chamber, the raw materials are shoveled up by the shovels and grinded between the rollers and ring
![]()
Feeding inlet of raymond mill
Grinding ring and grinding roller .
![]()
Blower
Grinded materials are blown into separator by blower for classification. With the function of impellers in the separator, materials without meeting the requirements of the fineness are fallen into grinding chamber for grinding again; materials meeting the requirements of the fineness are blown into cyclone powder collector with airflow through pipelines for separation and collection.
![]()
Dust collector and pipe line
The required fine powder is transported through an air tube to a cyclone collector, separated and collected, and discharged as a finished product.

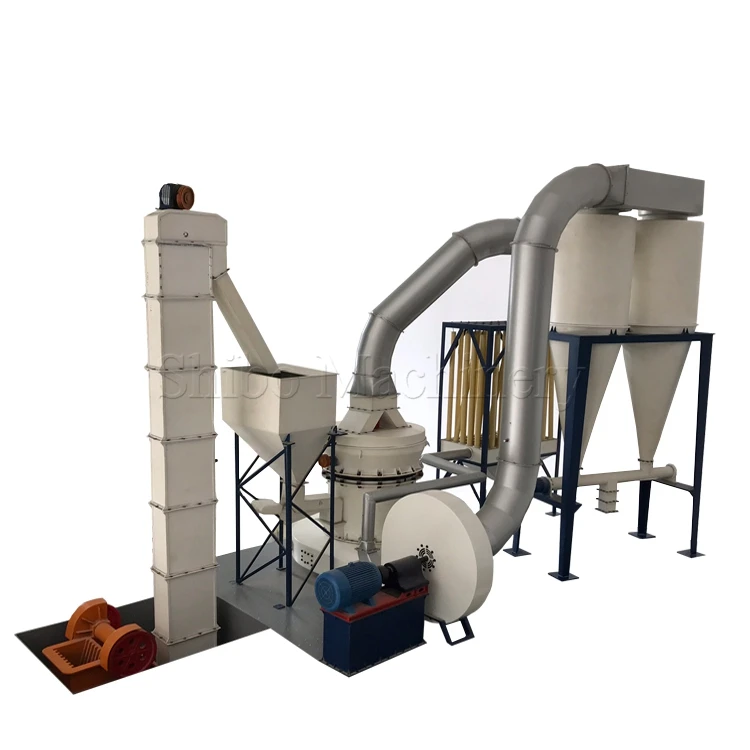

Complete Gypsum Powder Production Line layout :
![]()
Packing and delivery
The machine is nude packing , motor and other accessories are packing in wooden box
![]()
![]()
![]()

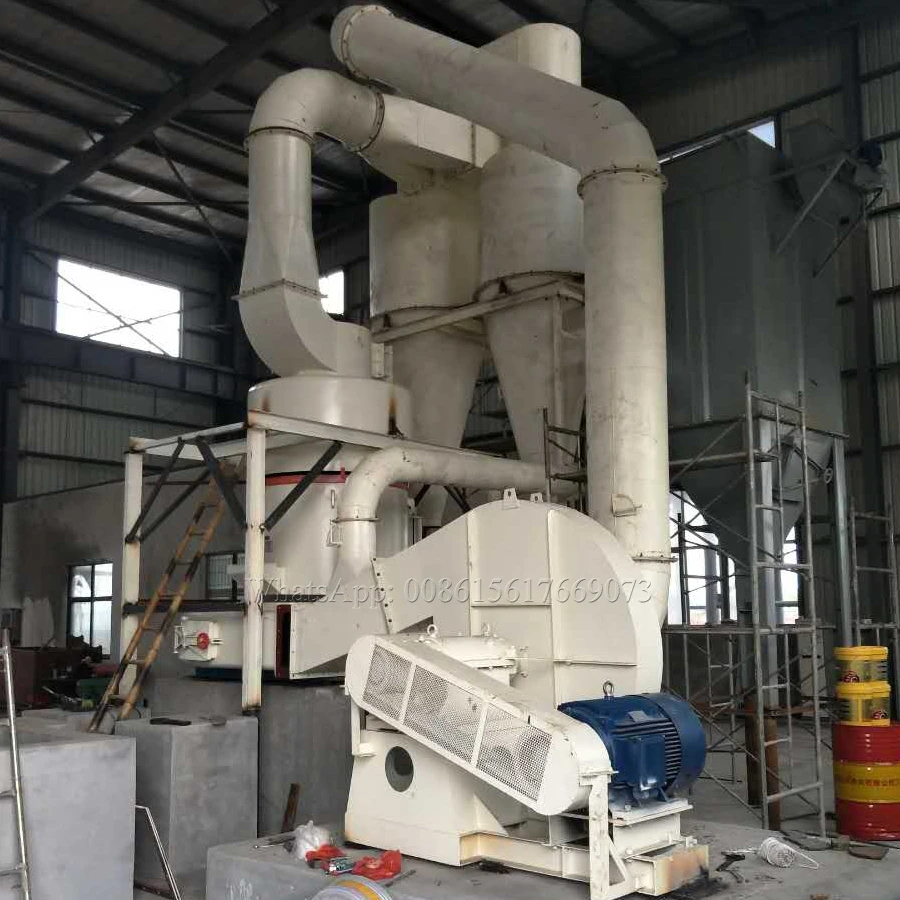

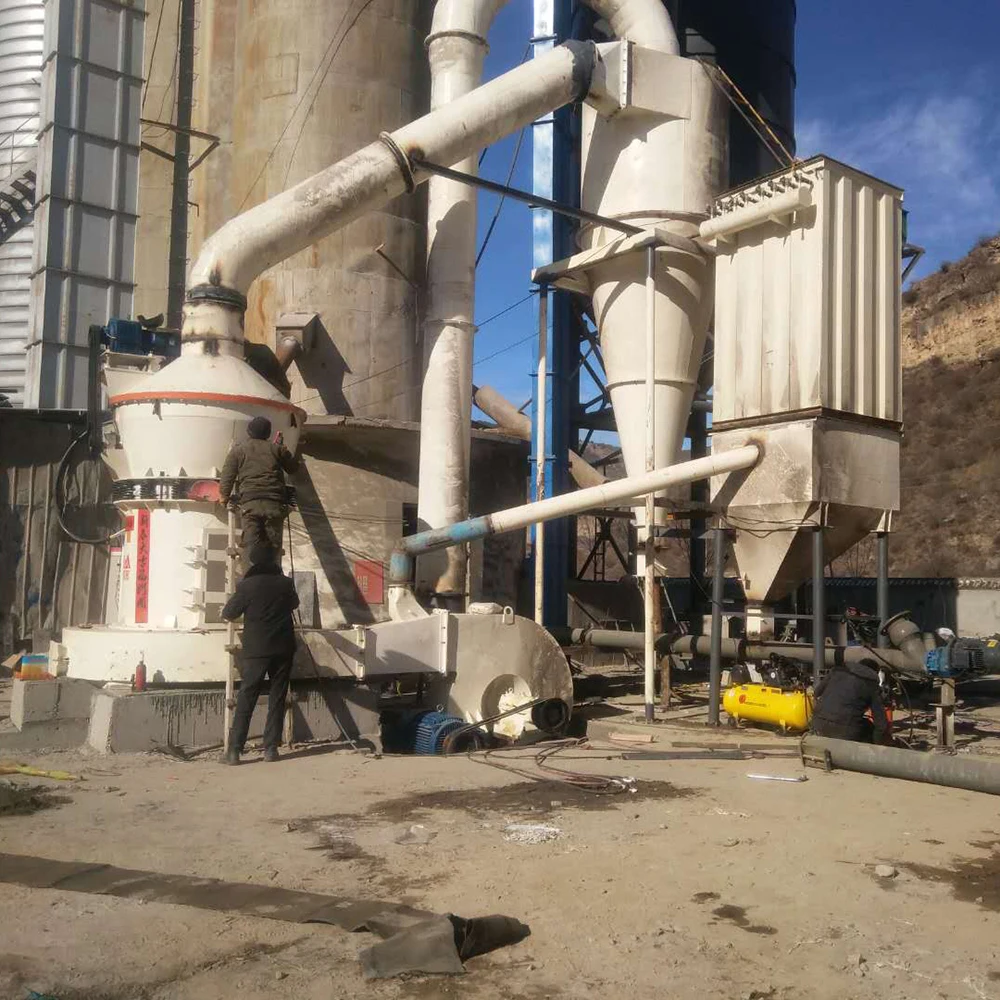

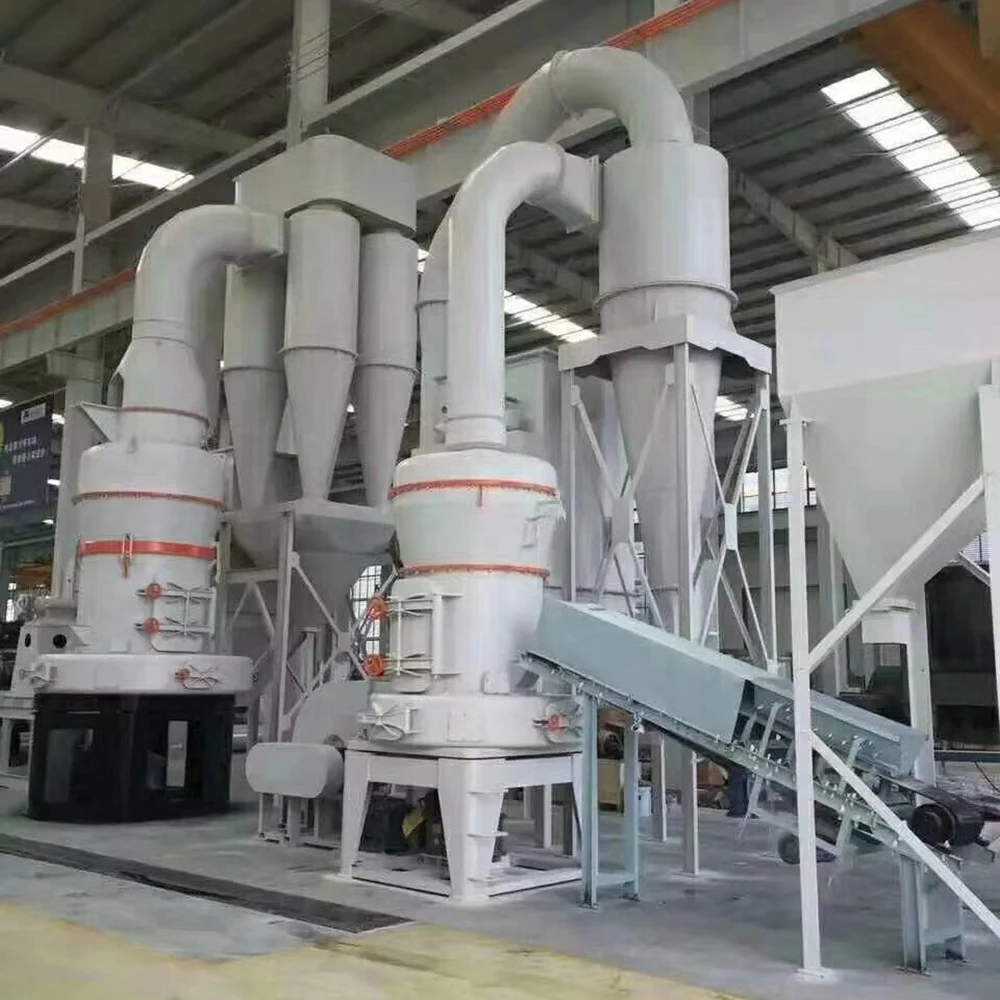

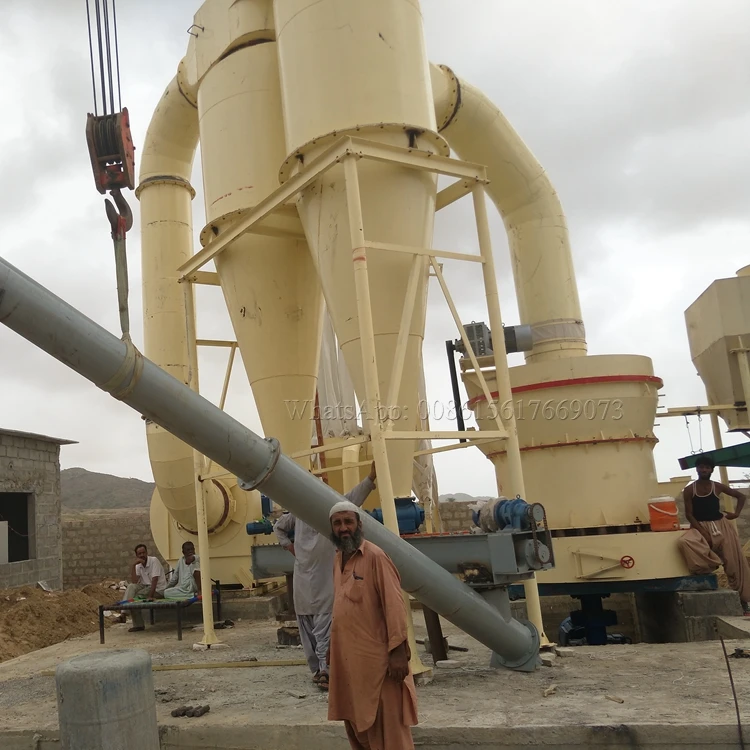

Working site
![]()
Project information :
Material : Dolomite
Max feeding size : 430mm
Output size : 325mesh
Capacity : 10 ton per hour
![]()
This is a complete stone crushing and grinding production line .
Main equipment : vibrating feeder , jaw crusher , cone crusher , vibrating screen , raymond mill , belt coneyor ect
Company Profile
![]()

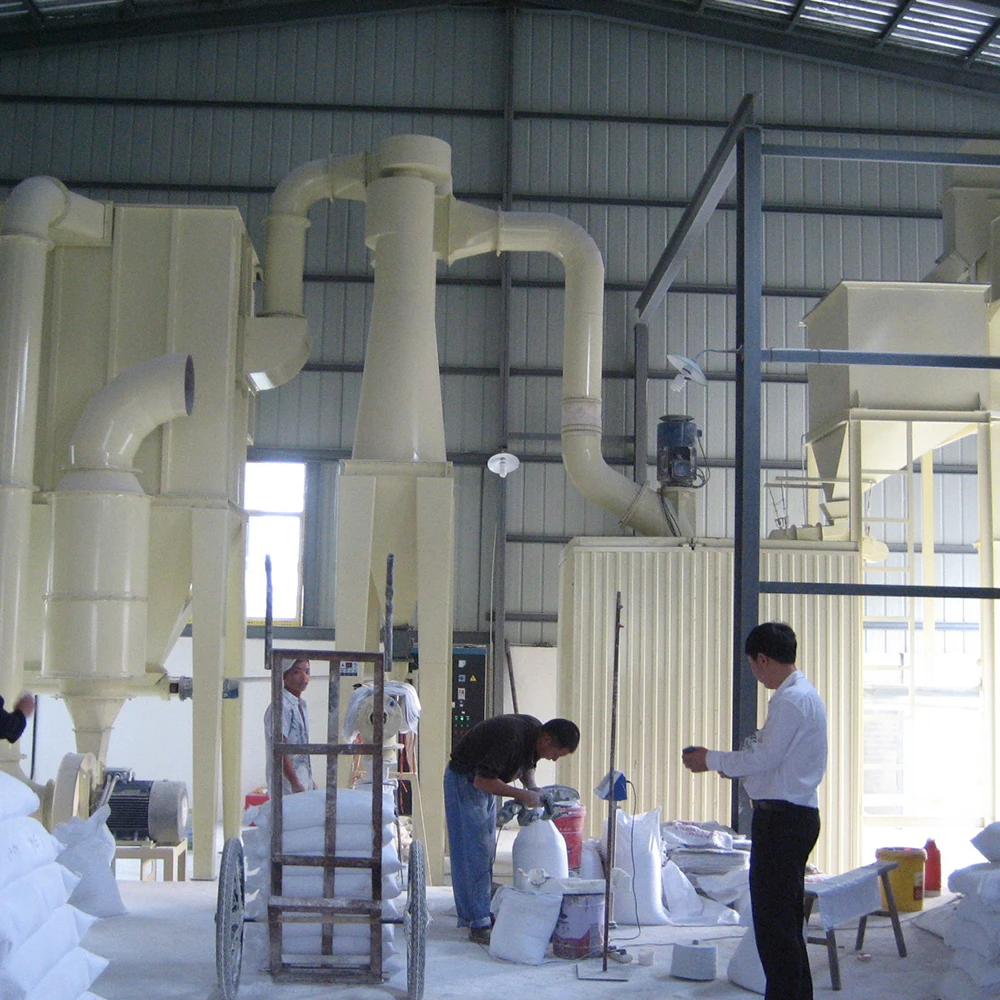

Customer Photos
