Product Description

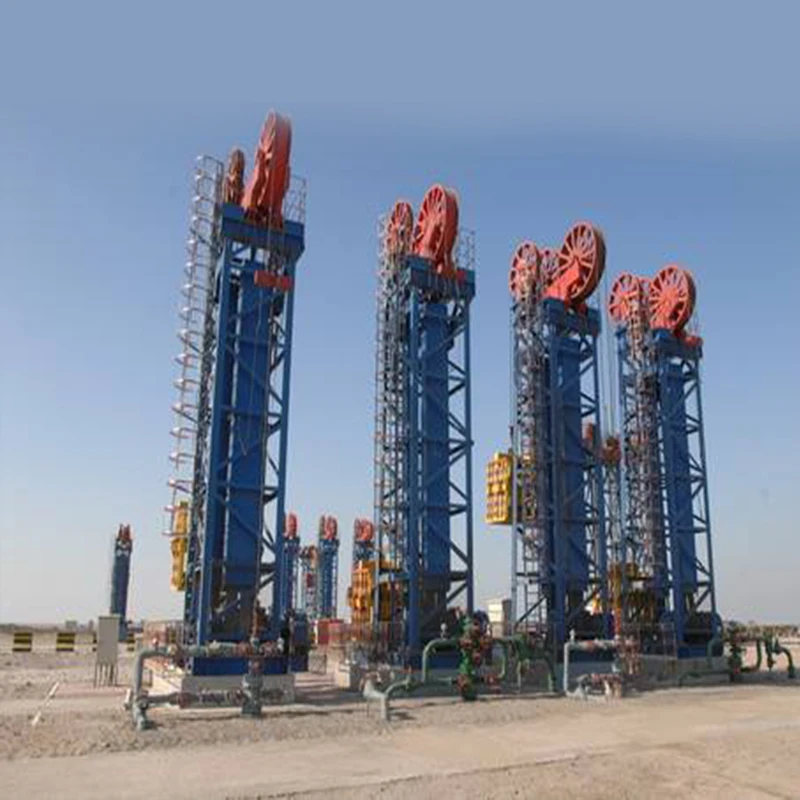

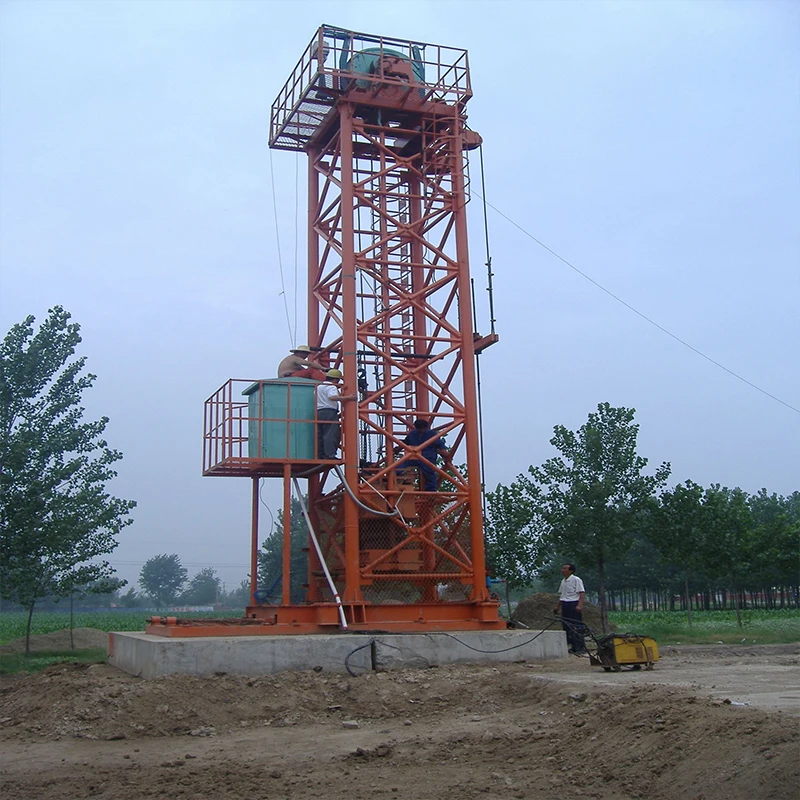

Tower type mechanical reversing (steel wire rope) vertical pumping unit

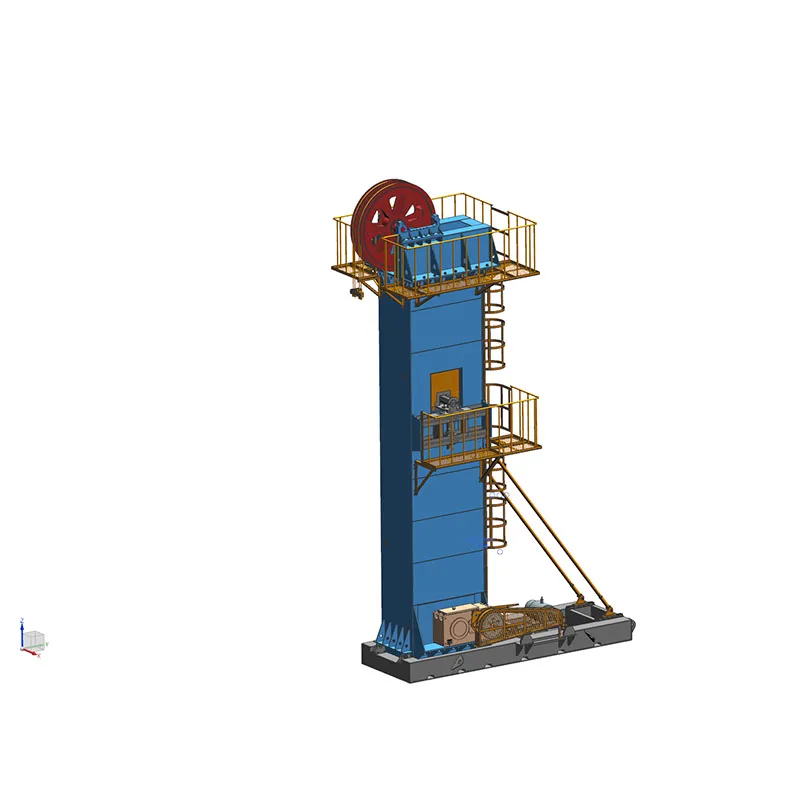

1) Tower type mechanical reversing (steel wire rope) vertical pumping unit is a vertical pumping unit with chain closed-loop drive
and steel wire rope traction. 2) It is mainly composed of rope hanger, steel wire rope, crown wheel, top platform, frame,reversing frame, balance box, chain wheel, chain, reducer, motor, control system and braking system. 3) This series of vertical pumping unit has the advantages of long stroke, adjustable stroke, high power factor, low energy consumption, stable operation,simple operation, convenient parameter adjustment, easy maintenance, simple transportation and installation, etc. compared with
the beam pumping unit with the same rated load, it needs less torque in the gearbox, small motor power and obvious energy saving
effect. It is especially suitable for the exploitation of deep well, ultra deep well and heavy oil reservoir. 4) During the
workover and displacement operation, no large hoisting equipment is needed, no climbing operation is needed, and the pumping unit can complete the workover and displacement without moving the whole machine, so that the workover and displacement work is safe,reliable, simple and easy.

ITEM	Pumping unit model	stroke(m)	Rush times (次/min)	Hanging point load (KN)	Rated output torque KN*M	Commutation mode	Polished rod Suspension mode
1	WCYJJ8-6-20Z	6	4 / 3 / 1.5	80	13	Mechanical commutation	A wire rope
2	WCYJJ8-8-20Z	8	3.2 / 2.5 / 1.5	80	13
3	WCYJJ10-6-25Z	6	4.2 / 3 / 1.5	100	18
4	WCYJJ10-8-25Z	8	3 / 2 / 1	100	26
5	WCYJJ12-6-30Z	6	4.2 / 3 / 1.5	120	26
6	WCYJJ12-8-30Z	8	3 / 2 / 1	120	37
7	WCYJJ14-6-40Z	6	4 / 2.5 / 1.5	140	37
8	WCYJJ14-8-40Z	8	3.5 / 2.5 / 2 / 1	140	40
9	WCYJJ16-8-40Z	8	3.5 / 2.5 / 2 / 1	160	40
10	WCYJJ20-8-40Z	8	4.1 / 3 / 2.5 / 1	200	48
11	WCYJJ22-8-40Z	8	3.5 / 2.7 / 1.5 / 1	220	48
12	WCYJJ24-8-50Z	8	4 / 3 / 2 / 1	240	53

Features and advantages

Low starting current

Easy adjustment

Easy to start

Smooth running

Simple structure

Company Profile

Karamay ShengQi Drilling Equipment Co., Ltd

● Karamay ShengQi Drilling Equipment Co., Ltd is a manufacturing company that specialize in design,R&D,test,manufacture andservices of pumping units.We established in Apr,2011 with 110 million registered capital,and locate in petroleum chemicalindustrial area,Karamay,Xinjiang covering 40,000 square meters.We can design and manufacture over 70 types of pumping units andall of them tested and authorized by authorities.We are apprived supplier of China Petroleum Materials Corporation (CNPC),and obtained ISO9001:2015,ISO14001:2015,OHSAS18001:2007 & API11E-0201 in 2014.

● We provide high quality products for oilfields wordwide and cooperate sincerely with related partners according to “best products,best reputation and best services”to make win-win.
