Бурение нефтяных скважин длительный срок службы скважинный двигатель для

Бурение нефтяных скважин длительный срок службы скважинный двигатель для

Категория: Oil Field Equipment >>>
Поставщик: Cangzhou,JW,Petroleum,Machinery,Co.,Ltd.

Цена:2 700,00 $ - 3 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	3213.28 $*	3374.5 $*
Aug-15-2025	3186.77 $*	3345.56 $*
Jul-15-2025	2673.5 $*	2807.27 $*
Jun-15-2025	3132.49 $*	3289.18 $*
May-15-2025	2727.45 $*	2863.14 $*
Apr-15-2025	3078.89 $*	3232.10 $*
Mar-15-2025	3051.33 $*	3204.32 $*
Feb-15-2025	3024.97 $*	3175.33 $*
Jan-15-2025	2997.98 $*	3147.82 $*

Характеристики

Oilwell drilling Use Long Work Life Downhole Motor for HDD Directional Drilling

Product Description

Downhole motor

Downhole motor is a kind of downhole dynamic drilling tool upon the power of drilling mud. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the pump, to push the rotor into rotating, and to transmit the torque and speed onto the bit. The downhole motor property mainly depends upon its property parameters.

ADVANTAGES OF DOWNHOLE MOTOR
Increased rate of penetration.
Better hole deviation control.
Reduction in drill string failure rate.
Reduction in wear and tear of the swivel, Kelly, and rotary drives.
Reduction in fuel cost, since compared to rotary drilling, less energy is required to power a downhole motor.

QQ20190212140001

Specification

1. Material: High manganese steel
2. Standard: API
3. Features: Big torque, high effective, wide flow rate range, running stable and long using time.
4. Specifications: Fit for 3 1/2"--17 1/2" well hole, including straight body, single- bent and

double-bent construction.

Model	Tool OD mm	Bit Size mm	Connected Thread	Lobe	Stage	Flow Rate lpm	Rotary Speed rpm	Max Pressure Loss Mpa	Max Torque N.m	Max Pressure KN	Output Power KW
5LZ89X7.0-4	89	114-149	2 3/8REG	5:6	4	255-766	108-325	4.52	1526	35	47
7LZ89X7.0-3.8	89	107-121	2 3/8REG	7:8	3.8	170-490	74-251	4.29	1342	35	28
5LZ95X7.0-3	95	118-149	2 7/8REG	5:6	3	320-800	124-300	3.39	1177	55	32
5LZ95X7.0-5	95	118-149	2 7/8REG	5:6	5	320-800	124-300	5.65	1962	55	53
7LZ95X7.0-3	95	118-149	2 7/8REG	7:8	3	389-778	167-335	3.39	1000	55	32
7LZ95-7.0-10.1	95	118-149	2 7/8REG	7:8	10.1	300-680	150-340	11.41	3125	55	100
7LZ95X7.0-6.7	95	118-149	2 7/8REG	7:8	6.7	300-610	126-257	7.57	2455	55	60
5LZ105X7.0-4	105	121-152	2 7/8REG	5:6	4	450-900	146-292	4.52	1656	55	46

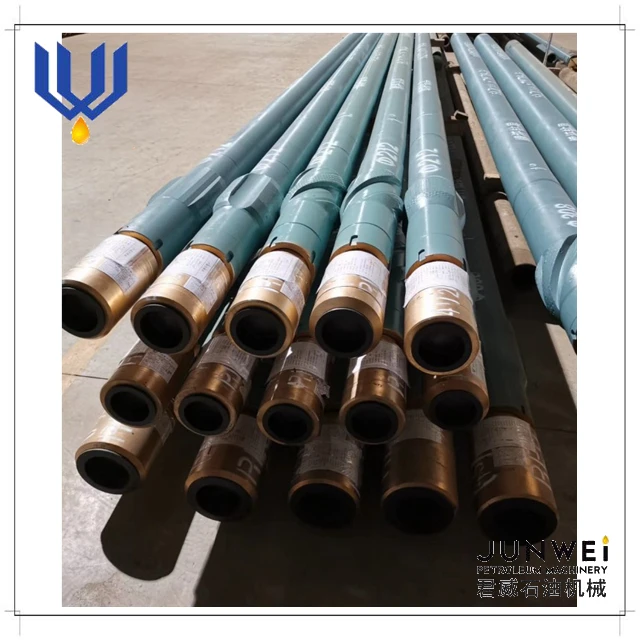

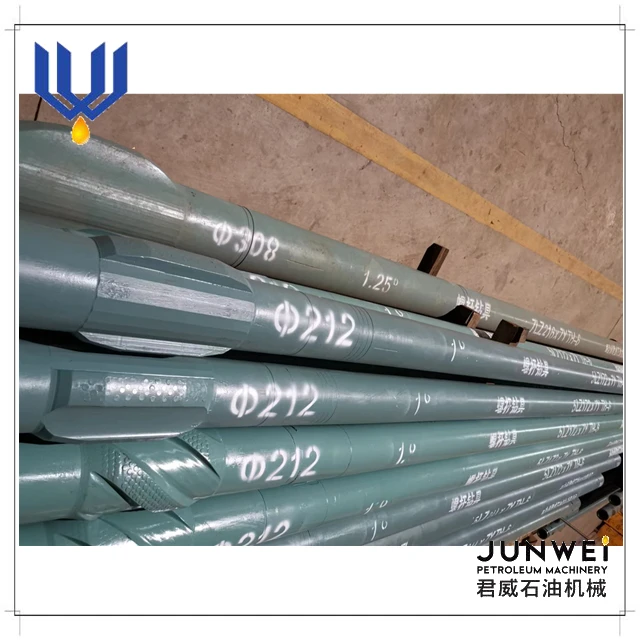

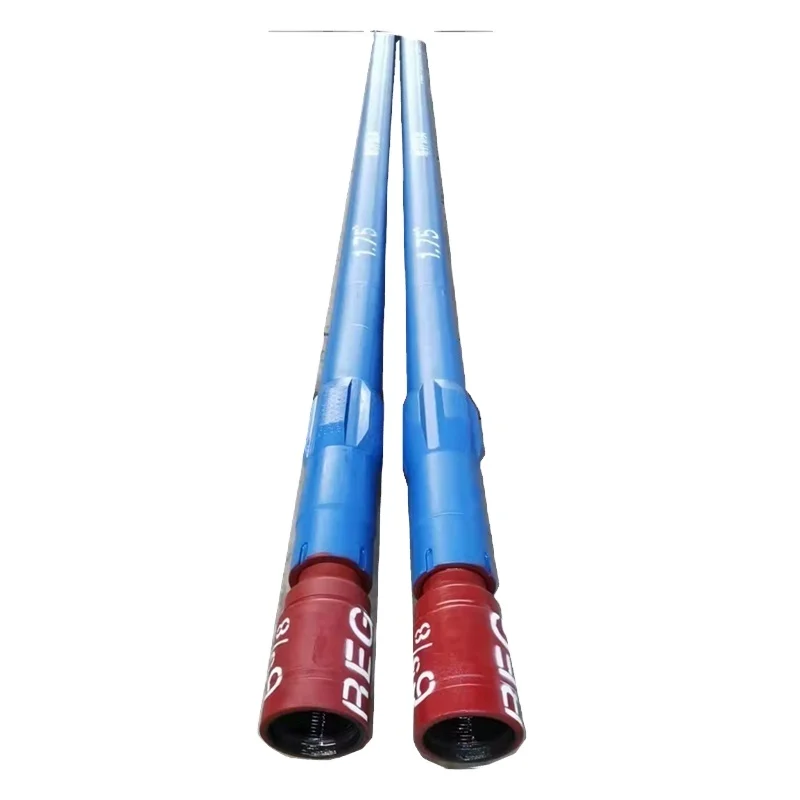

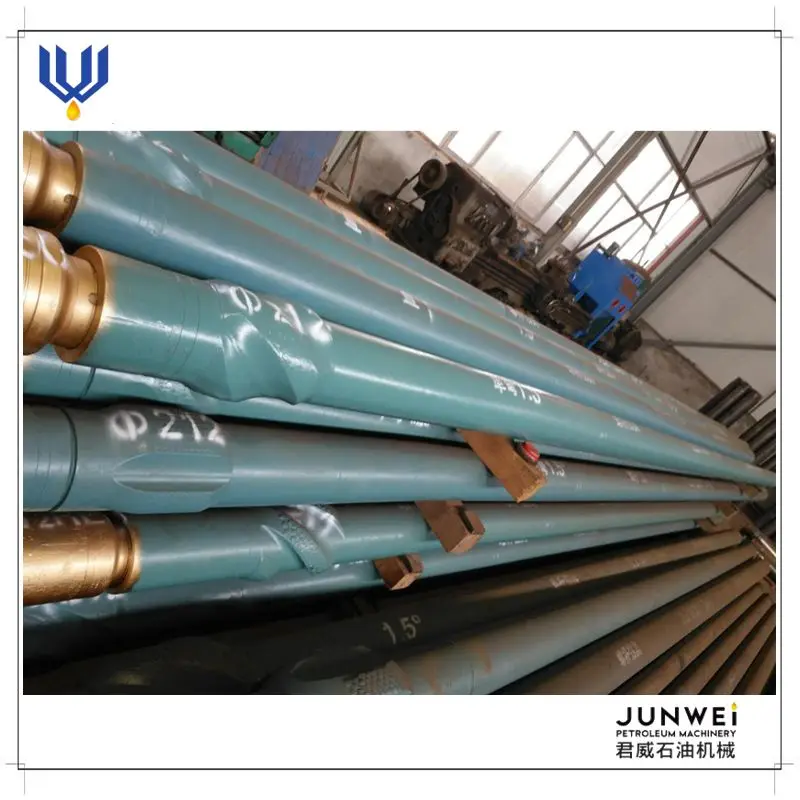

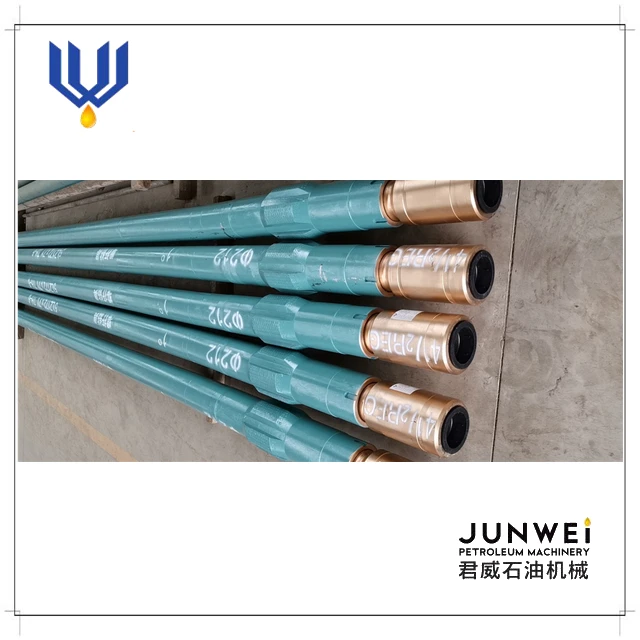

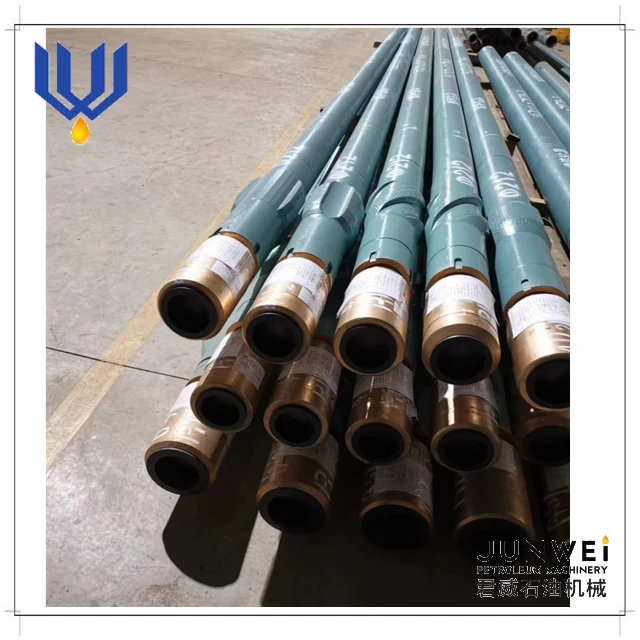

Drilling downhole motor for directional drilling:

Maybe you need:

Packaging & Shipping

Dwonhole drilling motor can be shipped by SEA

.jpg

Our Services

Cangzhou JW Petroleum Machinery Co.,Ltd have a sound after-sales service system, every clients bought from JW will have a file, which records every downhole motor’s model that the customer purchased from JW. Andafter sale we will track the use of each one, and help clients to deal with every problem, so don’t worry to buy, we will give you high after-sales service.

FAQ

Are you Manufacture or Factory?
Yes we are and from Hejian City Cangzhou city Hebei Province China.
How about the quality and supply ability?

We can supply you with 300 pcs downhole motor for a month.
What the MOQ?
1pc.
How to place an order?
1) Inform size and model

2)angle of slope

3)quantity
What is the Pament?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.

All sizes and type can be customized.

If you need,welcome to contact me at any time!
