Концевая формовочная машина для труб гидравлическая SG-60 80 100
- Категория: Tube End Forming Machines >>>
- Поставщик: Nantong,Jobest,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2321.57 $* | 2437.71 $* |
| Aug-19-2025 | 2301.89 $* | 2416.26 $* |
| Jul-19-2025 | 1931.31 $* | 2028.13 $* |
| Jun-19-2025 | 2262.11 $* | 2375.74 $* |
| May-19-2025 | 1970.28 $* | 2069.0 $* |
| Apr-19-2025 | 2223.88 $* | 2334.69 $* |
| Mar-19-2025 | 2204.63 $* | 2314.69 $* |
| Feb-19-2025 | 2184.44 $* | 2293.94 $* |
| Jan-19-2025 | 2165.76 $* | 2273.42 $* |
Характеристики

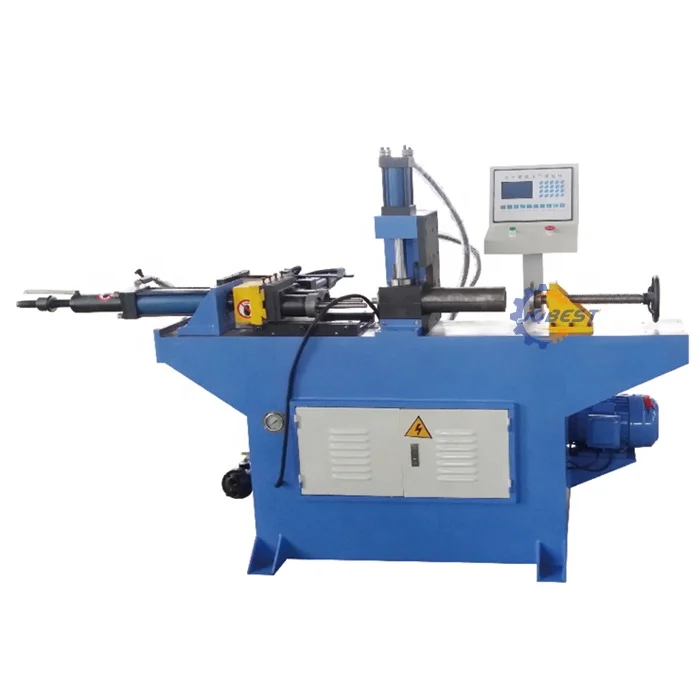

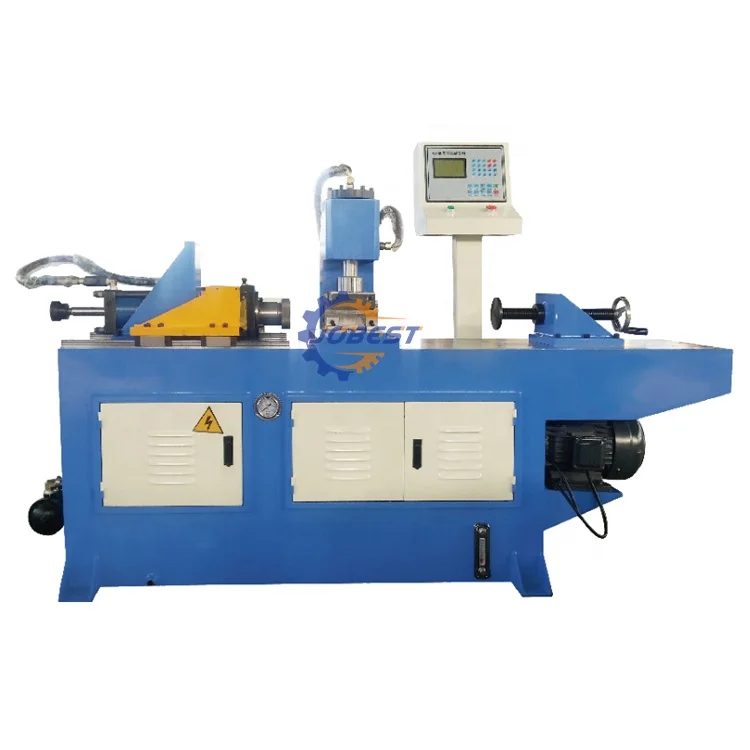

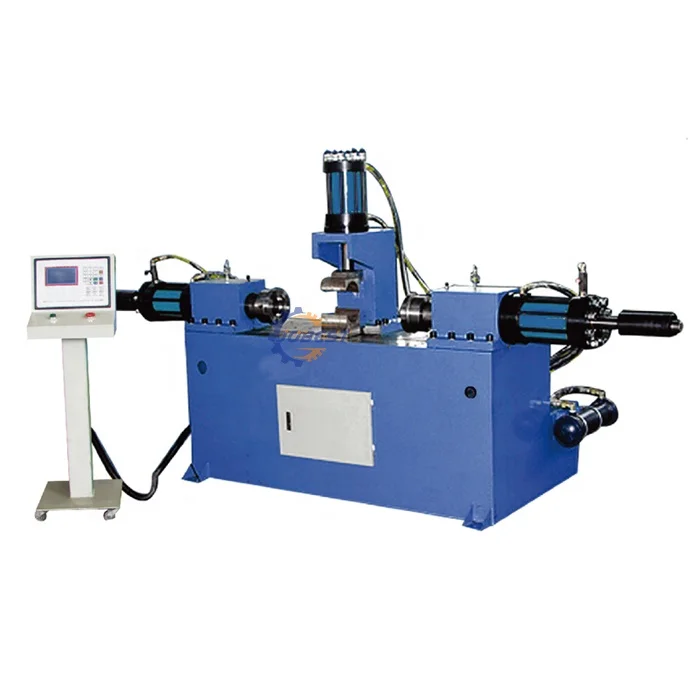

Tube End Forming Machine Hydraulic Pipe End Forming Machine SG-60 80 100 120
Pipe end forming machine, with the straight line guide raild as the carrier, to run without abrasion, good repeatability of products applicable to the pipee end processing of iron ipe, furniture, automobile air conditioner fuel.
Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,
bicycle, steel furniture, sanitary wares and so on;
Adapted material:
steel pipe, stainless steel, copper pipe, aluminum pipe;
Main specification
1) NC Control Unit: Easy Operation and Maintenance
2) Suitable for the shrinking of various metal pipes with different material and different shape
3) Equipped with emergency stop device. Both manual and automatic operations are available
4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length
5) Forming shapes can be convex, concave, sectional, long 7 flat, square, V-shaped, open elbow and flat elbow. The design of the tooling varies with workpiece and customers' requirements
Type | SG-40 | SG-60 | SG-80 | SG-100 |
Max tube(mm) | φ40*2.0 | φ60*2.0 | φ80*3.0 | φ100*3.5 |
Max processing length(mm) | 110 | 130 | 150 | 180 |
Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
Working speed | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s | 100mm in3-4/s |
Size(cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
Weight(kg) | 600 | 950 | 1600 | 1800 |
Remark | 1.The max processing length can according to customers requirement. | |||
