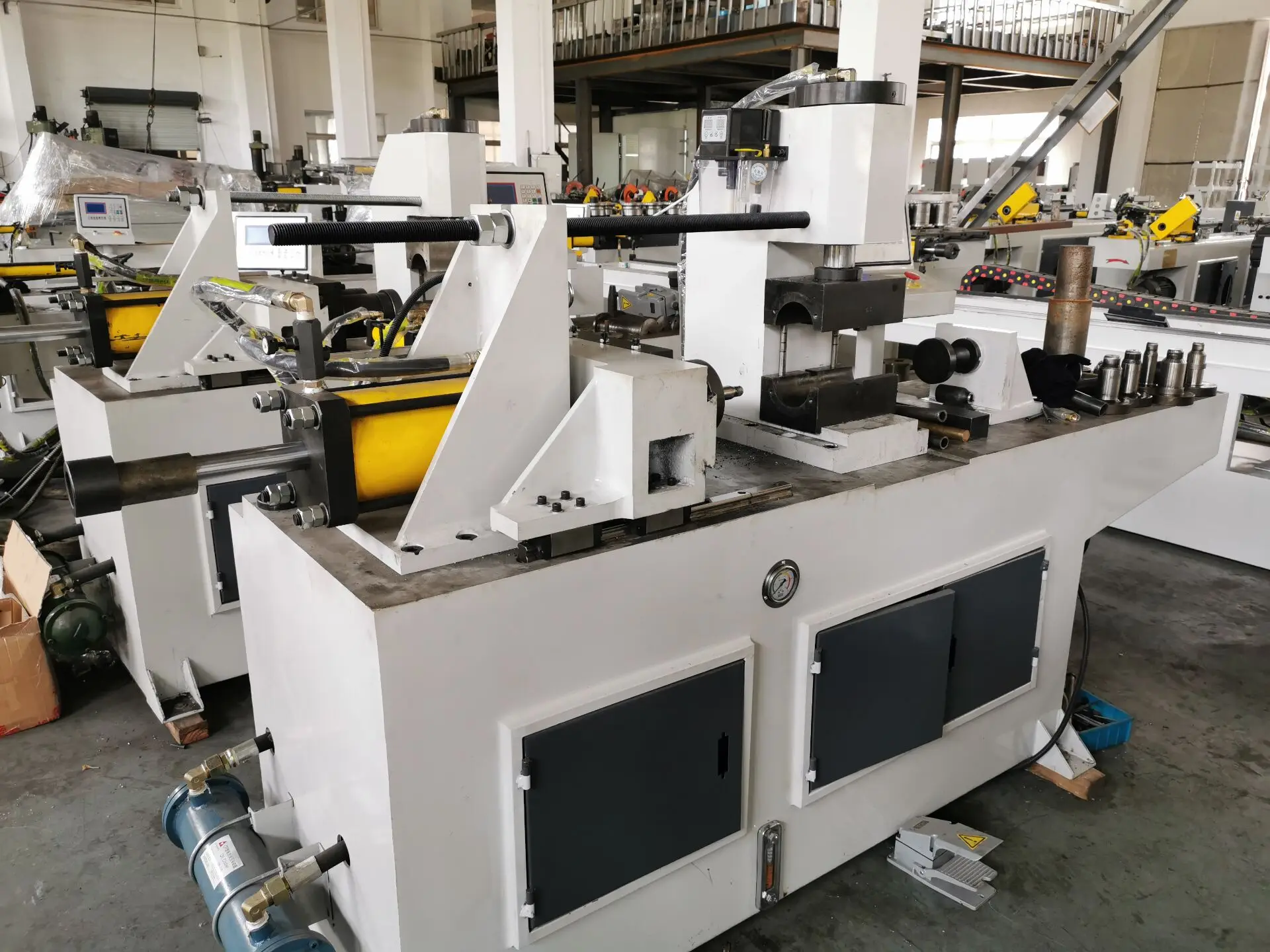

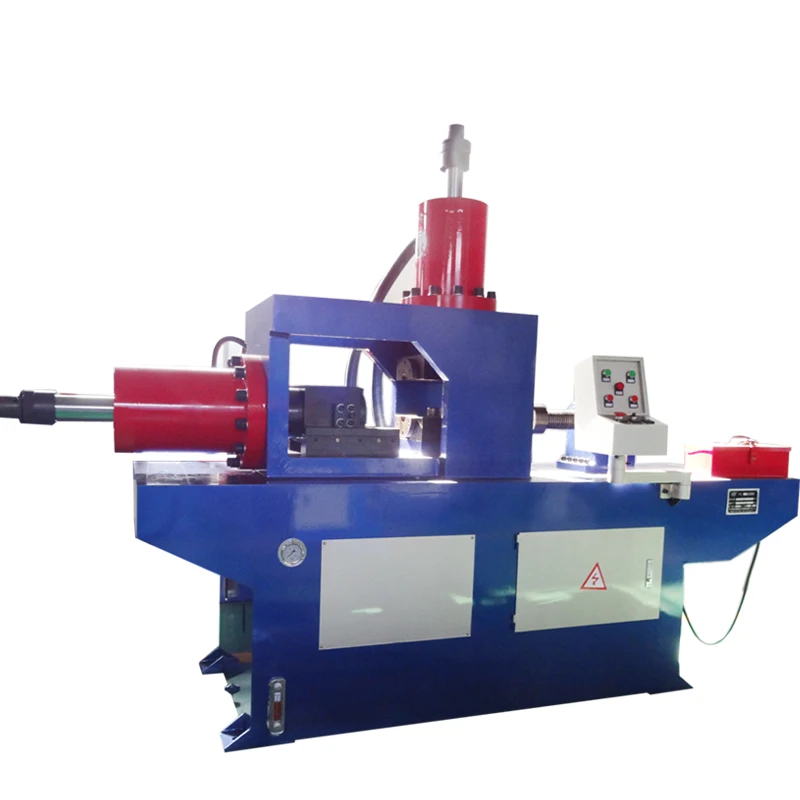

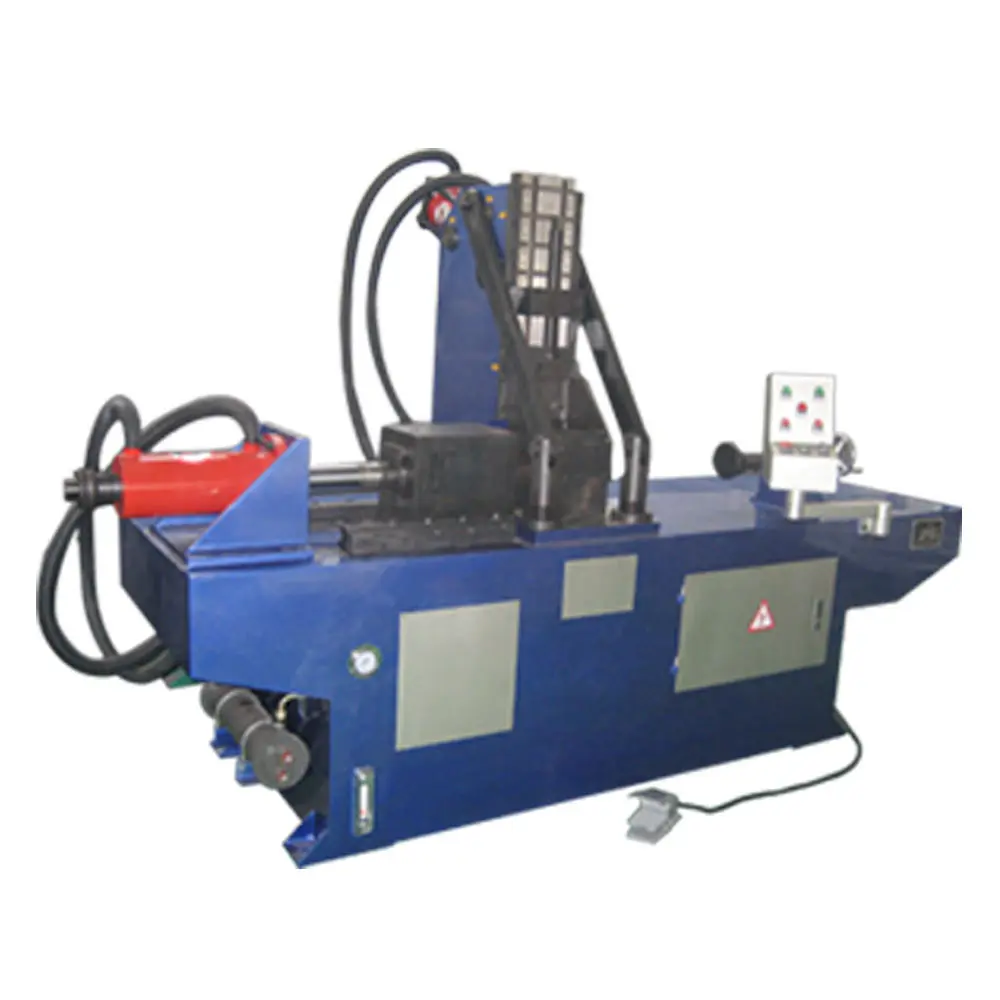

 Features of Hydraulic thick steel  pipe end forming machine tube reduce and shrink machine CX-50

1. microcomputer control,Manually or semi-automatic, hydraulic and Servo motor system driven

2 The motion pedal switches, tightly stops, continuously tightly stops, high security.

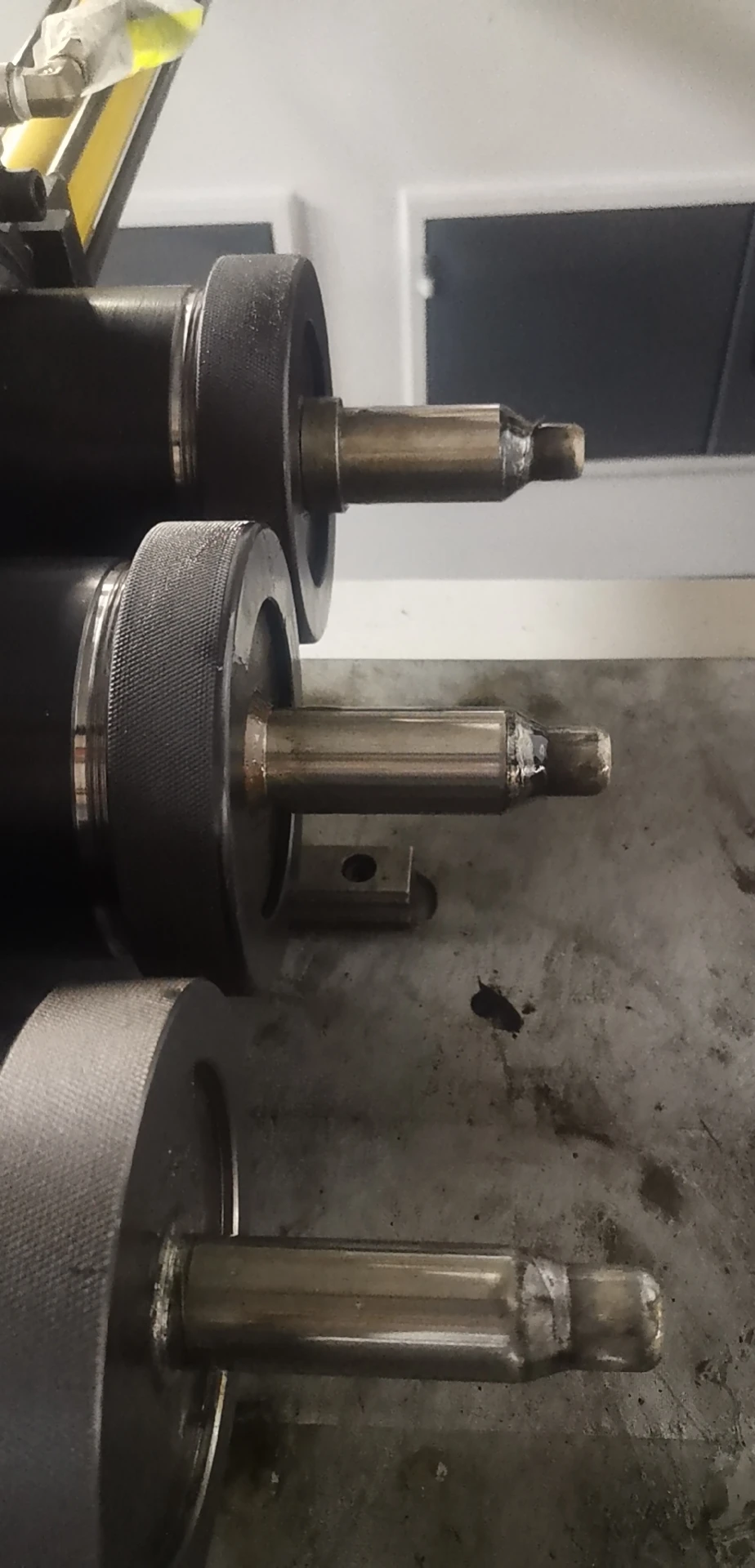

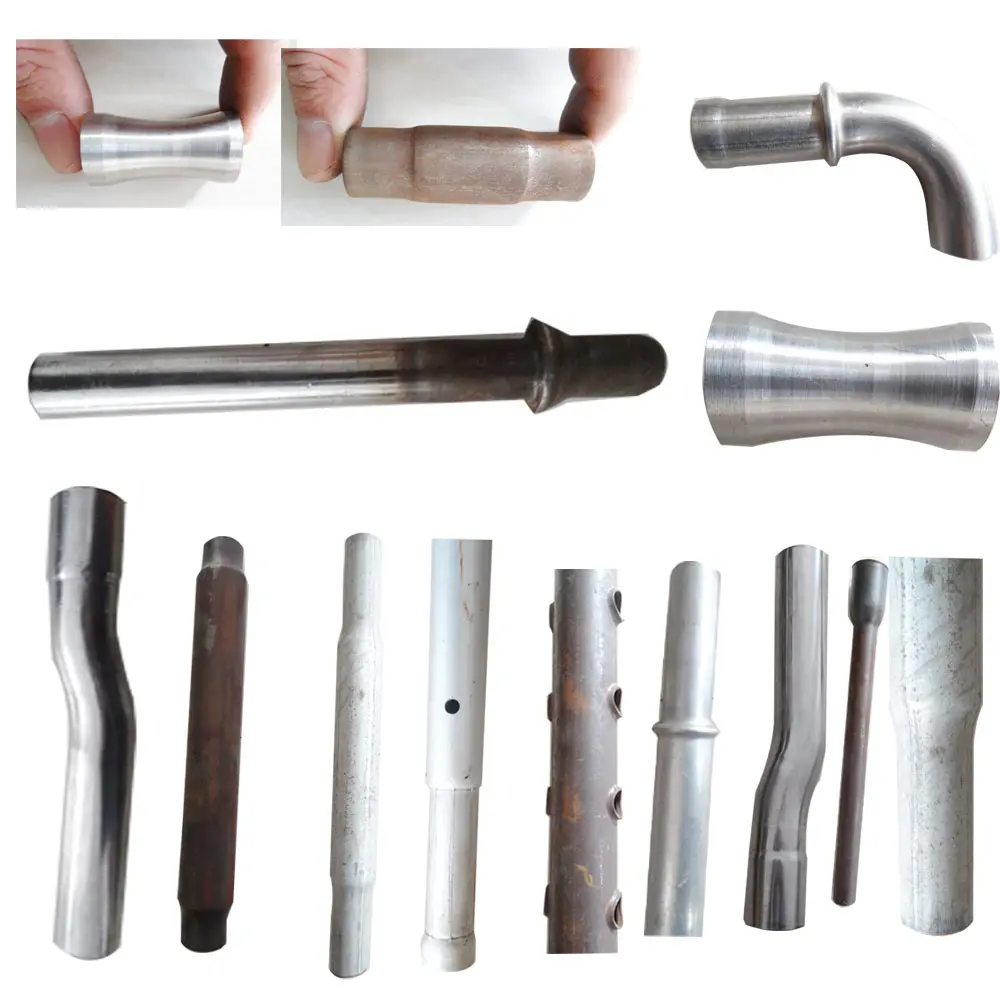

3 Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed

4 The mold replacement is simple

5 We accpet customized order. let us know techology requirement. drawing is better

 Technological parameters

Model	SG50NC	SG60NC	SG75NC	SG89NC	SG120NC
Max pipe capacity	φ50×3 MM	φ60×3 MM	φ75×6 MM	φ89×8 MM	φ120×8 MM
Pipe cycle	4	4	4	5	6
Applicable to pipe shape	convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type.
Applicable to material of pipe	Carbon steel,stainless steel  copper pipe, aluminium alloypipe
Power	5.5	7.5	11	11	18.5
Overall size (L×W×H)m	2.4×0.5×1.6	3×1.1×1.9	3×1.1×1.9	4×1.2×1.9	4×1.2×1.9
Weight T	0.9	1.7	2	3.6	3.8









 Inner package   foamed plastic or stretch film,outpackage:iorn frame or wooden case

Delivery  shipped in 7-25days after payment

 We will assist you deal with all questions  if there will be any problomes with machine after install in your plant,and we will offer you accessories freely if there is damage as quality problems wiithin 24 morths,you just pay freight



Our company  was established in 1995,which is located in weifang city far from Qingdao port with 150KM away, ltocupies an of 15,000 Square meters,it is a special production base for the pipe material processing machinery, it has passed the accreditation of ISO9001:2000 quality control systemcompany is equipped with a strong developing capability as well as production and inspection equipment of high precision, On the basis of production for many years and keeping improving, it constantly makes innovation, having successively researches and developed micro-computer controlled DW,SW series of pipe-bending machines, SG series of  pipe-end shaping machine, YJ  series of metal circle sawing machine, riveting machine, gear grinding  machine and some other automatic pipe material processing machinery. therefore, it supplies a unitized and perfect set of machinery equipment for processing the products of metal pipes in the automobile, motorcycle, physical gymnastic equipment ,steel-pipe furniture, tourist and leisure articles, plumbing and sanitation and bathing and other industries, and it replaces the imported products.





1 how lony have you been in this filed?

   we have been in this filed for more than 15 years

2  Do you have any Certification with product or your factory?

   yes, we have passed TUV certification with our product and factory

3 where is your factory?

   we are in shandong province,it is about 150KM far from Qingdao port

 4 Can we be as yor anget in our country?

    yes, if you have this idea, welcome to visit our factory and talk about this, or we fly to visit you
