Низкая цена экономичный гибочный станок из стали 1 5

Низкая цена экономичный гибочный станок из стали 1 5

Категория: Rebar Cutting Machine >>>
Поставщик: Shandong,Yuantong,Century,Intelligent,Technology,Co.,Ltd.

Цена:4 300,00 $ - 4 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	5117.6 $*	5373.48 $*
Aug-16-2025	5074.46 $*	5328.7 $*
Jul-16-2025	4257.2 $*	4470.52 $*
Jun-16-2025	4988.10 $*	5237.90 $*
May-16-2025	4343.91 $*	4560.76 $*
Apr-16-2025	4902.92 $*	5147.68 $*
Mar-16-2025	4859.51 $*	5102.4 $*
Feb-16-2025	4816.75 $*	5057.35 $*
Jan-16-2025	4773.76 $*	5012.81 $*

Характеристики

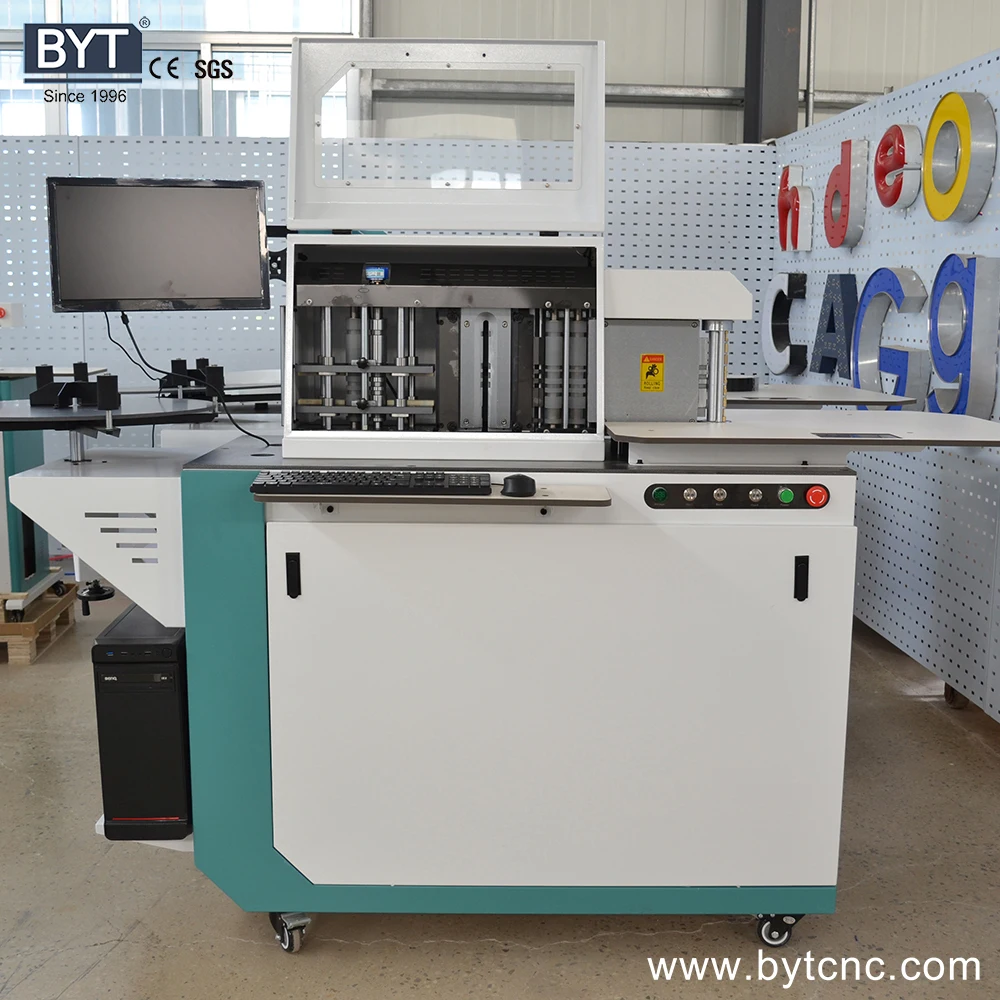

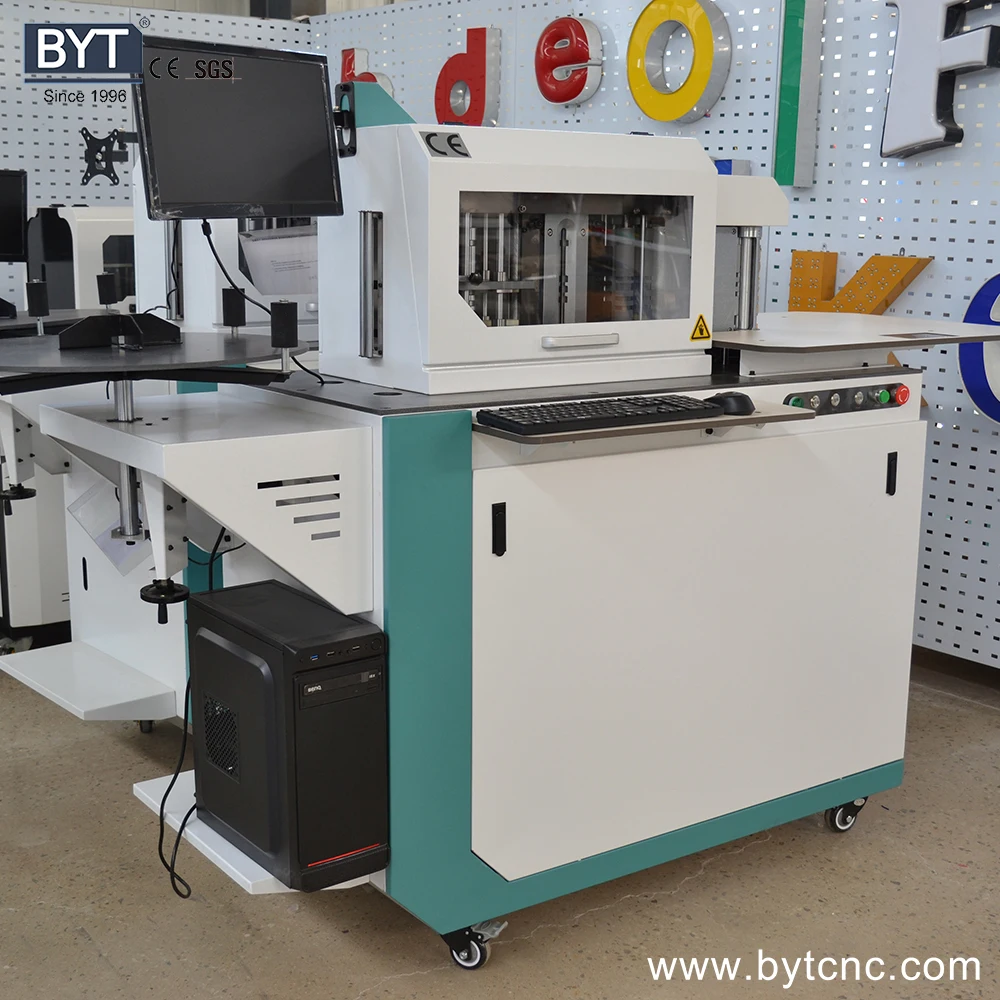

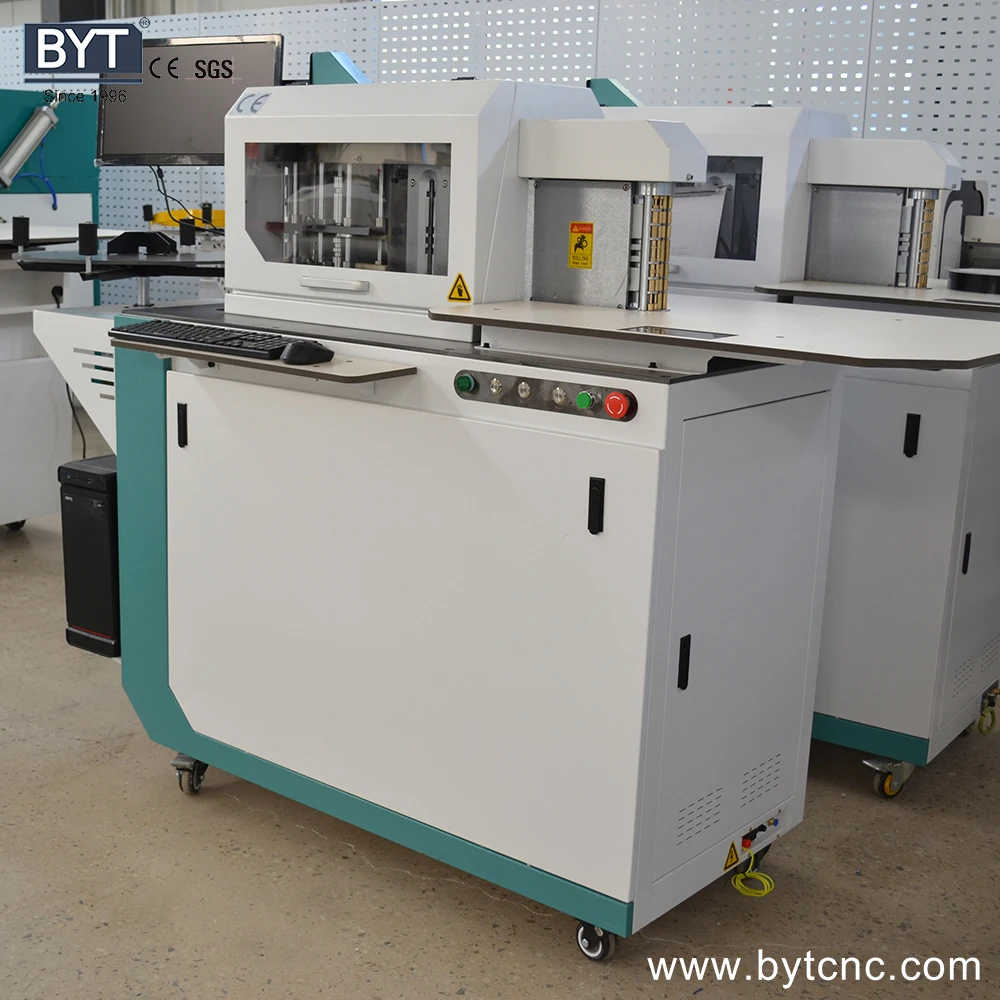

CNC Aluminum Channel letter bending machine for 3d letter bender

Channel letter bending machine parameter
Model	BWZ-B1
Working Principle	High precision automatic feeding,trimming,notching and bending

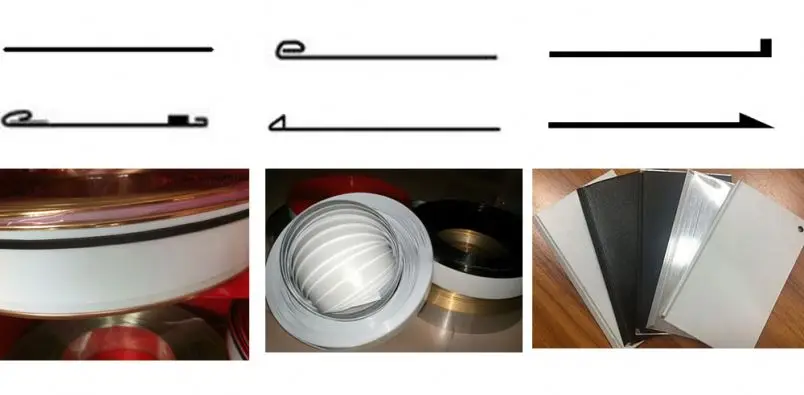

Processing Materials	Flat& Floding Aluminum profile
Material Width	10-160mm
Processing Materials	Flat and floding aluminum profile
File format	AI/DXF/PLT
Bending radius	R≥7 MM
Peak Power	1500W
Working Pressure	0.3-0.6mpa
Voltage	220V 50HZ 1P or Customized
Overall Dimensions	21008001530mm
N.Weight	320kg

Product advantage

1. Quality Guarantee

Whole machine guarantee 2 years , the motor guarantee 3 years

2.Processing material

Width: 10-160mm, Thickness : Aluminum 0.3-1.5mm

3.Machining parts 1

All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.

QQ20190905130257

4.Length closed-loop control system

The software have Length closed-loop control system ,the length precision ≤0.1mm.

Meantime Independent development software system , which can updated according customer need and more easy to use .

5.Whole machine weight meet 300kgs and more stab

Feeding 1.

The feeding roller diameter 36mm and install encoder, ensure the feeding precision and speed.

QQ20190905130401

Notching 1.

Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle.

Notching 2.

Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small.

Notching 3.

Use four-column design ensure the cutting stable and effect.

Notching 4.

The notching deepness adjust by the slide block on guide rail, adjustment more easy and high precision .

Bending

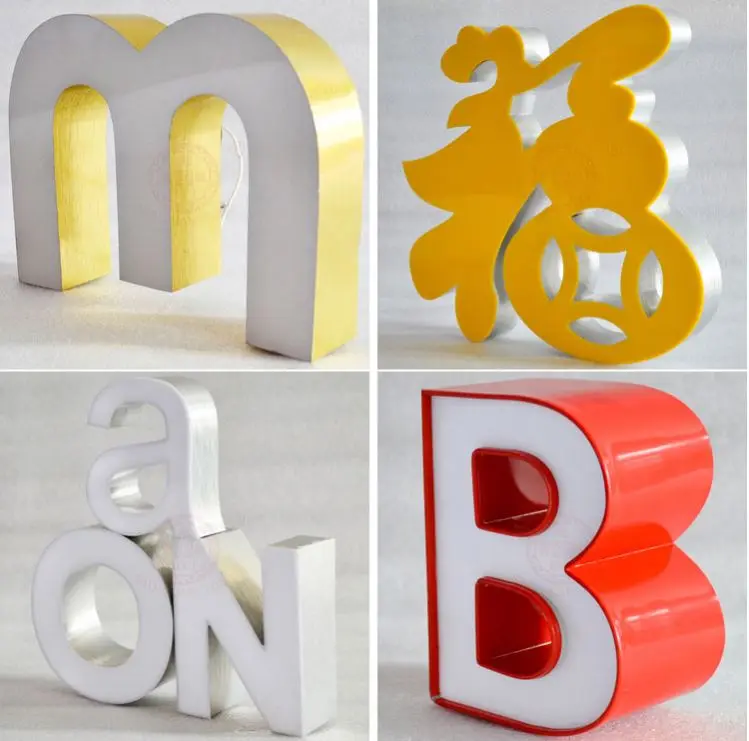

Use double cooper shaft flat arc bending device , small radian beat and large radian extrusion molding ,processing speed fast and don’t damage the material ,every day can finish 80-100 square maters letter.
