Горизонтальная Машина Для Сушки Осадка Сточных Вод
US $15000-$350000
2-2 5 тонн/час емкость раковины арахиса горчичного цвета соломы влаги 40-70% по производству древесных опилок сушилка вращающаяся
- Категория: Rotary Drying Equipment >>>
- Поставщик: Gongyi,Xiaoyi,Mingyang,Machinery,Plant
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.16 $* | 0.56 $* |
| Aug-16-2025 | 0.73 $* | 0.38 $* |
| Jul-16-2025 | 0.20 $* | 0.50 $* |
| Jun-16-2025 | 0.33 $* | 0.71 $* |
| May-16-2025 | 0.70 $* | 0.45 $* |
| Apr-16-2025 | 0.9 $* | 0.30 $* |
| Mar-16-2025 | 0.34 $* | 0.88 $* |
| Feb-16-2025 | 0.91 $* | 0.29 $* |
| Jan-16-2025 | 0.1 $* | 0.77 $* |
Характеристики
2-2.5 Ton/hour capacity Groundnut Shells, Mustard Straw moisture 40-70% Sawdust Dryer, Rotating Drum Dryer
Product Description
Description:

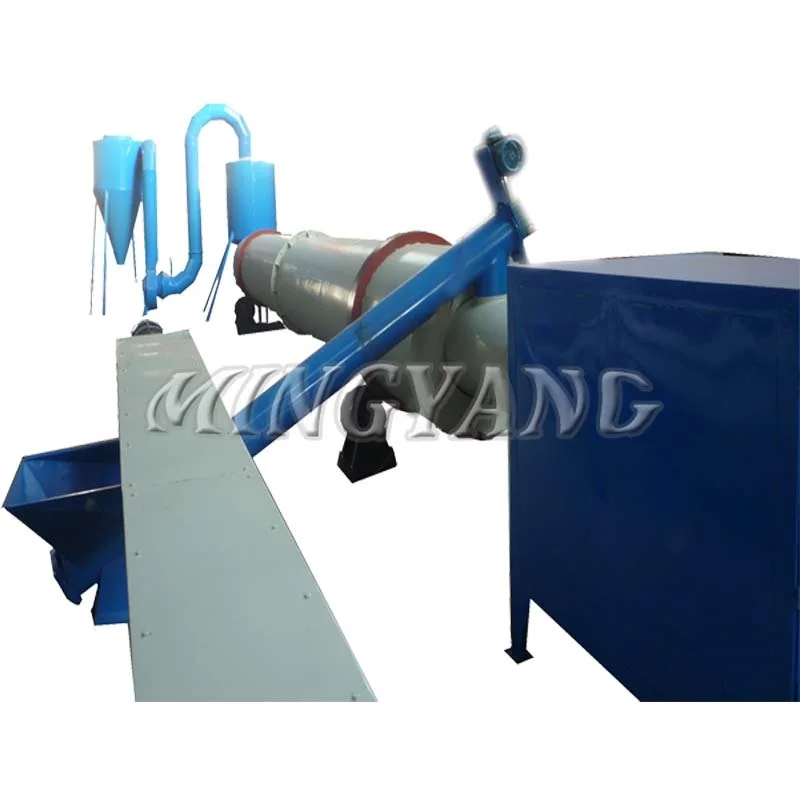

Mingyang Rotary Dryer is designed to dry the wet content of different Raw Materials which contain moisture up-to 50 percent. The dryer is made of a large, rotating cylindrical tube. The wet material is entered into in-feed in-let and dried material gets discharged at the discharge end.
Moreover, its Vernacular names are Rotary Kiln Dryer, Tube Dryer, Drum Dryer, Sawdust Dryer, Rotating Drum Dryer and many more. Various types of raw material can be dried, such as Bagasse, Coffee Beans, Press Mud, Wood Chips, Paddy Straw, Groundnut Shells, Mustard Straw, Sawdust, Almonds Shells, etc.
Specifications:
| Model | GT630 | GT800 | GT1000 | GT1200 | GT1500 |
| Capacity (kg/hr) | 600-800 | 800-1000 | 1200-1500 | 1500-2000 | 2000-2500 |
| Main motor | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw |
| Air lock power | 1.1kw | 1.5kw | 2.2kw | 2.2kw | 2.2kw |
| Weight | 2600kg | 2800kg | 3800kg | 4500kg | 5000kg |
| Diameter of roller | 630mm | 800mm | 1m | 1.2m | 1.5m |
| Length of roller | 9m | 10m | 10m | 12m | 12m |
| Total length | 9+4m | 10+5m | 10+5m | 12+6m | 12+8m |
| Wood waste consumption | 15-20kg/h | 20-25kg/h | 30-40kg/h | 40-50kg/h | 50-60kg/h |
| Moisture before drying | 40-70% | 40-70% | 40-70% | 40-70% | 40-70% |
| Moisture after drying | 8-12% | 8-12% | 8-12% | 8-12% | 8-12% |
Main Structure
Consist of rotating cylinder, transmission device, supporting device and shoveling plates etc.
This wood drying machine is resonably designed and with large drying capacity of 1-3Ton/ hore. There are shoveling plates in different angels welded throughtout inner side of the whole drum. The feeding place is set door ring and rotary shoveling plates to avoid materials splashing.
Working principle
1.Put the sawdust into the rotary drum dryer with transfer system, field by raising plate devide which are uniform distributor in the drum cylinder.
2.The sawdust are evenly distributed in rotary drum dryer cylinder, then fully contact with the hot air, speed um the drying heat and mass transfer.
3.During the drying process, under the effect of plate and hot treatment in rotary drum dryer, the materials are dried evenly and efficiently.
Rotary Drum Dryer Features:
1, High temperature& heat air can dry biomass materials quickly and evenly.
2, High self- insulation thermal efficiency of 70% inside teh drum.
3, Economic space occupation, easy to build and maintain.
4, Moiture content requirements is adjustable, depending on clients' demand.
5, Stable drying process, low energy consumption, low cost.
Packaging & Shipping
Our Services
1. Free technical solution providing--- No matter what materials do you use, will provide professioinal solution related very soon with details.
2. Testing using your materials available.
3, Certificate of Origin and other files are provided.
4. Video chat checking machines available-- there are in stock machines for testing.
5. After all confirmed, will be able to provide site guide service to assemble and training the operating overseas.
Company Information
Gongyi xiaoyi Mingyang Machinery Plant is located in Zhengzhou City, Henan province since year 1982. Our star machines: biomass processing production line includes crushing, drying, briquetting, carbonizing and related charcoal making machines.
Machines named wood crusher, hammer mill, wood drum chipper, rotary dryer for biomass, pipe drying equipment, sawdust briquette machine, horizontal carbonization stove, hoist charcoal kiln,continuous charcoal furnace, charcoal crusher, charcoal briquette machine, shisha charcoal making machine, conveyor, automatic cutter, wheel mill mixer etc.
Our products are widely accepted in both domestic and world markets, and also are exported to more than 30 countries. We have lots of experience to export and cooperate with all over the world. Sincerely welcome you to come for a visit and check our products.
FAQ
Q1:Are you manufacturer or trading company?
A1:We are earliest manufacturer in charcoal making field since 1982. ISO9001 listed. Our machines are factory direct with whole life service. Pls check company profile panoramic picture.
Q2: Do you provide full production line?
A2: Yes, we supply machines from crushing, drying, briquetting, carbonizing. And charcoal powder processing line( pillow, cube charcoal briquette). Conveyor related are provided too.
Q3: How about the quality of your machines?
A3: We offer 1 year warranty for main machine, free spare part if machine issue for product Defect. All of our machines made of special carbon steel, Galvanized steel to make sure high durable long working lifespan. Using boiler grade for core parts.
Q4: Is the price negotiable?
A4: Will provide suitable solution based on your demand and request. Final price pls contact sales to offer you best one!
Q5: What's the main feature of you?
A5: We are upgrading all the equipment, now the machines are with easy operating, long service time, high efficacy, environmental protective, and with lower reasonable price. It will be your first choice to work with!
Q2: Do you provide full production line?
A2: Yes, we supply machines from crushing, drying, briquetting, carbonizing. And charcoal powder processing line( pillow, cube charcoal briquette). Conveyor related are provided too.
Q3: How about the quality of your machines?
A3: We offer 1 year warranty for main machine, free spare part if machine issue for product Defect. All of our machines made of special carbon steel, Galvanized steel to make sure high durable long working lifespan. Using boiler grade for core parts.
Q4: Is the price negotiable?
A4: Will provide suitable solution based on your demand and request. Final price pls contact sales to offer you best one!
Q5: What's the main feature of you?
A5: We are upgrading all the equipment, now the machines are with easy operating, long service time, high efficacy, environmental protective, and with lower reasonable price. It will be your first choice to work with!
