Автоматический набор корончатых Сверл Из круговой виде незаполненного круга пильный диск для заточки шлифовальный
- Категория: >>>
- Поставщик: Zhangjiagang,Hippo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.41 $* | 0.2 $* |
| Aug-15-2025 | 0.31 $* | 0.41 $* |
| Jul-15-2025 | 0.92 $* | 0.14 $* |
| Jun-15-2025 | 0.27 $* | 0.38 $* |
| May-15-2025 | 0.39 $* | 0.87 $* |
| Apr-15-2025 | 0.15 $* | 0.8 $* |
| Mar-15-2025 | 0.53 $* | 0.61 $* |
| Feb-15-2025 | 0.81 $* | 0.22 $* |
| Jan-15-2025 | 0.94 $* | 0.91 $* |
Характеристики
Product Description

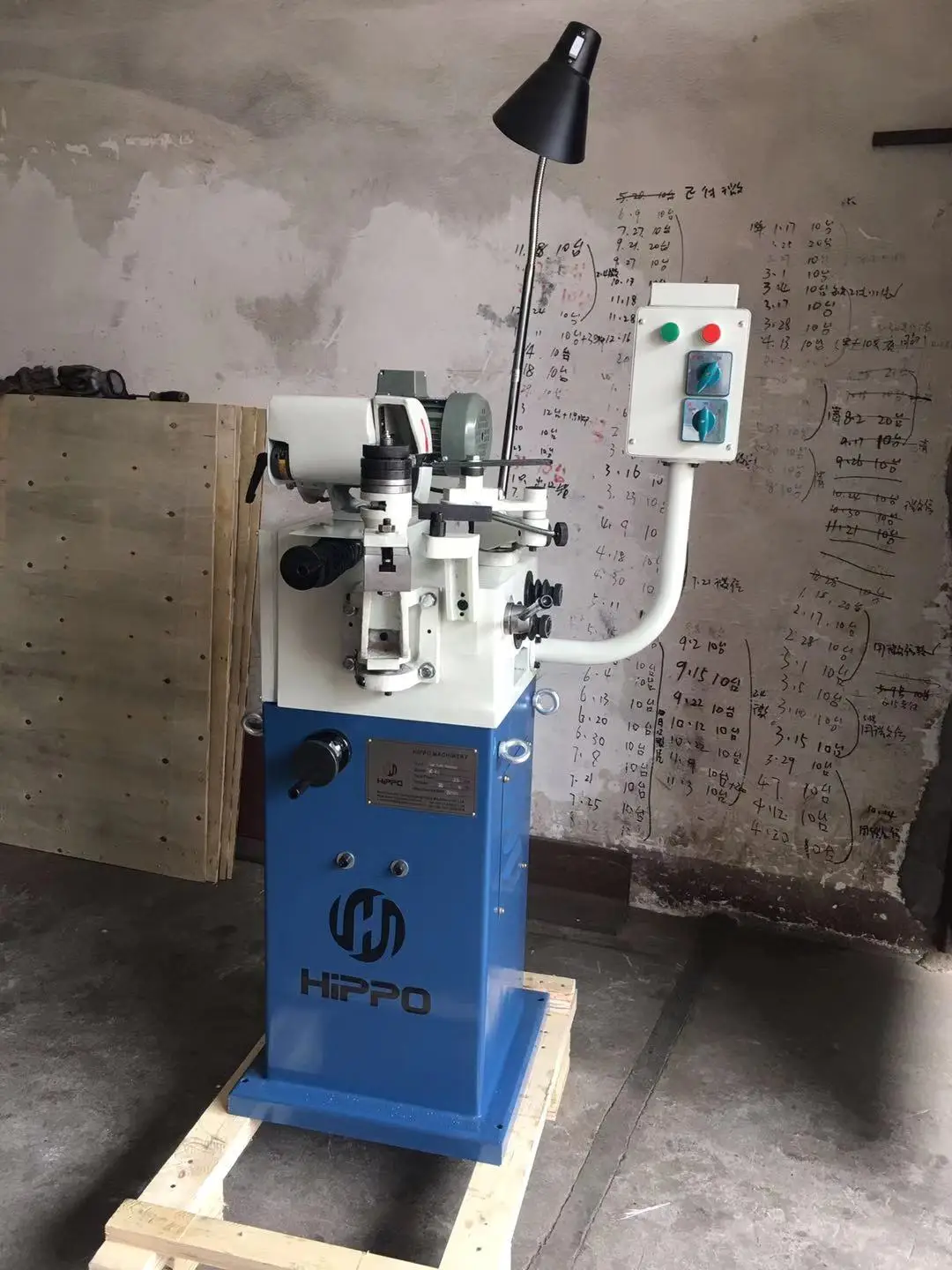

In order to solve the problems of difficult and inconvenient grinding of the user's saw blade and improve the utilization rate of the saw blade, we independently developed and produced this high-speed steel circular saw blade grinding machine based on foreign advanced technology, which greatly improved the use cost and efficiency of the circular saw blade. It has the feature of automatic tooth grinding, automatic tooth opening, automatic tooth repair, automatic chamfering.
Suitable for HSS saw blade

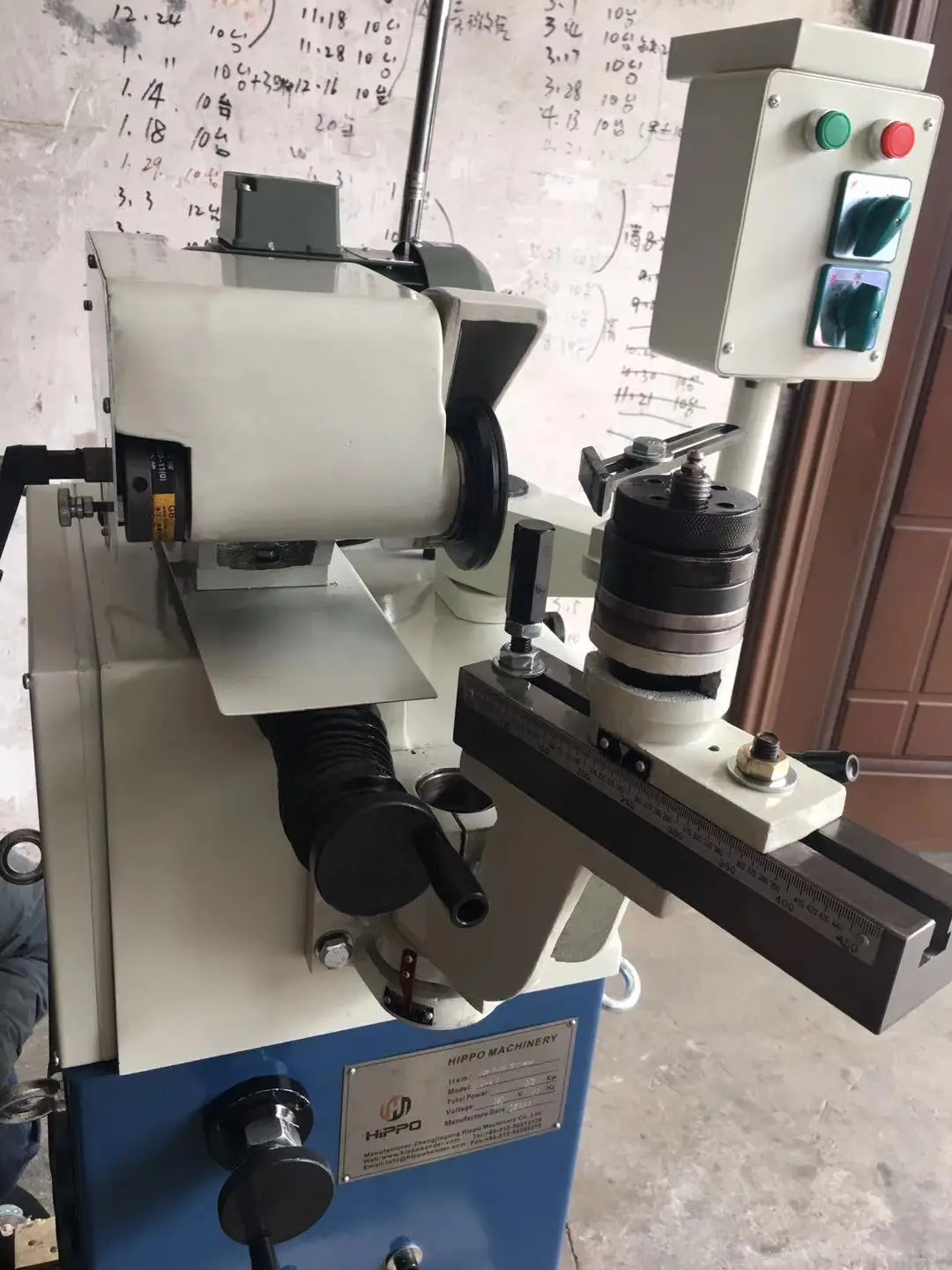

Machine details
FEATURES:
* Professional grinding machine, more accurate grinding, more efficient work
* no spark when grinding
* no deformation of saw blade
* fast speed

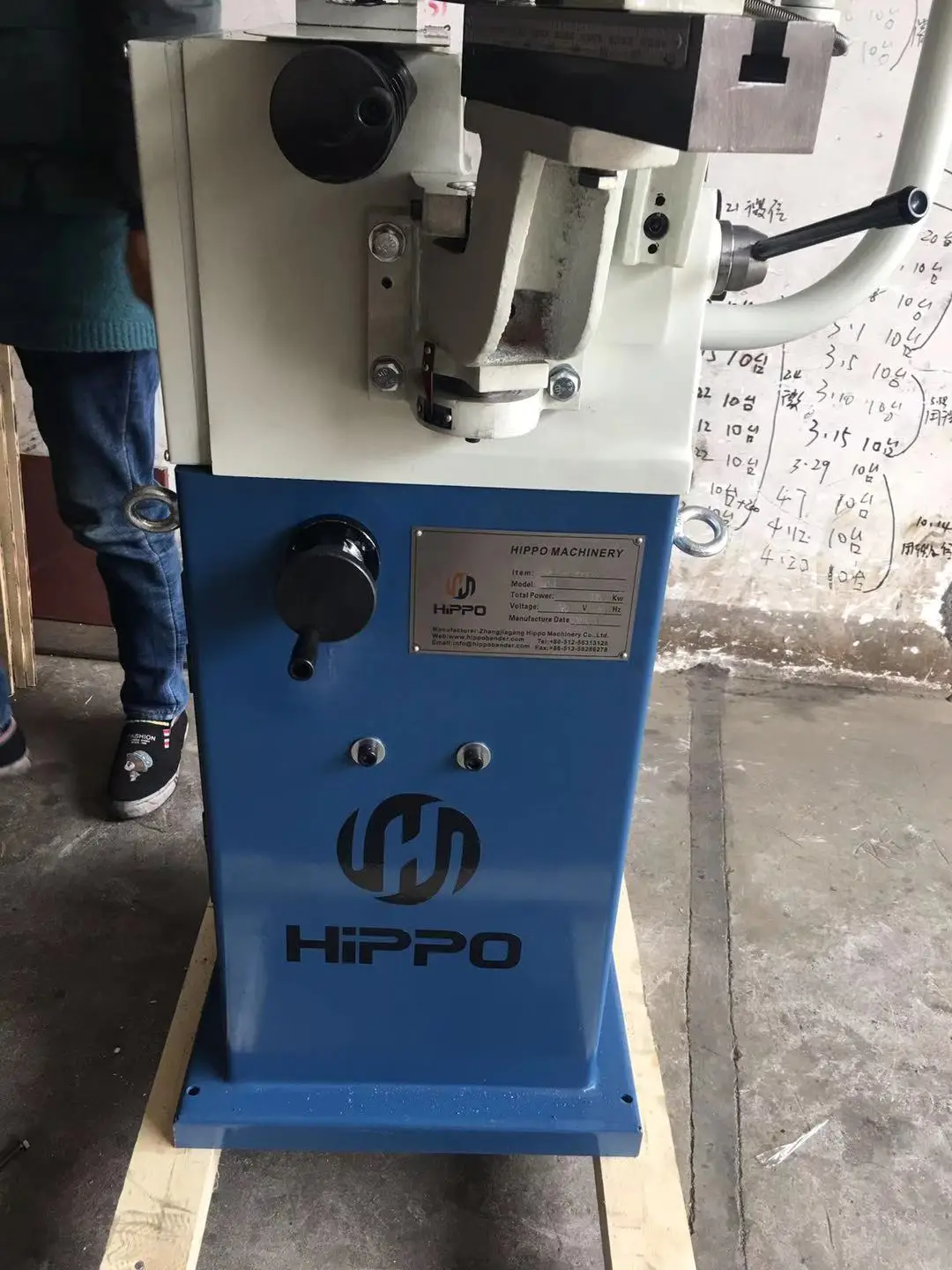

* All cast irons of the machine are ball graphite cast iron (fcd-45) to ensure accuracy and increase wear resistance.
* All the adjustment rods are carefully arranged to change the cutting angle, tooth shape and tooth depth of the saw teeth
according to different chip requirements, so as to easily grind out a sharp saw blade.
* use variable speed pulleys without segments. Therefore, the required speed can be adjusted with the change of pitch.

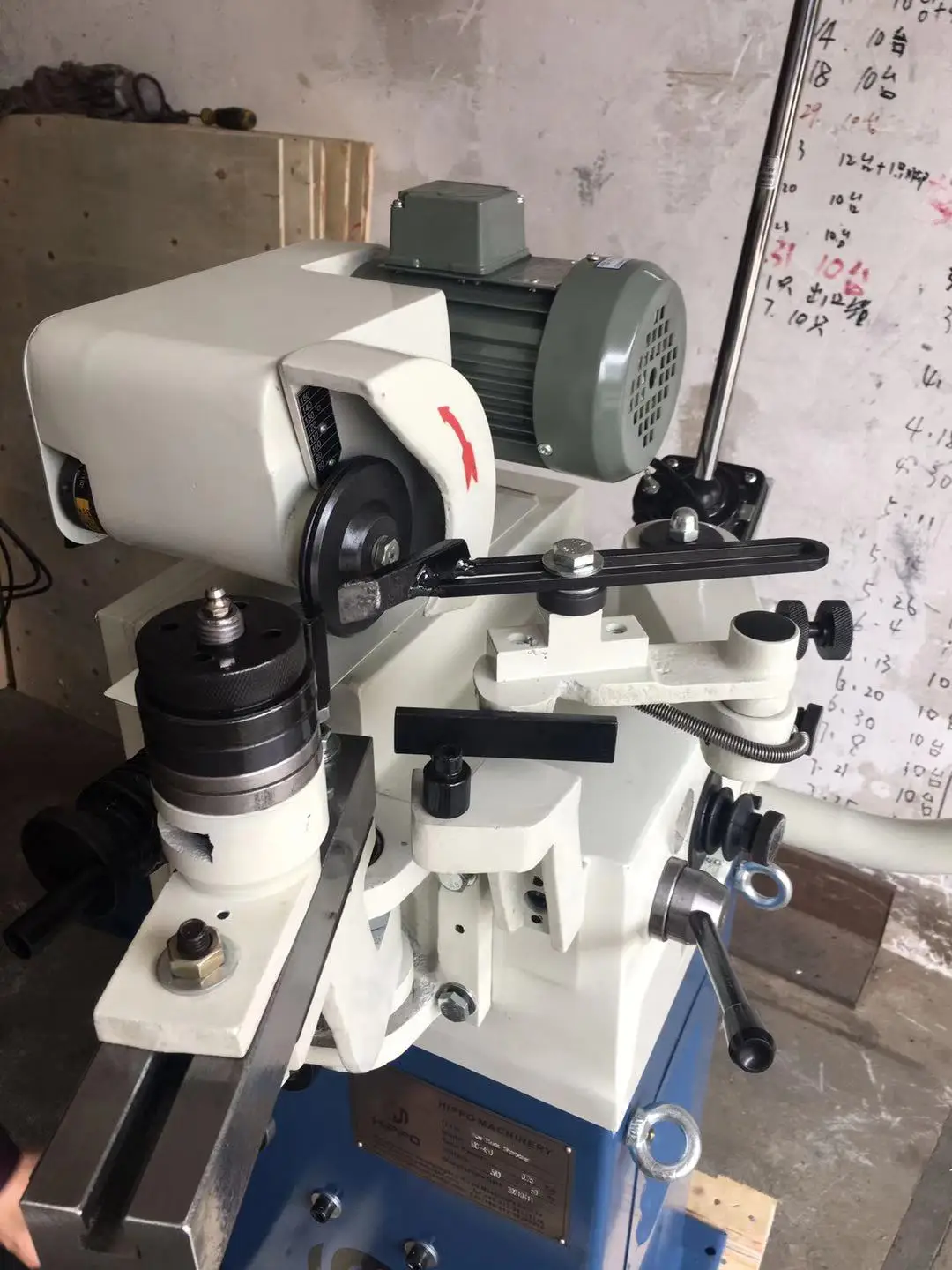

* the grinding wheel head can swing up and down, so the chamfering can be easily grinded without replacing the grinding wheel.
* the change of saw blade thickness can be easily adjusted, and a gauge can be used to see the adjusted thickness.
* adjusted by a tooth height difference control button, the tooth shape with height difference can be grinded at the same time.
* the transmission part is driven by the grinding wheel motor and the structure to achieve a reliable and safe transmission.
* the end of the feed pawl has superhard tungsten carbide, which can minimize the wear of the feed pawl, so as to achieve accurate feed.

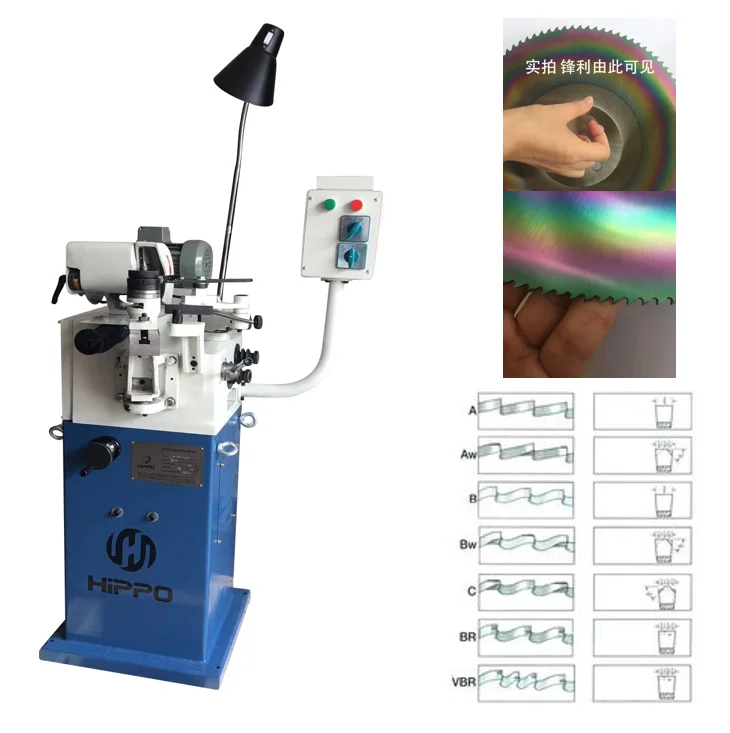

* It can grind a variety of tooth types (left and right teeth, circular arc teeth, triangular teeth, high and low teeth)
Product Paramenters
Tools
The machine is installed and debugged before leaving the factory. We will provide below tools to you and you can use the machine
directly when you connect the electricity.
directly when you connect the electricity.
1. inner hexagon spanner
2. Open spanner
3. Extension rod
4. Oil stone
5. Toothed spanner
6. Special wrench for grinding wheel
7. Guide disc
2. Open spanner
3. Extension rod
4. Oil stone
5. Toothed spanner
6. Special wrench for grinding wheel
7. Guide disc
Packing&Shipping
Wooden box to ensure 100% safety during shipment
After Sales Service
HIPPO will offer you all necessary documents, e.g. manual book,detailed machine installation,commissioning video for help you correctly operate the machine.Technicians can be sent to your factory if necessary.
Technicians will be responsible for guide on-site installation and testing machines involved. Meanwhile free training will be
provided to the workers in your factory.
Technicians will be responsible for guide on-site installation and testing machines involved. Meanwhile free training will be
provided to the workers in your factory.
Company Introduction
FAQ
