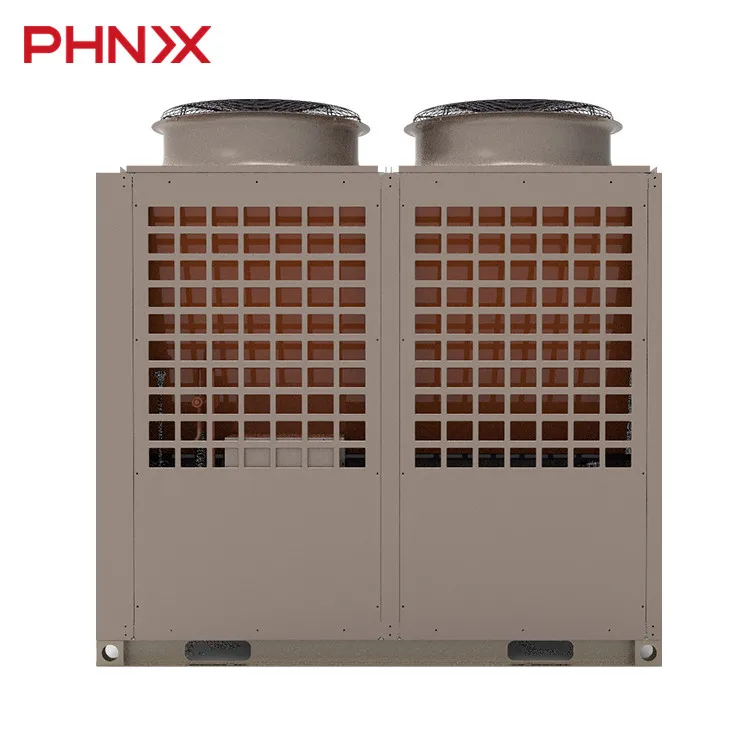

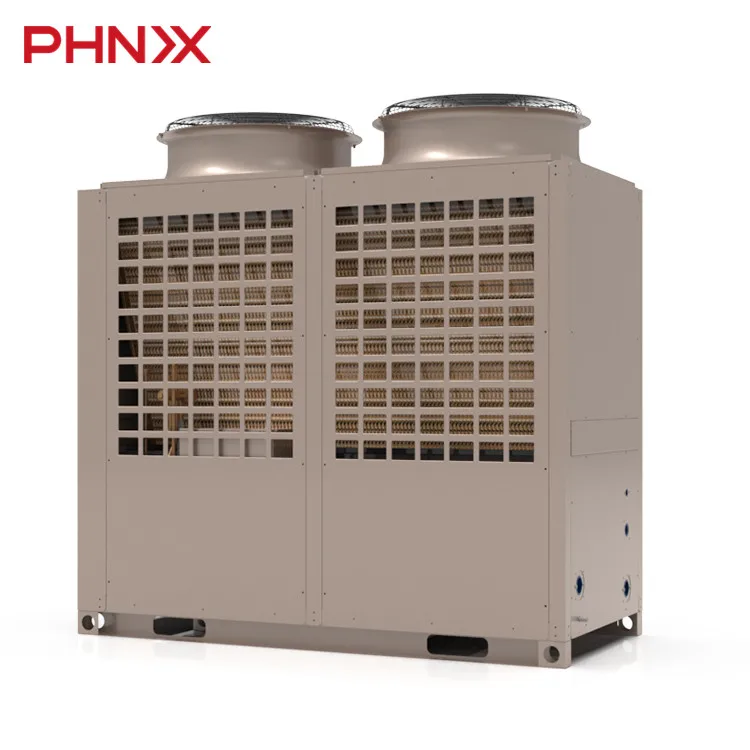

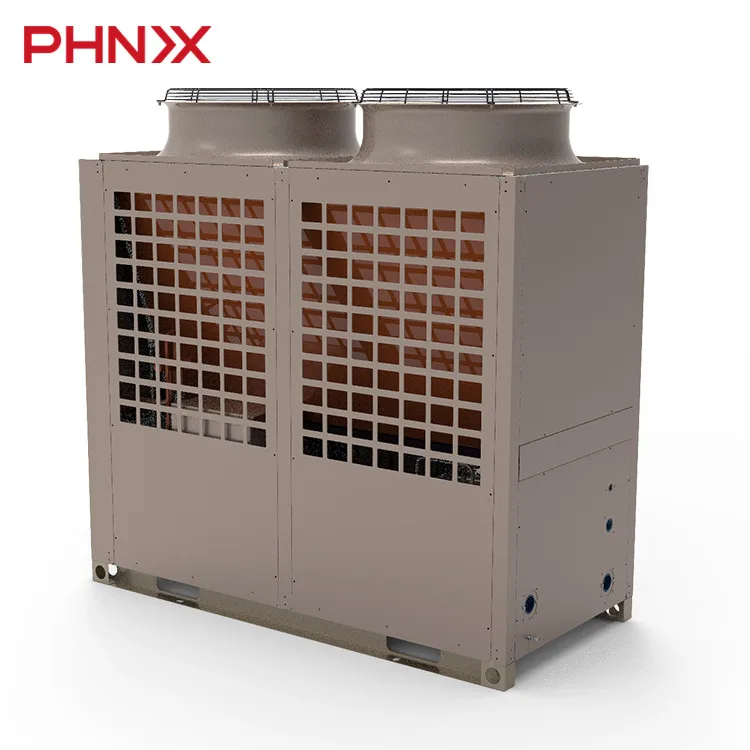

Product Family of PHNIX Commercial Hot Water Heat Pumps
Product Details |
PASHW100S-XA |
Model | PASHW | 050S-XI | 060S-XA | 100S-XA | 130S-XA | 300S-PS |
Function | Hot Water Supply | |||||
Hot Water Capacity | kW | 17.2 | 23.0 | 37.0 | 48.0 | 104.0 |
Rated Power Input | kW | 3.80 | 4.84 | 7.45 | 9.97 | 22.5 |
COP | W/W | 4.53 | 4.75 | 4.96 | 4.81 | 4.62 |
Hot Water Volume | L/h | 370 | 494 | 795 | 1031 | 2240 |
Max. Power Input | kW | 5.85 | 6.90 | 10.0 | 14.3 | 41.5 |
Max. Running Current | A | 9.20 | 11.5 | 16.9 | 24.2 | 76.9 |
Power Supply | V/Ph/Hz | 380~415V/3N~/50Hz | ||||
Compressor Quantity | / | 1 | 1 | 2 | 2 | 2 |
Compressor Type | Scroll | |||||
Throttle Device | / | Electronic Expansion Valve | ||||
Fan Quantity | / | 2 | ||||
Fan Motor Input | W | 60×2 | 75×2 | 200×2 | 200×2 | 1100×2 |
Water Flow Volume | m3/h | 3.0 | 4.0 | 6.5 | 8.3 | 17.9 |
Water Pressure Drop | kpa | 60.0 | 129 | 64 | 110 | 65 |
Water Connection | Inch | 1 | 1.2 | 1.5 | 1.5 | DN80 Flange |
Noise | dB(A) | 56 | 56 | 57 | 61 | 73 |
Air Discharge Type | / | Horizontal | Vertical | |||
Max. Outlet Water Temp. | ℃ | 60 | ||||
Operation Range | ℃ | -15-43 | ||||
Condenser | / | PHNIX Patented Tube in Shell Heat Exchanger | ||||
Defrosting | / | by 4-Way Valve | ||||
Controller | / | PHNIX Multi-function Controller | ||||
Refrigerant | / | R410A | ||||
Cabinet | / | Eco-friendly Galvanized Metal /Stainless Steel for Option | ||||
Net Weight | kg | 126 | 152 | 327 | 350 | 778 |
Gross Weight | kg | 141 | 175 | 377 | 400 | 823 |
Net Dimensions(L/W/H) | mm | 1050/400/1245 | 1000/395/1315 | 1700/800/1735 | 1700/800/1735 | 2180/1080/2100 |
Shipping Dimensions(L/W/H) | mm | 1100/455/1375 | 1070/450/1445 | 1830/880/1900 | 1830/880/1900 | 2300/1230/2240 |
Test Condition: Ambient temperature 20 ℃/15 ℃, water circulation from 15℃ to 55℃. | ||||||
The data above is for reference only.For more specific data, please refer to the nameplate on the unit. |

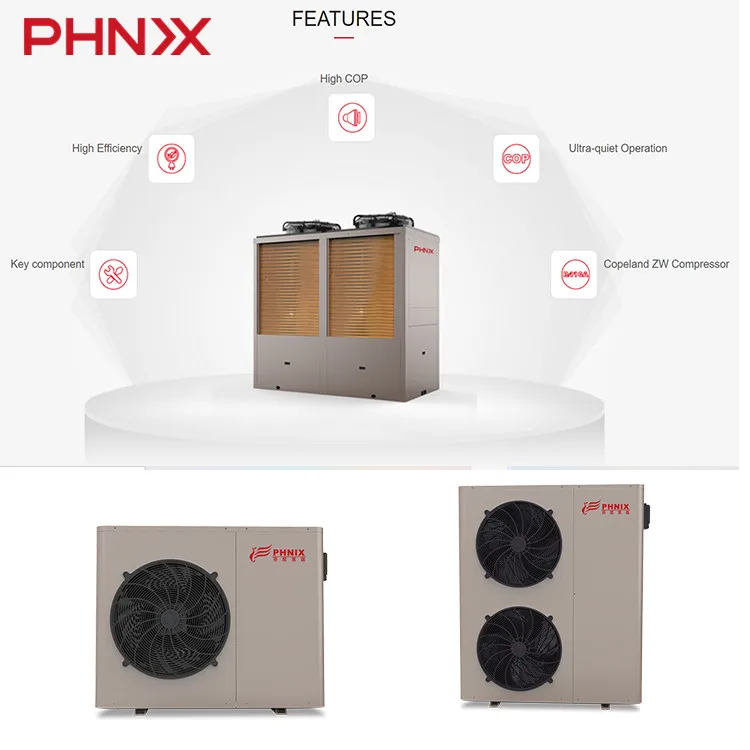

![]() | High Efficiency 25% higher efficiency by Φ7 mm evaporator & gold color coating for seaside cities. | ![]() | German Design We adopt the German design to renew the product internal structure |

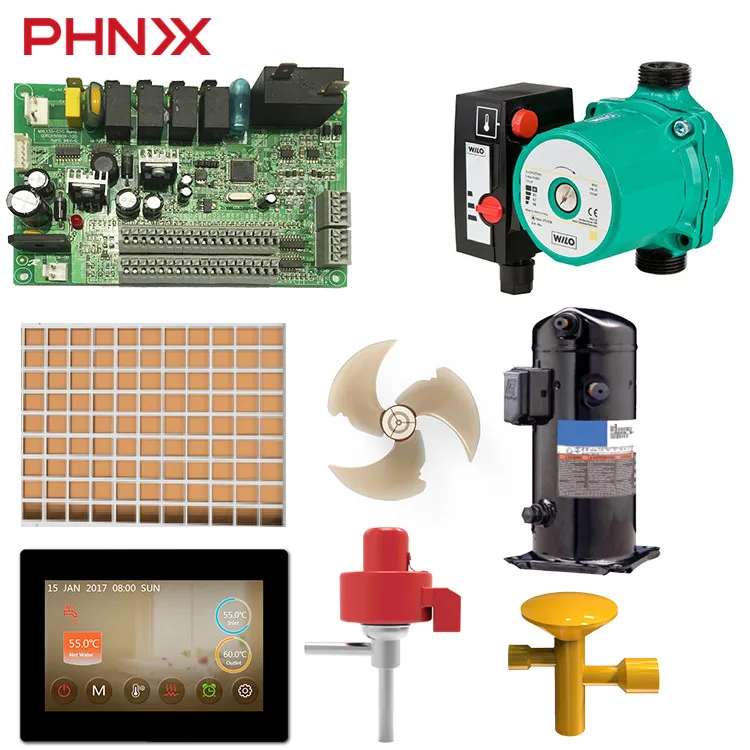

![]() | High COP of 4.96 The COP is as high as 4.9 which is even higher than the first class energy level. | ![]() | Copeland ZW Compressor Heat Pump dedicated R410A scroll compressor is adopted for the series. |
![]() | Ultra-quiet Operation With an improved evaporator wind field design, the unit is of ultra-quiet operation in commercial building places. | ![]() | Wide Application Super-widely operation envelope for all climates hot water application |
Sample Projects |
About PHNIX |
PHNIX is a national high-tech enterprise, founded in April, 2002, focusing on heat pump R&D, manufacturing and providing comprehensive energy-saving solutions.
Equipped with a complete heat pump industry chain, PHNIX's products involves swimming pool heat pump, house heating&cooling heat pump, domestic heat pump water heater, commercial&industrial high-temperature water heat pump heating solution, etc. Among them, the export volume of swimming pool heat pumps has been among the best and ranking the top place in China for many years. The ultra-low temperature EVI heat pump has been widely used for house heating in Northern China. What’s more, because of its advantages such as safety, efficiency, environmental protection and low energy consumption, it has become a government recommended solution to replace traditional boilers.
As an international enterprise targeting the global market, PHNIX attaches great importance to high-end overseas markets, 50 percent of its products has been constantly exporting to Europe, North America, Middle East, Australia, and other developed regions.
FAQ |
Q: How many years have your company been in heat pump industry?
A: We PHNIX has full experience in the field of heat pumps for more than 19 years. PHNIX has kept growing rapidly during these years since it was established. In 2020, more than 60% of our heat pump products were exported to Europe, North America , Middle East, Australia, and other developed regions.
Q: Do you accept OEM & ODM?
A: Yes. We can produce PHNIX standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: How about the channel management?
A: First, in order to lead global positive market competition, PHNIX will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer PHNIX’s own brand products and services to dealers.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
