Инвертор постоянного тока 10

Категория: Heat Pump Water Heaters >>>
Поставщик: Chengdu,Tops,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.71 $*	0.72 $*
Aug-15-2025	0.6 $*	0.72 $*
Jul-15-2025	0.0 $*	0.19 $*
Jun-15-2025	0.17 $*	0.18 $*
May-15-2025	0.56 $*	0.87 $*
Apr-15-2025	0.50 $*	0.82 $*
Mar-15-2025	0.57 $*	0.21 $*
Feb-15-2025	0.44 $*	0.78 $*
Jan-15-2025	0.74 $*	0.69 $*

Характеристики

Products Description

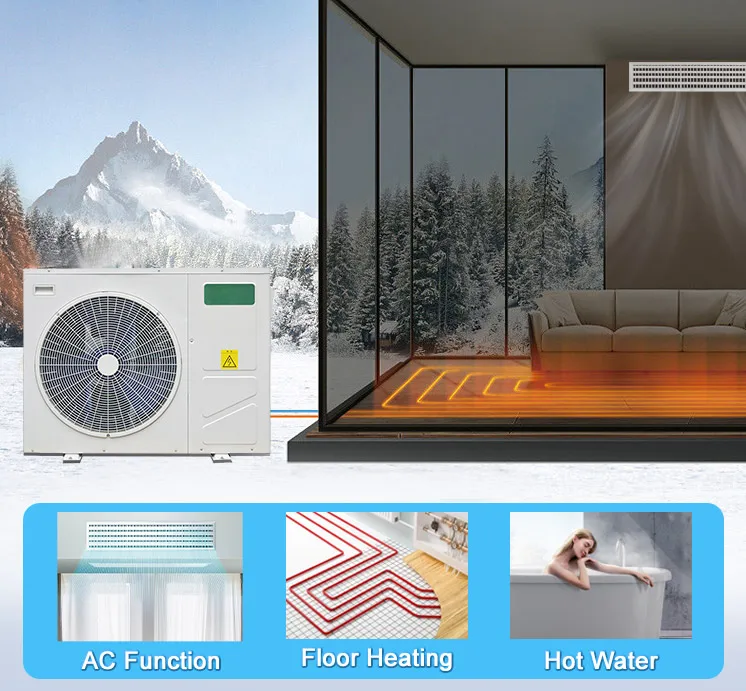

Heating&Cooling&DHW 3 In 1

Cooling in summer, heating in winter, optional wind panel, floor heating, domestic hot water, etc. at the end, convenient and flexible R32 full DC inverter EVI heat pump for higher efficient house heating/cooling and domestic hot water.

Specifications

Model	QBKFXFC-006SRI	QBKFXFC-009SRI	QBKFXFC-012SRI	QBKFXFC-014SRI
Heating capacity range	8kw	10kw	14kw	16kw
Voltage	220-240V~/50HZ
Temperature range of DHW	40~55C				Hot water: 55~60C / heating:40～45C / cooling:10～12C
Refrigerant	R32
Compressor	DC inverter twin rotary (Panasonic)
Ambient temperature	(-35℃ -- 45℃)
Energy efficiency	ERP A+++(with certificates)

Model	QBKFXFC-016SRI	QBKFXFC-018SRI	QBKFXFC-024SRII	QBKFXFC-030SRII
Heating capacity range	18kw	20kw	26kw	35kw
Voltage	220-240V~/50HZ
Temperature range of DHW	40~55C
Refrigerant	R32
Compressor	DC inverter twin rotary (Panasonic)
Ambient temperature	(-35℃ -- 45℃)
Energy efficiency	ERP A+++(with certificates)

Features

Powerful heating for a wide range of applications

The Enhance vapor injection(EVI) compression technology is adopted to improve the refrigerant circulation system. During the system circulation process, the refrigerant flow is increased through the intermediate air supplementary enthalpy increase, which greatly increases the heating capacity and improves the stability and heating capacity of the system operation under low temperature conditions. In the low temperature state of -35°C, it can ensure efficient heating, wide operating range, and effectively solve the heating problem in cold areas.

High Efficiency Full DC Inverter Compressor

Adopt DC inverter compressor and DC brushless fan motor, which can realize 20%-120% stepless capacity adjustment. During operation, the speed of compressor and fan can be automatically and intelligently adjusted according to the actual needs of users, so as to reduce the energy consumption of compressor and fan. Make the unit run at the optimal level to achieve the energy saving purpose of output on demand.

High efficiency & energy saving, green and environmental protection

Using advanced air source heat pump technology, it consumes a small amount of electric energy to drive the machine to run, easily absorb a large amount of free heat energy in the outdoor air, transport it to the room for release, and create a comfortable home life for you. That is, Using 1 part of electricity, you can get more than 3 parts of free air energy from the outdoor air, and get more than 4 parts of heat energy income, which is more energy-saving and efficient.

Our Heat Pump Defrosting Graph

* Efficient and rapid defrosting technology in 2 minutes
* Heating time over 90 minutes
* Smooth and comfortable indoor temperature

Normal Heat Pump Defrosting Graph

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

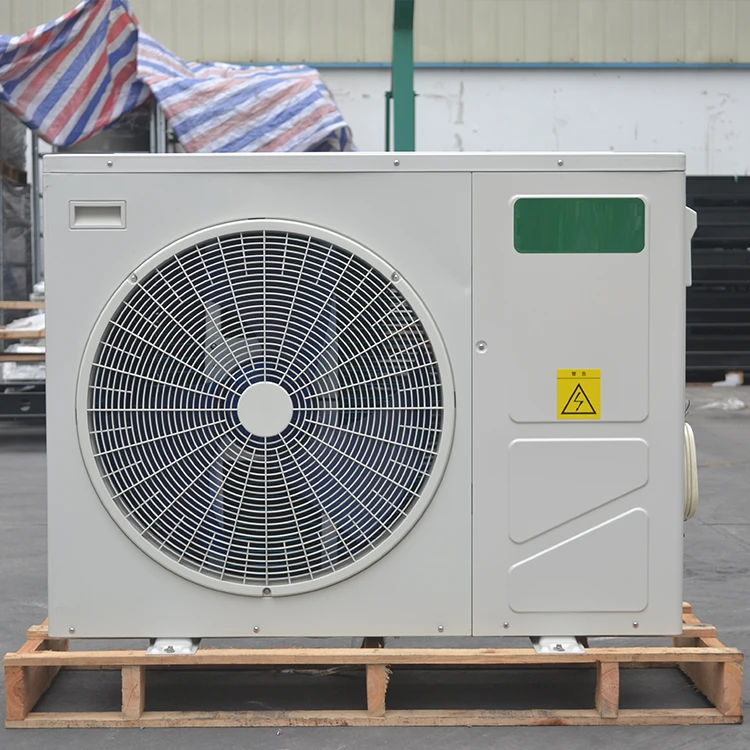

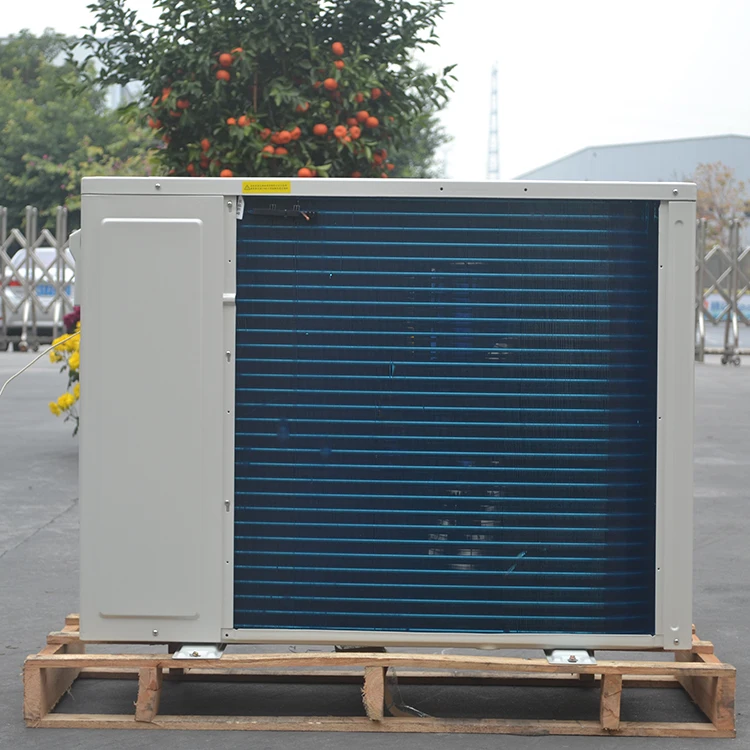

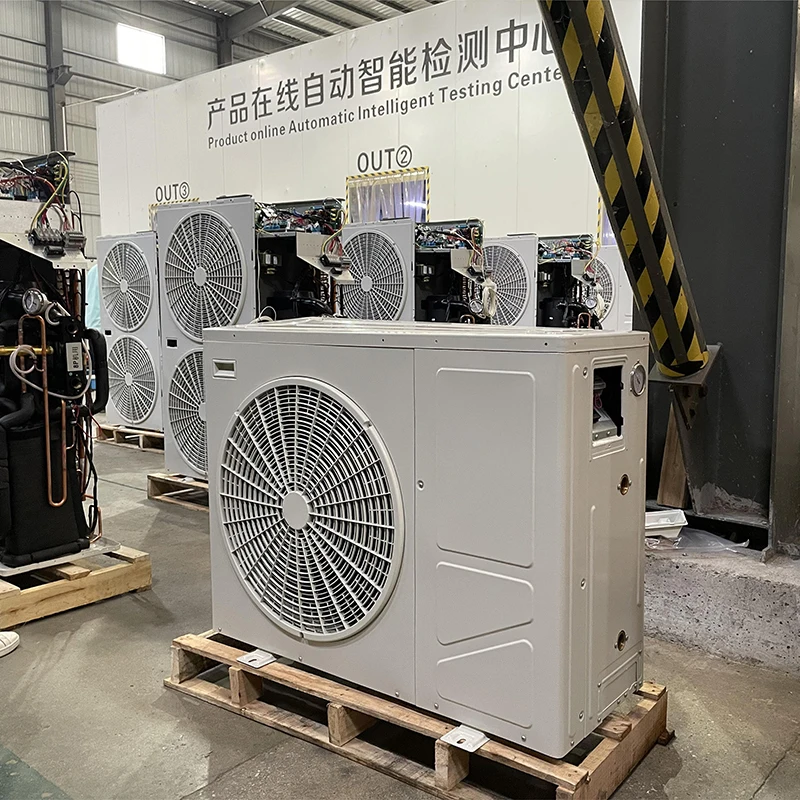

Real Images

Certifications

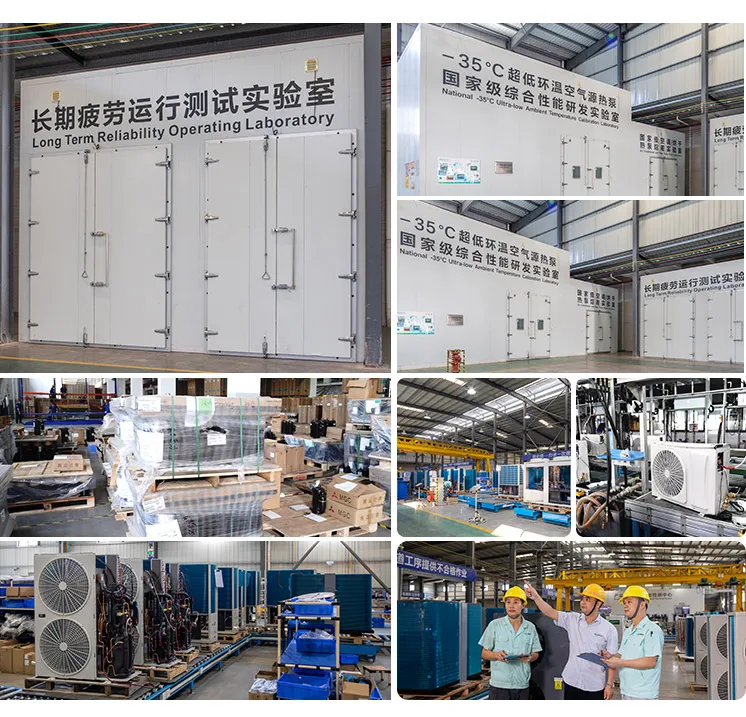

Company Profile

Chengdu Tops Technology Co., Ltd. is integrates R & D design,research,production,sales and service for eco-friendly and high efficiency heat pumps. Our mainly produces includes 3 IN 1(Heating&Cooling&DHW) R32/R290/R410A EVI Heat Pump,Swim Pool Heat Pump etc.

We have professional research and development centers and the strong development capability has helped us to achieve nearlyhundreds of the national patents. Our company possesses first-class quality management team, and has certified by CE, ERP A+++.
