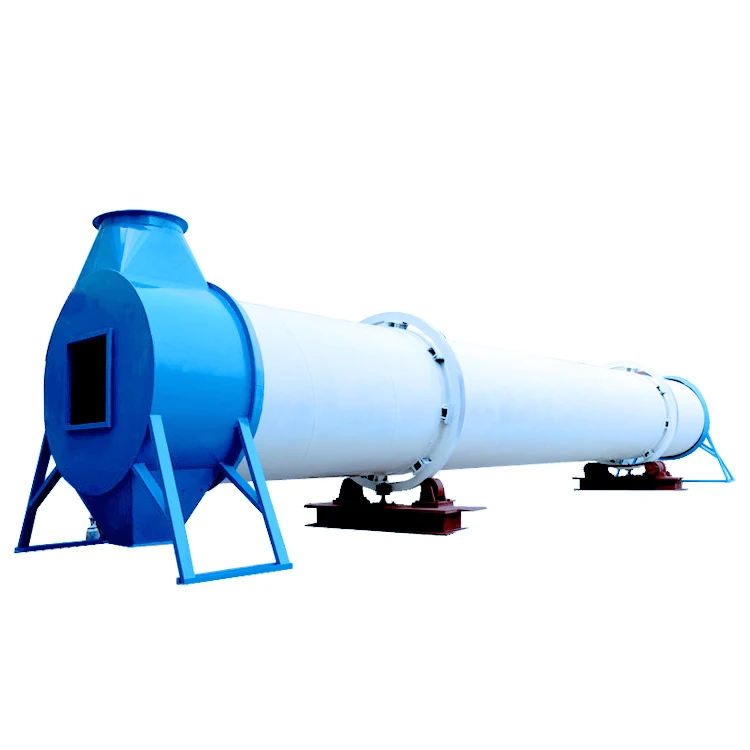

Wood drying equipment olive husk pellet dryer

Introduction of olive husk pellet dryer

olive husk dryer is widely used for drying wood chips, sawudt, efb fiber, forest waste. sawdust dryer is

mainly used in the fields of biomass fuels industry, animal feed industry, organic fertilizer industry, mainly stoving wood and other materials



rotary drum dryer's price is mainly composed by the revolving body, lifting plate, driving device, supporting device,

sealing ring and other components.

Technical Parameter of olive husk pellet dryer



Model	Cylinder diameter (mm)	Cylinder Length (m)	Power             (kw)	evaporation capacity(t/h)	Feeding moisture	Discharge moisture	Thickness of cylinder (mm)
YGHGφ1.5*12m	1.5	12	7.5+18.5+4	0.42-0.85	20-50%	13-15%	10-12mm
YGHGφ1.8*12m	1.8	12	7.5+18.5+4	0.8	20-50%	13-15%	14-18mm
YGHGφ1.8*18m	1.8	18	11+22+4	1	20-50%	13-15%	14-18mm
YGHGφ1.8*24m	1.8	24	11+30+4	1.22-2.44	20-50%	13-15%	14-18mm
YGHGφ2.0*24m	2.0	24	15+37+7.5	1-1.5	20-50%	13-15%	14-18mm
YGHGφ2.2*24m	2.2	24	15+37+5.5	2	20-50%	13-15%	14-18mm
YGHGφ2.5*24m	2.5	24	15+37+5.5	2.5	20-50%	13-15%	20mm



>> Why choose ROTEXMASTER olive husk pellet dryer



1.The inner structure of ROTEXMASTER rotary drum dryer's price is dryer wall plate + triangle plate,widely increase the drying efficiency, larger capacity.

The dryer inner structure mainly used for drying wood chips,wood sawdust,efb fiber,sand,olive waste etc.



Design: spiral plate weld, accord with welding rule, it won't easily crack and deformation.





2. The rotary drum dryer's price wall thickness 20mm depends on the different model dryer,the dryer total weight 10t-30t,that make sure the dryer work stable,firmly enough.

Material: Q235 carbon steel



Thickness: 18-20mm



Advantage: long using life.

3. The rotary drum dryer's price length 18m or 24m,when ship the dryer to customer,the dryer will be took apart two parts,after dryer arrived the customer factory site,

our engineer will guide and teach them to install the dryer.



4.The rotary drum dryer's price has two units reducer,the bearing is Harbin bearing,highest configuration,most brand part,long service life.



5. The another side of rotary drum dryer's price used the screw + plate structure,the raw materials entered from one side of dryer,and discharged from the another side of dryer,that makes sure the drying efficiency.



6. The stove of rotary drum dryer's price consists of 3 sectors of fire-proof wall, 2 layer brick of every fire-proof wall. Reasonal design can avoid open flame.

So it run steadily, safely and have long life.

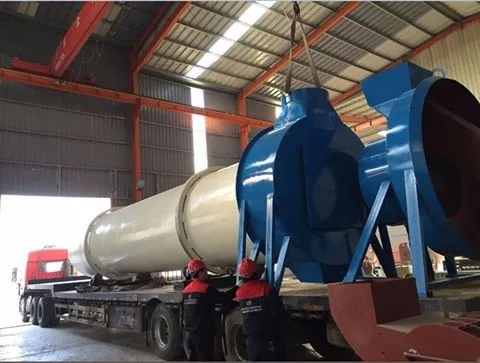

Loading of olive husk pellet dryer





briquettes sawdust dryer

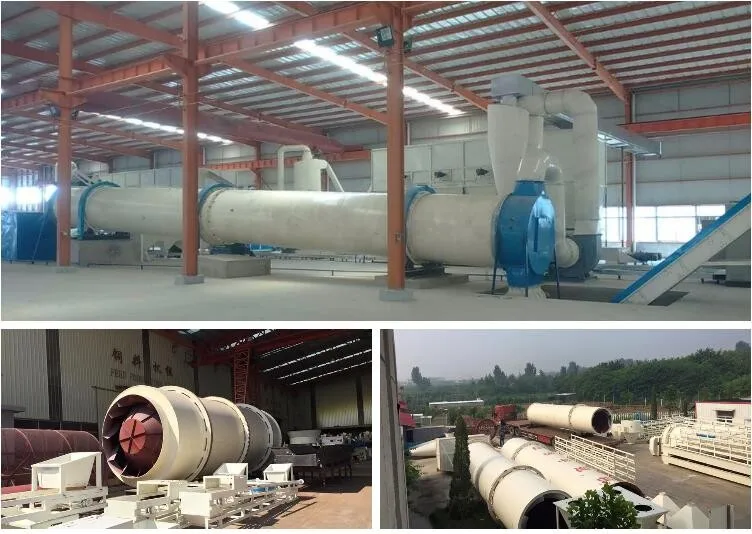

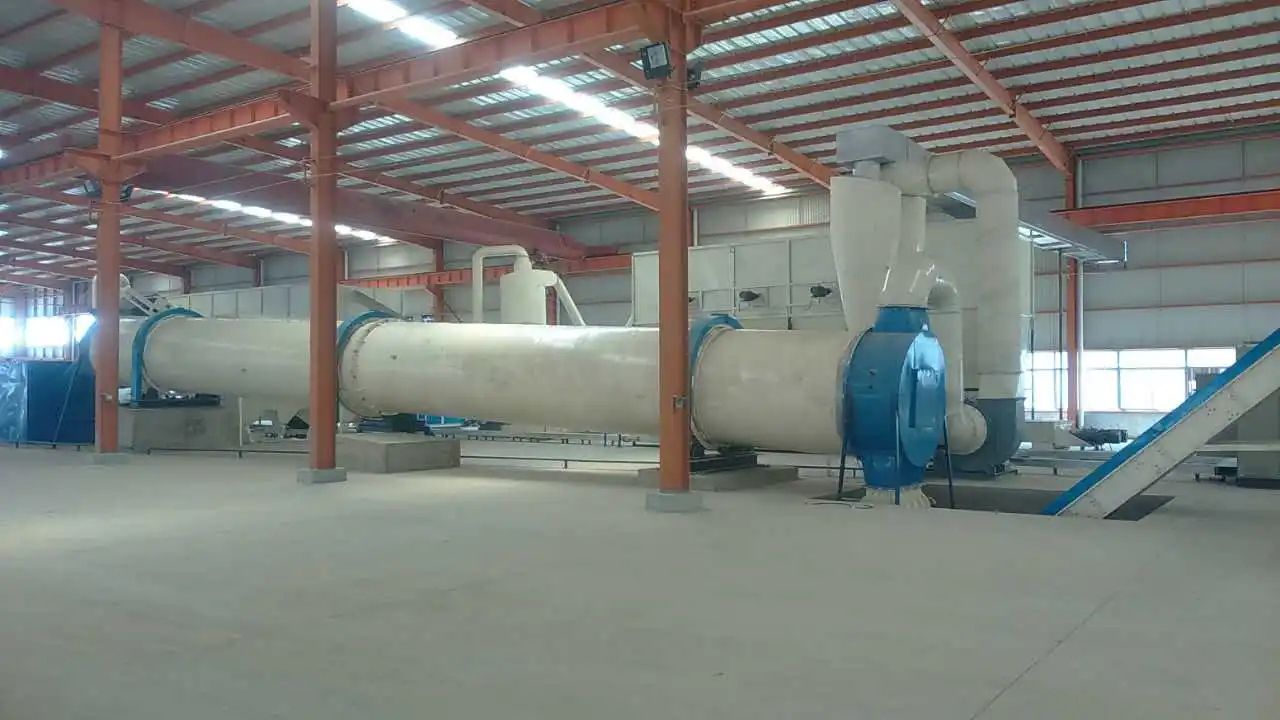

olive husk pellet dryer in clinet's factory

Certificate of olive husk pellet dryer



Contact Information

Email: vera(at)rotexmaster.cn

Mobile: 0086 155 89939109

skype: vera.rotex

wechat: 0086-15589939109
