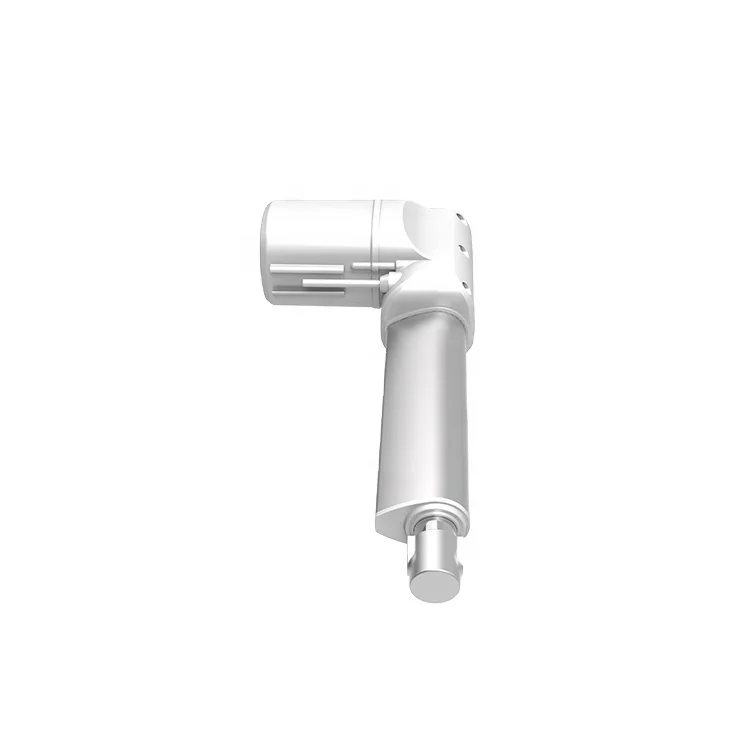

JIECANG быстрая скорость низкий уровень шума короткие линейные приводы
- Категория: Двигатель постоянного тока >>>
- Поставщик: Zhejiang,Jiecang,Linear,Motion,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.52 $* | 0.16 $* |
| Aug-15-2025 | 0.76 $* | 0.39 $* |
| Jul-15-2025 | 0.71 $* | 0.89 $* |
| Jun-15-2025 | 0.50 $* | 0.1 $* |
| May-15-2025 | 0.51 $* | 0.67 $* |
| Apr-15-2025 | 0.50 $* | 0.11 $* |
| Mar-15-2025 | 0.6 $* | 0.1 $* |
| Feb-15-2025 | 0.69 $* | 0.43 $* |
| Jan-15-2025 | 0.91 $* | 0.90 $* |
Характеристики
Product Description
Dynamic Load Push (N) | 6000 | 4000 |
Dynamic Load Pull (N) | 4000 | |
Input (VDC) | 24 | |
Speed at Full Load (mm/s) | 4 | 6 |
Short Stroke Length (mm) | 50-250(±4) | 50-500(±4) |
Colour | Black or Grey | |
EleLimit Switchctrical | Built-in | |
Matching control box | JCB35E, JCB35Q, JCB35T, JCB35R | |
Duty Cycle | 10%, continuous work for most 2 minutes | |
IP Grade | Max.IPX6 | |
Using Temperature | 0°C ~+50°C | |
Storage Temperature | -10~50℃ | |
Optional Features | Hall sensor option | |
Only push option | ||
Standard | CE/UL | |
Company Information
FAQ
Q: Do you get the relevant certifications?
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015 and so on.
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can I get the quotation?
A: You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc
