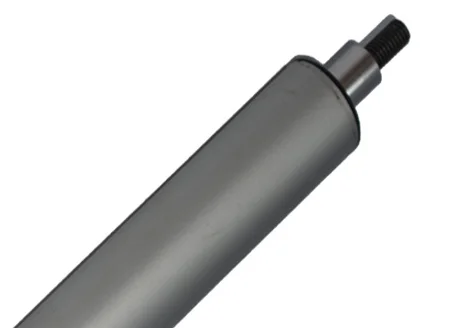

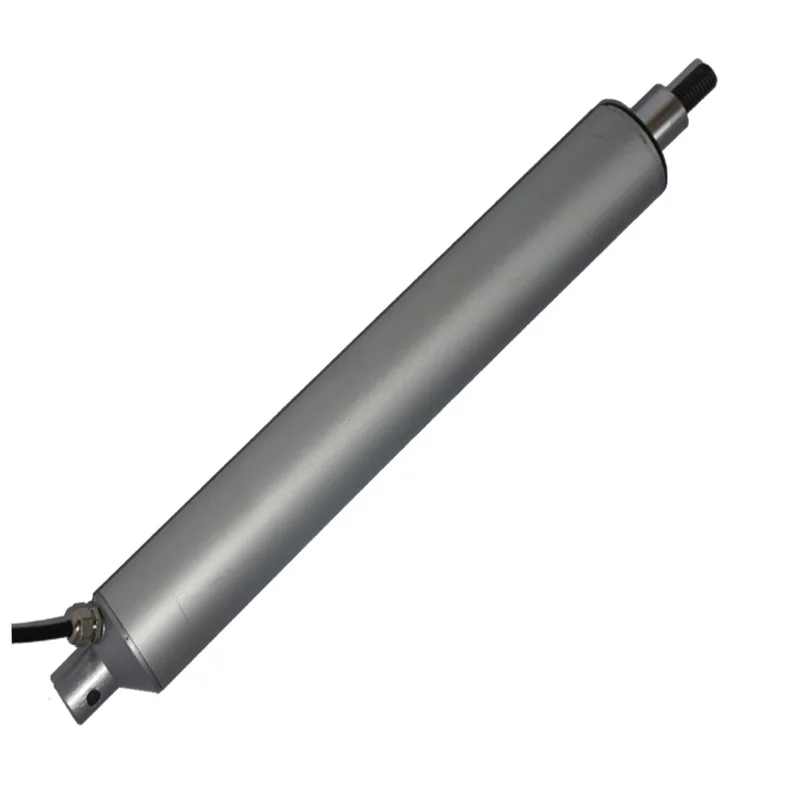

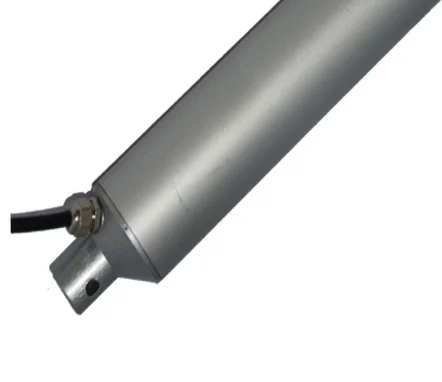

Электрический Линейный микро-привод 12 в Нинбо саммит LA-32 100 ~ 600 мм ход для мебели гостиной
- Категория: DC Motor >>>
- Поставщик: Ningbo,Summite,Im,&,Ex,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 43.58 $* | 45.69 $* |
| Aug-15-2025 | 42.60 $* | 44.86 $* |
| Jul-15-2025 | 36.90 $* | 38.55 $* |
| Jun-15-2025 | 42.83 $* | 44.58 $* |
| May-15-2025 | 36.56 $* | 38.74 $* |
| Apr-15-2025 | 41.92 $* | 43.51 $* |
| Mar-15-2025 | 41.94 $* | 43.36 $* |
| Feb-15-2025 | 40.92 $* | 42.3 $* |
| Jan-15-2025 | 40.67 $* | 42.66 $* |
Характеристики
LA-32
Features
l 12/24V/36/48VDC permanent magnet motor
l Max load 1500N
l Max speed: 30mm/sec
l Standard protection class: IP65
l 50,000 life cycles
l Built in limit switch
l Aluminum Alloy housing
Options
limit switch feedback, Hall sensor, Brush less motor.
Usage
l Duty cycle: Max 25%
l Working temperature: -26°C~+65°C
l The unit can be used in any where the space is limited
Drawing:
Installation dimensions
L1=retracted length
stroke(±2 mm) | 50 | 100 | 150 | 200 | 250 | 300 |
Retracted length (L1)(±2 mm) | 300 | 350 | 400 | 450 | 500 | 550 |
Weight(kg) | 1.02 | 1.15 | 1.26 | 1.37 | 1.48 | 1.6 |
Q: Are you a manufacture or trading company?
A: We are a manufacturer, and we have got permit of import and export as well.
Q: Where is your factory located? How can I visit it?
A: Our factory is located in Ningbo, China. 25 Minutes by car from Ningbo Airport.
Q: How can I get the sample? What's the lead time?
A: Samples could be sent within one week, the lead time is 35-45 days.
Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome, From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q.Warranty
A: We have warranty for our clients,we will ship out the new replacements if clients get the item with defect or broken frame
Q. What’s payment terms ?
A: Bank T/T, PayPal
Q. Which method of transport would be better?
A: enerally, we suggest to make shipment by air which is faster and riskless for transportation. We also can follow other transportation method you ask
