Domestic Sewage Treatment of Submersible Diving Agitator Mixer Qjb

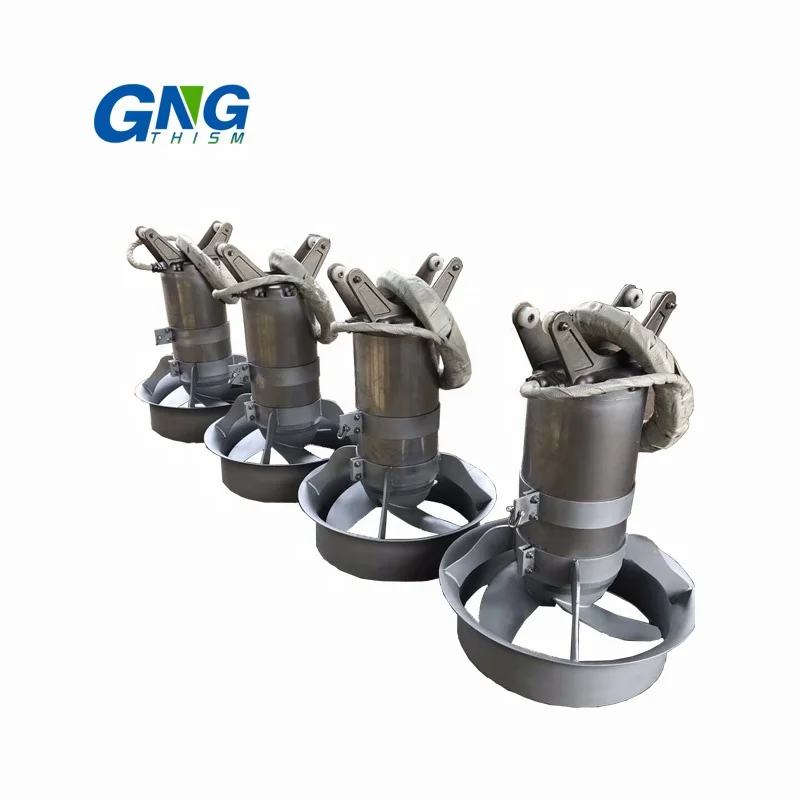

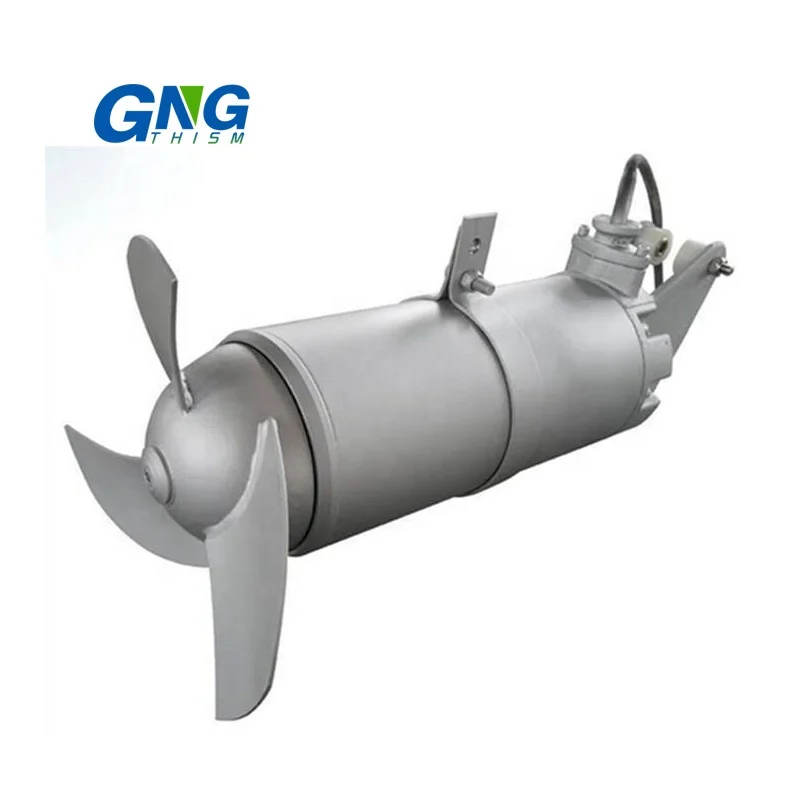

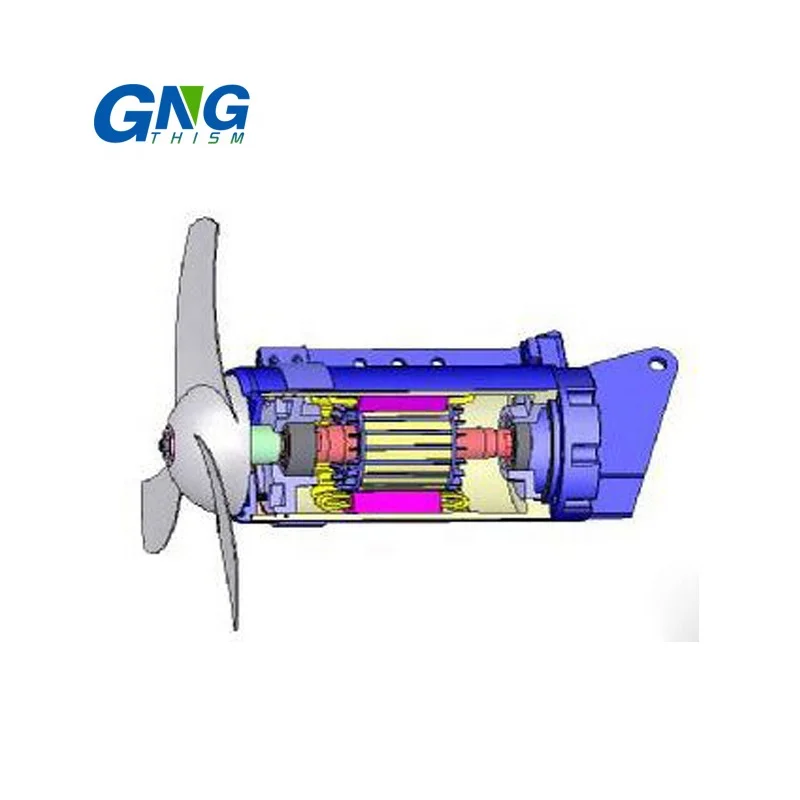

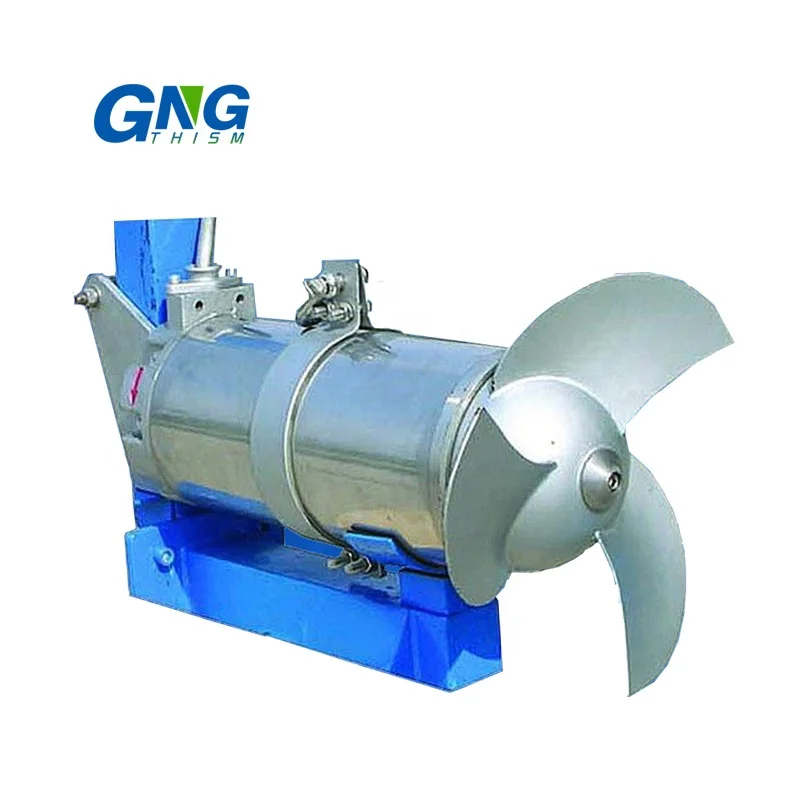

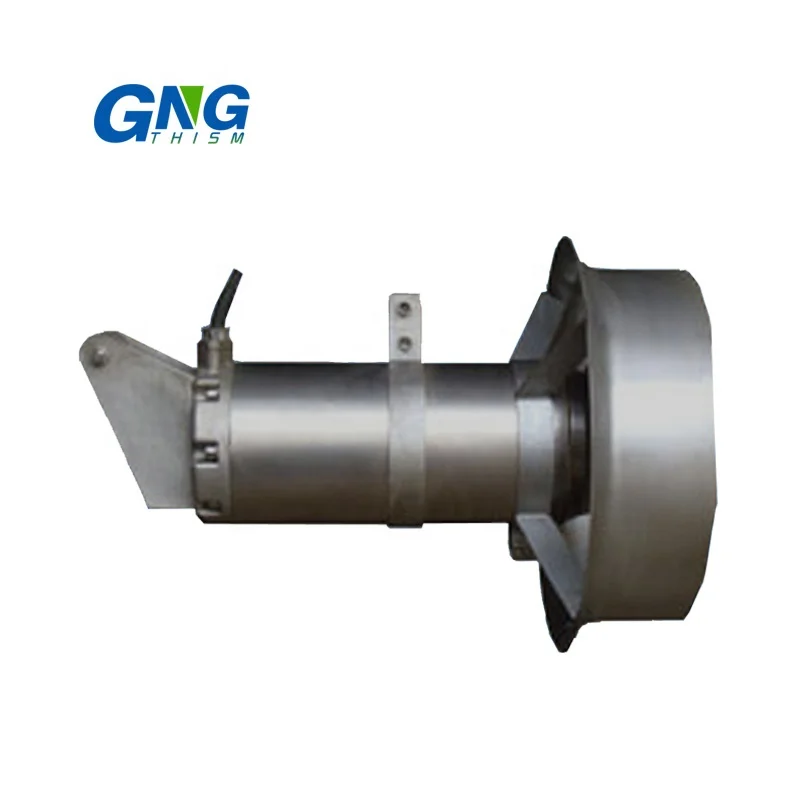

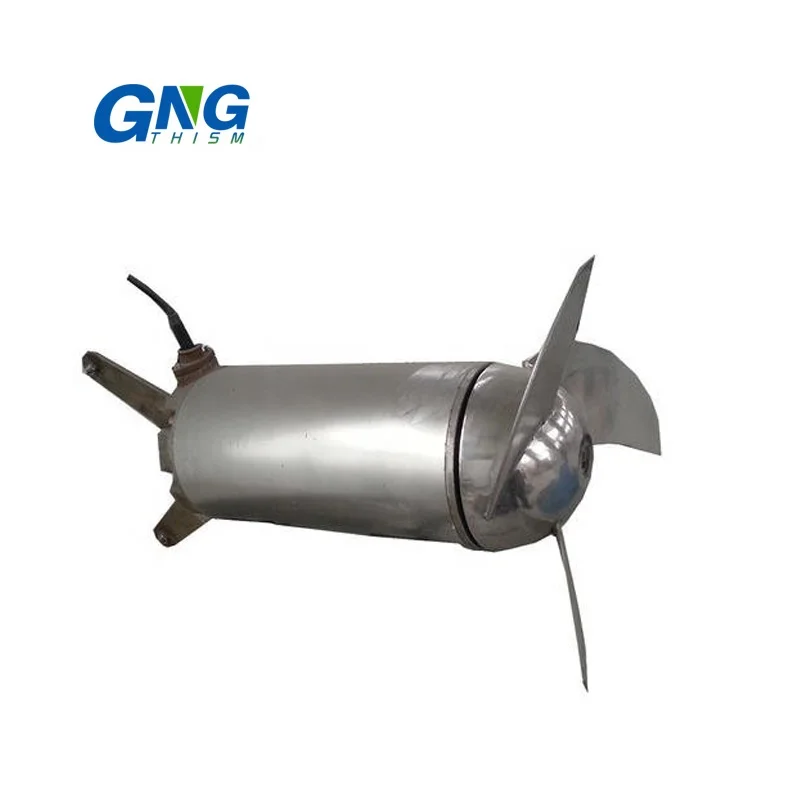

Qjb submersible mixer and  agitators are able to be located at any position. They have the best efficiency. They are widely used in waste water treatment plants and industry process to agitate the suspended substances contained water, watery slurry, icy water, liquid from industry process, roast liquid, etc. They can be also used to create water flow in the tank, to open up water channel, to oxygenate fishing pound, to prevent pound form icing.

Features

1.Compact structure,small volume,light weight, easy operation maintenance,fast installation,long service life etc.

2.The blade has the self-cleaning function, can prevent sundries wind,blocking

3.Can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.

4.Motor winding is F grade insulation, protection grade is IP68.

5.All fastener is stainless steel.

Technical Parameters

Condition of Application

1. The highest temperature of the medium shall not exceed 40ºC.

2. The scope of pH value of the medium: 5-9.

3. The density of the medium shall not exceed 1150Kg/m3.

4. The depth of submersion shall not exceed 20m.

Equipment Selection

For the purpose of fulfilling the optimum mixing function in different environment, we can supply multiple types of the submersible mixers to the uers and provide type selection service as well.  Please provide the following reference conditions:

1. Mixer application environment, such as sewage tank, slag pond or biochemical pond.

2. The parameters of the medium such as content of the suspended substances, temperature, pH value etc...

3. The shape of the pond, water depth and the mode of installation.  Meanwhile, it is also necessary to cansider the energy-saving factor, because this will influence the operating cost of the user in the future.

Note: In line with the requirement of the special environment, our company can provide special design for the users.

Installation

 Our Company

Jiangsu Guonong Environmental Protection Co., Ltd is a professional water treatment R&D manufacturer. It is located in Yixing city, Jiangsu Province, China.

Our products include Fine Bubble Disc Diffuser, MBBR Media , Sludge Dewatering Machine, Automatic Chemica Dosing System. Dissolved Air Flotation(DAF), Drum Filter Screen, Screens and Fine Screens, Grit-water separator, Screw Conveyor, Nano Bubble Generator, etc.

After years of exploration and practice our Company has developed into a comprehensive service system.

Now more than 80% of our products are exported to Southeast Asia, The Middle East, Europe, North America, Central and South America areas, Africa and other countries worldwide. We also have many agents in Southeast Asia, North America and Central South America areas, etc.

We insist on "Quality first, Reputation Foremost", our mission is" To be the best integrated water treatment supplier Worldwide".
