Высокопроизводительное сельскохозяйственное оборудование для очистки воды

Высокопроизводительное сельскохозяйственное оборудование для очистки воды

Категория: Water Treatment Machinery >>>
Поставщик: Zhengzhou,Fluidguard,Machinery,Equipment,Co.,Ltd.

Цена:1 200,00 $ - 1 260,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	1428.35 $*	1499.28 $*
Aug-15-2025	1416.30 $*	1487.23 $*
Jul-15-2025	1188.51 $*	1247.22 $*
Jun-15-2025	1392.61 $*	1462.59 $*
May-15-2025	1212.70 $*	1273.13 $*
Apr-15-2025	1368.28 $*	1436.52 $*
Mar-15-2025	1356.61 $*	1424.62 $*
Feb-15-2025	1344.72 $*	1411.90 $*
Jan-15-2025	1332.22 $*	1399.29 $*

Характеристики

Products Description

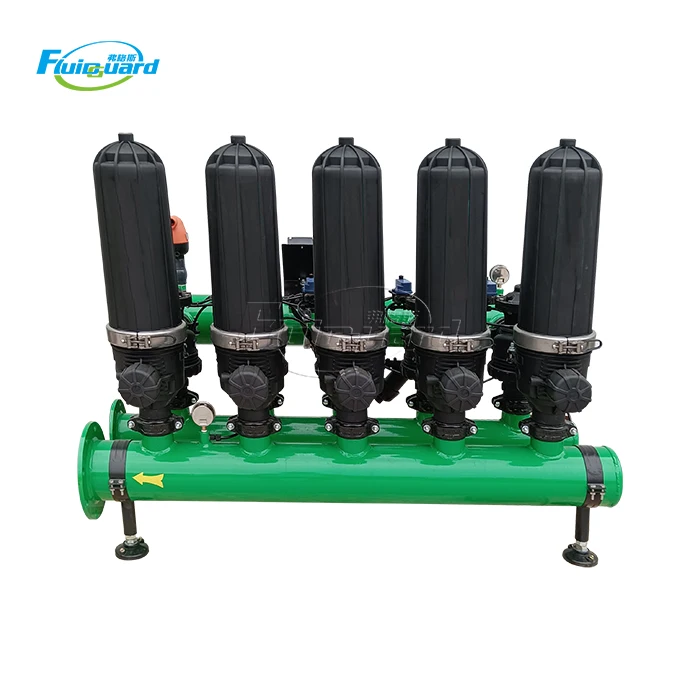

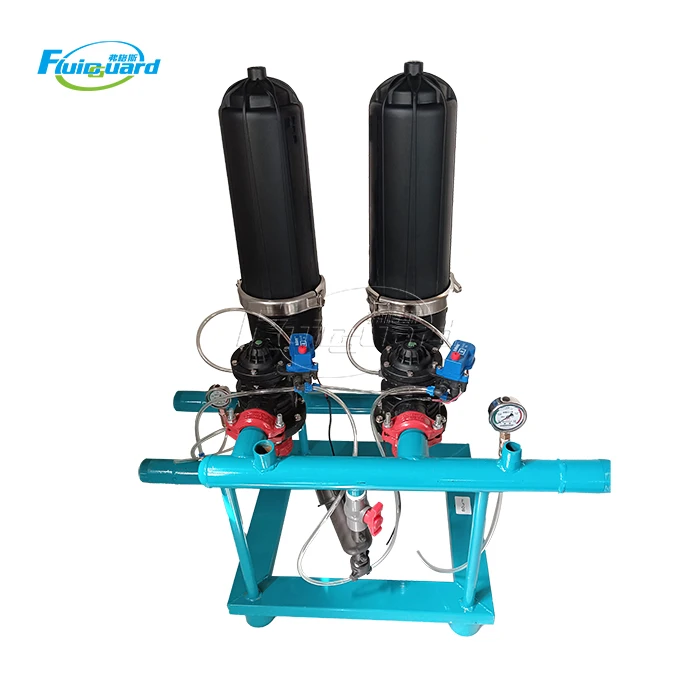

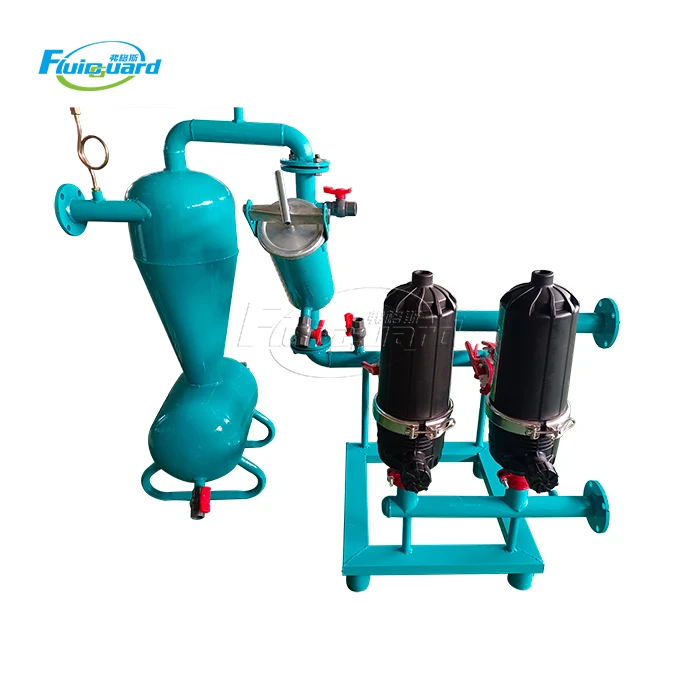

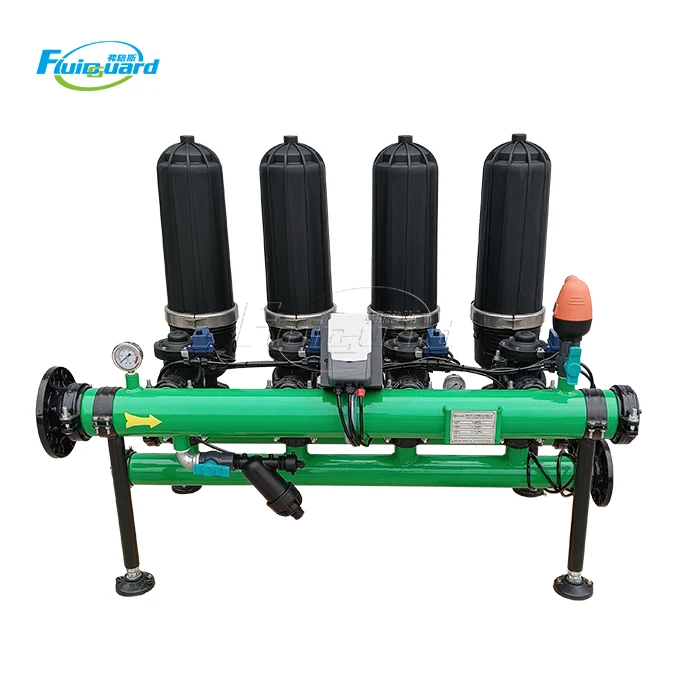

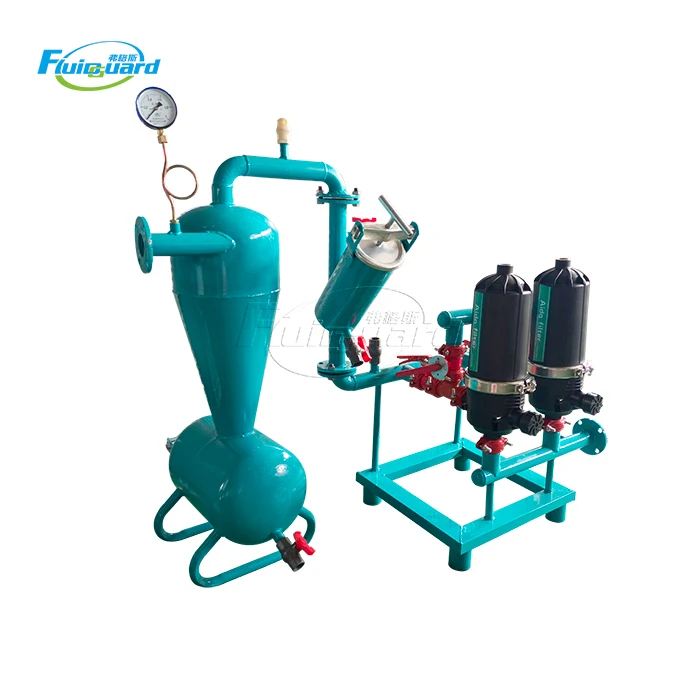

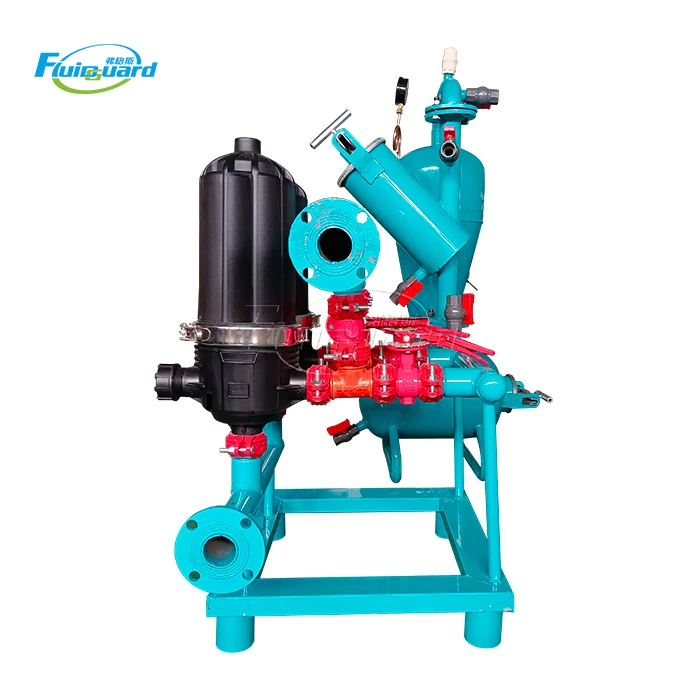

Full Name: Fluidguard Automatic self cleaning back wash disc filter system
Simply called as Disc filter

The disc filter can be working fully automatically, so can save a lot of labors. And the water flow don’t have to stop during back washing(cleaning process), so can ensure continuous water output.

Besides, it has the characteristics of low water consumption, low pressure loss, small footprint, easy operation, low cost, and so on.

Now the disc filter is favored by more and more water processing companies.

Working pressure	0.2-0.8Mpa	Back wash pressure	0.18-0.8Mpa
Flow rate	20-240 M3/H	Filter size	20-4000um
Inlet pipe material	Plastic/CS/SS	Outlet pipe material	Plastic/CS/SS
Drain material	Plastic	Housing	Plastic
Voltage	N/A(using #5 battery)	Way of control	DP, Time or Manual
Way of Back wash	Inside water	Back wash time	1minute（adjustable）

Product Details

Filtration mode

At this mode, the feeding water passes through the discs, and as the filter discs are pressed together tightly under the spring force and hydraulic force, the impurites in the water are trapped by the filter dics.
Thus the water is cleaned when flowing out.

Back wash mode

When a certain differential pressure or set time is reached, it means the filter discs are dirty and need to be cleaned.

Then the valve will change the water flow direction, the back washing water pressure will tighten the spring to loosen the filter discs, and the impurities trapped on the filter discs will be washed out.

The back washing takes around 1 minutes time, after that the filter discs become clean, the filter back to normal filtration mode.

Continuous water output

As a disc filter system is generally 2 or more filters combined together, when one filter is at back washing mode, the other filters are still at filtration mode, so it can ensure continuous water output.

Application

Company Profile

Package and Shipping

Recommend Products

FAQ

1. What products do you have?

Our products are mainly include 4 series:
Hydraulic filters used from many industries such as coal industry, power plant, steel meel etc.
Air compressor parts(Air oil separator, oil filter, air filter, line filter, cooler etc)
Water treatment equipments
Oil filtration equipments.

2. Are you a manufacturer or a trading company?

We are a manufacturer with good reputation in China as well as many other countries.

3. The filters you provide are original or replacement?

The filters we provide are not original, but good replacement for the big brands in the Hydraulic and Air Compressor industries.

4. How is your quality and price?

We know the market competition is fierce, so we are trying our best to lower the cost; but at the same time, quality is always the first priority in our company.
We will never sacrifice quality for any reason, this is our bottom line.

5. What's your lead Time?

Around 7-10 days for most filter elements
Around 15 days for water treatment equipments and small oil filter cart
Around 25-30 days for the Oil Coalescer purifier and Vacuum oil purifier
