Характеристики

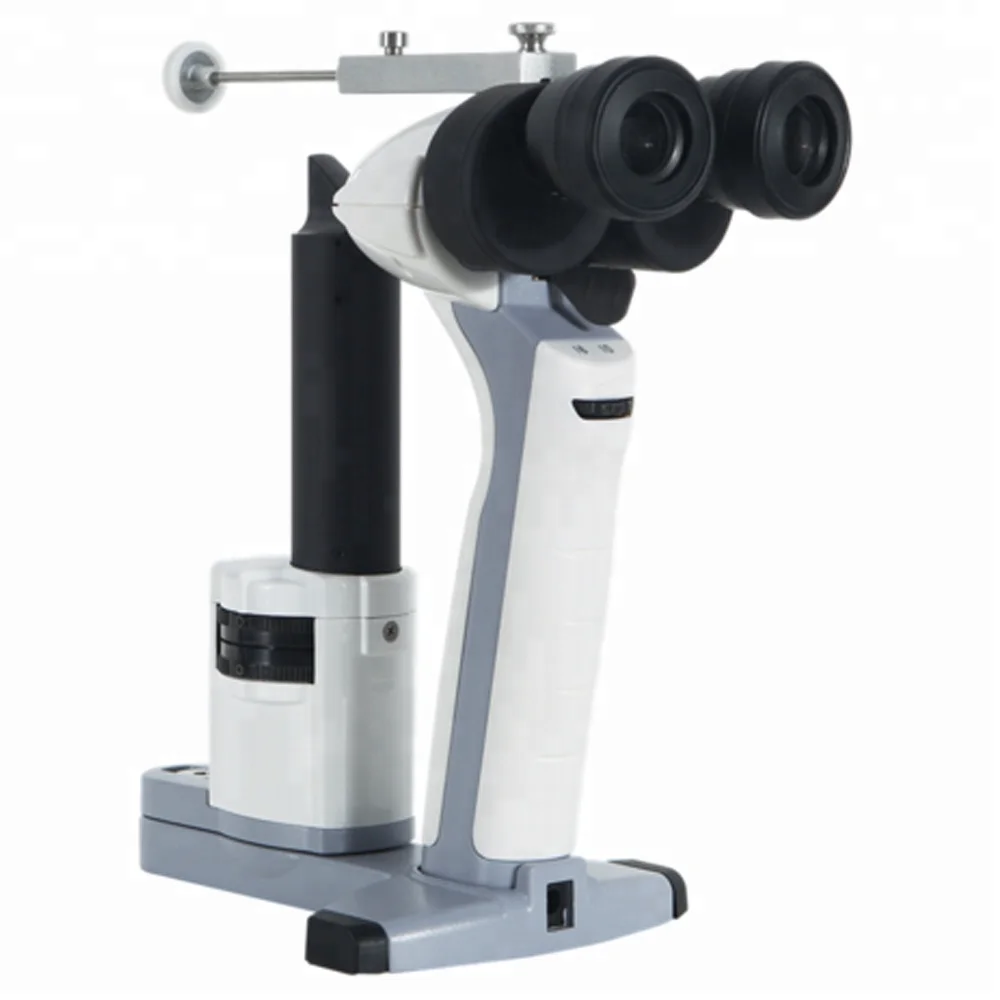

advanced ophthalmic portable slit lamp LS-1B
Microscope LS-1B
Type Binocular Portable Slit Lamp
Angle of Convergence 13°
Magnification 10X 10X 16X Working Distance 80mm (16X) 100mm (10X)
Pupil Adjustment Range 49 - 75 mm Diopter Adjustment ±7D
Illumination
Slit Width 0.1mm, 0.2mm, 0.8mm & Φ1mm, Φ5mm, Φ12mm circle Slit Length 12mm (with width 0.1mm, 0.8mm), 8mm (with width 0.2mm) Slit
Angle ±60°
Filter Neutral Density, Red-free, Cobalt Blue
Light Resource Warm LED, Color Temperature 3500k Illumination Control Continuously Variable from Low to Full Brightness ( ≥250 000
lux)
Power (Battery)
LED Working Voltage AA, 15VA
Battery Type AA Dry Cell / Rechargeable Batteries
Continuous Operating≥ 4 hours
Dimensions and Weight
Dimensions 320*310*205 mm
Net Weight Approx. 835g
Standard Accessories
Carrying Case, Battery Charger, Forehead Support, Instrument Manual
Type Binocular Portable Slit Lamp
Angle of Convergence 13°
Magnification 10X 10X 16X Working Distance 80mm (16X) 100mm (10X)
Pupil Adjustment Range 49 - 75 mm Diopter Adjustment ±7D
Illumination
Slit Width 0.1mm, 0.2mm, 0.8mm & Φ1mm, Φ5mm, Φ12mm circle Slit Length 12mm (with width 0.1mm, 0.8mm), 8mm (with width 0.2mm) Slit
Angle ±60°
Filter Neutral Density, Red-free, Cobalt Blue
Light Resource Warm LED, Color Temperature 3500k Illumination Control Continuously Variable from Low to Full Brightness ( ≥250 000
lux)
Power (Battery)
LED Working Voltage AA, 15VA
Battery Type AA Dry Cell / Rechargeable Batteries
Continuous Operating≥ 4 hours
Dimensions and Weight
Dimensions 320*310*205 mm
Net Weight Approx. 835g
Standard Accessories
Carrying Case, Battery Charger, Forehead Support, Instrument Manual
Whatsapp/wechat: +86 15618732593/ 15618732593

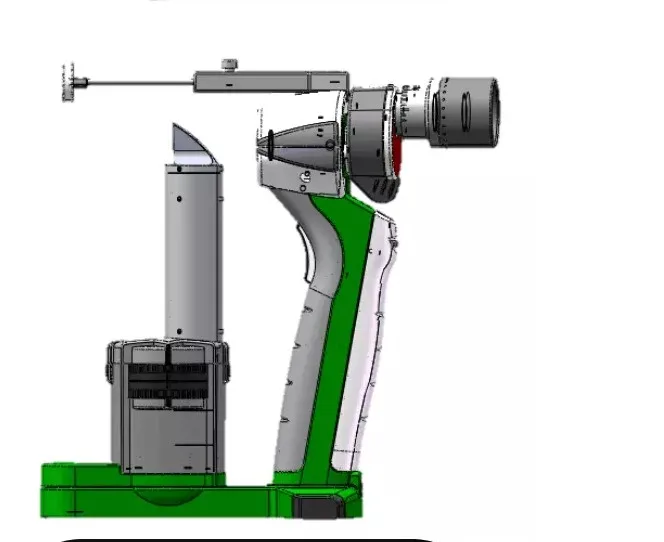

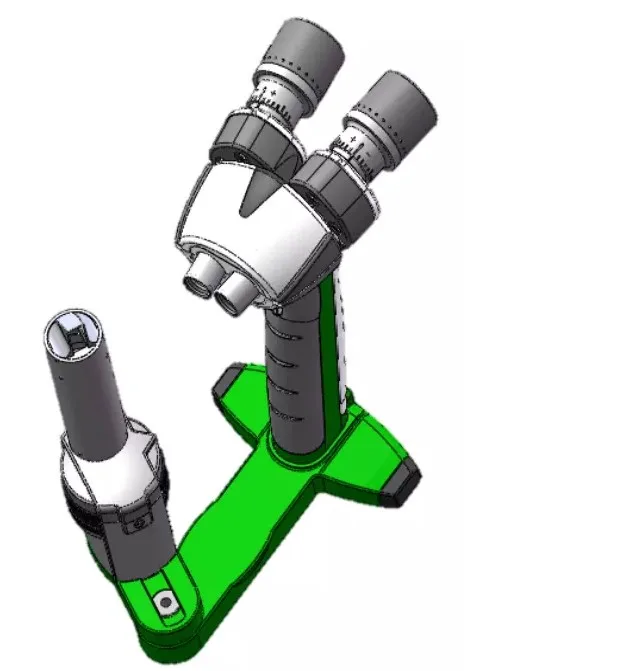

Axis rotation arm design
*Axis rotation design makes operation more smoothly.The angle of the lamp arm can reach up to ±60 degrees and obtain the perfect
corneal cutting layer.
One-hand changing magnification design
*The scalability of objective lens design. In the observation process,one hand can change the magnification rate and save the
inspection time.
Excelent Optical Function-Warm LED
*Color temperature 3000K, suitable for observation of eye tissues. The LED fever is small,and life span is long.

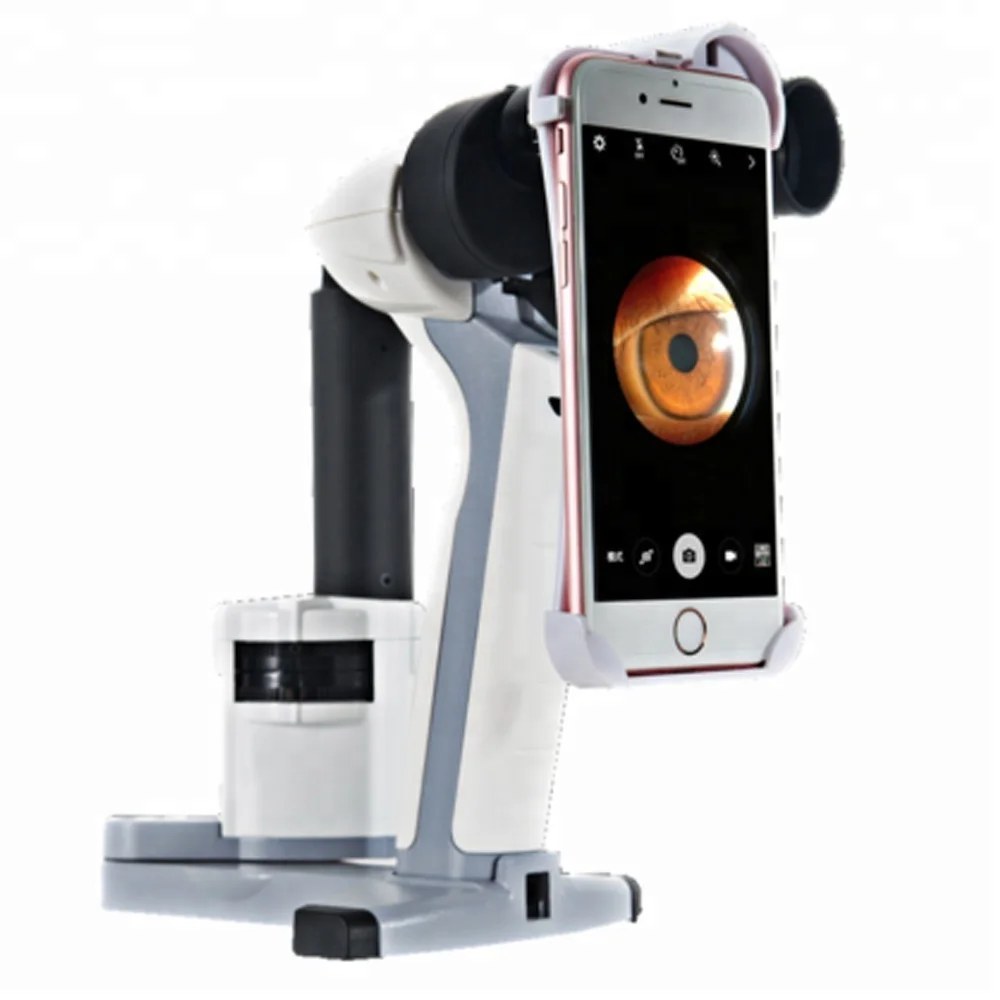

Specialized Phone adapter
*1 second disassemly,record cases at any time. Special design to ensure the best picture effect.
llumination
Slit Width 0.1mm, 0.2mm, 0.8mm & Φ1mm, Φ5mm, Φ12mm circle
Slit Length 12mm(with width 0.1mm, 0.8mm), 8mm(with width 0.2mm)
Slit Angle ±60°
Filter Neutral Density, Red-free, Cobalt Blue
Light Resource Warm LED, Color Temperature 3500k
Illumination Control Continuously Variable from Low to Full Brightness( ≥250 000
Power (Battery)
LED Working Voltage AA, 15VA
Battery Type AA Dry Cell / Rechargeable Batteries Continuous Operating ≥ 4 hours
Dimensions and Weight
Dimensions 320*310*205 mm
Net Weight Approx. 835g
*Axis rotation design makes operation more smoothly.The angle of the lamp arm can reach up to ±60 degrees and obtain the perfect
corneal cutting layer.
One-hand changing magnification design
*The scalability of objective lens design. In the observation process,one hand can change the magnification rate and save the
inspection time.
Excelent Optical Function-Warm LED
*Color temperature 3000K, suitable for observation of eye tissues. The LED fever is small,and life span is long.
Specialized Phone adapter
*1 second disassemly,record cases at any time. Special design to ensure the best picture effect.
llumination
Slit Width 0.1mm, 0.2mm, 0.8mm & Φ1mm, Φ5mm, Φ12mm circle
Slit Length 12mm(with width 0.1mm, 0.8mm), 8mm(with width 0.2mm)
Slit Angle ±60°
Filter Neutral Density, Red-free, Cobalt Blue
Light Resource Warm LED, Color Temperature 3500k
Illumination Control Continuously Variable from Low to Full Brightness( ≥250 000
Power (Battery)
LED Working Voltage AA, 15VA
Battery Type AA Dry Cell / Rechargeable Batteries Continuous Operating ≥ 4 hours
Dimensions and Weight
Dimensions 320*310*205 mm
Net Weight Approx. 835g
1. Eyepiece
2. Diopter adjustment: Adjust the diopter to get the clear image.
3. Adjust the pupil distance
4. Objective magnification changer: 10×,16× (For LS-1B only)
5. Brightness adjusting knob: From left to right, the brightness brighten up
6. Handle
7. Charging power supply socket
8. Forehead-rest bracket screw
2. Diopter adjustment: Adjust the diopter to get the clear image.
3. Adjust the pupil distance
4. Objective magnification changer: 10×,16× (For LS-1B only)
5. Brightness adjusting knob: From left to right, the brightness brighten up
6. Handle
7. Charging power supply socket
8. Forehead-rest bracket screw
9. Forehead-rest bracket
10. Reflector
11. Indicator
12. Power switch
13. Aperture and slit width adjusting knob
14. Filters adjusting knob
15. Slit angle adjusting track
10. Reflector
11. Indicator
12. Power switch
13. Aperture and slit width adjusting knob
14. Filters adjusting knob
15. Slit angle adjusting track
