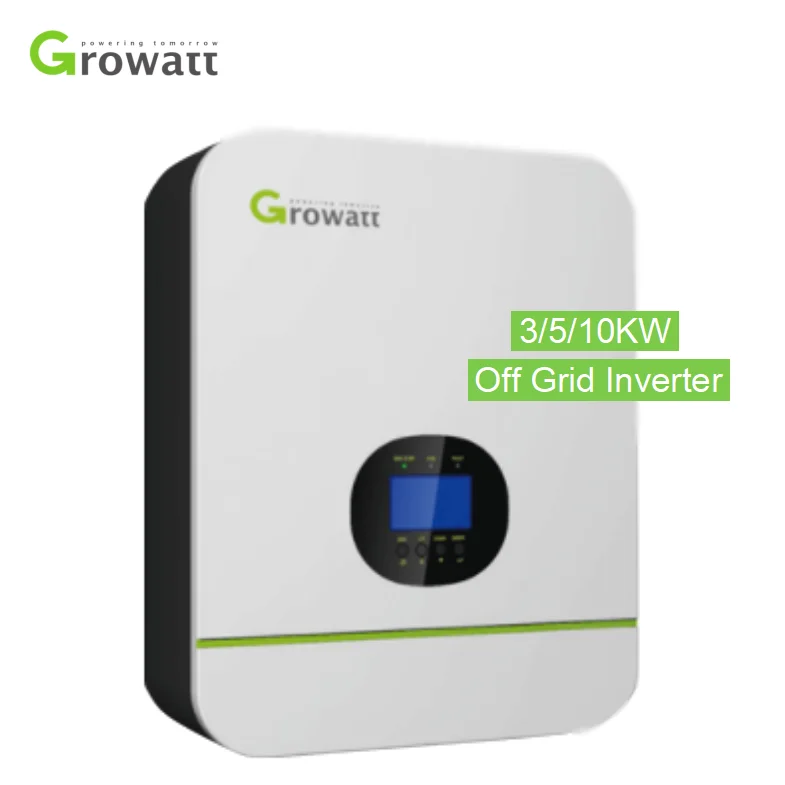

Growatt SPF 3000 5000 TL HVM 3 кВт однофазный PV Энергосберегающий Солнечный 5 инвертор с
- Категория: Солнечные инверторы >>>
- Поставщик: Eitai,(Xiamen),New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 398.61 $* | 406.88 $* |
| Jul-16-2025 | 322.4 $* | 328.91 $* |
| Jun-16-2025 | 391.12 $* | 399.95 $* |
| May-16-2025 | 388.27 $* | 396.76 $* |
| Apr-16-2025 | 310.57 $* | 316.0 $* |
| Mar-16-2025 | 382.76 $* | 390.32 $* |
| Feb-16-2025 | 379.30 $* | 387.86 $* |
| Jan-16-2025 | 376.59 $* | 384.46 $* |
Характеристики
Product datas
Parameter Display Example
Datasheet | SPF 3000TL HVM | SPF 5000TL HVM | ||
Battery voltage | 24VDC | 48VDC | ||
RATED POWER | 3000VA/ 3000W | 5000VA/ 5000W | ||
Parallel Capability | No | Yes 6 units | ||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | 230VAC ± 5% @ 50/60Hz | ||
Surge Power | 6000VA | 10000VA | ||
Efficiency (Peak) | 93% | 93% | ||
Waveform | Pure sine wave | Pure sine wave | ||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |||
SOLAR CHARGER | ||||
Maximum PV Array Power | 1500W | 4500W | ||
MPPT Range @ Operating Voltage | 30VDC ~ 80VDC | 60VDC ~115VDC | ||
Maximum PV Array Open Circuit Voltage | 102VDC | 145VDC | ||
Maximum Solar Charge Current | 50A | 80A | ||
Maximum Efficiency | 98% | 98% | ||
Standby Power Consumption | 2 W | 2 W | ||
AC CHARGER | ||||
Maximum AC Charge Current | 30A | 60A | ||
AC Input Voltage | 230 VAC | 230 VAC | ||
Selectable Voltage Rang | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | 50Hz/60Hz (Auto sensing) | ||
PHYSICAL | ||||
Dimension (D/W/H) in mm | 130/315/400 | 130/350/455 | ||
Net Weight (kgs) | 8.5 | 11.5 | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | 5% to 95% Relative Humidity(Non-condensing) | ||
Operating Temperature | 0°C - 55°C | 0°C - 55°C | ||
Storage Temperature | -15°C - 60°C | -15°C - 60°C | ||
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount more then 50,00 USD, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
Request Complete System

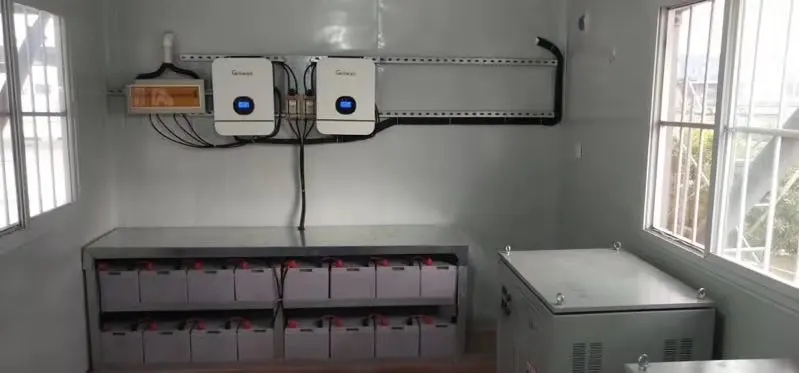

Installtion Display
Growatt SPF 3000 5000 TL HVM 3KW Single Phase PV Power Off Grid Solar 5KW Inverter With Mppt
Our Project Show

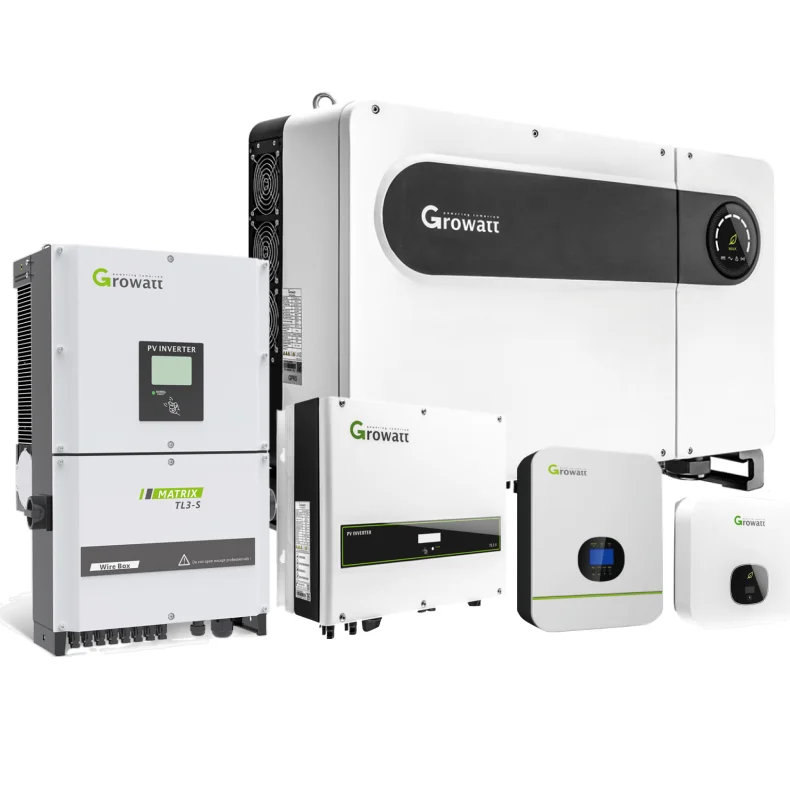

Product Line
Customer Feedback
Exhibition
Company&Partner
Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1 kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia, Thailand, India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service.
By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the globe, growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand.
Growatt really concerns about the R&D investment each year the R&D cost takes at least 15% of total investment. And Growatt will continue to integrate global resources, promote technology innovation and strive to lead in providing user side smart energy solutions across the world.
