Паровой бойлер для горячей воды с защитой окружающей среды
US $4000-$5000
Полностью Автоматический нагрев теплового масла бойлер хорошего
- Категория: Boilers >>>
- Поставщик: Zhangjiagang,Hua,Dong,Boiler,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 58905.70 $* | 61850.11 $* |
| Aug-16-2025 | 58410.34 $* | 61331.81 $* |
| Jul-16-2025 | 49005.33 $* | 51455.90 $* |
| Jun-16-2025 | 57420.87 $* | 60291.59 $* |
| May-16-2025 | 49995.83 $* | 52495.13 $* |
| Apr-16-2025 | 56430.1 $* | 59252.92 $* |
| Mar-16-2025 | 55935.46 $* | 58732.50 $* |
| Feb-16-2025 | 55440.90 $* | 58212.50 $* |
| Jan-16-2025 | 54945.20 $* | 57692.14 $* |
Характеристики

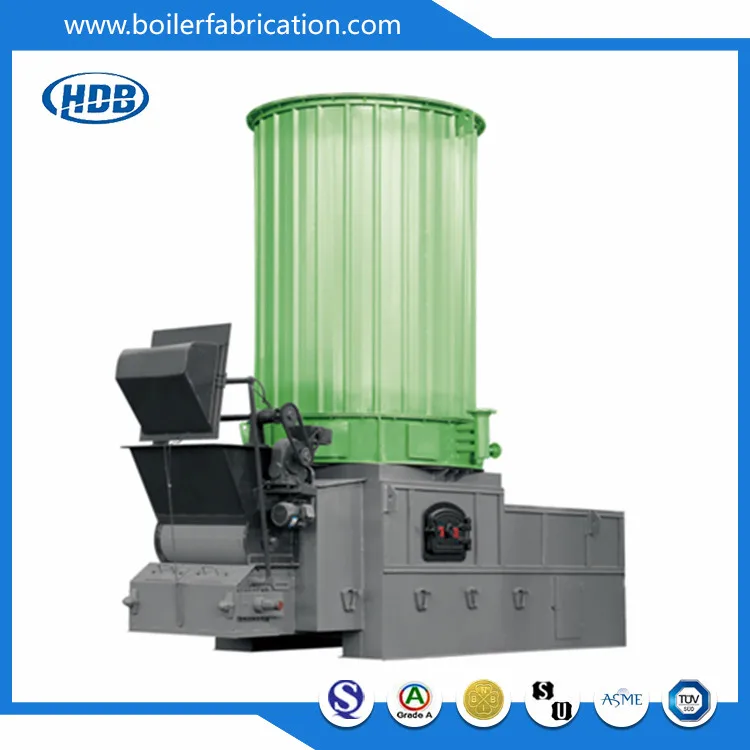

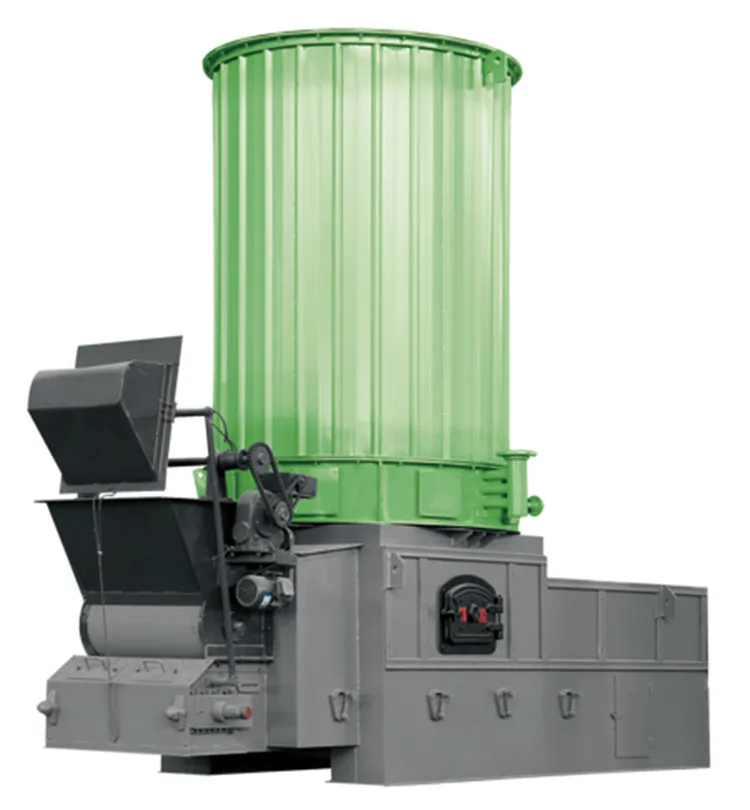

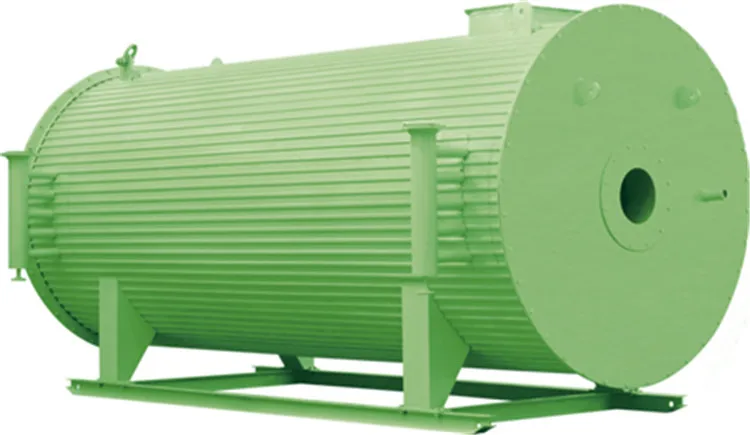

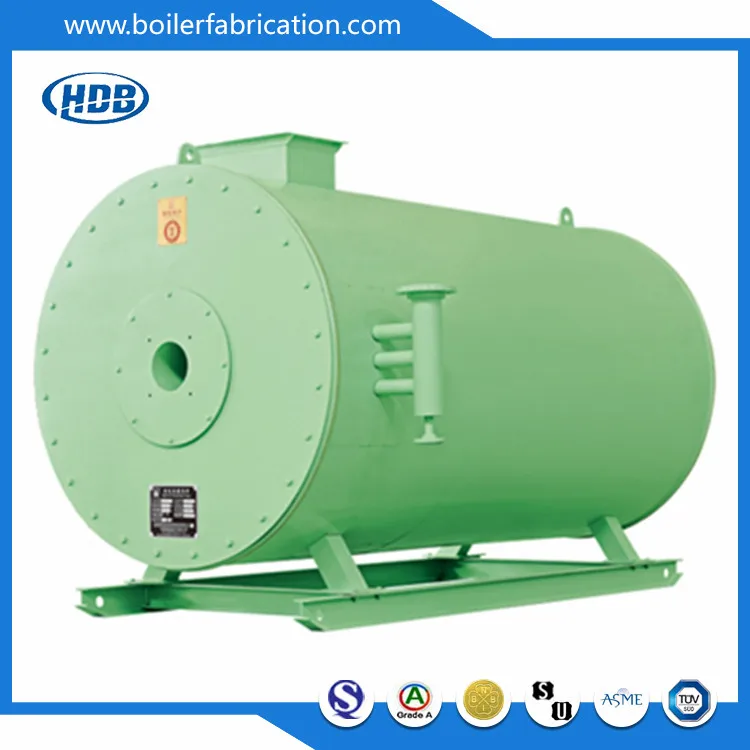

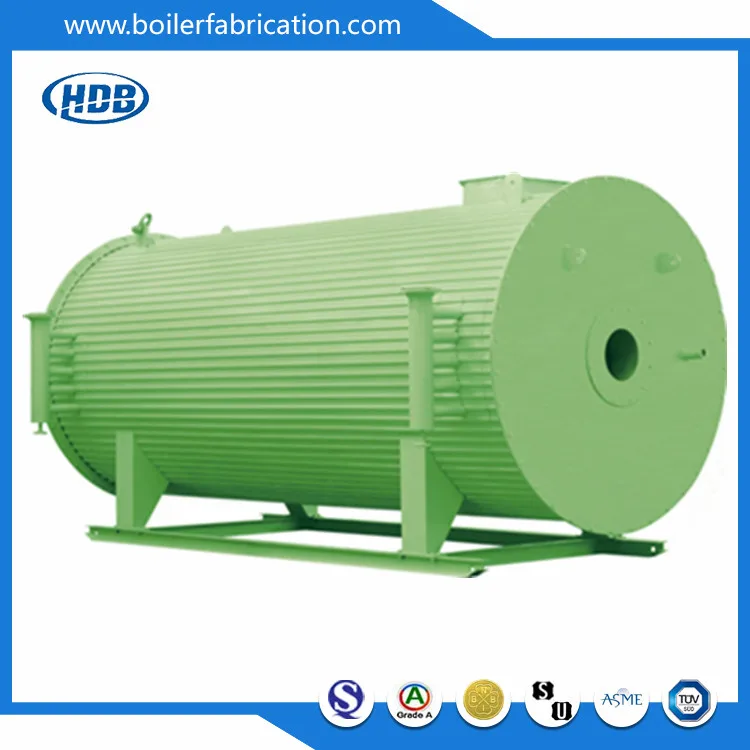

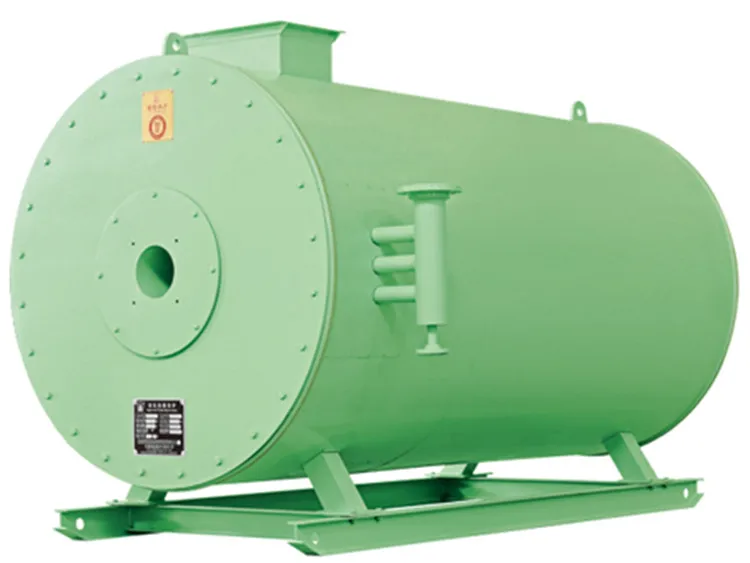

Thermal Oil Boiler
Fully Automatic Heating Thermal Oil Boiler of good quality
Product Description
Production
Flame and high temperature smoke produced by complete burning of fuel (light diesel oil,heavy oil,residual oil,natural gas,liquefied petroleum gas,city gas etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.
Features
1, Energy-efficient
2, Safe and reliable
3, Environmental protection
Parameter
Model YYL(W) | 350 Y(Q) | 600 Y(Q) | 900 Y(Q) | 1200 Y(Q) | 1500 Y(Q) | 1800 Y(Q) | 2300 Y(Q) | 2900 Y(Q) | 3500 Y(Q) | ||
Rated power(kw) | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | ||
Heat supply×104(kCal/h) | 30 | 50 | 75 | 100 | 160 | 150 | 200 | 250 | 300 | ||
Thermal efficiency(%) | ≥88 | ≥88 | ≥88 | ≥88 | ≥90 | ≥90 | ≥90 | ≥90 | ≥90 | ||
Design pressure(MPa) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | ||
Maximum working temperature(℃) | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
Medium circulation rate(m3/h) | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
The furnace medium capacity(m3) | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | ||
Competent diameter(DN) | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | ||
Capacity(kw) | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | ||
Applicable fuel | Oil,Gas | ||||||||||
Fuel consumption Kg/h(oil) | 34 | 56 | 84 | 111 | 141 | 163 | 217 | 273 | 326 | ||
Dimensions (¢·H)m | Vertical oil furnace | 1.3×2.5 | 2×3.5 | 2.1×3.5 | 2.2×3.5 | 2.2×4 | 2.2×4.4 | 2.7×5.1 | 2.8×6.5 | 3.2×6.7 | |
Horizontal oil furnace | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | ||
Circulation pump | Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | |
Flow(m3/h) | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | ||
Lift(m) | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | ||
Power(kw) | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | ||
