Промышленный паровой котел ZOZEN 1 тонна

Промышленный паровой котел ZOZEN 1 тонна

Категория: Boilers >>>
Поставщик: Wuxi,Zozen,Boilers,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.48 $*	0.32 $*
Aug-15-2025	0.62 $*	0.61 $*
Jul-15-2025	0.47 $*	0.62 $*
Jun-15-2025	0.8 $*	0.8 $*
May-15-2025	0.74 $*	0.8 $*
Apr-15-2025	0.0 $*	0.70 $*
Mar-15-2025	0.94 $*	0.3 $*
Feb-15-2025	0.45 $*	0.17 $*
Jan-15-2025	0.38 $*	0.52 $*

Характеристики

Product Description

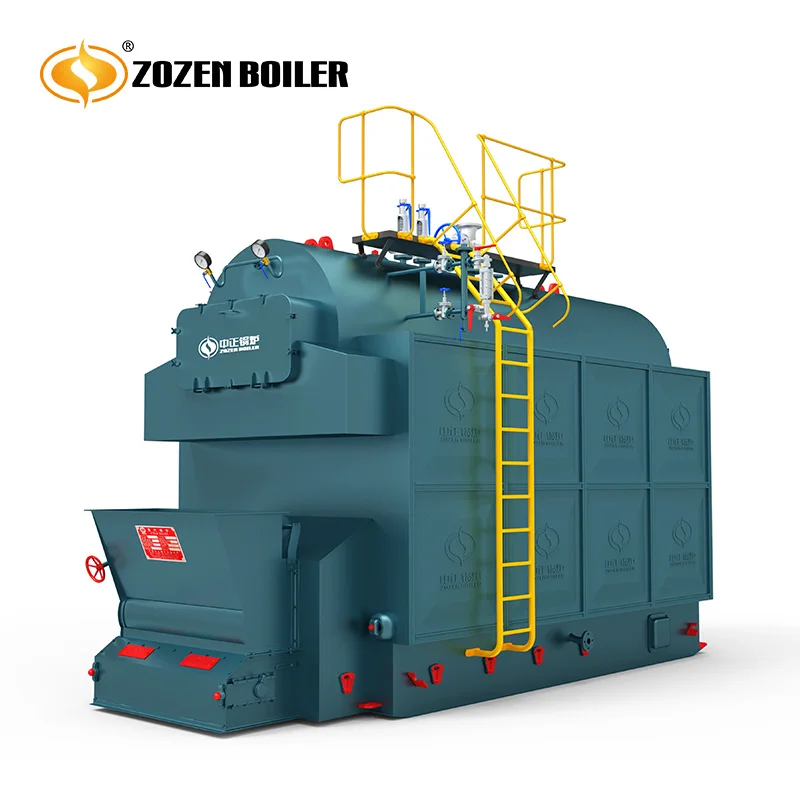

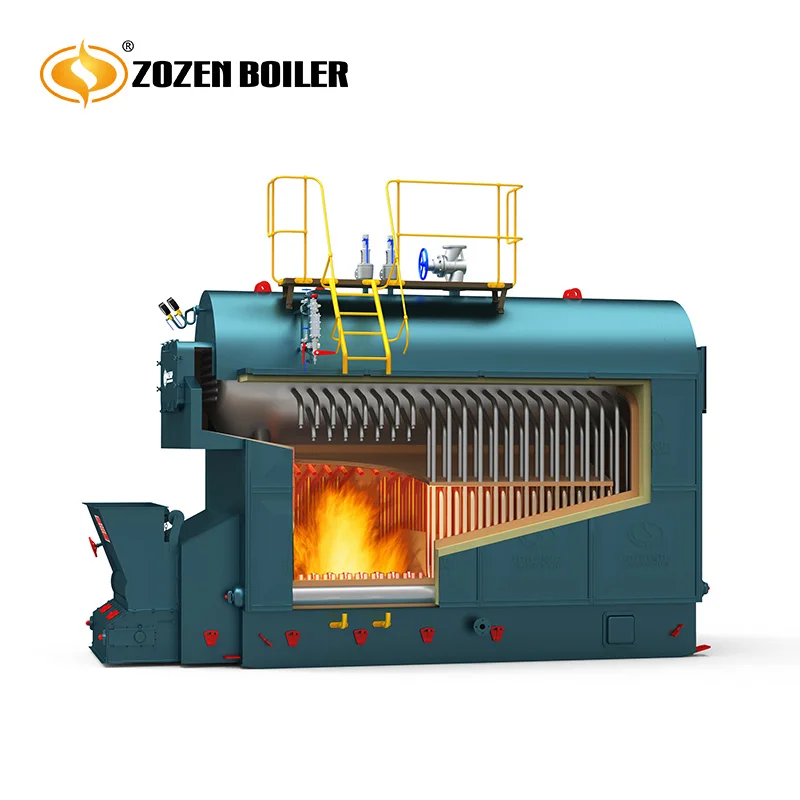

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

Detailed Images

Model	Rated thermal power(t/h/MW)	Rated working pressure(MPa)	Steam temperature/Rated output water temperature(℃)	Thermal efficiency(%)
DZL1-0.7-M	1/0.7	0.7	170	79
DZL1-1.0-M	1/0.7	1.0	184	79
DZL2-1.0-M	2/1.4	1.0	184	79
DZL2-1.25-M	2/1.4	1.25	194	79
DZL2-1.57-M	2/1.4	1.57	204	79
DZL2-2.45-M	2/1.4	2.45	225	79
DZL4-1.25-M	4/2.8	1.25	194	79
DZL4-1.57-M	4/2.8	1.57	204	79
DZL4-2.45-M	4/2.8	2.45	225	79
DZL6-1.25-M	6/4.2	1.25	194	79
DZL6-1.60-M	6/4.2	1.6	204	79
