Малая полуавтоматическая машина для обмотки литий-ионных
- Категория: Оборудование для изготовления трансформаторов >>>
- Поставщик: Shandong,AME,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1547.65 $* | 1624.28 $* |
| Aug-19-2025 | 1534.41 $* | 1611.12 $* |
| Jul-19-2025 | 1287.33 $* | 1351.33 $* |
| Jun-19-2025 | 1508.4 $* | 1583.4 $* |
| May-19-2025 | 1313.3 $* | 1379.80 $* |
| Apr-19-2025 | 1482.62 $* | 1556.77 $* |
| Mar-19-2025 | 1469.31 $* | 1542.75 $* |
| Feb-19-2025 | 1456.64 $* | 1529.57 $* |
| Jan-19-2025 | 1443.73 $* | 1515.77 $* |
Характеристики

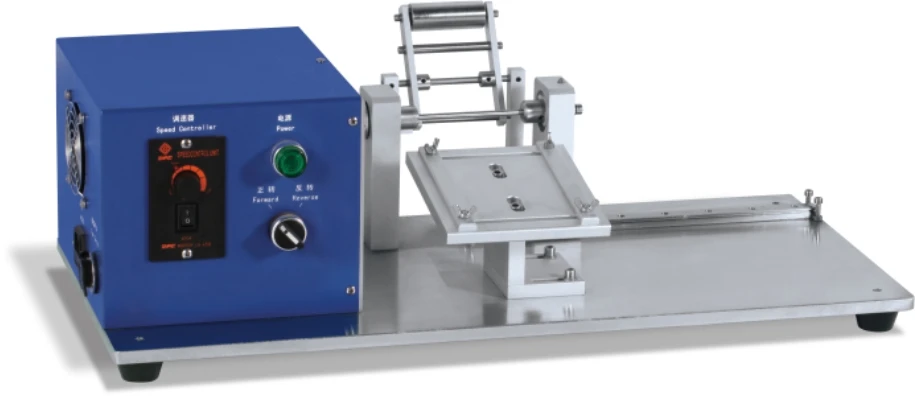

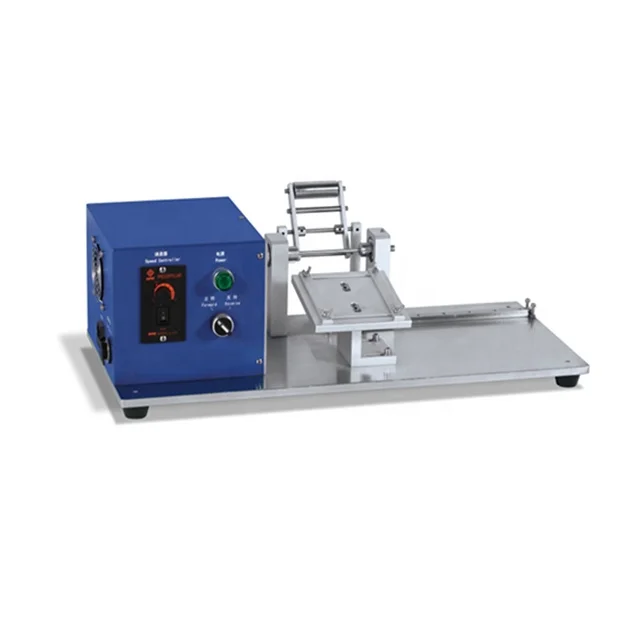

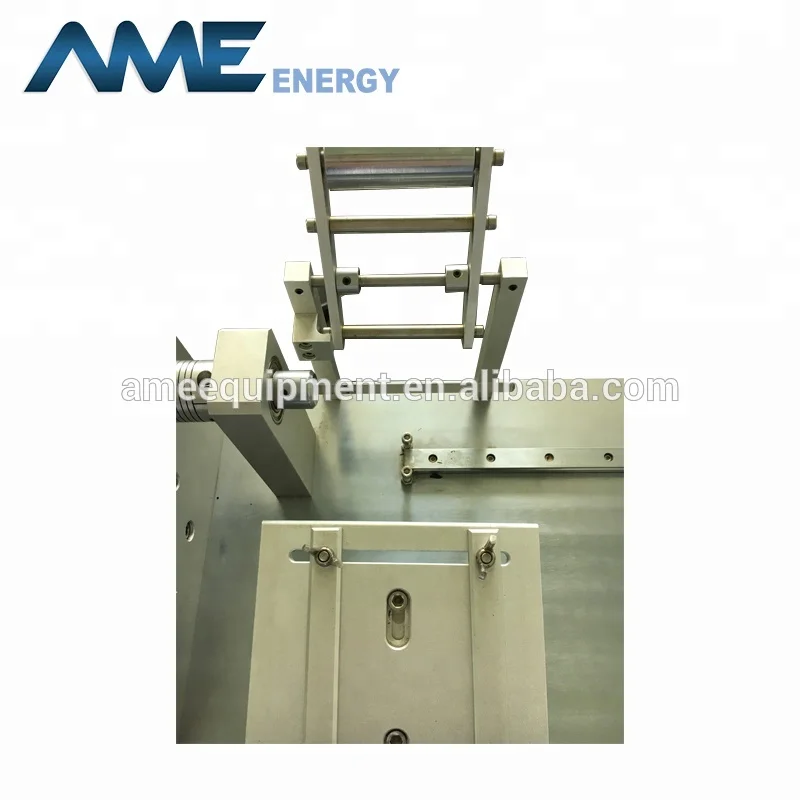

Small Semi-Automatic Li- ion Battery Winding Machine
| Product description | It is a semi-automatic winder for winding electrodes with separator together in the research of Li-ion cylinder batteries. |
| Winding Speed | 0 - 250 RPM Adjustable |
| Winding Shaft | 1,Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core 2,200mm L*115mm W for pouch cell |
| Rotate speed | 0-170rpm/min ,adjustable |
| Working Voltage | 220V AC, 50/60Hz |
| Product Dimensions | 360mm(L) x 310mm(W) x 280mm(H) |
| Winding Mode | Switchable between clockwise and counterclockwise |
| Net weight | 50 lbs |
| Warranty | One Year limited warranty with lifetime support |
Q1:When can I get the quote? |
A1:We usually quote within 48 hours after we get your inquiry. |
Q2:Can you do the design for us? |
A2:We can specially customize according to your technical requests. |
Q3:What is your terms of delivery? |
A3:We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you. |
Q4:what about the after-sale service? |
A4:A years warranty and lifetime free technical support. |
Q5:Can we visit your factory? |
A5:Yes,of course.Welcome to China to visit our factory. |
