Цилиндрический электродный обмоточный станок для катушки аккумулятора TMAX 18650
- Категория: Transformer Making Equipment >>>
- Поставщик: Xiamen,Tmax,Battery,Equipments,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.97 $* | 0.18 $* |
| Aug-15-2025 | 0.94 $* | 0.36 $* |
| Jul-15-2025 | 0.33 $* | 0.29 $* |
| Jun-15-2025 | 0.27 $* | 0.62 $* |
| May-15-2025 | 0.53 $* | 0.79 $* |
| Apr-15-2025 | 0.56 $* | 0.89 $* |
| Mar-15-2025 | 0.39 $* | 0.1 $* |
| Feb-15-2025 | 0.67 $* | 0.53 $* |
| Jan-15-2025 | 0.98 $* | 0.25 $* |
Характеристики
Product Description

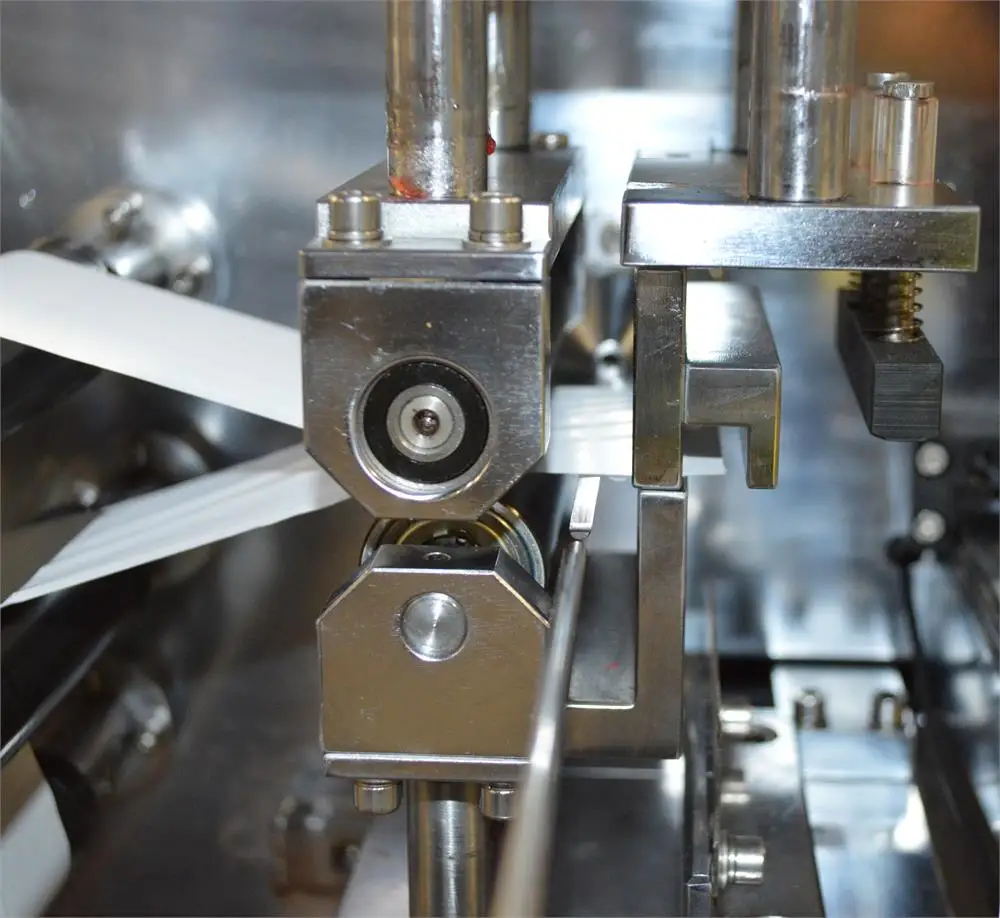

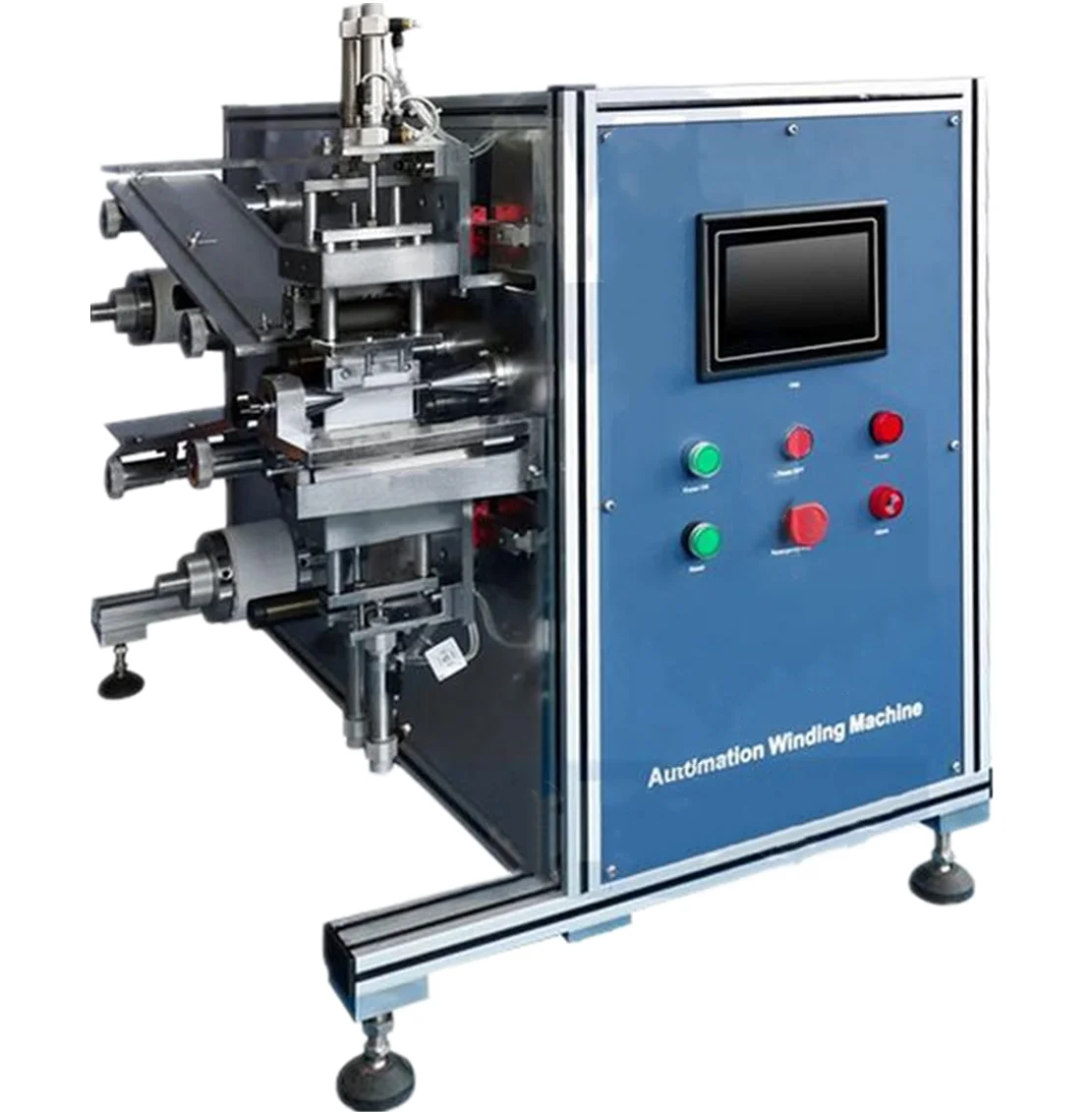

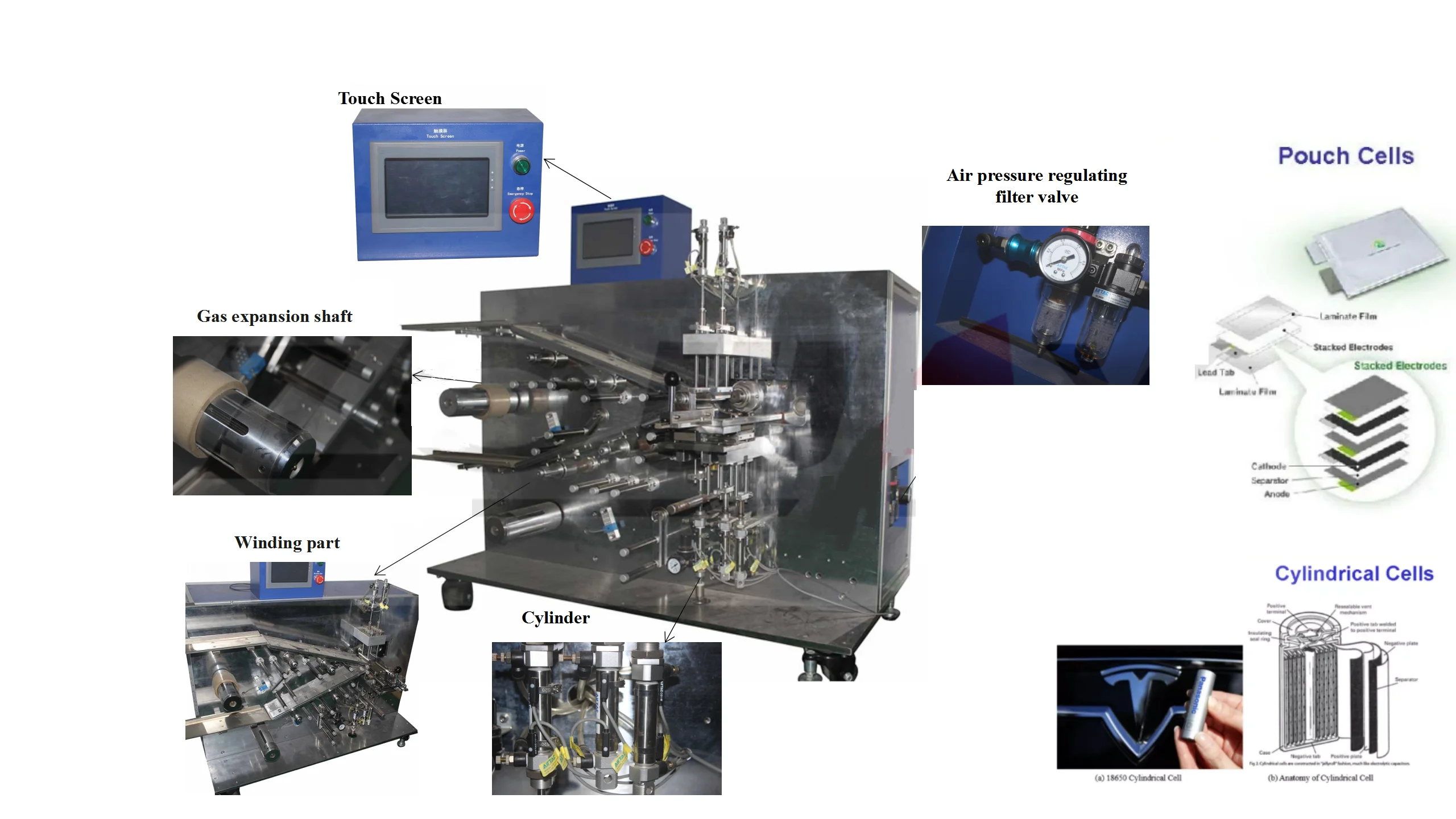

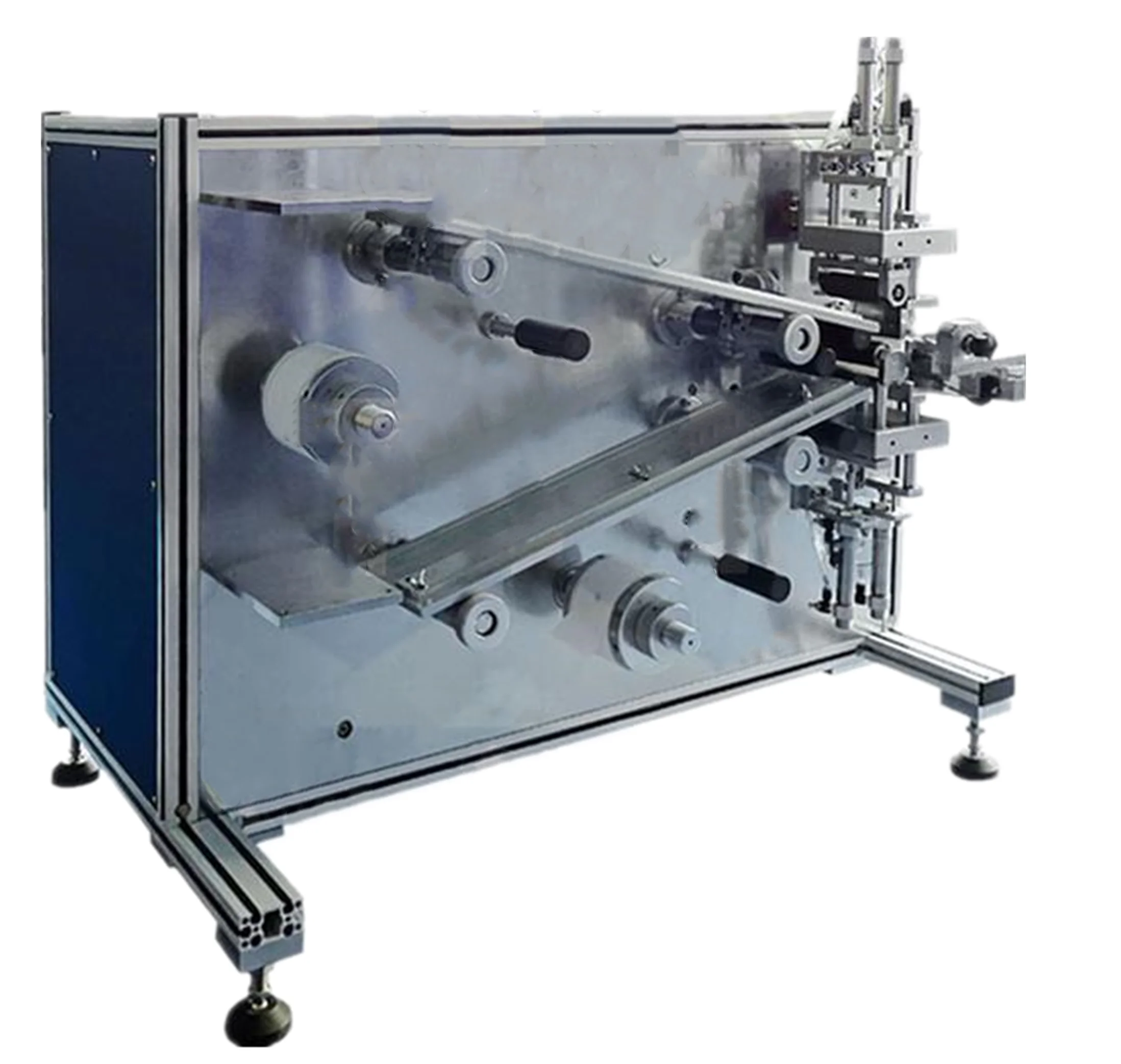

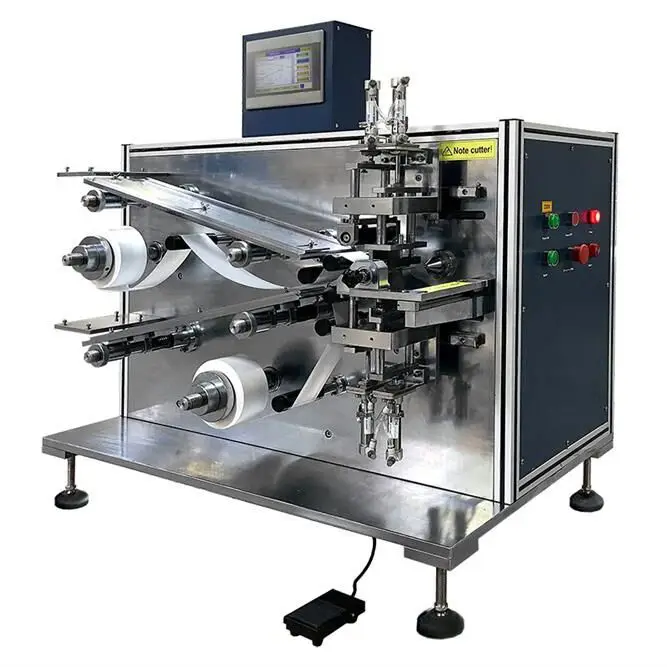

Semi-Auto 18650 21700 32650 Cylindrical Winding Machine Battery Coil Winder for Li-ion Pouch Cell Line
Specifications
It is a semi-automatic winding machine for accurate assembly of single cylindrical cell cores (also known as “jelly roll”) of 18650, 21700 or 32650 cell. Using this machine, cathode and anode films, separated by the top and bottom separator films, are rolled up into a hollow cylinder casing for cylindrical battery applications. It is an ideal tool for the reliable and precise production of high-quality windings of electrode cores.
Features | · Color touchscreen control · Winding motor direction control: forward and reverse switchable (manual mode) · Adjustable tension (0 – 4 N) for both top and bottom separator films · Vacuum-assisted, 1200 mm long feeder bed for accurate cathode/anode film positioning & feeding · Automatic finish cut upon the completion of the configured number of rotations · Suitable for cylindrical battery sizes such as 18650, 21700, 26650 and 32650 (jelley roll dia. 14mm~32mm; length 25~70mm) |
Compressed Air | · Compressed air of 0.7 MPa is needed for the operation of this machine · Please note the air compressor is not included. |
Cathode / Anode Feeding | · Loading material: cathode / anode sheets, such as aluminum foil coated with LiFePO4 or LiCoO2 (cathode), and copper foil coated with graphite (anode) · Length range: < 1200 mm recommended (length of the feeder bed plus extension) · Width range: 25 – 70 mm (adjustable on feeder bed) · Thickness range: 100 – 300 μm |
Separator Feeding | · Loading material: separator film rolls, such as polyethylene (PE) or polypropylene (PP) · Length range: separator roll with a diameter < 250 mm · Width range: 25 – 70 mm · Thickness range: < 100 μm · Tension range: 0 – 4 N for both top and bottom separator films |
Winding | · Winding needle size: 3.5 mm OD · Electrode winding size: 14 – 32 mm OD, 25 – 70 mm in length · To wind an electrode core with a certain OD, a spreadsheet for calculating needed number of turns and electrode sheet length can be downloaded here · Winding speed: 0 – 400 rpm adjustable · Winding precision: < 0.5 mm edge roughness |
