Характеристики
Product Description
Careddi supercritical CO2 extraction system is used under high pressure and suitable temperature suitable to extract valuable content from material (solid or liquid), it is to change the pressure and temperature conditions of the separator tanks to let the dissolved substances separated out to achieve the purpose of separation. This technology could be used to make extraction and purification on biological products, foodstuff and medicines, etc.
Product Name | Supercritical CO2 Extraction Machine |
Usage | Plants/flowers extraction |
Material | 304 Stainless steel |
Color | Sliver, accept customized |
Certification | ISO CE ASME |
Capacity | 50L |
Model no. | SCFE220-40-50 |
Name: CO2 HIGH-PRESSURE PUMP
Brand: CAREDDI
Original: China
Flow Rate(Triple plunger):600L/H
Max working Pressure: 40MPa, pumps head with cooling system
- COOLING SYSTEM
Name: Chiller
Brand: CAREDDI
Original: China
Cooling Capacity: 17000Kcal/h (air cooling)
Temperature range: -5℃~+5℃ (meet process requirement)
Brand: CAREDDI
Original: China
Cooling Capacity: 17000Kcal/h (air cooling)
Temperature range: -5℃~+5℃ (meet process requirement)
Brand: CAREDDI
Original: China
Material: 1Cr18Ni9Ti (Stainless steel #304)
Volume: 24Lx2
Max working Pressure: 40MPa
Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material.
Max working Pressure: 40MPa
Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material.
Brand: CAREDDI
Original: China
To recover extra co2 after the extraction finishes, saving the co2.
Characteristics of Careddi Supercritical co2 extractor:
2. Being capable to provide insert environment to avoid oxidation of products and affection of effective content of extracts.
3. Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon environment.
4. No residue of solvent, no nitrate and ions of heavy metal.
Application:
Range of Application | Type of Application |
Pharmaceutical Industry | Extraction of effective contents of Chinese herbs, concentration, refinement and precipitation of raw material, separation and refinement of fatty mixtures. |
Foodstuff Industry | Extraction of hops, caffeine removal from coffee berry, extraction of plant. |
Cosmetics and Perfumery Industry | Separation and refinement of natural and synthetic perfumeries, dealkalization of tobacco, extraction of raw material cosmetics. |
Chemical Industry | Separation of hydrocarbon, refinement of organic synthetic raw material, separation of azeotrope, retrieval of raw materials of reaction, dehydration of water soluble powder of organic solution, water oxidation. |
Others | Superconducting, semiconductor, ceramics, oil washing of petroleum core, enzyme catalytic reaction, preparation of materials, superfine granules, extraction of complex compound, supercritical dyeing technique, supercritical reaction, supercritical coating technique (pharmacy-making). |
SIGN | CONFIGURATION | Qty | REMARK |
1 | Extraction Tank | 2 | Volume:24Lx2 Max working Pressure:40MPa |
2 | Separation Tank | 2 | Volume:20Lx1+10Lx1 Max working Pressure：30MPa |
3 | CO2 high-pressure pump | 1 | 600L/Hour, 50MPa, pumps head with cooling system |
4 | Co-solvent pump | 1 | 0.25-20L/H,50MPa (Mechanical adjustable) |
5 | Chiller | 1 | Temperature range：-5℃～+5℃ |
6 | Heating Exchange System | 1 | Max working Pressure：50MPa |
7 | Purification System | 1 | Max working Pressure：50MPa |
8 | CO2 Storage Tank | 1 | Max working Pressure：16MPa |
9 | Flowrate Meter | 1 | Model:Metal tube float (10-100L/H) |
10 | Temperature Control System | 1 | Temperature Range: Room temperature~75℃ |
11 | Safety Devices | Pressure gauge at high pressure pump outlet, overpressure protection The extractor, separator, evaporator, dry purifier and mixer have safety valve to keep safe of system. | |
12 | User-supplied | Power:3 phase CO2: Food grade≥99.5%, single bottle net weight ≥22Kg Food grade alcohol ≥99.5% Installation dimension: 2700×2500×1600mm |

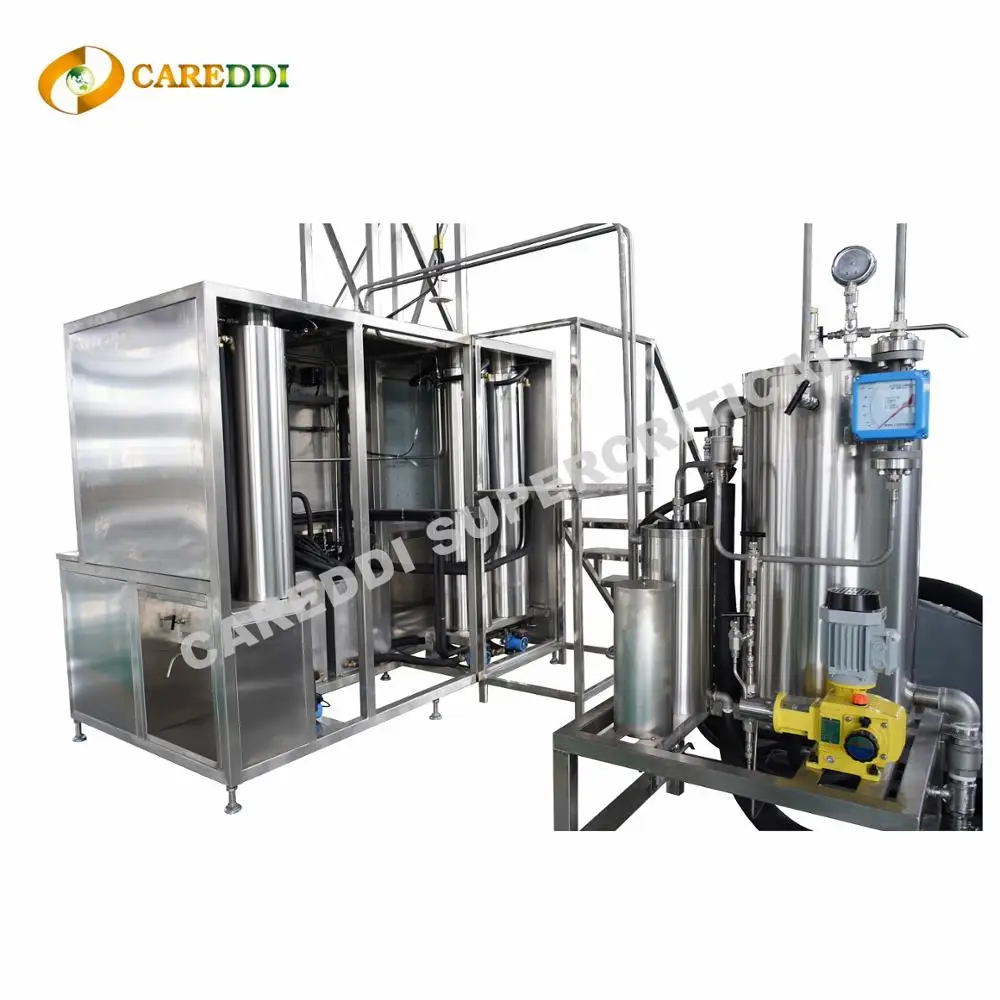

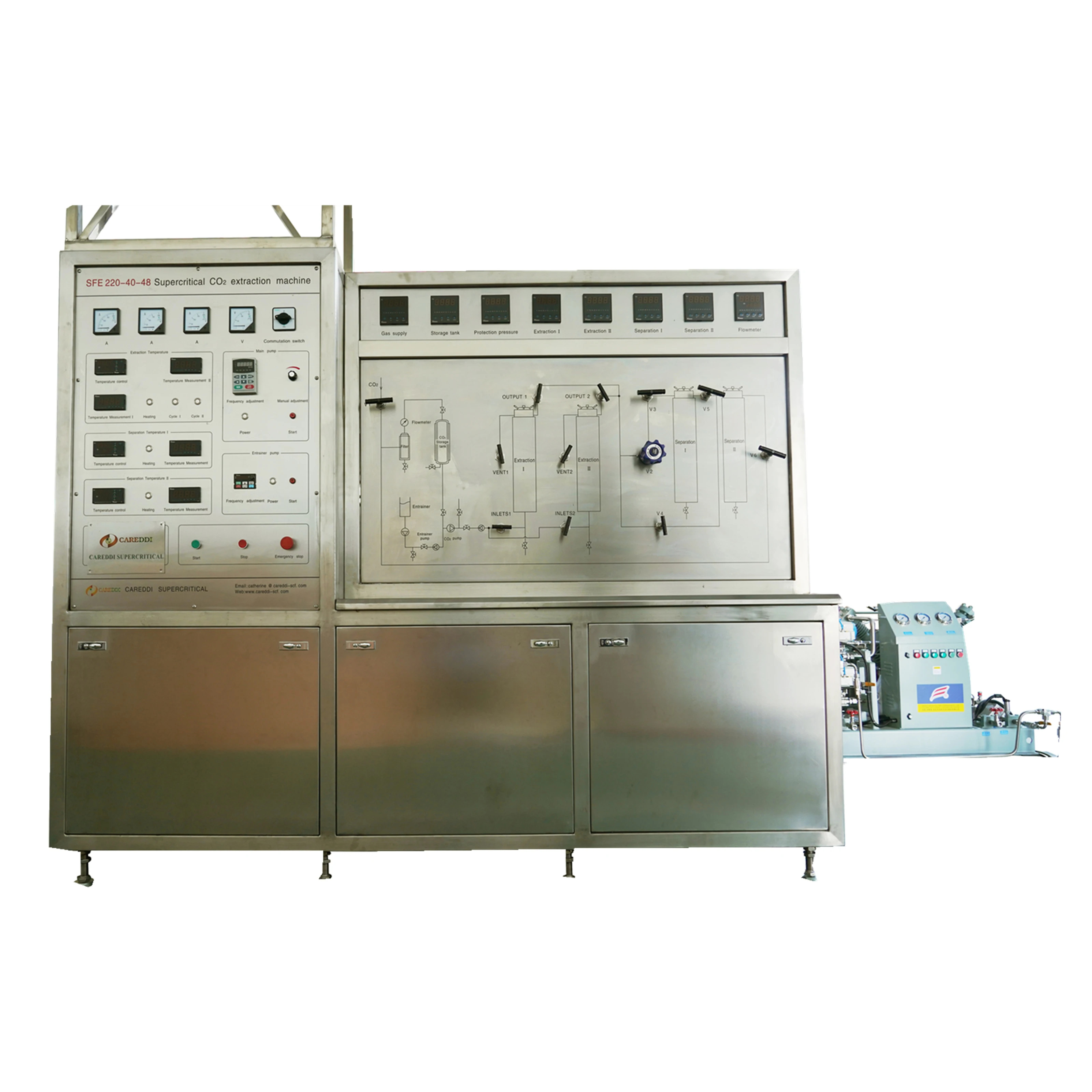

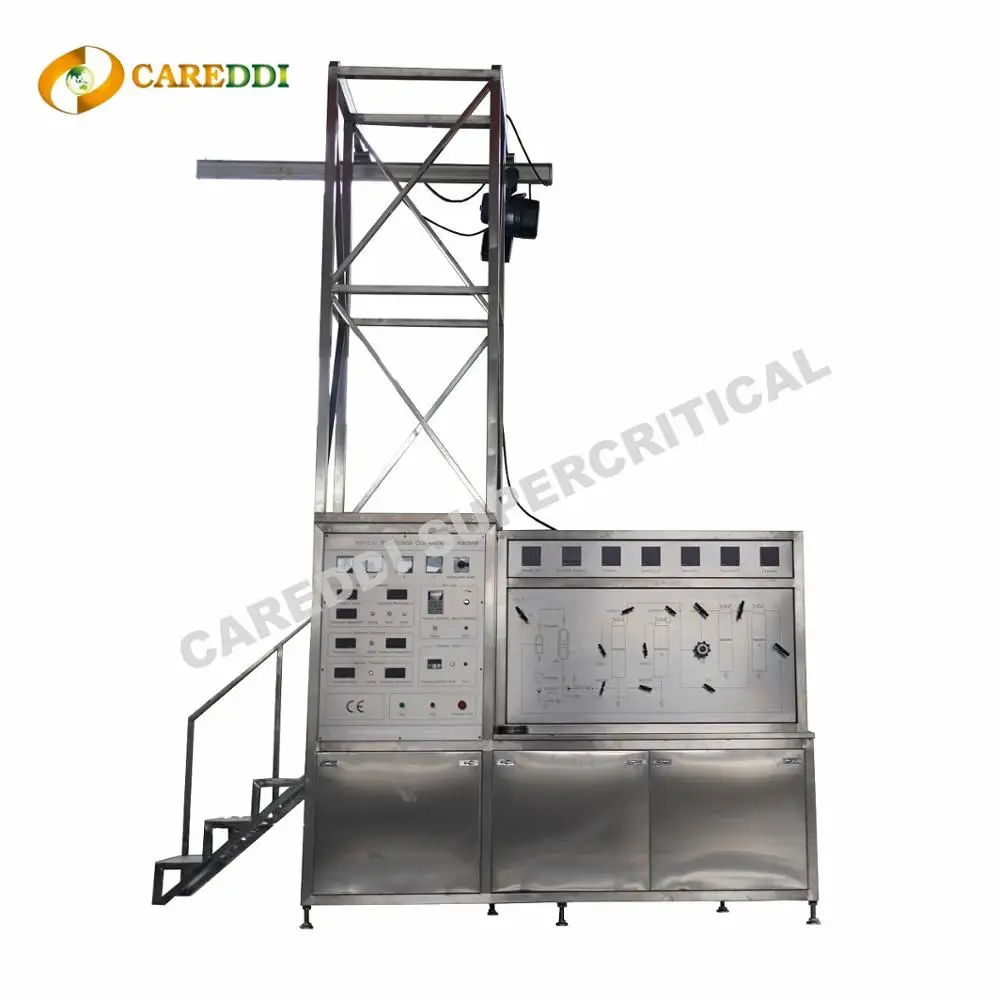

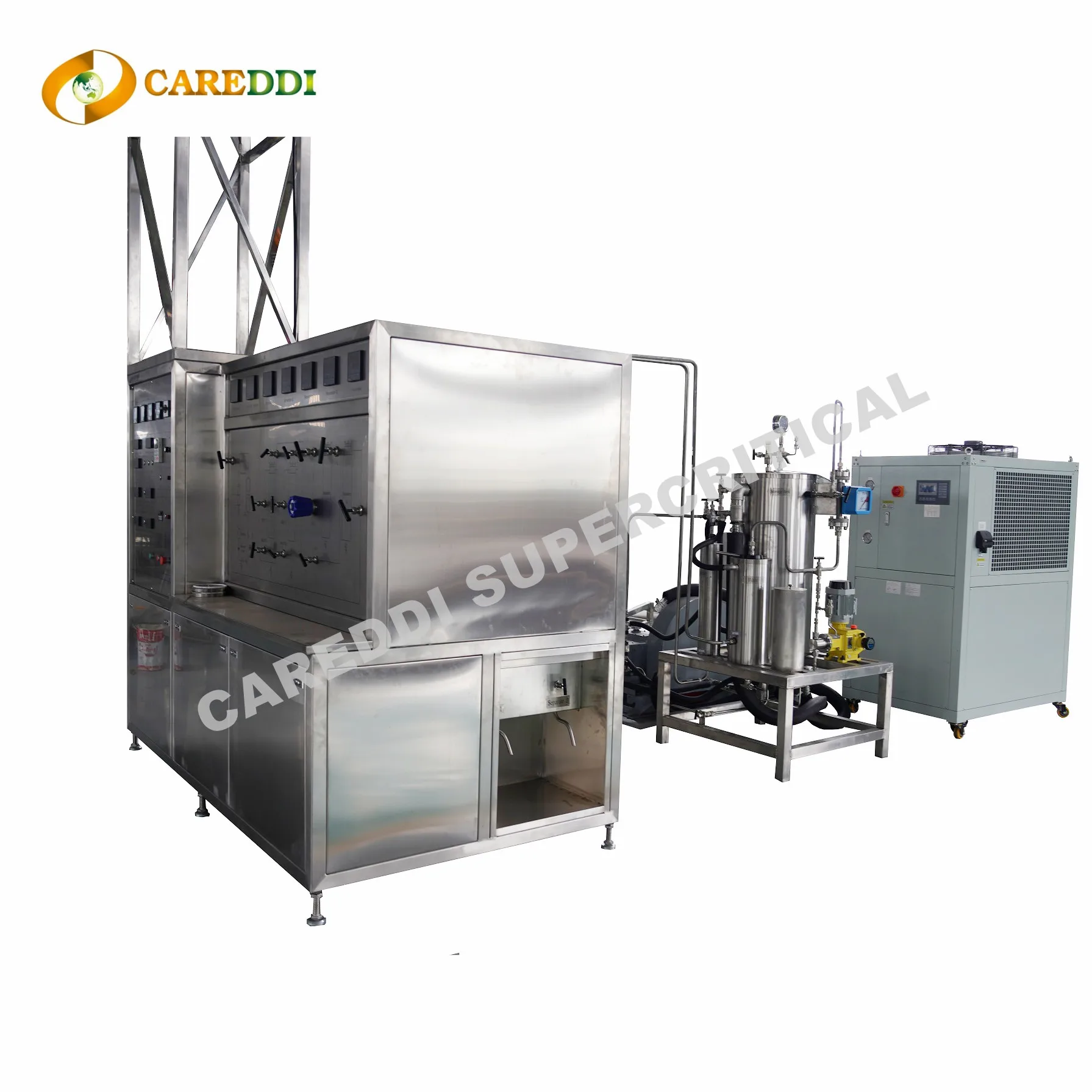

Detailed Images
