Product Overview
The machine fitted for soft IV bag packing use. It;s specially for the processing of pharmaceutical IV solutions.

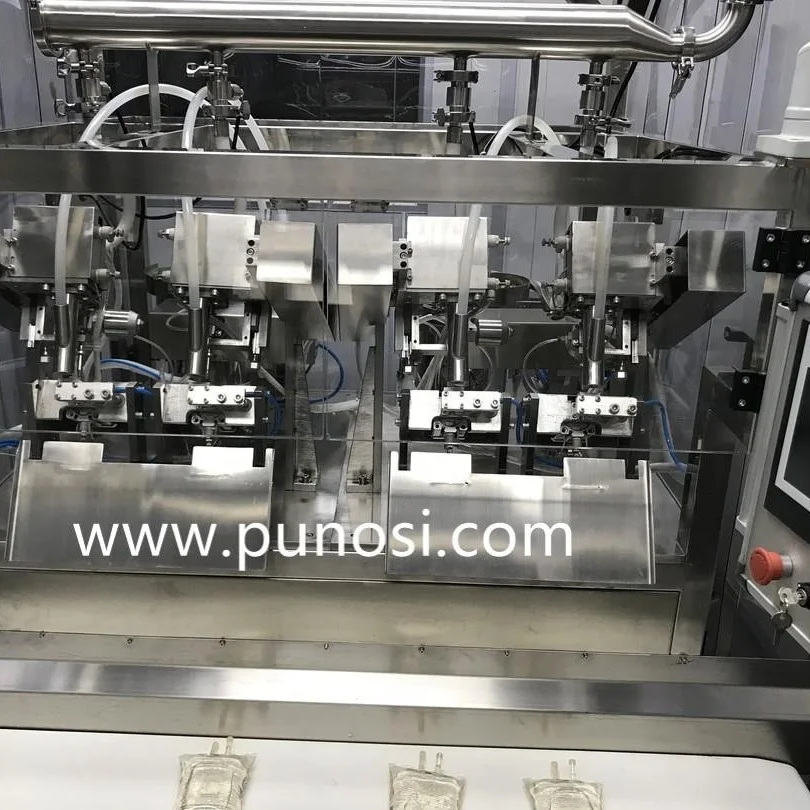

Filling-sealing Infusion bag in an automatic process.
Filling-sealing Infusion bag in an automatic process.
FEATURES AT A GLANCE

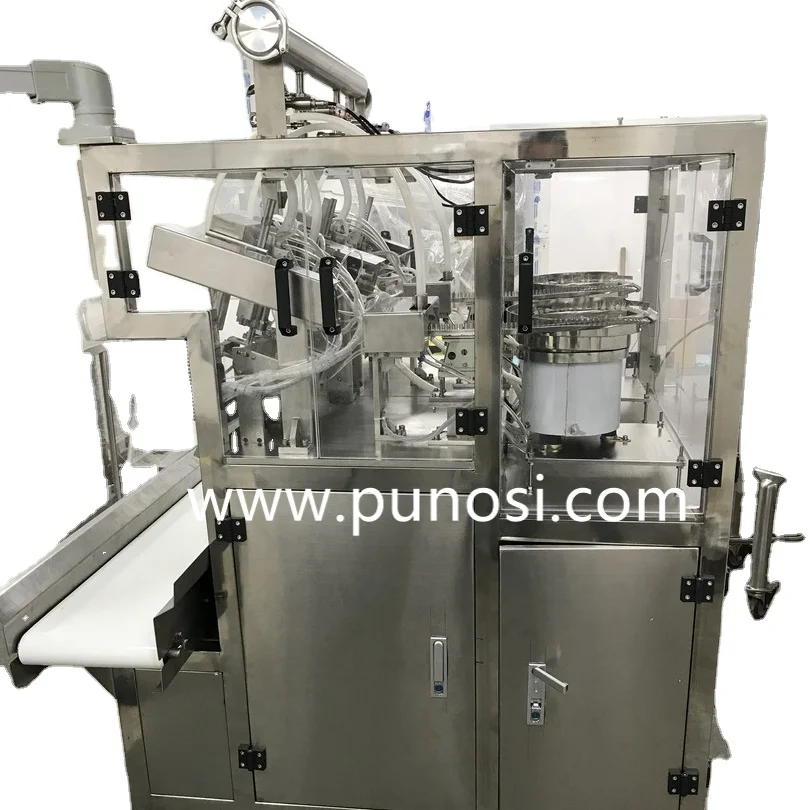

PNS-A4 IV Bag Filling Machine
Filling-sealing Infusion bag. PLC System Siemens . 220 V. 50/60 Hz, , Dosage system: flow meter. controlled by HPLC/IHM system. With clean in place CIP&SIP For steam in place; Product Infeed connections: Tri-Clamp DN34; Material of product contact parts are in stainless steel SUS 316L, with internal surface roughness RA<_0.8. Non-contact parts are in stainless steel SUS 304, HPLC/IHM System in English & Chinese language;
Right elevation
Left elevation
Front elevation
Product Paramenters
. The Main Technical Parameter:
主要技术参数：
1, Power source: AC220V, 50~60Hz
电源：220伏，50~60赫兹
2, Power input: 0.8KW. (Including Vibrating Disk)
功率：0.8千瓦 (包括振动盘)
3, Work Pressure:
Cylinder: 0.5Mpa~0.6 Mpa
Filling: ≥ 0.25Mpa~0.40Mpa
工作压力：气缸 ≥ 0.5Mpa~0.6Mpa 液体：≥ 0.25Mpa~0.40Mpa
4, Filling Capacity: 50~5000ml (Adjustable)
灌装容量范围：50~5000ml （可调节）
5, Filling Speed (with 4 Filling Heads): 2500 bags/h(500ml bag)
灌装速度(4灌装工位 )：2500袋/小时(500ml 袋)
6, Filling Accuracy: ≤±1%
灌装精度：≤±1%
7, The use of Environment: Temperature: -10 ℃~65 ℃
适用环境温度：-10 ℃~65 ℃ Humidity: ≤85% 湿度：≤85%
8, Machine net weight approximately: 600 kgs 机器净重：600 kgs
9, Whole Dimension For Machine Equipment :
. (L) 1400 × (W) 1300 × (H) 1850
机器尺寸：(L) 1400 × (W) 1300 × (H) 1850MM
主要技术参数：
1, Power source: AC220V, 50~60Hz
电源：220伏，50~60赫兹
2, Power input: 0.8KW. (Including Vibrating Disk)
功率：0.8千瓦 (包括振动盘)
3, Work Pressure:
Cylinder: 0.5Mpa~0.6 Mpa
Filling: ≥ 0.25Mpa~0.40Mpa
工作压力：气缸 ≥ 0.5Mpa~0.6Mpa 液体：≥ 0.25Mpa~0.40Mpa
4, Filling Capacity: 50~5000ml (Adjustable)
灌装容量范围：50~5000ml （可调节）
5, Filling Speed (with 4 Filling Heads): 2500 bags/h(500ml bag)
灌装速度(4灌装工位 )：2500袋/小时(500ml 袋)
6, Filling Accuracy: ≤±1%
灌装精度：≤±1%
7, The use of Environment: Temperature: -10 ℃~65 ℃
适用环境温度：-10 ℃~65 ℃ Humidity: ≤85% 湿度：≤85%
8, Machine net weight approximately: 600 kgs 机器净重：600 kgs
9, Whole Dimension For Machine Equipment :
. (L) 1400 × (W) 1300 × (H) 1850
机器尺寸：(L) 1400 × (W) 1300 × (H) 1850MM
PRODUCT CONFIGURATION
Siemens Touch Screen
Siemens PLC
Germany Pneumatic system
Successful Project
Project in Thailand
Project in Mexico
Project in Mexico
