Маленький сварочный манипулятор со сварочным патрон
- Категория: Другое сварочное оборудование >>>
- Поставщик: DEM,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 821.32 $* | 862.56 $* |
| Aug-15-2025 | 814.61 $* | 855.18 $* |
| Jul-15-2025 | 683.37 $* | 717.65 $* |
| Jun-15-2025 | 800.26 $* | 840.22 $* |
| May-15-2025 | 697.29 $* | 732.51 $* |
| Apr-15-2025 | 787.57 $* | 826.57 $* |
| Mar-15-2025 | 780.22 $* | 819.95 $* |
| Feb-15-2025 | 773.25 $* | 812.49 $* |
| Jan-15-2025 | 766.90 $* | 804.81 $* |
Характеристики
Products Description

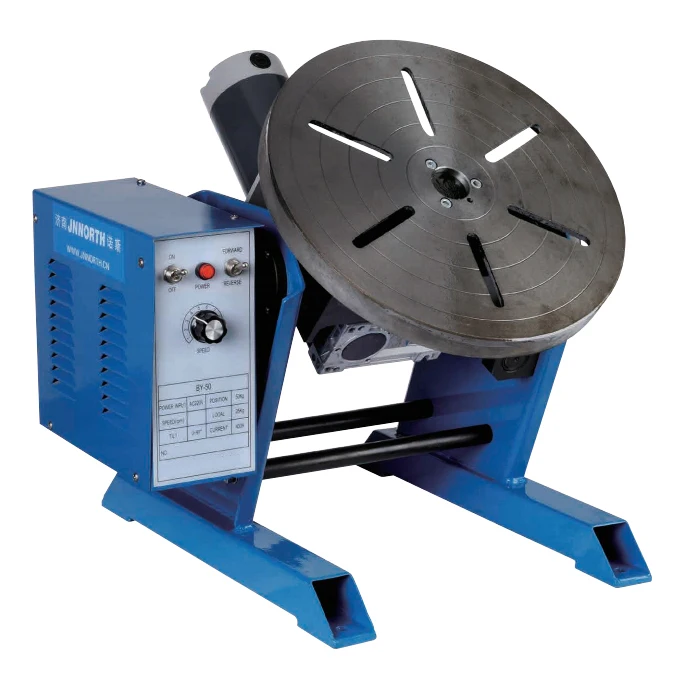

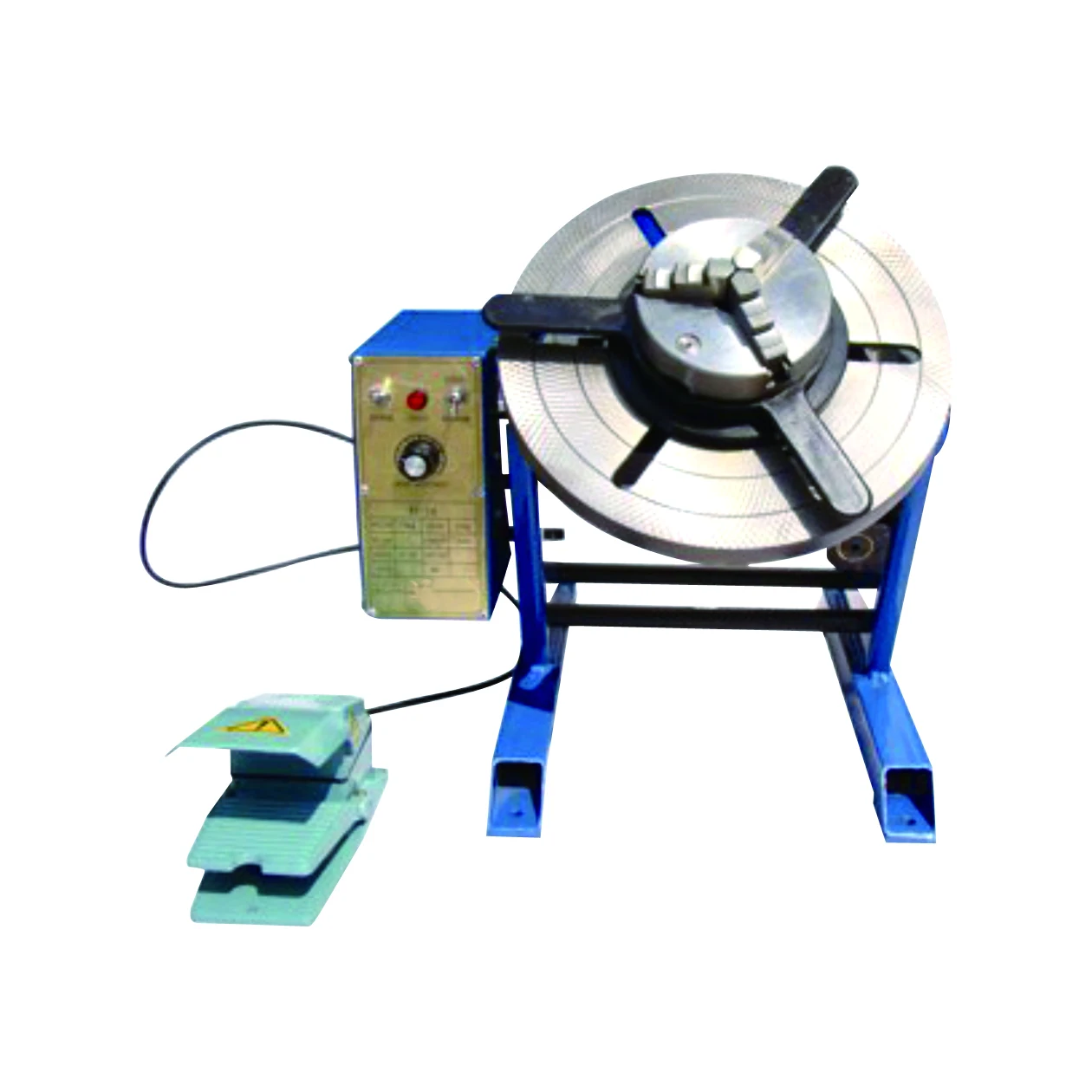

Welding Positioner is mainly used to place the workpiece in the best position for welding and assembling with the worktable elevating, rotation, tilting, which can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc, with advantages of compact volume, good appearance, light weight and easy operation. The positioner can be supplied for interfacing with robot or welding manipulators, to realize the welding automation.
Model | BY-50B |
Power Input | AC 110V/220V 50/60Hz |
Capacity(horizontal/vertical) | 50kg/25kg |
Table Dimension | 315mm |
Table Height | 375mm |
Rotation Speed | 1-7/2-15rpm |
Tilt Range | 0-90 degree |
Tilt Mode | Manual |
Rotation Motor | 80W |
Over Dimension | 430*430*380mm |

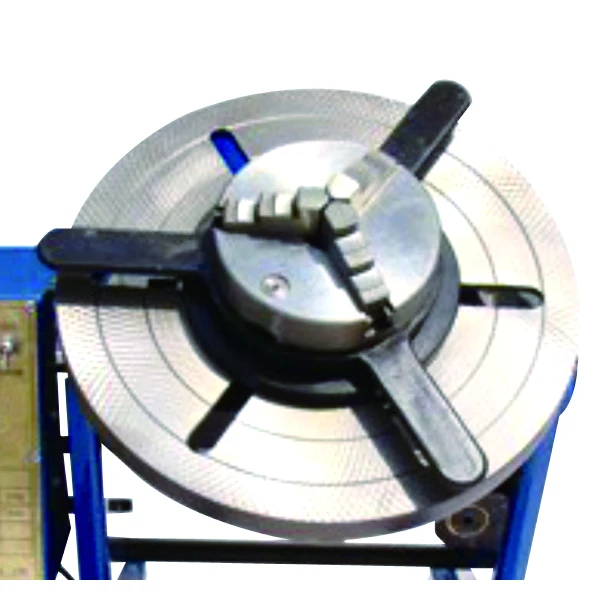

Addtional Parts | Welding Chuck |
Details Images
1.The welding positioner rotation structure is driven by the DC motor, while stepless speed regulation can be achieved.
2. The welding positioner turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90° .
3. Special anti-electromagnetic design of the welding positioners reduces the high frequency interference of TIG's welding, and improves the welding quality effectively.
4. A self-controller of the welding positioners can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
5. The adjustable-welding gun support to the welding positioners can be furnished to fix the position of the welding torch.
6. The track and air-powered tip can be furnished to the welding positioners to achieve the function of self-holding to the
workpieces.
2. The welding positioner turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90° .
3. Special anti-electromagnetic design of the welding positioners reduces the high frequency interference of TIG's welding, and improves the welding quality effectively.
4. A self-controller of the welding positioners can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
5. The adjustable-welding gun support to the welding positioners can be furnished to fix the position of the welding torch.
6. The track and air-powered tip can be furnished to the welding positioners to achieve the function of self-holding to the
workpieces.
Product packaging
Our factory
Why Choose Us
Designer, Manufacturer, Global Supplier of
Gas cutting products & Welding equipment
such as gas cutting torch welding machines and welding torches
Safer, Better and Cheaper
Choose DEM
FAQ
Q: Can I get some samples?
A: Yes, sample orders welcomed.
Q: what is the lead time?
A: the lead time is depend on your quantity, and if for the MOQ, is 15-25 days
Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available, but we need authorization.
Q: Can I choose the colors?
A: Yes, we normally have several colors optional for each item and OEM color is available on mass production.
Q: What is delivery item?
A: Prompt delivery normally for sample orders and 10-20 days for mass production.
Q: What is payment?
A: T/T, Western Union, Paypal, etc.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: May I visit your factory and office?
A: Sure, you are always welcomed! We will pick you up at the airport and station.
A: Yes, sample orders welcomed.
Q: what is the lead time?
A: the lead time is depend on your quantity, and if for the MOQ, is 15-25 days
Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available, but we need authorization.
Q: Can I choose the colors?
A: Yes, we normally have several colors optional for each item and OEM color is available on mass production.
Q: What is delivery item?
A: Prompt delivery normally for sample orders and 10-20 days for mass production.
Q: What is payment?
A: T/T, Western Union, Paypal, etc.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: May I visit your factory and office?
A: Sure, you are always welcomed! We will pick you up at the airport and station.
