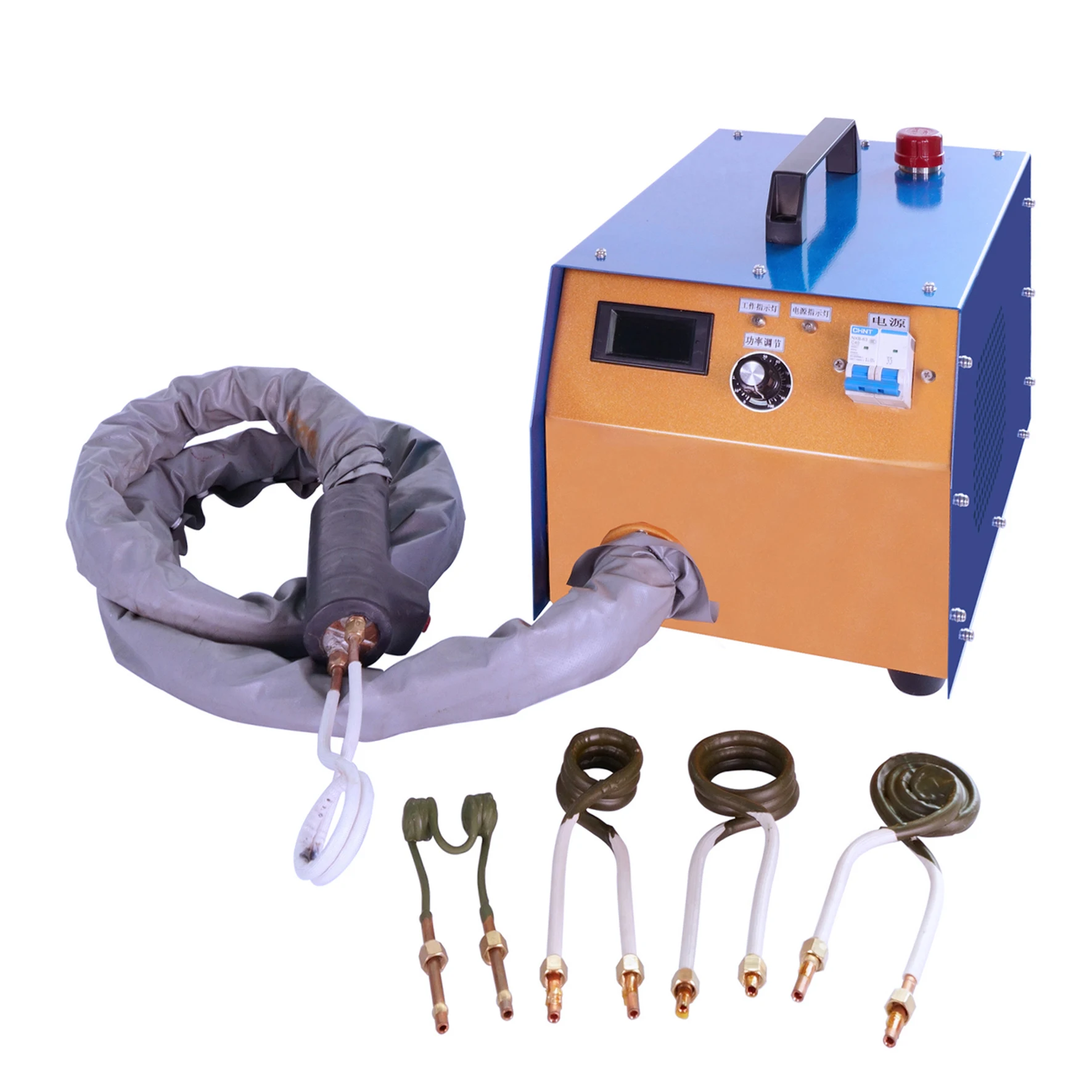

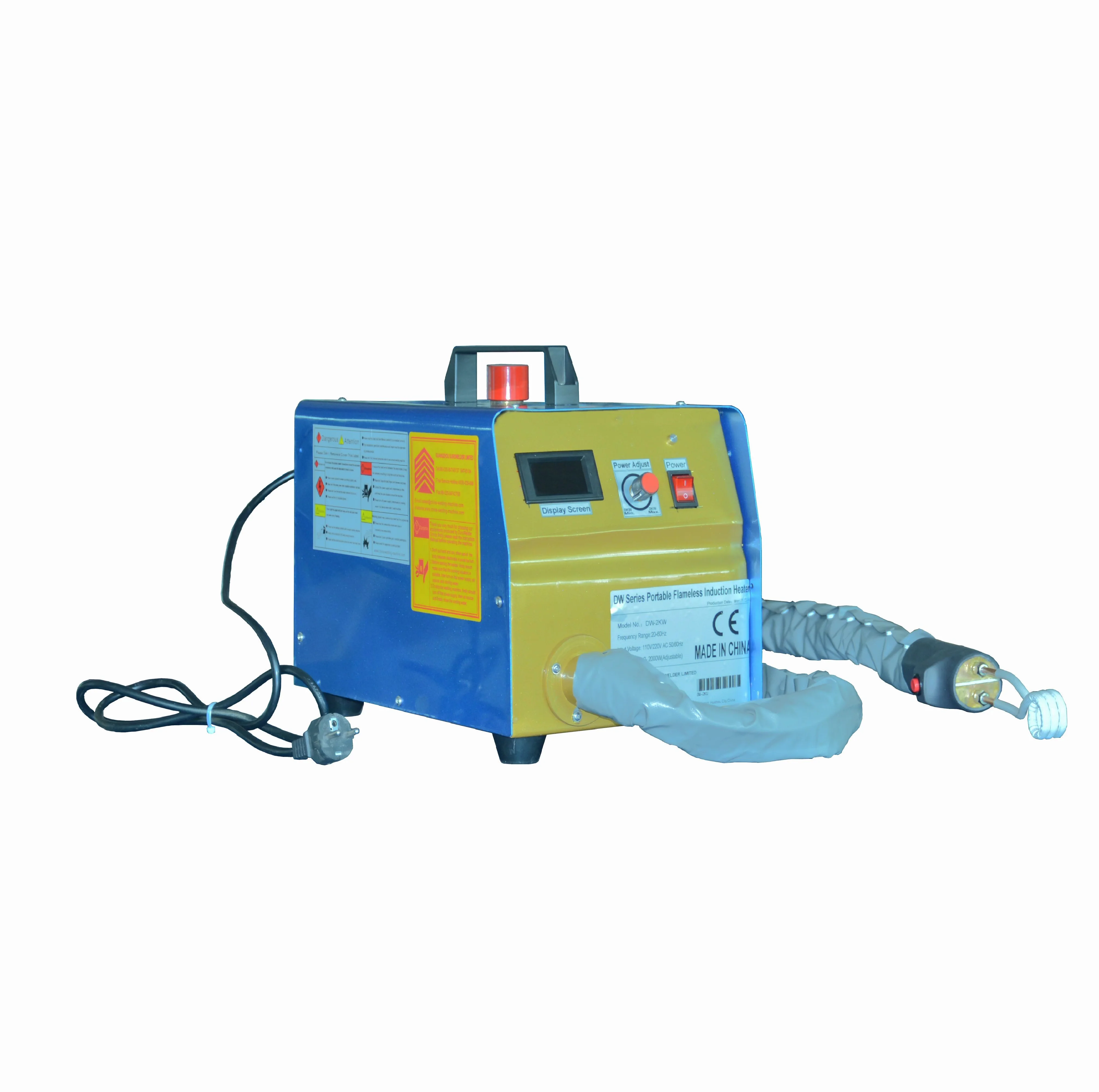

DW-2KW Series Portable Induction Heater

Heat practically any electrically conductive material: copper, aluminum, steel, stainless steel, titanium, brass, etc



Equipment Main Features and Functions

DW-2KW Portable Induction Heater is one kind of portable and mobile induction heater integrated water and air cooling system.To heat different kind of work-pieces, a wide range of coils can be used without changing the system’s set-up—simply change the coil and keep on working.

Can be used for heating and brazing various material,such as steel and copper, can also heat and solder different kind of products,such as steel round rod and flat sheet,copper and brass tube,bolts,nuts,shafts,bearings,round steel,sheet,and so on.

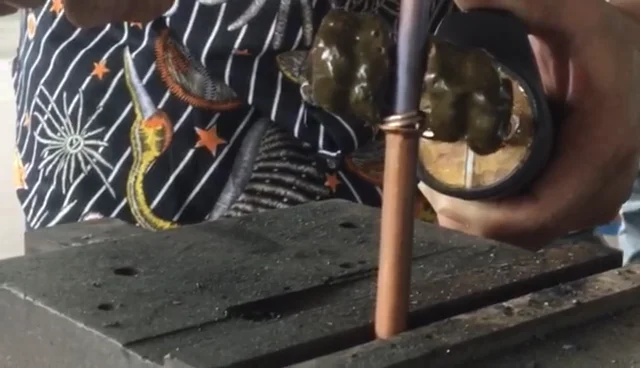

Especially used for soldering and brazing the copper tube when install the air condition,no need to use the gas fire anymore.



Main Technical Parameters



Model No. DW-2KW

Product Quality   Premium

Protection Level IP22

Product certification: CE(EMC,LVD),CCC,Rohs

Input Voltage: 220V/110V,  AC,  50/60Hz

Max Output Power :  2.5KW

Stable Output Power: 2.0KW

Output Working Frequency: 18-60kHz



Standard Induction Cable Length: 2Meter

(Length Customized,)



Built-in Water Tank Volume : 3.10Liter

(can contact bigger external water water system,)

 Plug Type H Type,B Type,G Type,E Type



Main Induction Generator

Net Weight 16KGS



Handle Induction Head

Net Weight 3KGS

Total Weight 19KGS

Total Size and Dimension L:40CM*W:25CM*H:27CM



1) Attach a coil (don't need any tape),

2) Connect supply voltage,

3) Add cooling water. In our machine with closed cooling systems.

4) Set power outputs

5) Handheld transformers feature on/off .

6)Accurately regulate power by pressing the trigger.

7)Induction heating requires a minimum of 3 mm from the workpiece
