metal door hinge making machine automatic hinges

Категория: Punching Machines >>>
Поставщик: Dongying,Besco,Machine,Tool,Limited

Цена:3 000,00 $ - 10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	3570.9 $*	3749.64 $*
Aug-17-2025	3540.51 $*	3717.12 $*
Jul-17-2025	2970.97 $*	3119.13 $*
Jun-17-2025	3480.21 $*	3654.17 $*
May-17-2025	3030.32 $*	3182.44 $*
Apr-17-2025	3420.41 $*	3591.28 $*
Mar-17-2025	3390.84 $*	3560.56 $*
Feb-17-2025	3360.10 $*	3528.92 $*
Jan-17-2025	3330.74 $*	3497.37 $*

Характеристики

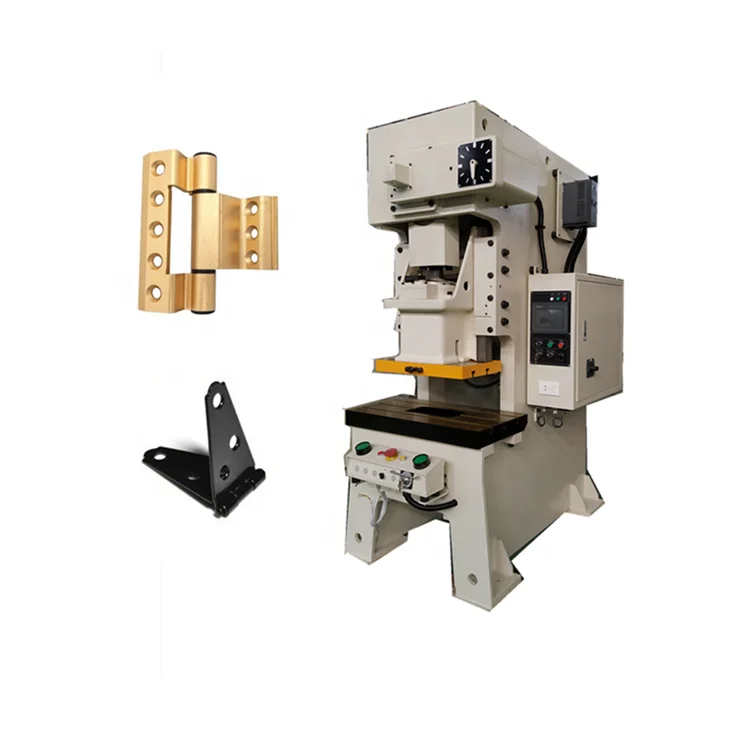

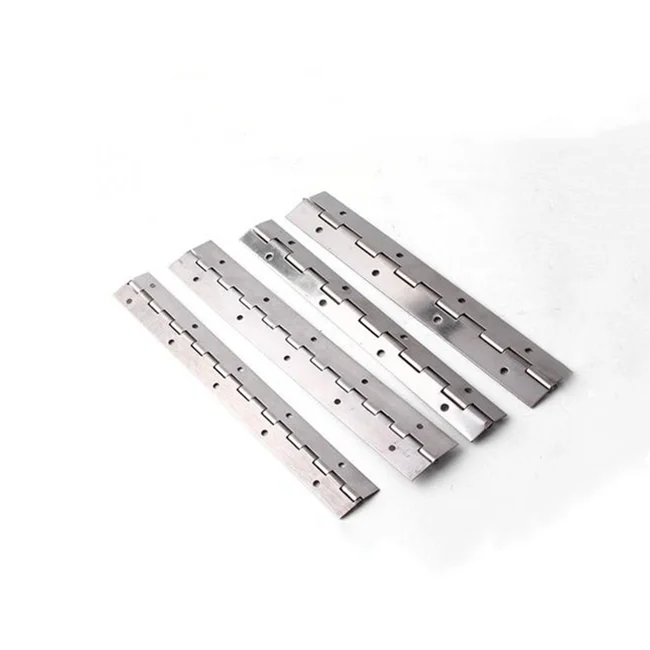

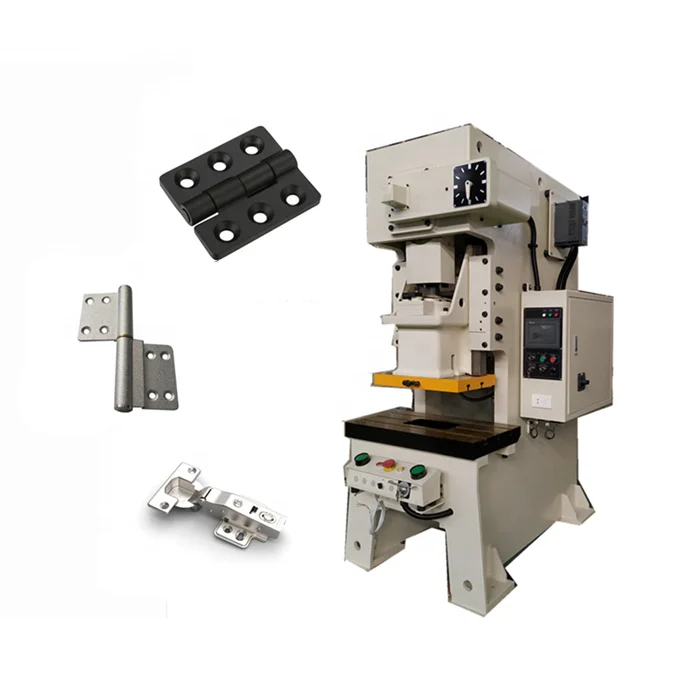

Piano hinges making machine

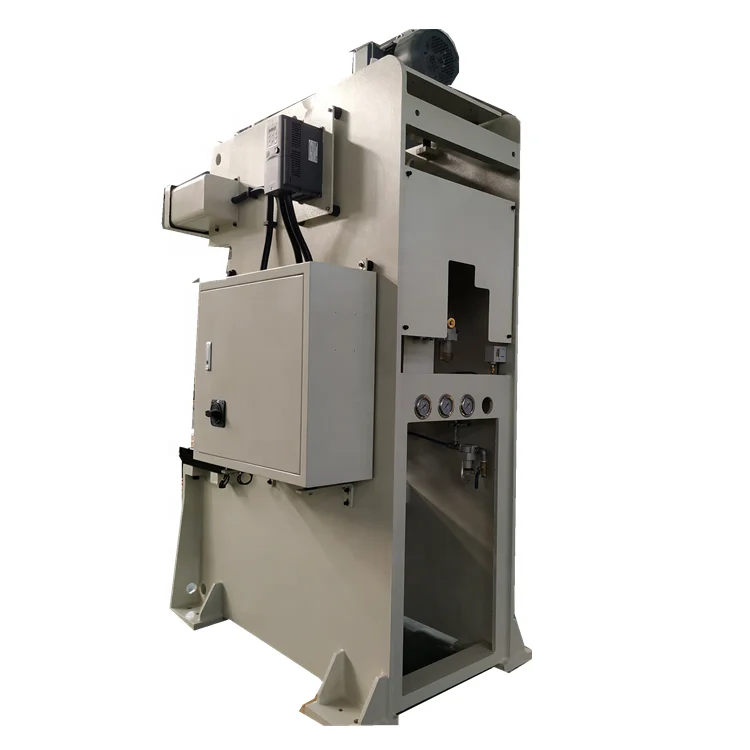

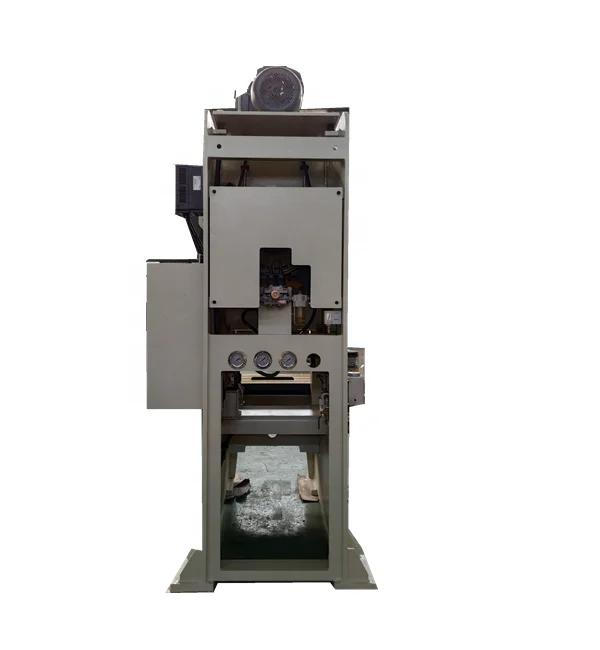

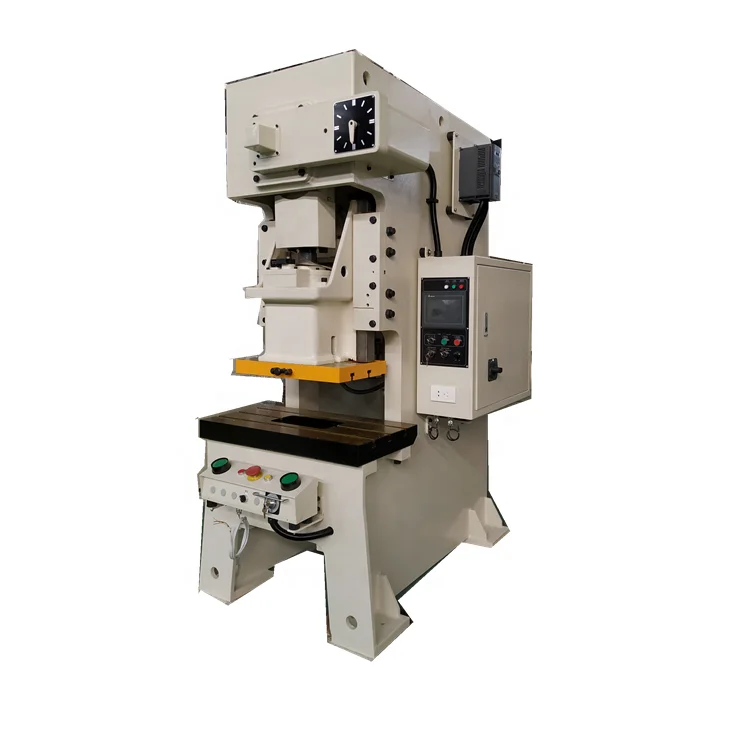

BESCO HIGH PRECISION POWER PRESS MAIN PERFORMANCE AND CHARACTERISTICS

THE HIGH-RIGIDITY BODY IS DESIGNED, THE HIGH-QUALITY STEEL PLATE IS USED FOR WELDING, AND THE STABILITY AND RELIABILITY OF THE
PRECISION OF THE WHOLE MACHINE ARE HIGH BY RELIEVING THE INTERNAL STRESS:

Ⅰ. THE PRECISION MACHINING IS HIGH, THE NOISE IS LOW, AND THE COMPREHENSIVE CLEARANCE IS LOW;
II. THE SYMMETRICAL SIX- -FACE LONG GUIDE RAIL OF THE SLIDING BLOCK IS USED FOR GUIDING, SO THAT PRECISION IS HIGH, AND THE
OPERATION IS STABLE;
III. THE ADJUSTMENT OF THE MOLD HEIGHT IS PRECISION, SAFE, CONVENIENT AND RELIABLE.

Parameters

Specification	unit	BLA-25	BLA-35	BLA-45	BLA-60	BLA-80	BLA-110
Capacity	ton	25	35	45	60	80	110
Speed changing	s.p.m	60-140	40-120	40-100	35-90	35-80	30-60
Stroke	mm	70	70	80	120	150	180
Die height	mm	195	220	250	310	340	360
Slide adjustment	mm	50	55	60	75	80	80
Main motor	kw.p	3.7*4	3.7*4	5.5*4	5.5*4	7.5*4	11*4
Dimension	mm	12808002200	13809002400	16009502500	160010002800	180011802800	190013003200
Weight	kg	2100	2300	3800	5600	6500	9600
Die cushion effective area	mm2	300*230	300*230	300*230	350*300	450*310	500*350

BLA SERIES HIGH PRECISION POWER PRESS MAIN FEATURES

Besco BLA series power press is high precision punching machine , this model has better precision and efficiency than traditional JF SERIES punching machine.

VERTICAL CRANKSHAFT, COMPACT STRUCTURE, CRANKSHAFT AFTER FORGING HIGH-FREQUENCY QUENCHING GRINDING, SMOOTH FINISH, FLEXIBLE ROTATION; RECTANGULAR SIX-SIDE EXTENSION OF THE GUIDE, HIGH PRECISION GUIDE, THE UPPER TABLE AND THE SLIDER WITH A SCREW CONNECTION.

Pneumatic Clutch

Electric control cabinet

FREQUENCY CONVERTER

LUBRICATION SYSTEM

1, auto punching line (decoiler+straightener+feeder+punch press+mould)

The most important machine for the production line, for stamping forming . Working with moulds.

2.Drilling Chamfering Machine

3,Edge milling machine

4, Semi-automatic polishing machine

Export Package

Besco Machinery Tool Limited

Besco Machinery Tool Limited is professional on manufacturing mechanical power press, pneumatic power press, hydraulic press, press brake, shearing machine, plate bending and rolling machine, profile bending and rolling machines, cut to length and slitting line, etc.
We have 18 years experience on manufacture metal working machines and we export our machines to all the worldwide market and have the best response from customers.
We will offer you our best quality machine and the after sale service.

GUARANTY PERIOD
One year free , a lifetime warranty after-sale support .

GUARANTY COVERS
Main parts of the machine , wearing parts not included .

PARTS DELIVERY
Within 5 days by DHL / Fexed .

TECHNOLOGY SUPPORT
Techanicans are available for oversea service .

INSTALLATION & COMMISSIONING
Seller can arrange the techanicals to do the installation for buyer if it is necessary.
