Заводская цена гидравлический металлообрабатывающий штамповочный станок Q35Y
- Категория: Machine Tool Equipment >>>
- Поставщик: Nanjing,Jinqiu,CNC,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 3927.33 $* | 4123.16 $* |
| Aug-20-2025 | 3894.89 $* | 4089.97 $* |
| Jul-20-2025 | 3267.90 $* | 3430.97 $* |
| Jun-20-2025 | 3828.6 $* | 4019.28 $* |
| May-20-2025 | 3333.85 $* | 3500.43 $* |
| Apr-20-2025 | 3762.97 $* | 3950.18 $* |
| Mar-20-2025 | 3729.6 $* | 3915.49 $* |
| Feb-20-2025 | 3696.62 $* | 3881.83 $* |
| Jan-20-2025 | 3663.52 $* | 3846.77 $* |
Характеристики
Product Description

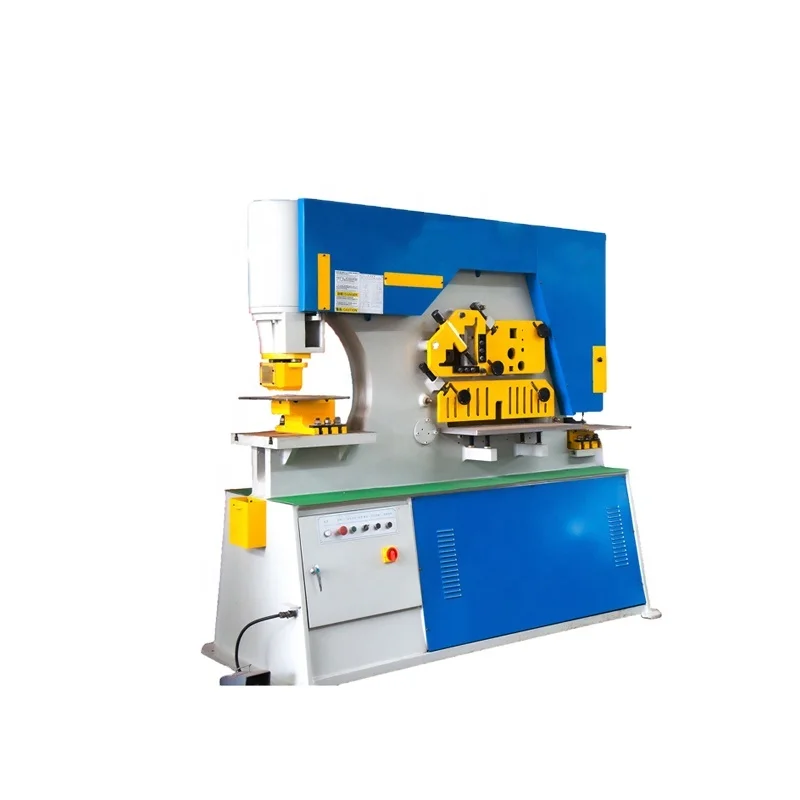

Q35Y Series Hydraulic Ironworker
Model: Q35Y-12
Model: Q35Y-12
Main functions and features
- Double cylinders hydraulic punch & shear machine
- Five independent stations for punch, shear, notcher, section cut
- Large punch table with multi-purpose bolster
- Removable table block for overhang channel / joist flange punching applications
- Universal die bolster, easy change punch holder fitted, punch adapters supplied
- Angle, round & square solid monoblock crop station
- Rear notching station, Low power inching and adjustable stroke at punch station
- Centralised pressure lubrication system
- Electric panel with overload protaction elements and ingetrated controls
- Safety movable foot pedal.
- Five independent stations for punch, shear, notcher, section cut
- Large punch table with multi-purpose bolster
- Removable table block for overhang channel / joist flange punching applications
- Universal die bolster, easy change punch holder fitted, punch adapters supplied
- Angle, round & square solid monoblock crop station
- Rear notching station, Low power inching and adjustable stroke at punch station
- Centralised pressure lubrication system
- Electric panel with overload protaction elements and ingetrated controls
- Safety movable foot pedal.
Technical Parameters
Model | Q35Y-12 |
Punching Pressure (T) | 35 |
Max. cutting thickness of sheet plates (mm) | 12 |
Material strength (N/mm²) | ≤450 |
Angle of Shear (°) | 7° |
Flat bar shearing (T*W)(mm) | 12*300 |
Max. length of cylinder stroke (mm) | 35 |
Trips frequency (times/min) | 10-18 |
Depth of throat (mm) | 115 |
Max. punching diameter (mm) | 25 |
Motor power (KW) | 4 |
Overall dimensions (L*W*H)(mm) | 950*550*1800 |
Weight(kg) | 1200 |
Types of profiled steel for shearing (If you want Joist or Channel, need special order)

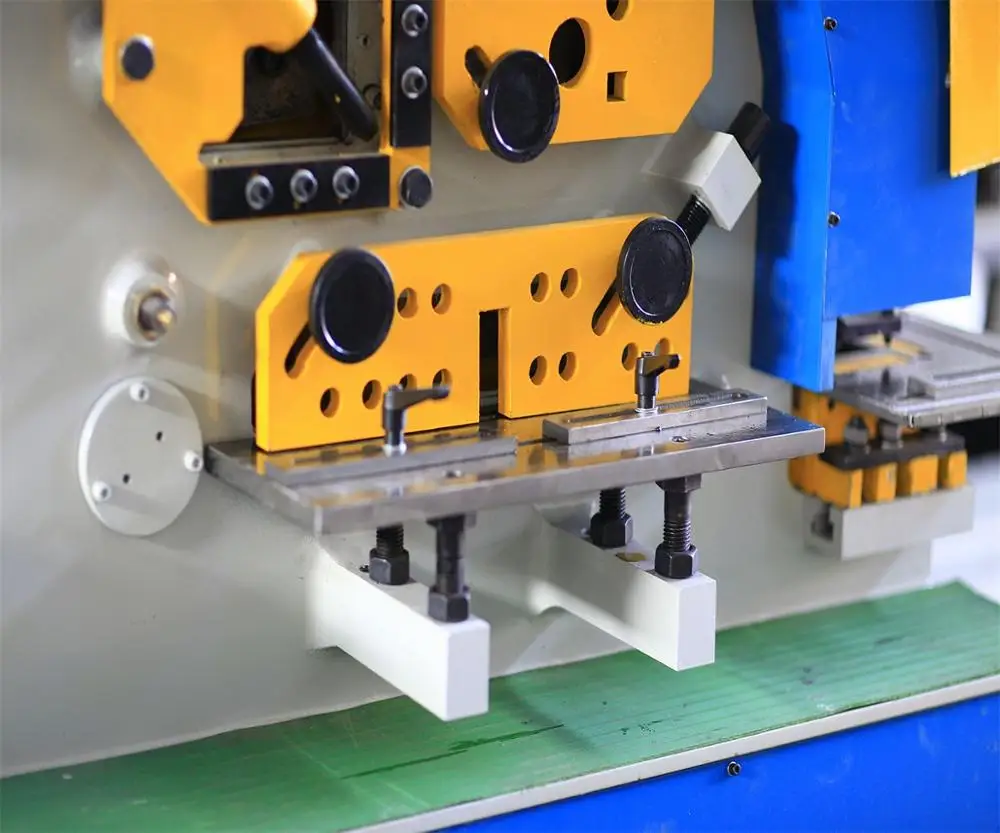

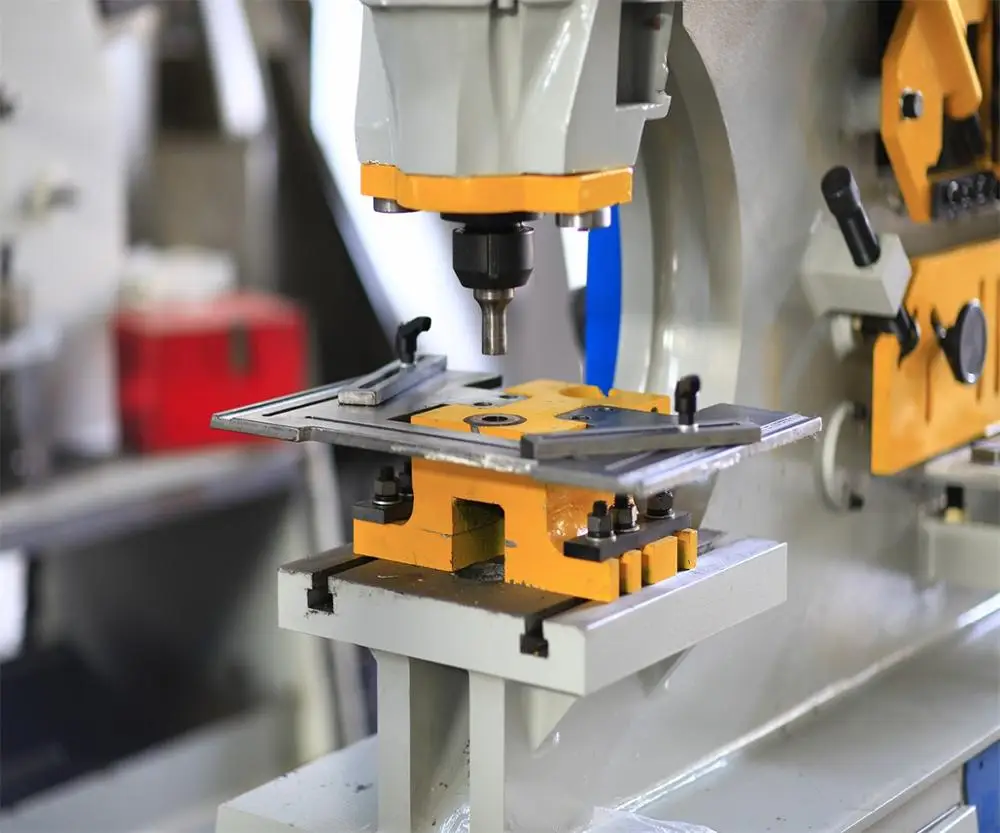

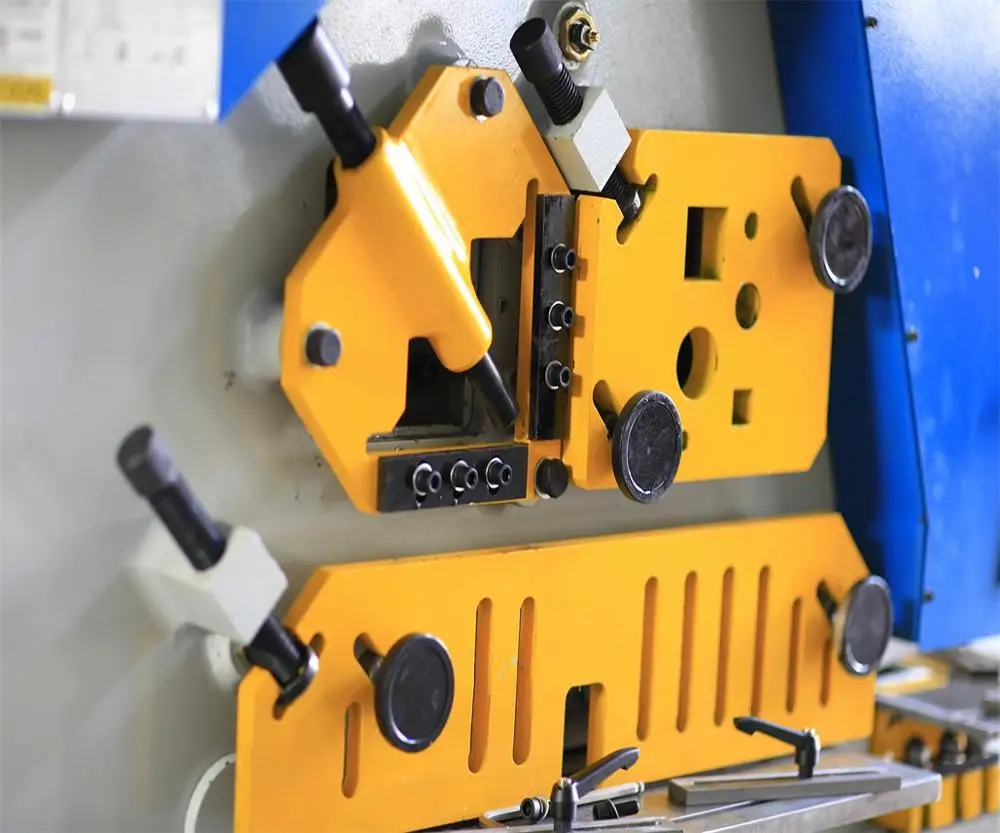

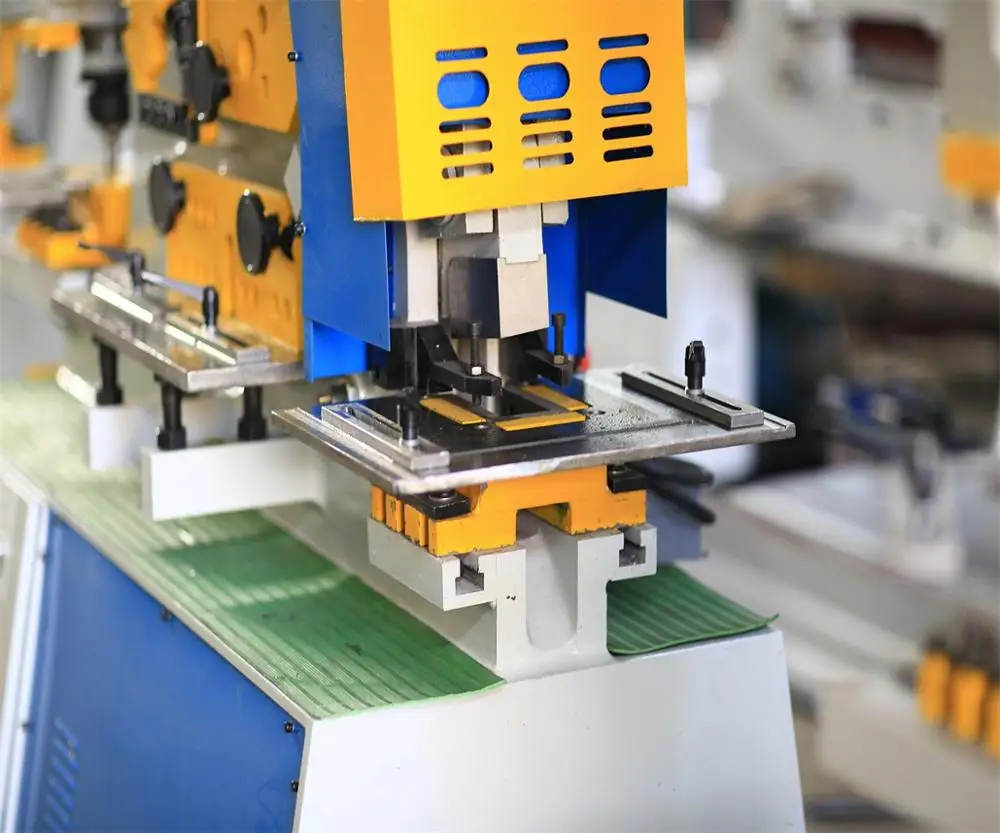

Detailed Images
===Features===
It adopts hydraulic driving system andis the latest punching and shearing machine in our country, Various metal plates, square steel, Round steel, angle steel, channel steel and I-iron can be cut, punched and notched by this machine. It is also equipped with a stop device for cutting.
STANDARD ACCESSORIES
Standard accessories of hydraulic iron worker
A Hydraulic Iron worker
Includes: 1 set punch and die
1 set round and square blade and model
1 set angle blade and model
1 set plate steel blade and model
1 set notch punch and die
A Hydraulic Iron worker
Includes: 1 set punch and die
1 set round and square blade and model
1 set angle blade and model
1 set plate steel blade and model
1 set notch punch and die
Packing&Shipping
Shearing machine is usually packaged in plastic film,if you need other packaging,we can also meet you.
Our Service
Pre-sales services:
1. inquiry and consulting support
2. sample testing support
3. visit our factory
2. sample testing support
3. visit our factory
After-sales services:
1. 2 years warranty period
2. training how to install and use the brake press machine
3. engineers available to service machinery overseas
2. training how to install and use the brake press machine
3. engineers available to service machinery overseas
Certifications
The Global Market
