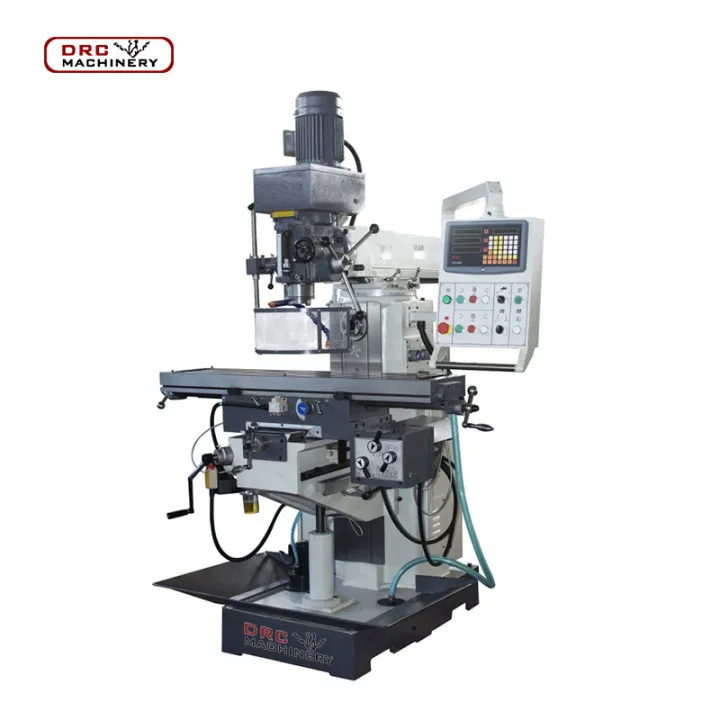

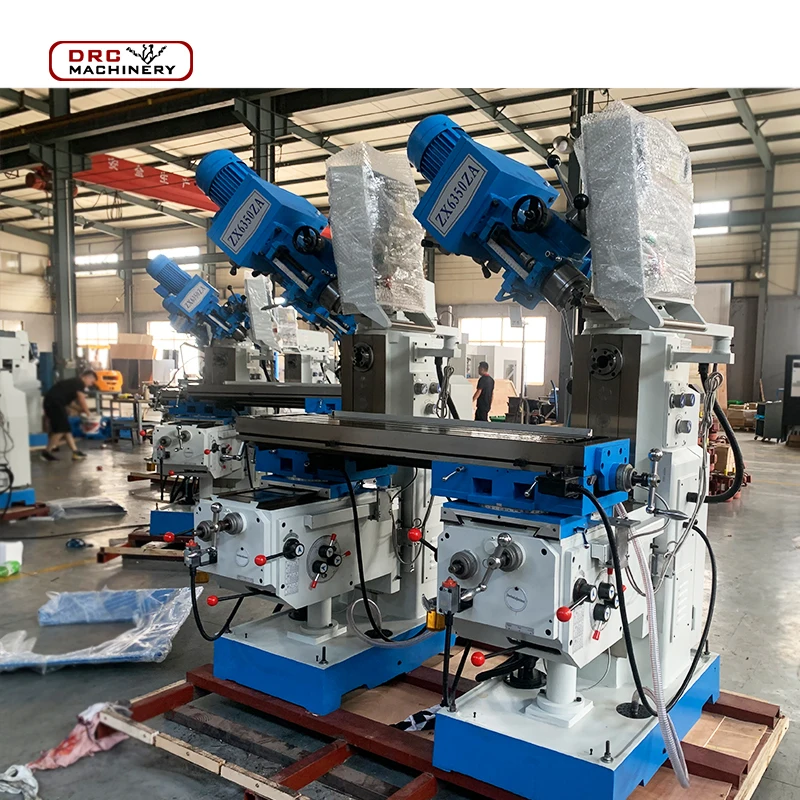

Cheap Vertical Milling Machine ZX6350 Fresadora Manual

Cheap Vertical Milling Machine ZX6350 Fresadora Manual

Категория: Machine Tool Equipment >>>
Поставщик: Dalian,R&c,Machinery,Co.,Ltd.

Цена:4 500,00 $ - 5 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	5355.44 $*	5623.84 $*
Aug-15-2025	5310.1 $*	5576.30 $*
Jul-15-2025	4455.89 $*	4678.48 $*
Jun-15-2025	5220.87 $*	5481.49 $*
May-15-2025	4545.87 $*	4772.45 $*
Apr-15-2025	5130.86 $*	5387.92 $*
Mar-15-2025	5085.94 $*	5339.91 $*
Feb-15-2025	5040.66 $*	5292.2 $*
Jan-15-2025	4995.10 $*	5245.65 $*

Характеристики

Introduction
Milling, drilling, tapping, boring, reaming
Head swivels or tilts
Micro feed precision
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Adjustable gibs on table
Geared drive lower noise
Accurate position, strong rigidity, strong cutting power

Specification	ZX6350C	ZX6350Z	ZX6350ZA
Max.drilling dia	Φ50/Φ30mm	Φ50/Φ30mm	Φ50/Φ30mm
Spindle taper	ISO30,ISO40,R8, MT4
Max.vertical milling dia	25mm
Max boring dia	120mm
Distance spindle to table surface	100-480mm	140-490mm	80-460mm
Spindle speeds range(V/H)	115-1750rpm 40-1300rpm	90-2000rpm 38-1310rpm	90-2000rpm 40-1300rpm
Spindle travel	120mm
Table size	1120×280mm	1120×280mm	1250×320mm
Table travel	600×260mm	600×260mm	600×300×430mm
Main motor power(V/H)	0.85/1.5,2.2kw	2.2,2.2kw	1.5,2.2kw
Packing size	1400×1630×2350mm	1400×1630×2350mm	1680×1480×2250mm
N.W/G.W	1200kg/1350kg	1200kg/1350kg	1450kg/1560kg

Standard Accessories:
coolant system, milling chuck, worling lamp, parallel vise QH160mm,
oil tray, wrench, reduction sleeve ,
horizontal milling bar
drill chuck, draw bar

Optional Accessories

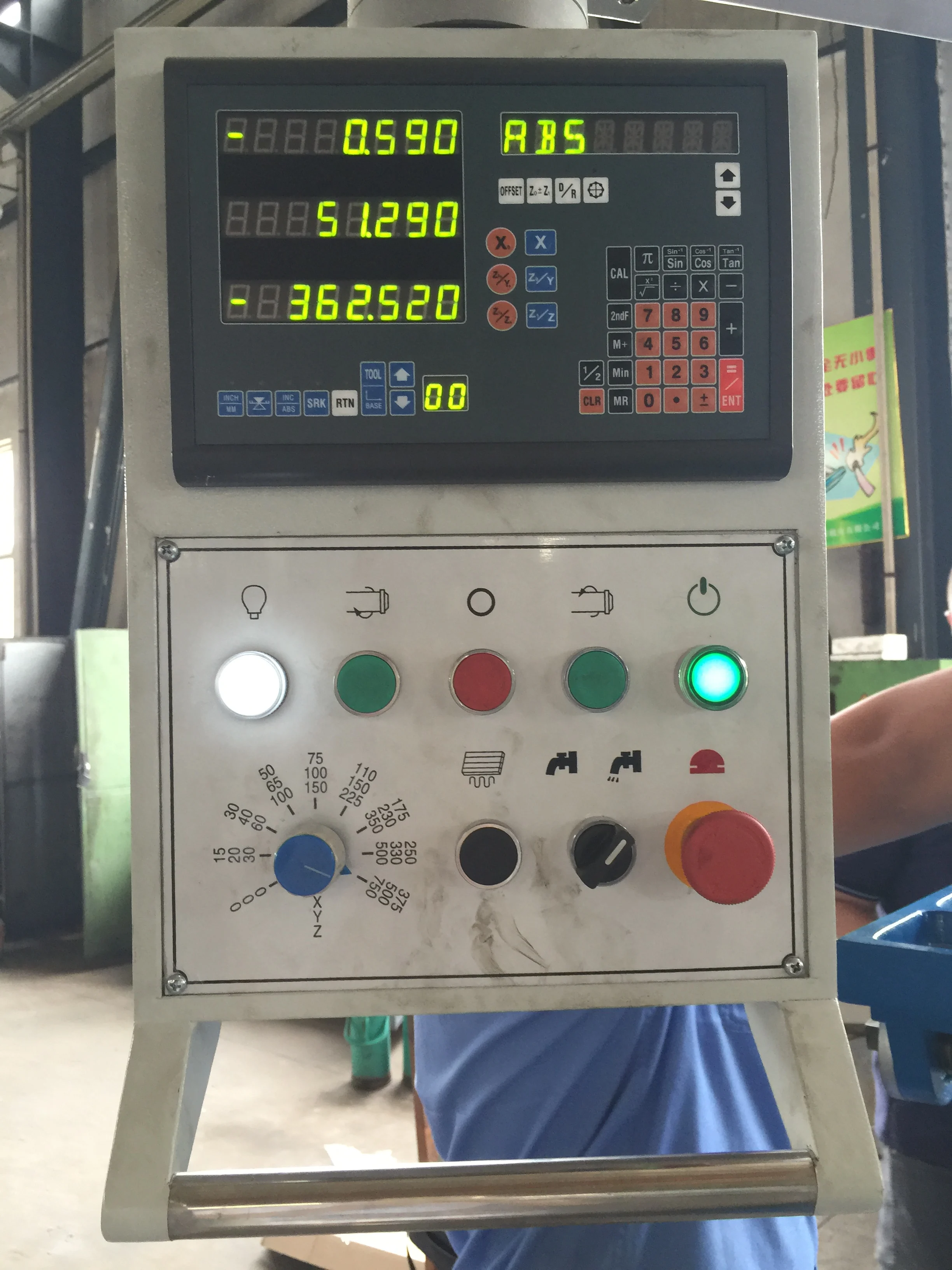

3-axis DRO58 pcs clamping kit
Dividing head
Rotary table
Spindle protection
CE Electrical part
