Характеристики

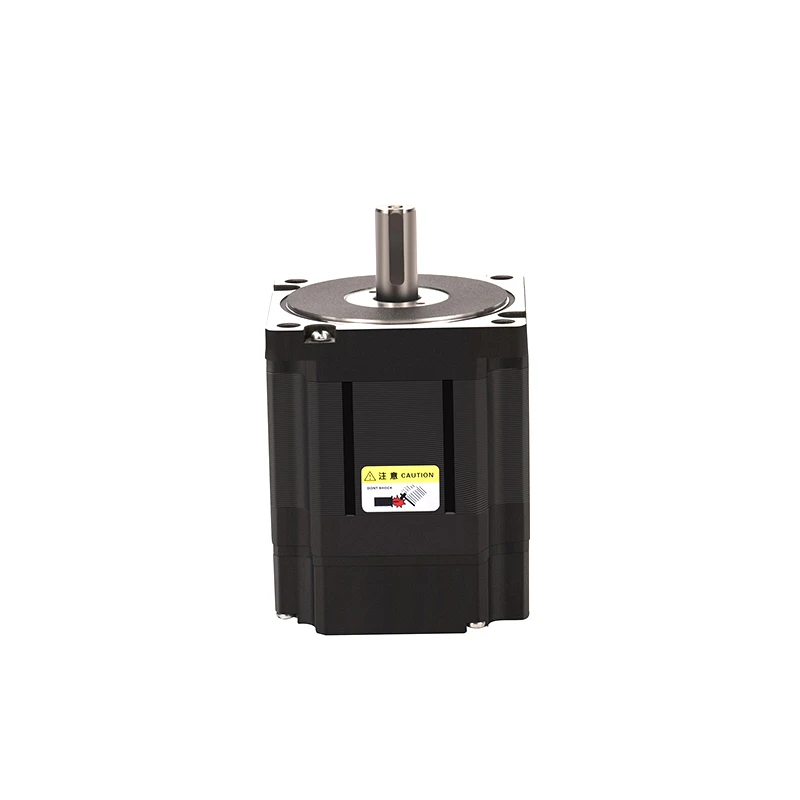

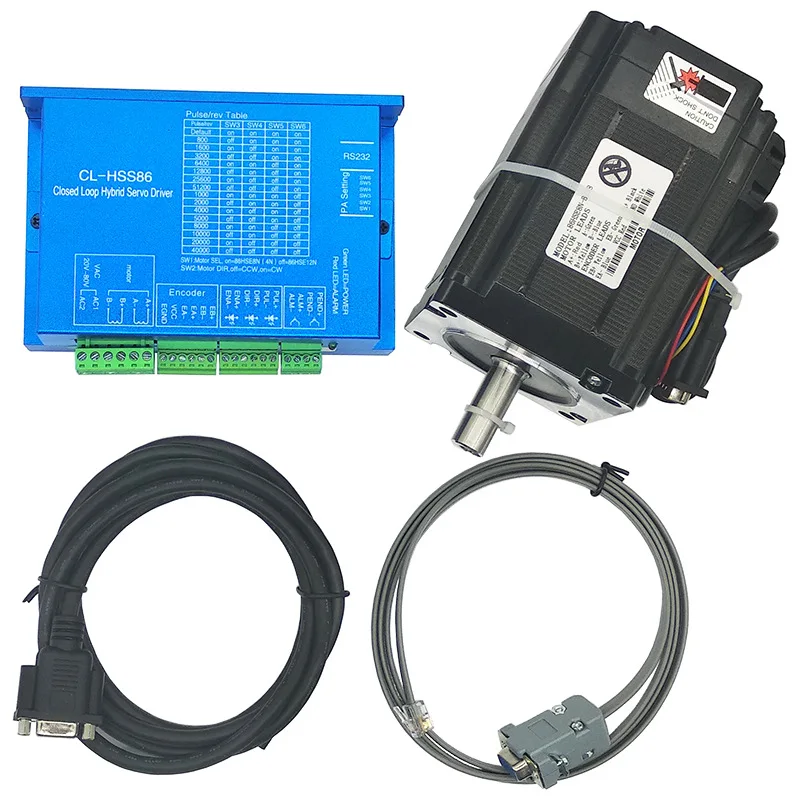

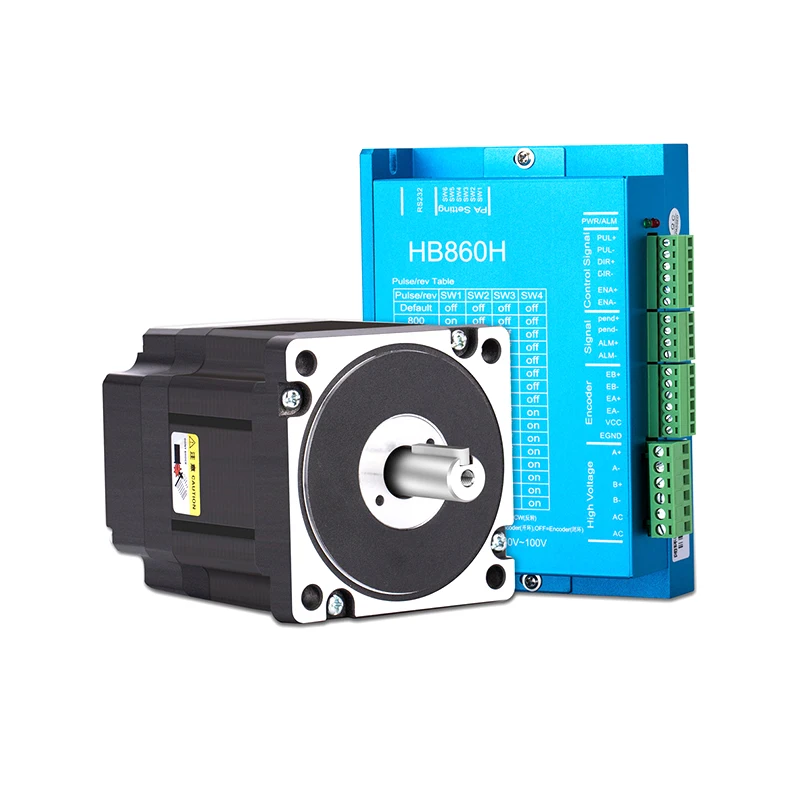

Lunyee 86HSE NEMA34 4.5N.m Closed Loop Servo Stepping Motor and Programable Driver
Product Description
Features:
1. Position error correction and never lose steps.
2. Quick response and perfect acceleration, high torque at high speed.
3. Automatic current adjustment based on load,lower temperature rising.
4. Over-current, over-voltage and position ultra difference protection function.
5. Pulses response frequency can reach 200KHZ.
6. 16 kinds microsteps choice, highest 51200microsteps/rev.
7. Drive nema 34 series 4.5N.m,8N.m,12N.m closed loop stepper motor.
8. Volteage range: AC20V-80V,DC30V-110V.
Motor Electrical Parameters:
| Motor Model | 86HSE4N-BC38 |
| Current | 6A |
| Resistance | 0.45±10%Ω |
| Inductance | 3.7±20%mH |
| Encoder Resolution | 1000ppr |
| Holding torque | 4.5N.m |
| Motor Length | 82mm |
| Suitable driver | HSS86 |
Motor Dimensions:(unit=mm)
Torque/Frequency Curve:
Driver Dimensions:
Microstep selection:
| Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
| Default(400) | on | on | on | on |
| 800 | off | on | on | on |
| 1600 | on | off | on | on |
| 3200 | off | off | on | on |
| 6400 | on | on | off | on |
| 12800 | off | on | off | on |
| 25600 | on | off | off | on |
| 51200 | off | off | off | on |
| 1000 | on | on | on | off |
| 2000 | off | on | on | off |
| 4000 | on | off | on | off |
| 5000 | off | off | on | off |
| 8000 | on | on | off | off |
| 10000 | off | on | off | off |
| 20000 | on | off | off | off |
| 40000 | off | off | off | off |
Wiring Diagram:
Packaging & Shipping
Packing Detail:
1.Inside:Plastic bags with Chemical Desiccant For Motor.
2.Middle:Each case is lined with foam plastics in order to protect the goods against press.
3.Outside:Wooden Box.
Shipping:
According to customer's needs,the methods can be selected.
Our Services
Quality comes from details:
1.The shape of the output shaft of the motor can be customized
2.Single and double shafts can be customized
3.Accessories can be retrofitted: brakes, encoders, etc.
A satisfying one-stop service comes from our continuous innovation team
and our rigorously-inspected sub-contracters!
Wide range of applications:
Our products are widely applied to machine tools, engraving machine,stage lighting equipment,
packing machine,food machine, medical instruments,music fountain and so on!
Company Information
FAQ
Q1: Can I have customized stepper motors?
A: Of course, you can.
Q2:What kind of payment methods do you accept?
A:We can accept PayPal,T/T,Western Union,L/C.
Q3:What's the delivery time?
A:It usually takes about 7 working days
Q4:Do your products come with warranty?
A:We offer different warranty terms for different products.
Q5:How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
And every product will be fully assembled and carefully tested before packed.
Q6:How shouled we choose motor?
A:You can contract us.Customer satisfaction is the purpose of our service, and customer trust is our eternal pursuit
